What is the Porsche 996 carbon canister part number?

The PET page lists several carbon canister part numbers: 996 201 221 03 (M 660), 996 201 221 09, 996 201 221 06 (M 664, -98), and 996 201 221 07 (M 664, 99-). The correct one depends on model year and equipment code.

What part number is the shut-off valve on the 996 carbon canister assembly?

Position 6 lists shut-off valve part number 996 605 201 01, quantity 1, for M 660.

What vent line part numbers are shown for the 996 carbon canister?

Position 3 shows vent line 996 201 255 07 (qty 1) and alternate 996 201 255 06 (qty 1, M 660).

What hardware attaches the valve housing on M 664 cars?

The table lists oval-head screw 999 919 190 02 (qty 1) and hexagon-head bolt AM 8 X 35, part 900 378 154 09 (qty 2), plus grommet 996 201 551 00 and clip 996 201 555 00, all for M 664.

Home/ Registry/ Porsche/ Carrera/ 2000 Porsche Carrera/ Photo supermotors.net/registry/media/808577

Porsche 996 Carbon Canister (EVAP) Exploded Parts Diagram & Part Numbers - PET

Porsche PET parts catalog page with exploded component drawing and numbered part-number list

‹ ›

Porsche parts catalog page showing an exploded assembly drawing alongside a numbered part-number listing.

AI caption June 2010 · Photo 50 of 109

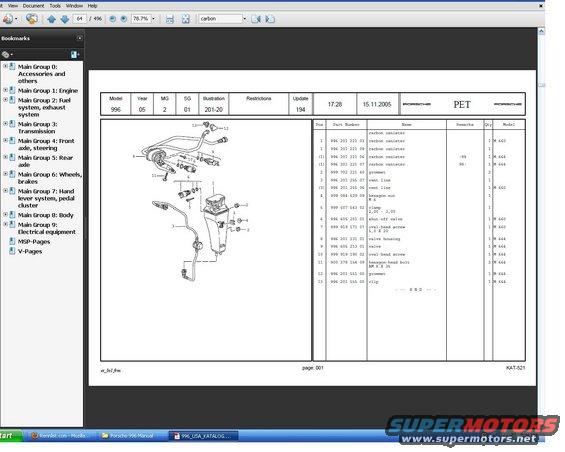

This is a screenshot of a page from the Porsche PET (electronic parts catalog) for the Porsche 996, Main Group 2 (Fuel system, exhaust system), Sub Group 01, Illustration 201-20, dated 15.11.2005 (Update 194). The page covers the carbon canister (EVAP charcoal canister) assembly. It pairs an exploded diagram with a parts table listing 13 numbered positions, giving factory part numbers, names, remarks, quantities, and equipment/model codes (M 660 and M 664). Listed parts include multiple carbon canister variants (996 201 221 03 / 09 / 06 / 07, the latter two split by model year -98 and 99-), grommets, vent lines (996 201 255 07 / 06), a hexagon nut M 6, a clamp (2,00-3,00), a shut-off valve (996 605 201 01), a valve housing (996 201 231 01), a valve (996 605 213 01), oval-head screws, a hexagon-head bolt AM 8 X 35, a grommet, and a clip. A reader can identify the correct evaporative emissions canister and related hardware part numbers for their 996 depending on model year and equipment code, and see how the components assemble via the exploded illustration callouts.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the Porsche 996 carbon canister part number?: The PET page lists several carbon canister part numbers: 996 201 221 03 (M 660), 996 201 221 09, 996 201 221 06 (M 664, -98), and 996 201 221 07 (M 664, 99-). The correct one depends on model year and equipment code.
What part number is the shut-off valve on the 996 carbon canister assembly?: Position 6 lists shut-off valve part number 996 605 201 01, quantity 1, for M 660.
What vent line part numbers are shown for the 996 carbon canister?: Position 3 shows vent line 996 201 255 07 (qty 1) and alternate 996 201 255 06 (qty 1, M 660).
What section of the Porsche PET catalog is this diagram from?: It is Model 996, Main Group 2 (Fuel system, exhaust system), Sub Group 01, Illustration 201-20, Update 194, dated 15.11.2005.
What hardware attaches the valve housing on M 664 cars?: The table lists oval-head screw 999 919 190 02 (qty 1) and hexagon-head bolt AM 8 X 35, part 900 378 154 09 (qty 2), plus grommet 996 201 551 00 and clip 996 201 555 00, all for M 664.
