What amperage is the wiper fuse on this Toyota Land Cruiser fuse panel?

The WIPER fuse is 20A according to the fuse box cover legend.

What size are the headlight fuses?

Both HEAD RH and HEAD LH fuses are 10A each.

What circuit breakers are in this fuse box?

Two 30A circuit breakers: one for the HEATER circuit and one for the POWER circuit. The installed breaker is marked DC12/24V 30A with part number 82650-200x1.

What fuse protects the rear defogger?

The DEFOG circuit uses a 20A fuse.

What spare fuses does the panel include?

The legend lists two SPARE positions: one 7.5A and one 15A.

Home/ Registry/ Toyota/ Land Cruiser/ 1986 Toyota Land Cruiser/ Photo supermotors.net/registry/media/834033

1986 Toyota Land Cruiser Fuse Box Diagram - Fuse Panel Legend & Amp Ratings

In-cab fuse box and printed fuse amperage chart with bilingual designated-fuses warning

‹ ›

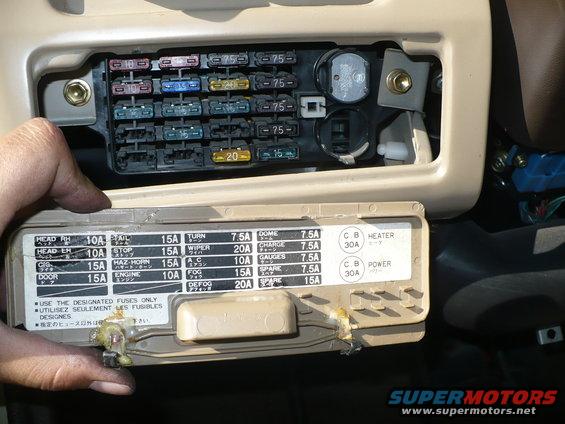

Photo of an under-dash fuse panel pulled out alongside its printed fuse/circuit amperage chart (Head 10A, Turn 7.5A, Wiper 20A, Heater C.B. 30A) with bilingual fuse warning.

AI caption October 2010 · Photo 30 of 37

This photograph documents the interior fuse box of a Toyota Land Cruiser (claimed 1986 model). The fuse panel is shown open in the dash with its removed cover held below, displaying the factory fuse legend sticker. The legend lists all fused circuits and their amperages: HEAD RH 10A, HEAD LH 10A, CIG 15A, DOOR 15A, TAIL 15A, STOP 15A, HAZ-HORN 15A, ENGINE 10A, TURN 7.5A, WIPER 20A, A/C 10A, FOG 15A, DEFOG 20A, DOME 7.5A, CHARGE 7.5A, GAUGES 7.5A, plus SPARE fuses of 7.5A and 15A. Two 30A circuit breakers are identified for the HEATER and POWER circuits. The panel itself shows installed blade fuses (mostly 7.5A, 10A, 15A, and 20A) and a round 30A circuit breaker labeled with part number 82650-200x1, DC12/24V. Labels appear in English with Japanese katakana, plus a trilingual caution to use only designated fuses (English, French, Japanese). A reader can use this image to identify which fuse controls each circuit and the correct replacement amperage for this vehicle's interior fuse panel.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What amperage is the wiper fuse on this Toyota Land Cruiser fuse panel?: The WIPER fuse is 20A according to the fuse box cover legend.
What size are the headlight fuses?: Both HEAD RH and HEAD LH fuses are 10A each.
What circuit breakers are in this fuse box?: Two 30A circuit breakers: one for the HEATER circuit and one for the POWER circuit. The installed breaker is marked DC12/24V 30A with part number 82650-200x1.
What fuse protects the rear defogger?: The DEFOG circuit uses a 20A fuse.
What spare fuses does the panel include?: The legend lists two SPARE positions: one 7.5A and one 15A.
