Where are the XTRA-10 skid mounting holes located vertically in the tunnel?

Both the front and rear mounting holes are 5 1/4 inches (133 mm) down from the top of the tunnel.

How far is the front XTRA-10 mounting hole from the drive shaft?

The front mounting hole is 11 5/8 inches (296 mm) from the flat of the drive shaft.

What sled were these XTRA-10 mounting dimensions measured from?

The dimensions were measured from a 1997 Ultra SPX SE, from the flat of the drive shaft to the center of the mounting holes.

Home/ Registry/ Polaris/ Indy 600/ 1987 Polaris Indy 600/ Photo supermotors.net/registry/media/857582

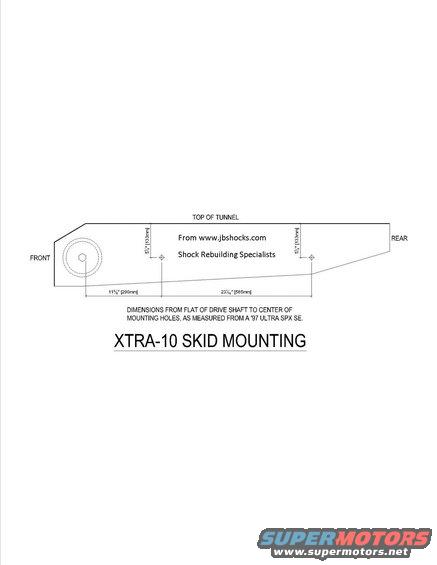

Polaris XTRA-10 Skid Mounting Diagram - Tunnel Hole Dimensions ('97 Ultra SPX SE)

Dimensioned XTRA-10 skid mounting drawing with measurements in inches and mm

‹ ›

Dimensioned mounting drawing for an XTRA-10 skid showing hole locations measured from the driveshaft in inches and millimeters.

AI caption March 2011 · Photo 8 of 28

This document is a dimensional blueprint/diagram showing the mounting hole locations for installing an XTRA-10 rear suspension skid frame in a snowmobile tunnel. The drawing depicts a side profile of the tunnel with FRONT and REAR labeled, the drive shaft (shown with a hex center and concentric circles) at the front, and two suspension mounting hole positions. Key measurements: both the front and rear mounting holes are located 5 1/4 inches (133 mm) down from the top of the tunnel; the front mounting hole is 11 5/8 inches (296 mm) rearward from the flat of the drive shaft; and the rear mounting hole is 23 1/16 inches (585 mm) behind the front hole. A note states these dimensions were taken from the flat of the drive shaft to the center of the mounting holes, as measured from a 1997 Ultra SPX SE. The document is watermarked "From www.jbshocks.com — Shock Rebuilding Specialists." This diagram is useful for anyone retrofitting or transplanting an XTRA-10 skid into another sled's tunnel, providing the exact drill/mount locations needed to duplicate factory geometry.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where are the XTRA-10 skid mounting holes located vertically in the tunnel?: Both the front and rear mounting holes are 5 1/4 inches (133 mm) down from the top of the tunnel.
How far is the front XTRA-10 mounting hole from the drive shaft?: The front mounting hole is 11 5/8 inches (296 mm) from the flat of the drive shaft.
What is the distance between the front and rear XTRA-10 mounting holes?: The rear mounting hole is 23 1/16 inches (585 mm) behind the front mounting hole.
What sled were these XTRA-10 mounting dimensions measured from?: The dimensions were measured from a 1997 Ultra SPX SE, from the flat of the drive shaft to the center of the mounting holes.
Who published this XTRA-10 skid mounting diagram?: It is watermarked 'From www.jbshocks.com — Shock Rebuilding Specialists.'

Comments

No comments yet.

More from this build

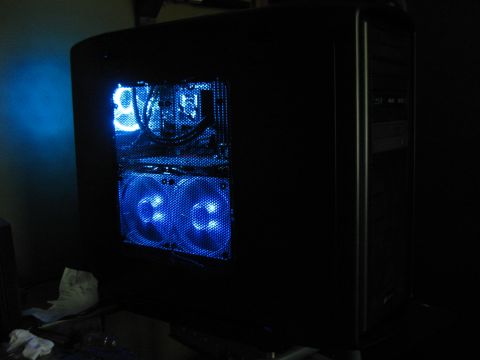

Black computer tower with blue LED fans visible through a mesh panel

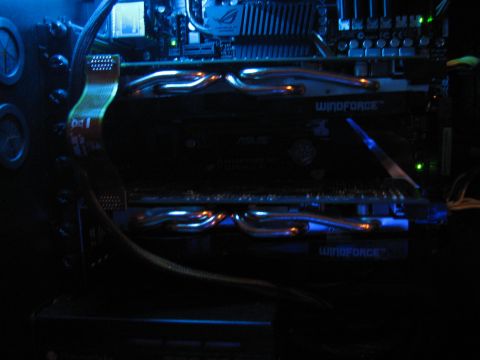

Computer graphics card with blue LED lighting and 'WINDFORCE' text

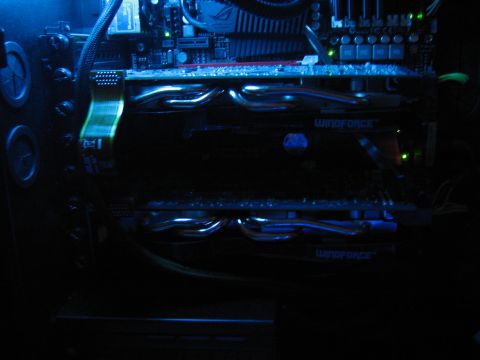

Computer internal components with blue LED lighting. Two graphics cards with 'WINDFORCE' branding are visible

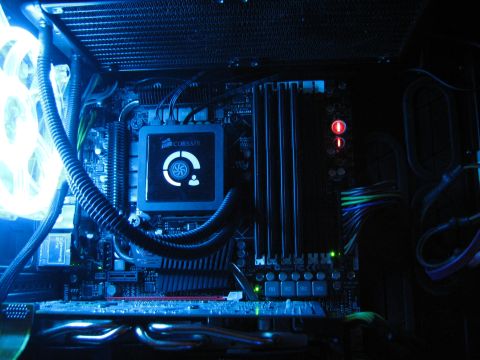

Computer internals with blue LED lighting, showing a Corsair CPU cooler and motherboard

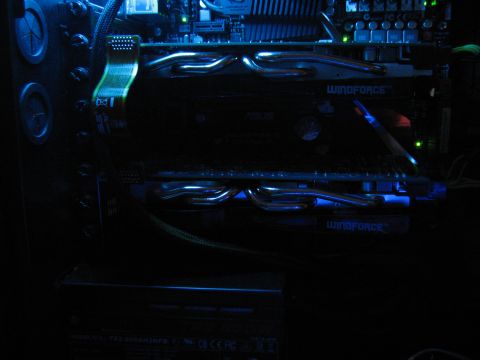

Computer internal components with two graphics cards and motherboard, lit by blue LEDs. Text 'WINDFORCE' visible on cards

Computer internals with blue LED lighting, showing motherboard, fan, and graphics card

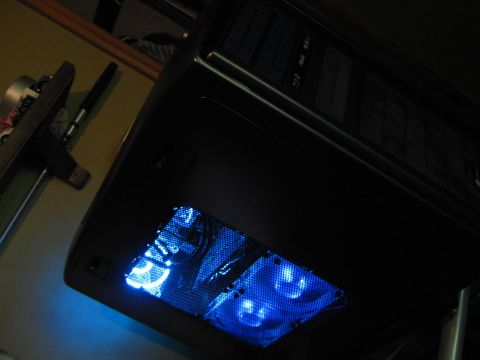

Black computer tower with blue internal lights and fans, side panel removed
