What is the ARP part number for the Mazda 2.0L FS-DE head stud kit?

The kit shown is ARP part number 218-4703, listed for the Mazda 2.0L (FS-DE) 4-cylinder engine.

What torque should the ARP head stud nuts be tightened to?

Per the instruction sheet, tighten the nuts in three equal steps to 90 ft-lbs using ARP Ultra-Torque Fastener Assembly Lubricant.

How tight should the studs be installed into the block?

The studs should be screwed into the block 'HAND TIGHT ONLY'. Loctite may be used for permanent mounting, but fasteners must be torqued before the Loctite sets.

What thread size does this kit use / what thread chaser is recommended?

The instructions recommend chasing the block threads with ARP Thread Chaser part number 912-0005, which is M11 x 1.5.

What is the head bolt torque sequence?

The diagram numbers the 10 positions: 8, 4, 1, 5, 9 across the top row and 7, 3, 2, 6, 10 across the bottom row of the cylinder head.

Home/ Registry/ Mazda/ MX-6/ 1993-1997/ “"The Money Pit"”/ Photo supermotors.net/registry/media/906278

ARP 218-4703 Head Stud Kit Mazda 2.0L FS-DE - Instructions & Torque Sequence

ARP head stud kit Mazda MX-6 KLZE engine with bolt torque sequence instruction sheet

‹ ›

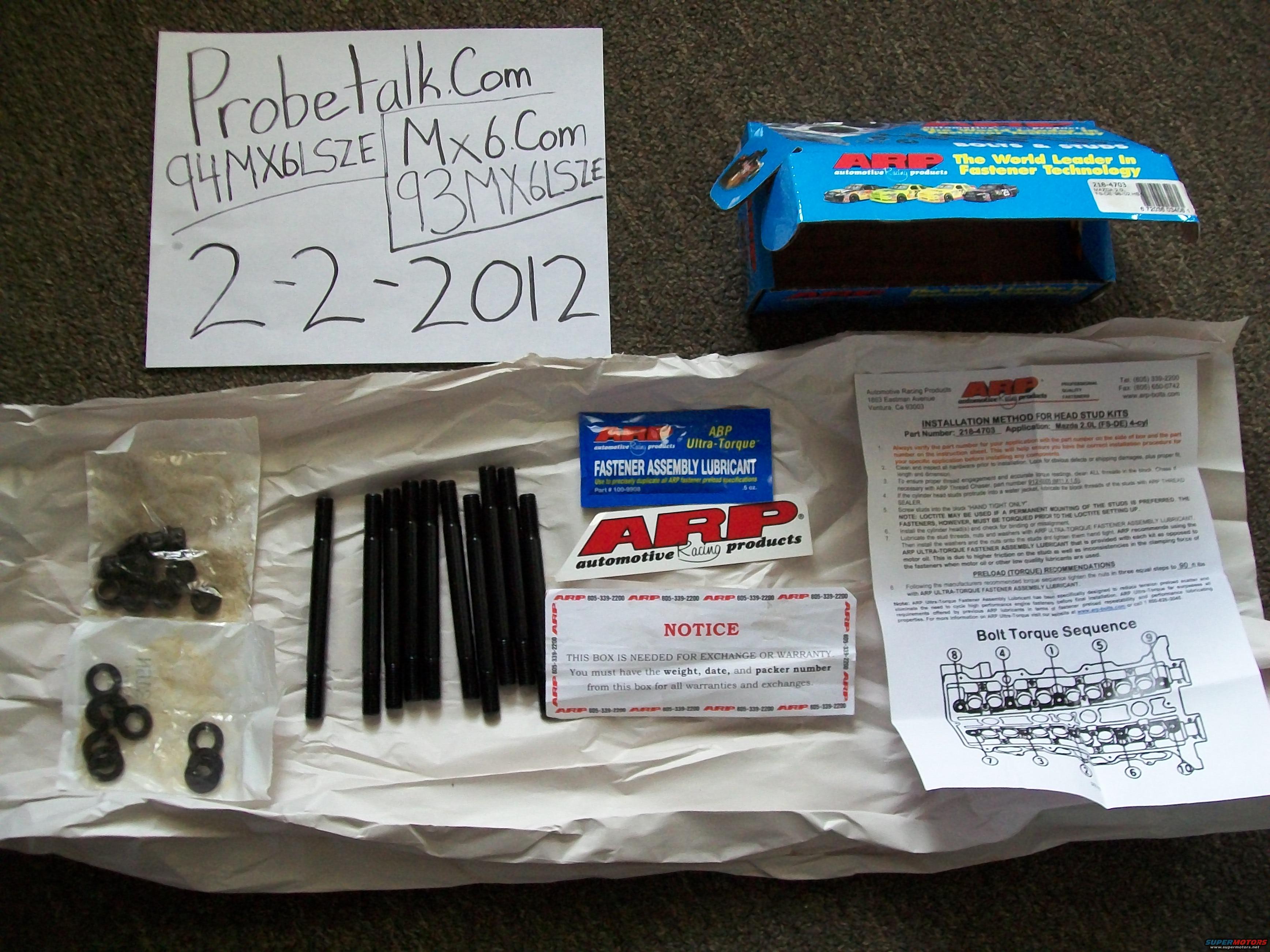

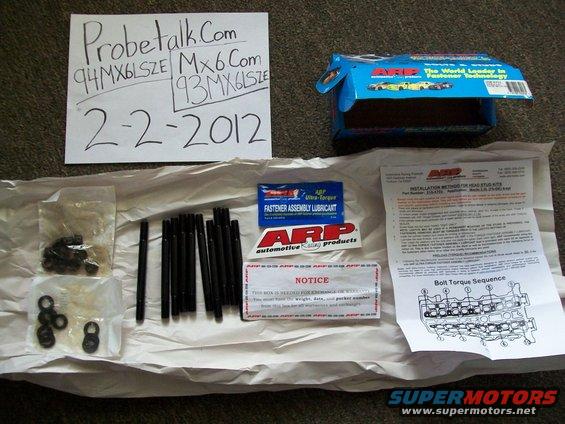

ARP head stud kit for 93-94 MX-6/Probe KLZE laid out with fastener lubricant, hardware, and the head-bolt torque-sequence installation sheet.

AI caption February 2012 · Photo 16 of 30

This photograph documents an ARP (Automotive Racing Products) cylinder head stud kit, part number 218-4703, for the Mazda 2.0L FS-DE 4-cylinder engine, apparently photographed for a for-sale listing dated 2-2-2012 with handwritten forum usernames (Probetalk.com / Mx6.com, 94MX6LSZE / 93MX6LSZE). Shown are the ARP retail box, the black head studs, nuts and washers, an ARP Ultra-Torque Fastener Assembly Lubricant packet (part # 100-9908, .5 oz), an ARP sticker, a warranty notice slip, and the official installation instruction sheet. The instructions detail the installation method: verify part number, clean and chase block threads (ARP Thread Chaser 912-0005, M11 x 1.5), use thread sealer if studs enter a water jacket, install studs hand tight, then lubricate threads/nuts/washers with ARP Ultra-Torque lubricant. The preload recommendation is to tighten the nuts in three equal steps to 90 ft-lbs using the supplied lubricant. A Bolt Torque Sequence diagram shows the numbered tightening order across the 10 head stud positions (8-4-1-5-9 top row, 7-3-2-6-10 bottom row). ARP contact info (Ventura, CA; 805-339-2200; www.arp-bolts.com) is also visible. The box label suggests 96/02 applicability for the FS-DE engine.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the ARP part number for the Mazda 2.0L FS-DE head stud kit?: The kit shown is ARP part number 218-4703, listed for the Mazda 2.0L (FS-DE) 4-cylinder engine.
What torque should the ARP head stud nuts be tightened to?: Per the instruction sheet, tighten the nuts in three equal steps to 90 ft-lbs using ARP Ultra-Torque Fastener Assembly Lubricant.
How tight should the studs be installed into the block?: The studs should be screwed into the block 'HAND TIGHT ONLY'. Loctite may be used for permanent mounting, but fasteners must be torqued before the Loctite sets.
What thread size does this kit use / what thread chaser is recommended?: The instructions recommend chasing the block threads with ARP Thread Chaser part number 912-0005, which is M11 x 1.5.
What is the head bolt torque sequence?: The diagram numbers the 10 positions: 8, 4, 1, 5, 9 across the top row and 7, 3, 2, 6, 10 across the bottom row of the cylinder head.
