2004 Chevy Tahoe Liftgate (E52) Component Diagram - Wiper Module & Lock Actuator

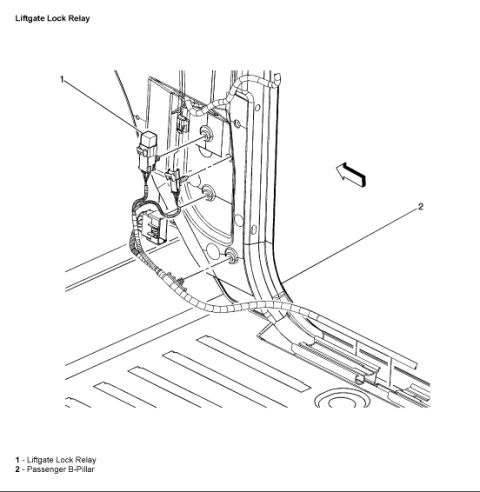

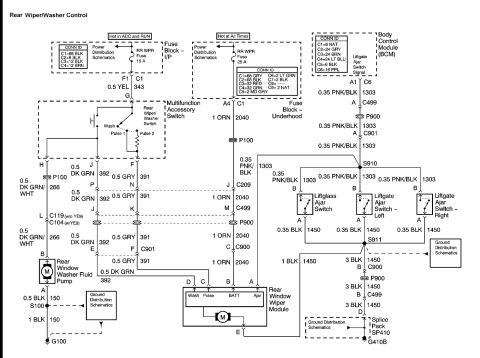

This document is a component location diagram titled "Liftgate (E52)" showing the interior of a liftgate with its wiring harness, latch/lock mechanism, and electrical components identified by six numbered callouts. The legend identifies: (1) Rear Window Wiper Module, located in the upper-left area of the liftgate; (2) Liftglass Ajar Switch, near the top center by the latch assembly; (3) Door Lock Actuator – Liftgate, at the center latch mechanism; (4) Liftgate Ajar Switch – Left Connector, at the lower right of the diagram; (5) the Liftgate panel itself; and (6) Liftgate Ajar Switch – Right Connector, at the lower left. A directional arrow at the upper left of the drawing indicates orientation. The illustration shows how the wiring harness routes across the inner liftgate structure to connect these components. A reader can use this diagram to locate the rear window wiper module, the liftglass and liftgate ajar switches and their connectors, and the liftgate door lock actuator when diagnosing rear wiper, liftgate lock, or ajar-indicator issues. The document was uploaded as part of an album for a 2004 Chevrolet Tahoe, though the diagram itself does not state a year, make, or model.
