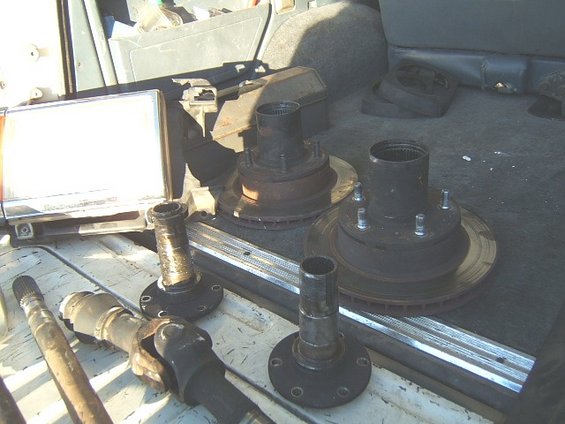

Front shafts, hub and rotors, spindles and Warn Premiums hubs off of a 90 Bronco at the local junkyard. Upgrading to the better manual locking hubs from the one piece flange style hubs that are existing on the Beast.
|
|
|

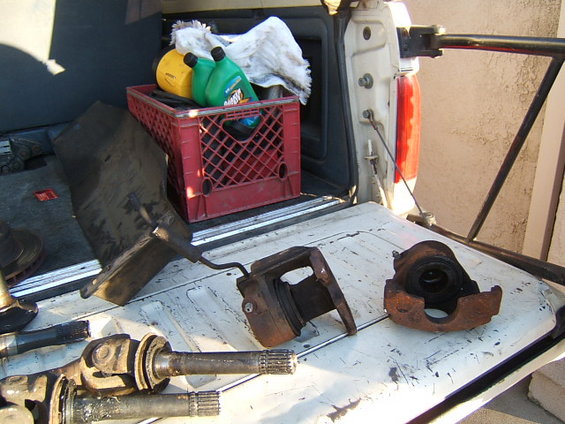

Grabbed the calipers as well. Looked to be in good shape.
|
|
|
The pooch approving of my score at the junkyard.
|
|
|
 pic1--coils-006[1].jpg | Hits: 740 | Size: 34.66 KB | Posted on: 10/29/06 | Link to this image
|
|
|

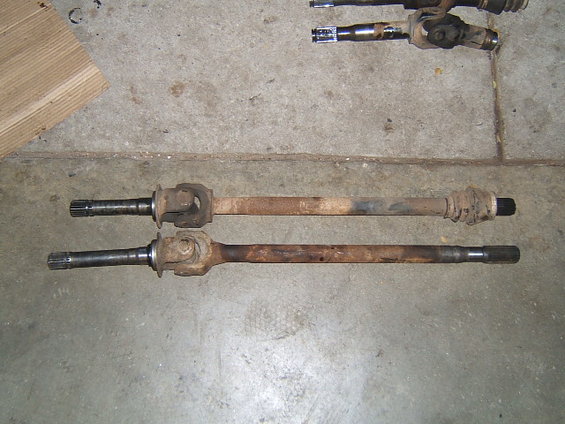

Comparison between the 87-88 long axle shaft and a 90 shaft. The 90 outer shaft is longer.
|
|
|
Comparison of passenger side outer axle shaft. 87' on the bottom and 90' on top.
|
|
|
More comparisons between driver's side outer axle shafts. 87' on top and 90' on bottom.
|
|
|

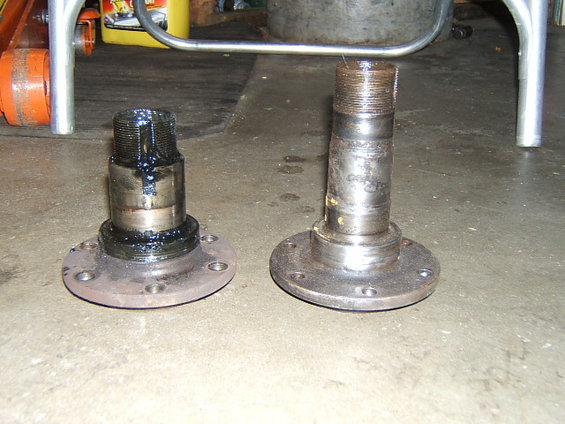

87-88 spindle on the left. Upgraded 90' spindle on the right.
|
|
|

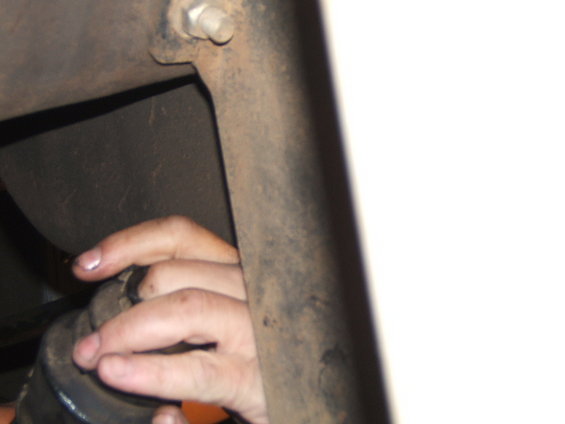

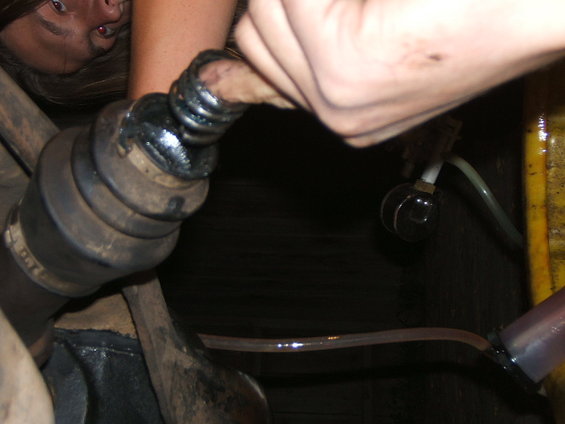

I have an ez locker in the front. I used a valve spring from a Honda. No c-clip involved anymore.
|
|
|

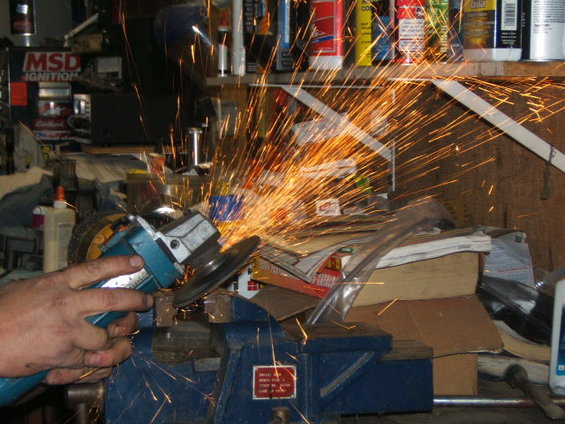

Had to shave off about a 1/2 an inch of the spring with the longer axle shafts.
|
|
|

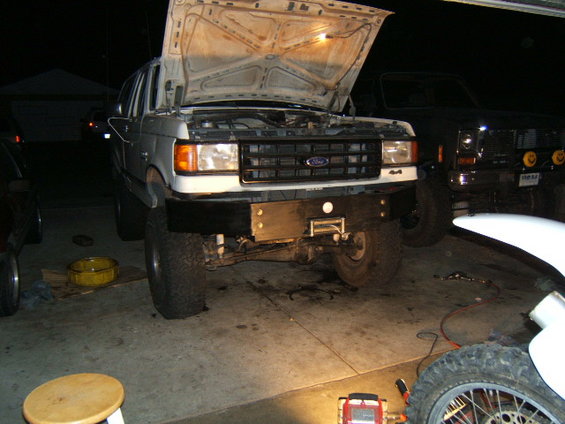

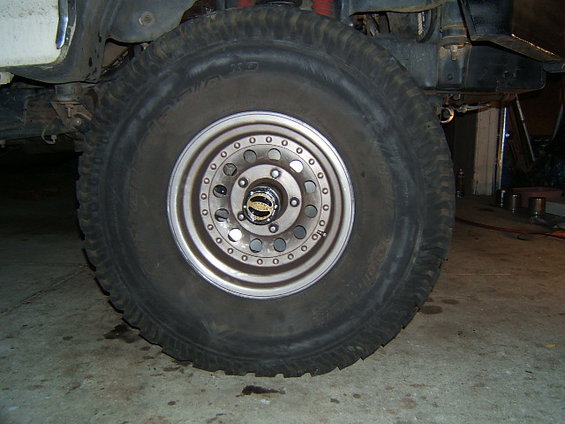

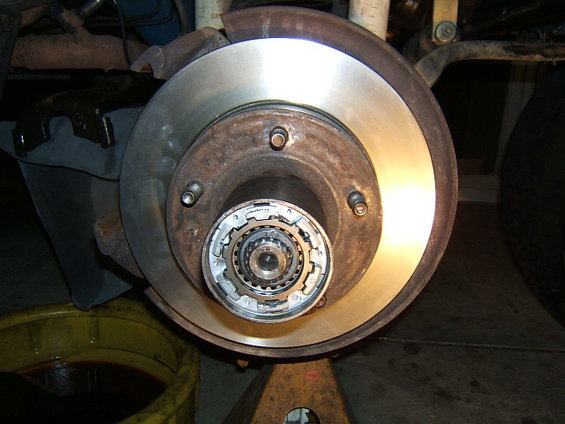

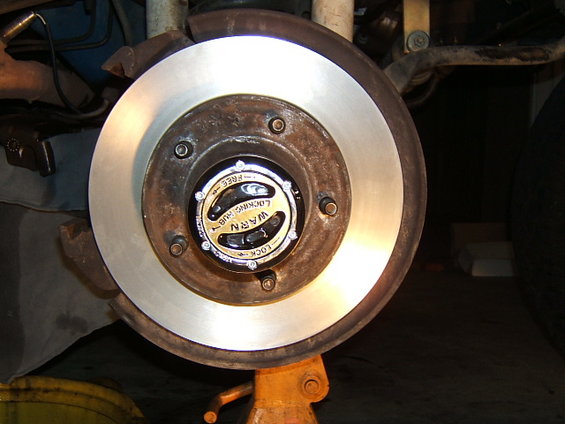

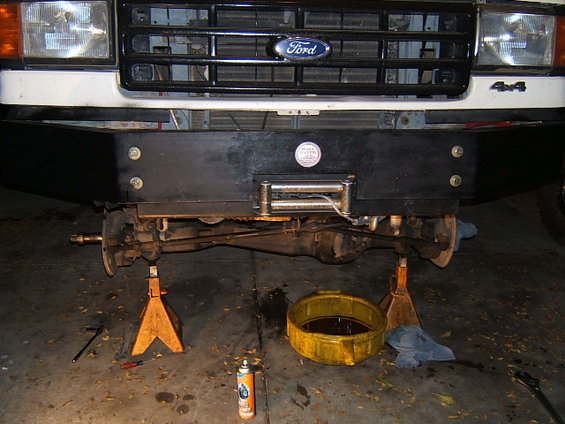

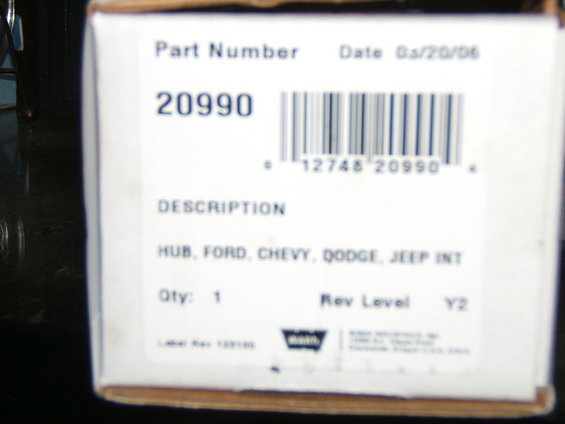

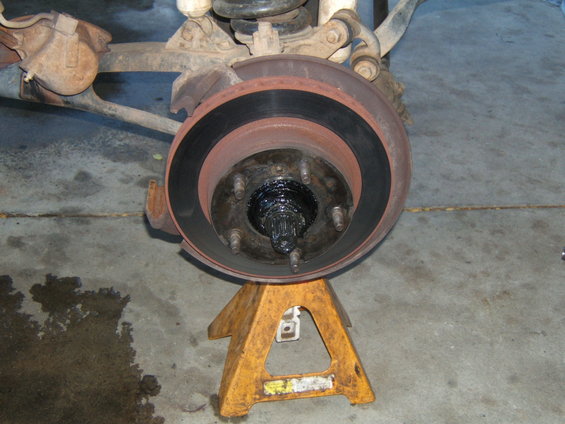

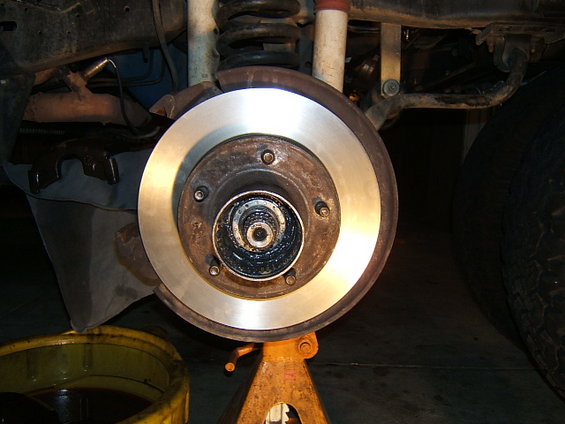

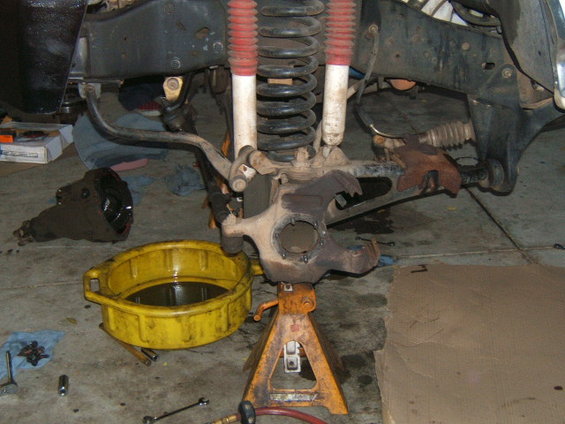

Installation of new upgraded hub/spindle and rotor, along with installing Warn Premium Hubs.
|
Knuckle out conversion manual locking hubs
