Service Disk Installation & Use

From 1983 Ford Bronco “That dirty old truck” — documented by Steve83.

37 photos
← Back to this vehicle

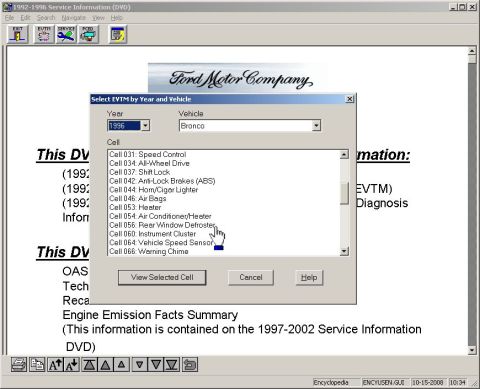

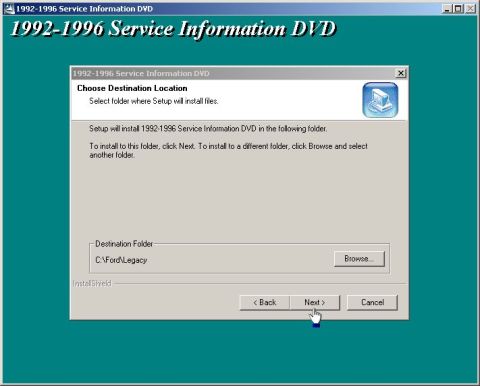

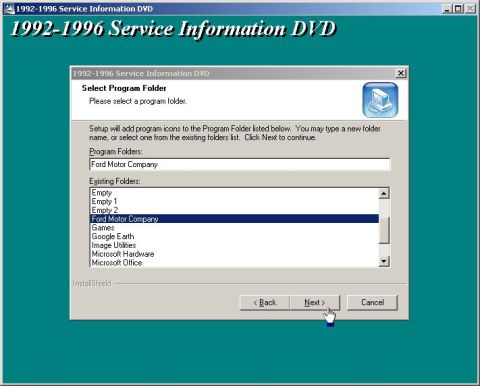

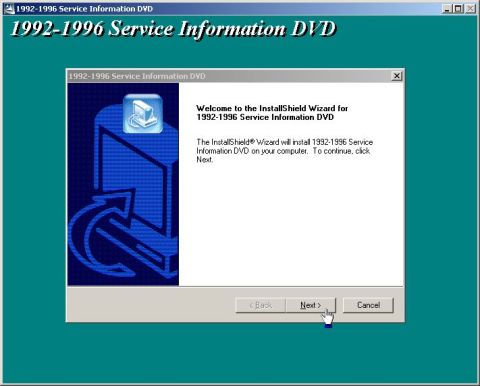

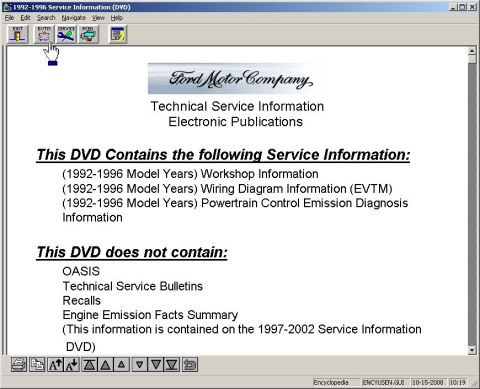

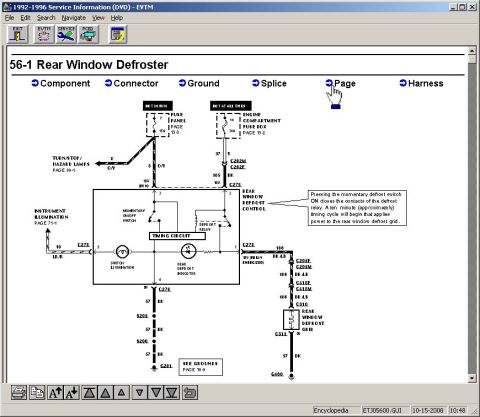

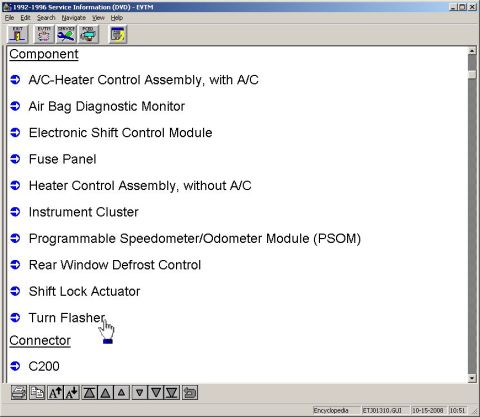

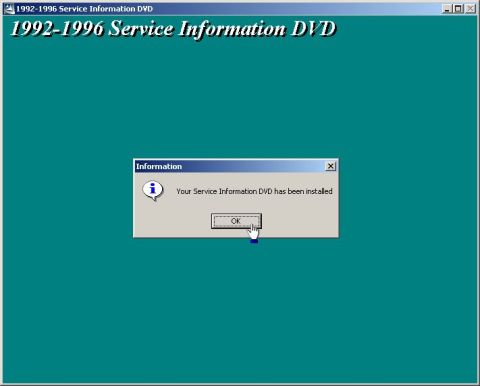

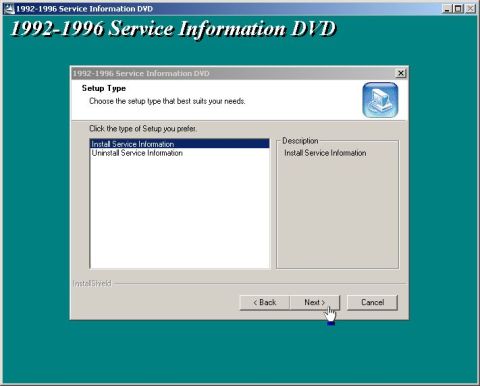

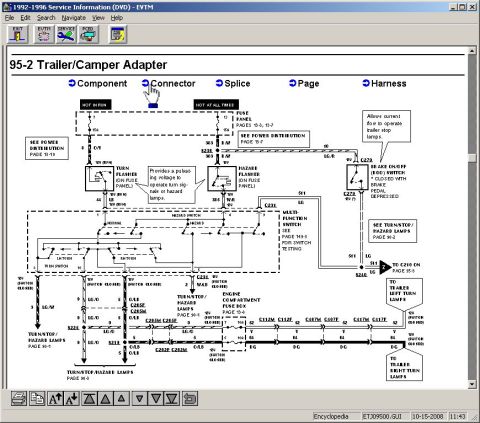

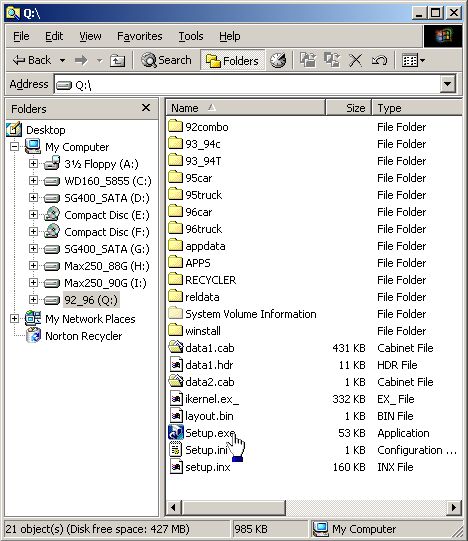

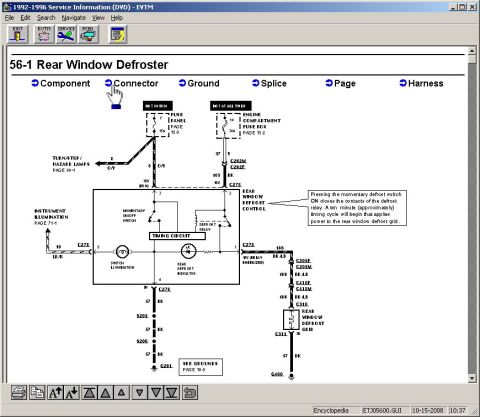

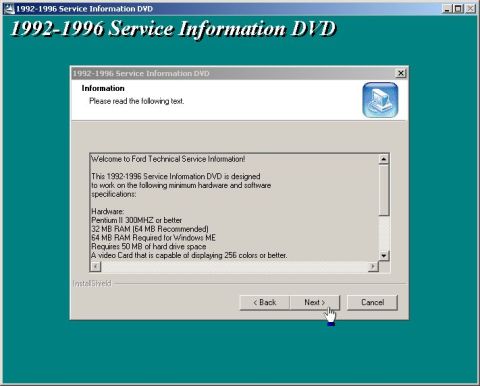

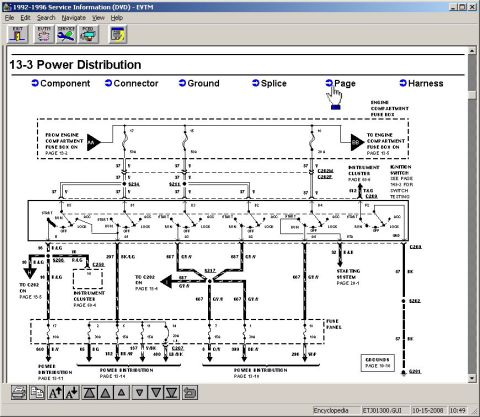

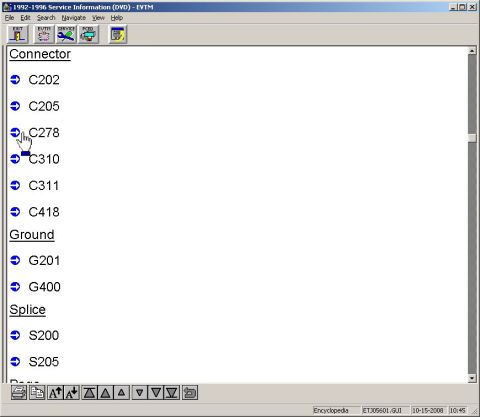

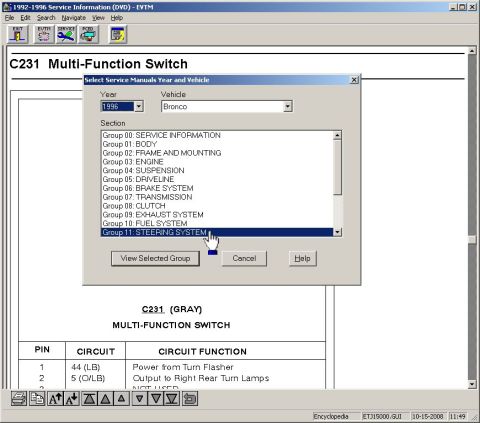

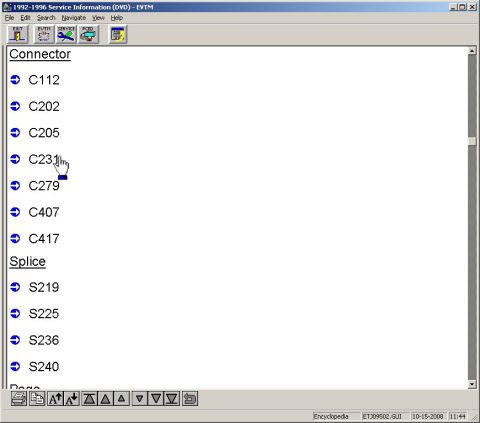

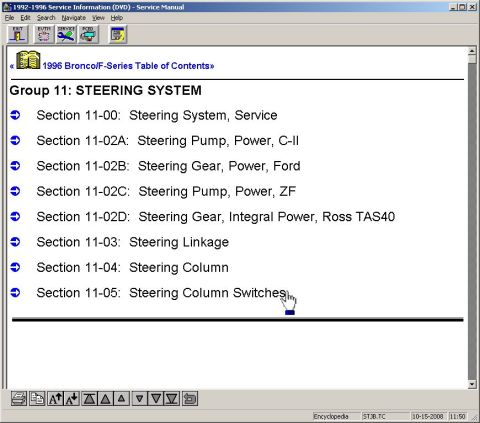

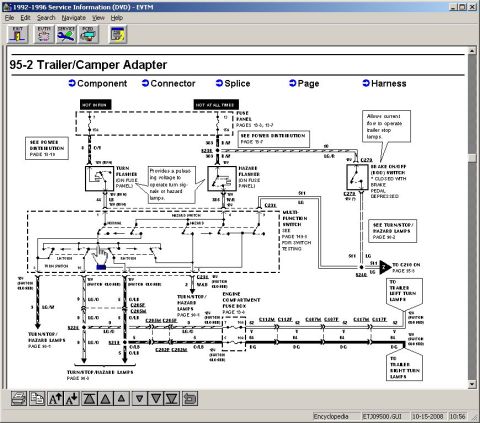

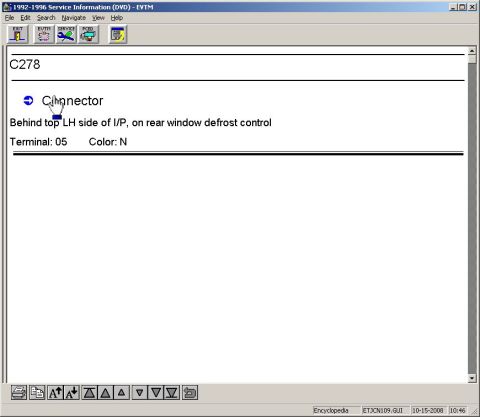

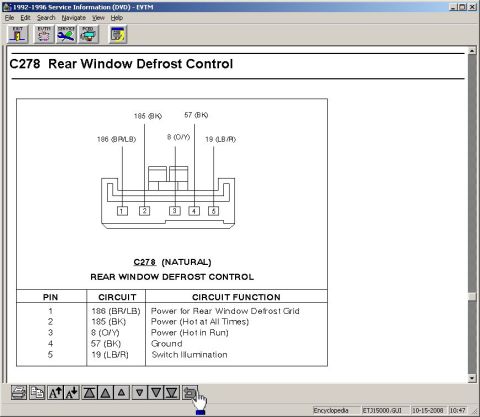

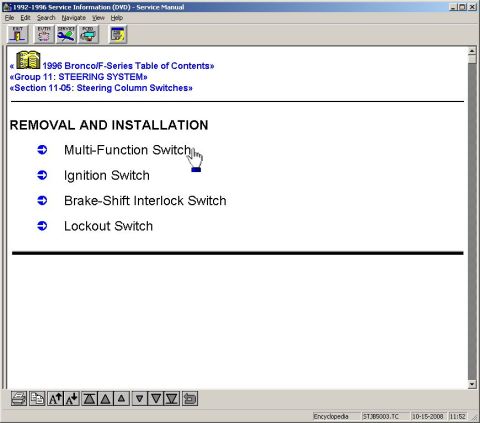

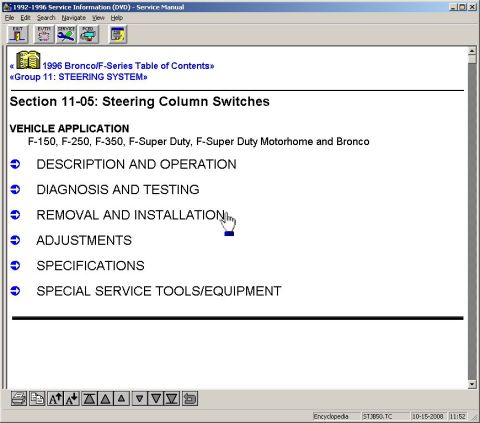

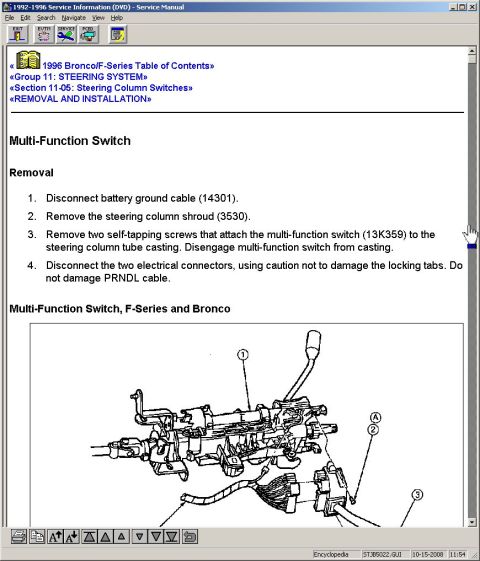

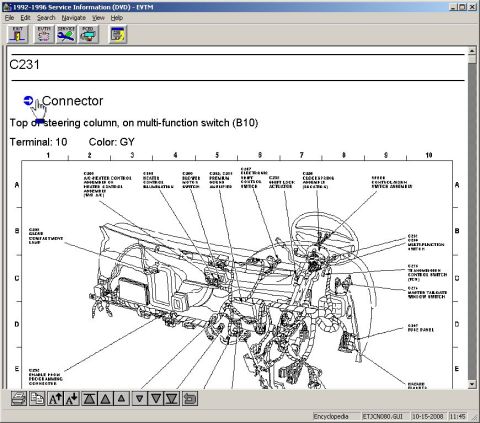

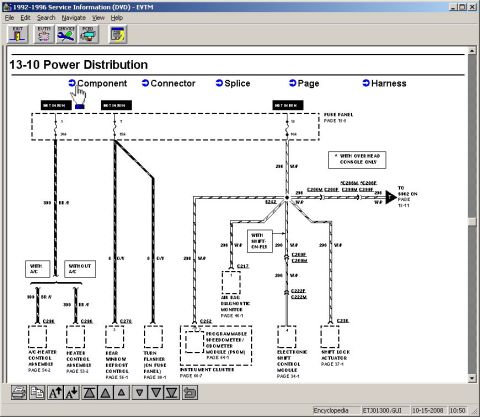

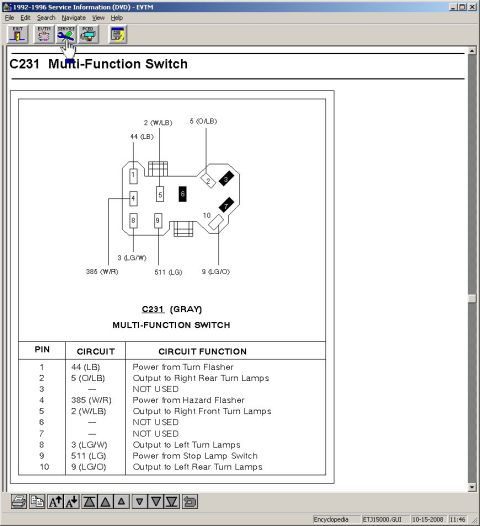

1983 Ford Bronco - This album shows the '92-96 legacy Archive DVD, but this procedure applies to the '92-03 CDs as well. For instructions on using the '96-08… 1983 Ford Bronco - After running Setup.EXE from the drive letter that you will want to use permanently, follow the on-screen instructions. 1983 Ford Bronco - Follow the on-screen instructions. 1983 Ford Bronco - The final folder name can be changed, but there will be fewer glitches if it stays in C:\\Ford\\ 1983 Ford Bronco - Follow the on-screen instructions. 1983 Ford Bronco - Select a START menu folder for the shortcut. A shortcut will also be added to the desktop. 1983 Ford Bronco - Follow the on-screen instructions. If the application doesn't start, run it from the desktop or START menu. The source disk MUST be in the… 1983 Ford Bronco - For this example, the symptoms on a '96 Bronco are: 1) turn signal stalk doesn't move normally 2) turn signals don't work but hazards, wipe… 1983 Ford Bronco - A dialogue opens allowing the vehicle & EVTM cell to be selected. Double-clicking the cell name is equivalent to clicking the cell to selec… 1983 Ford Bronco - The entire cell is shown on one browser page. The slider on the R side will scroll down to subsequent cell pages, but in this case, there i… 1983 Ford Bronco - A list of all connectors shown in the source cell appears. Scrolling up or down will show the lists of components, grounds, splices, & refe… 1983 Ford Bronco - The connector's location appears. This particular connector does not include a diagram - just a text description. It has 5 terminals and is… 1983 Ford Bronco - Pins 2 & 3 are the suspect terminals. After testing with a voltmeter or 12V test light with the key OFF and in RUN, it is found that pin 3… 1983 Ford Bronco - Fuse 7 is the feed for pin 3, and its details are shown on page 13-3, so click PAGE, then click 13-3 from the list. 1983 Ford Bronco - Since the fuse burns, it obviously has power coming from the battery, so this diagram doesn't help. But the circuit is continued on page 13… 1983 Ford Bronco - There are no splices or connectors in the circuit, but fuse 7 also feeds the turn signals, which are another symptom, so explore that circu… 1983 Ford Bronco - Click Turn Flasher to view the cell containing it. 1983 Ford Bronco - Following the circuit down (toward ground), it passes through the MFS, which is another symptom. It's also a known problem, so it's reasona… 1983 Ford Bronco - Since the wires in question pass through C231, find the pinout for that connector. 1983 Ford Bronco - Click C231 1983 Ford Bronco - Click Connector to see the pinout. 1983 Ford Bronco - Remembering that this view is INTO the face of the connector, it will be a mirror-image of the view into the component. To learn how to rem… 1983 Ford Bronco - In the dialogue box, select the vehicle again. The MFS is inside the steering column, so go to the steering group. 1983 Ford Bronco - Click Steering Column Switches. 1983 Ford Bronco - Click Removal and Installation. 1983 Ford Bronco - Click MFS. 1983 Ford Bronco - Follow the instructions to gain access to the MFS pins. After testing continuity, it is found that pin 1 on the MFS is always shorted to pi… 1983 Ford Bronco - 1994 IP Fuse 8 1983 Ford Bronco - RKE Diagnostic Step 1 1983 Ford Bronco - Connectors for '03-up HD side mirrors 1983 Ford Bronco - Headlight Connectors 04 SD 1983 Ford Bronco - 99 SuperDuty Headlight Connectors 1983 Ford Bronco - A/C Vacuum 97 F150 1983 Ford Bronco - 99 F150 Starter Circuit 1983 Ford Bronco - 2000 F150 Starter Circuit 1983 Ford Bronco - Power Mirror Switch Connector '97 F150 C511 1983 Ford Bronco - '94 PCED Chart 7 - High Idle / Dieseling
