Body Mounts

From 1983 Ford Bronco “That dirty old truck” — documented by Steve83.

55 photos
← Back to this vehicle

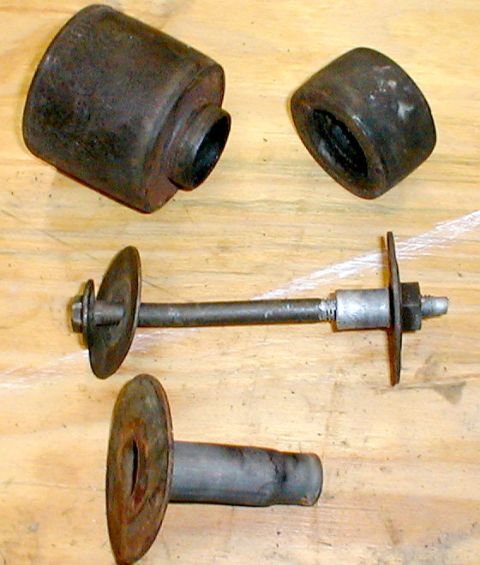

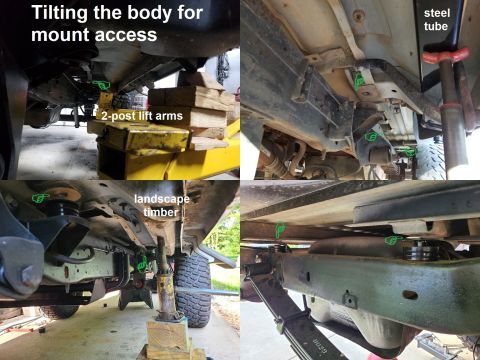

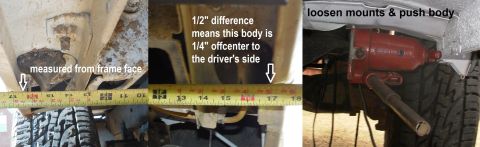

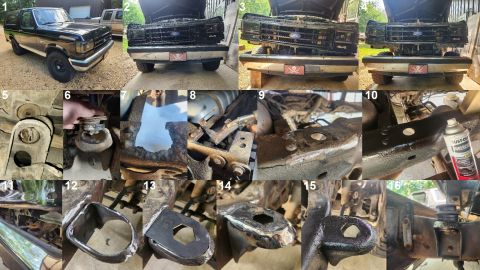

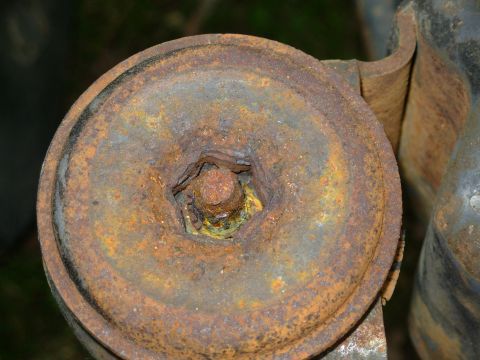

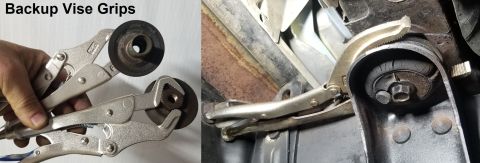

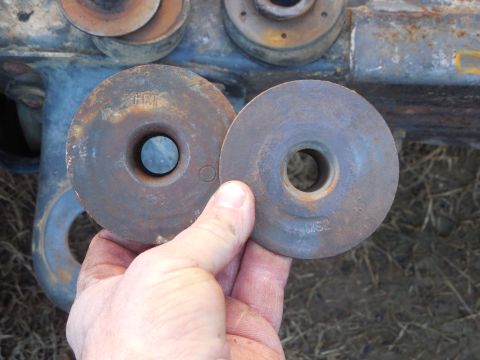

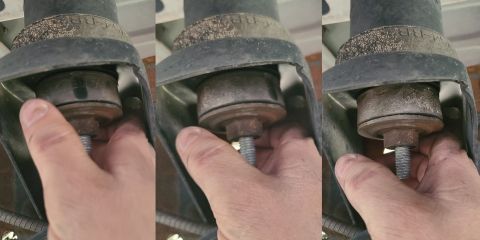

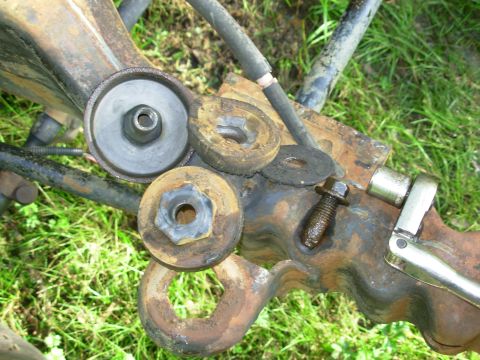

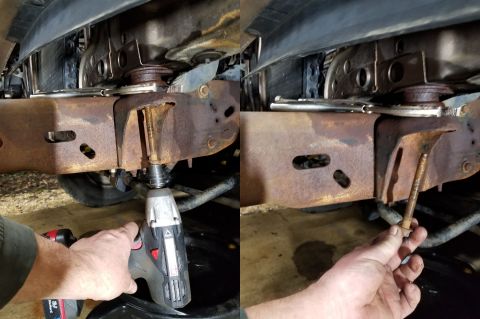

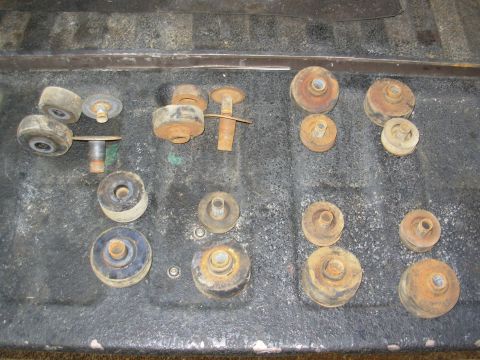

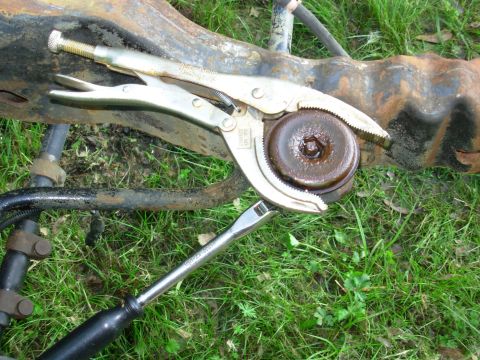

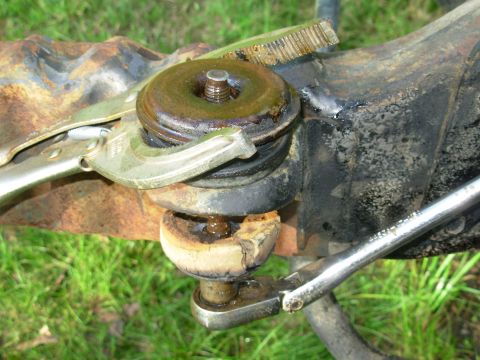

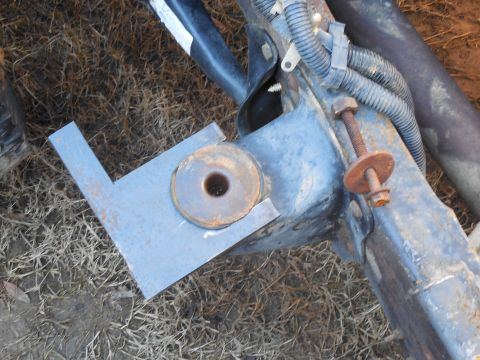

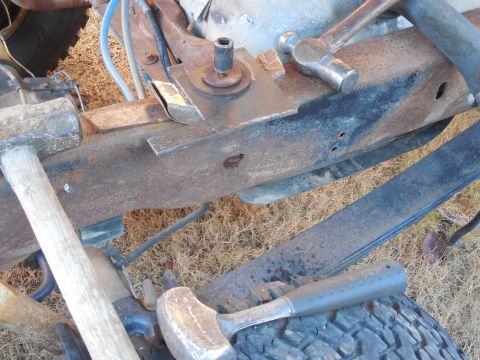

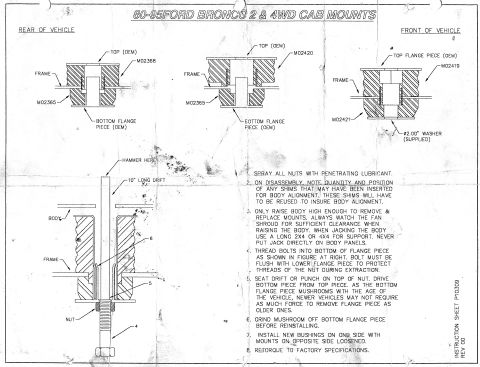

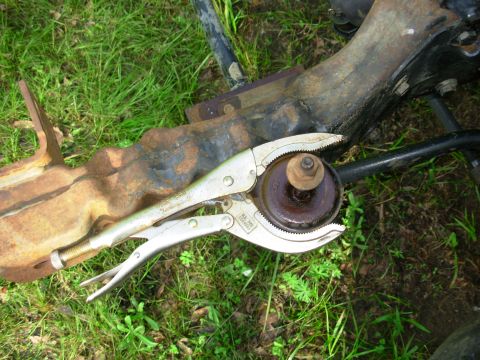

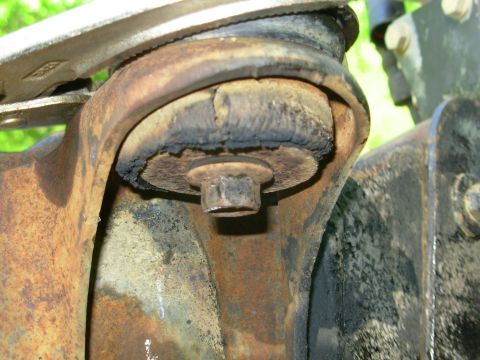

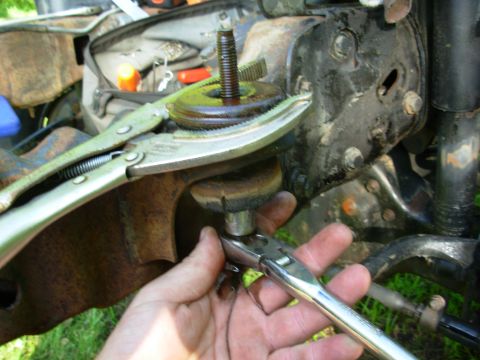

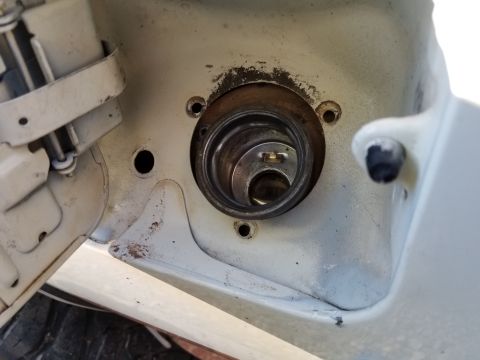

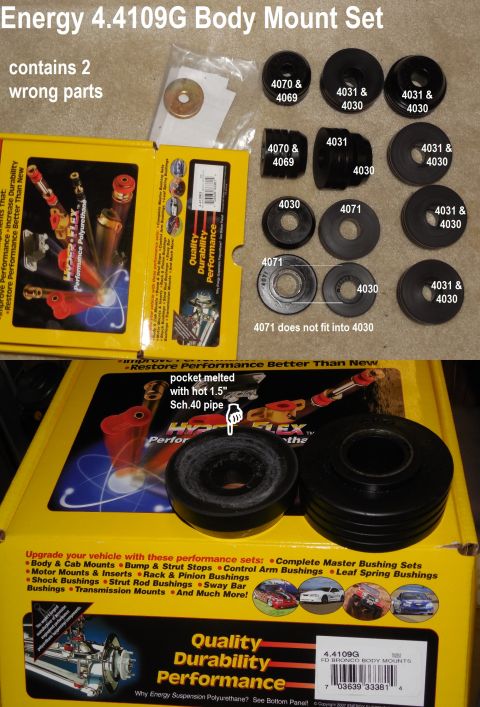

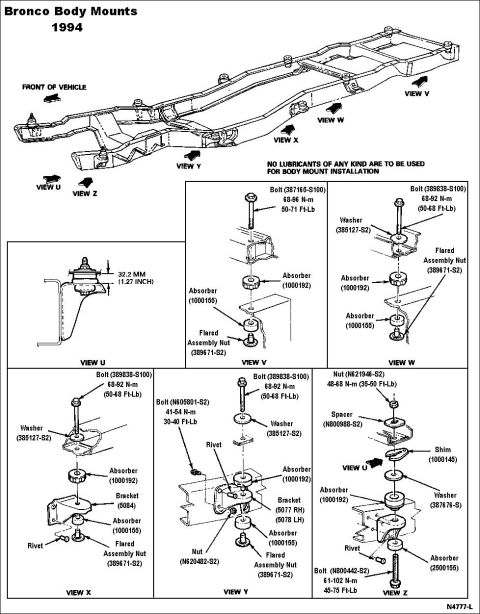

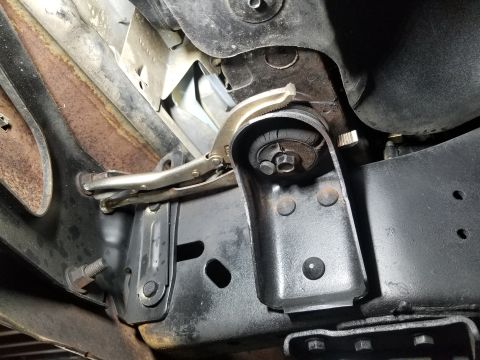

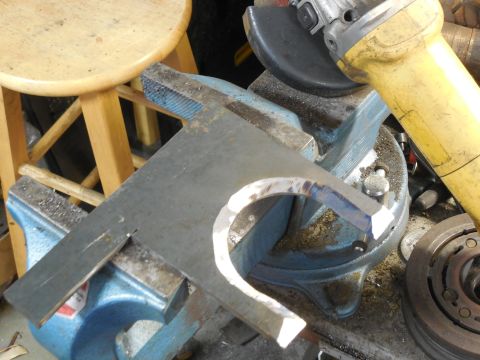

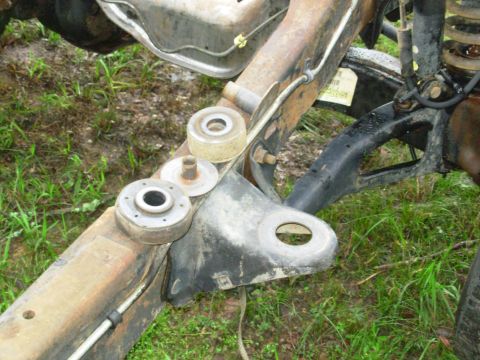

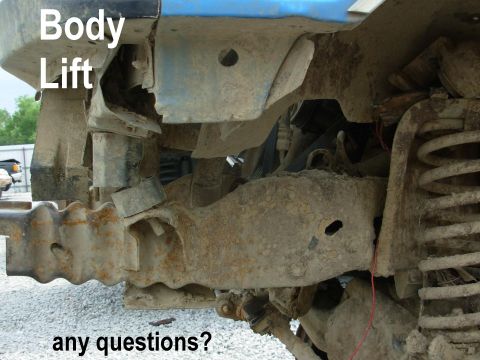

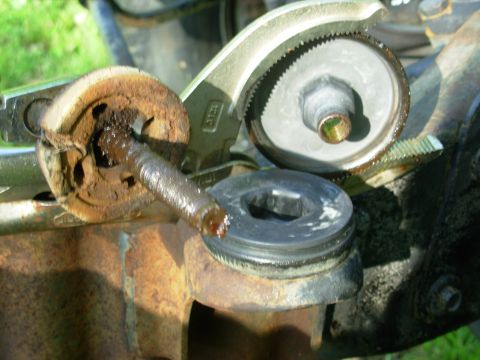

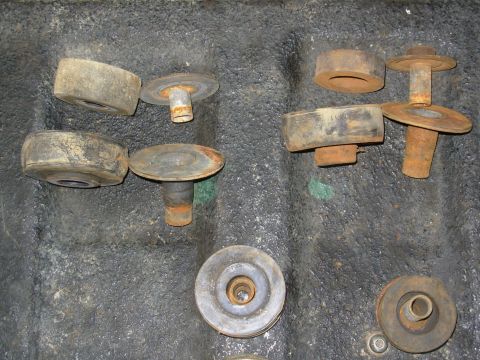

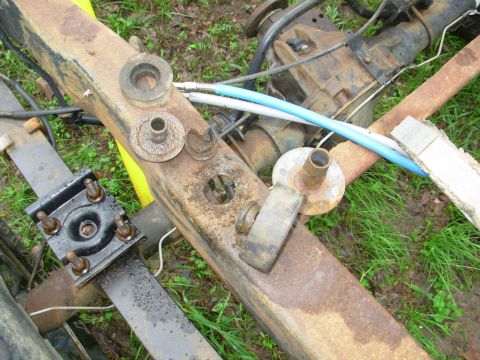

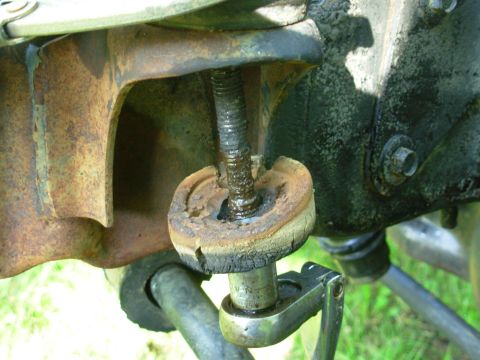

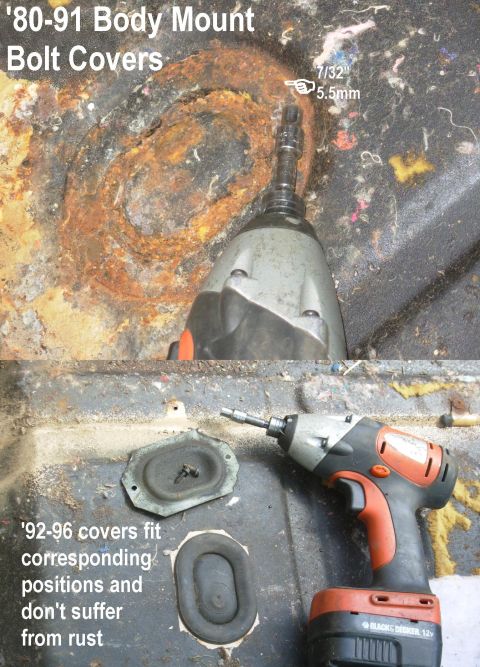

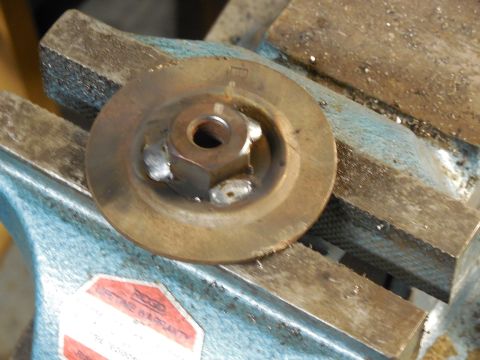

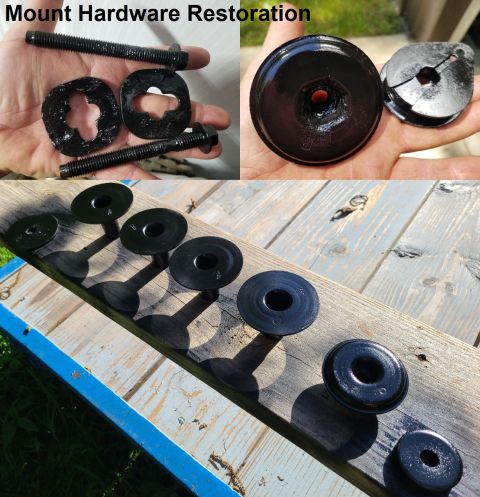

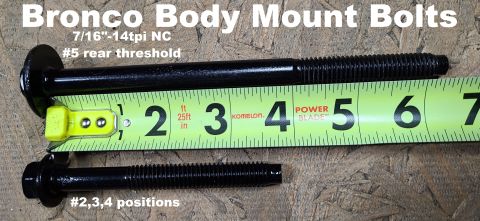

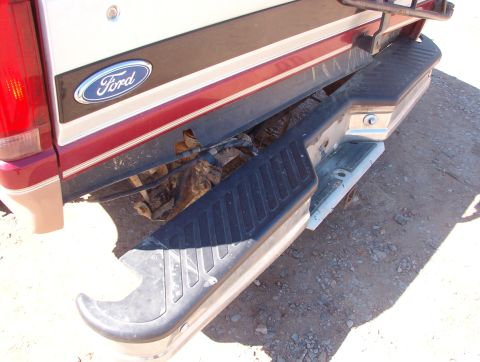

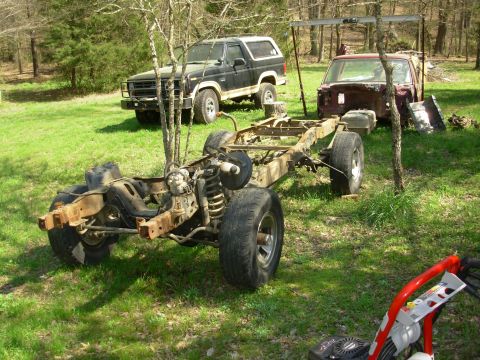

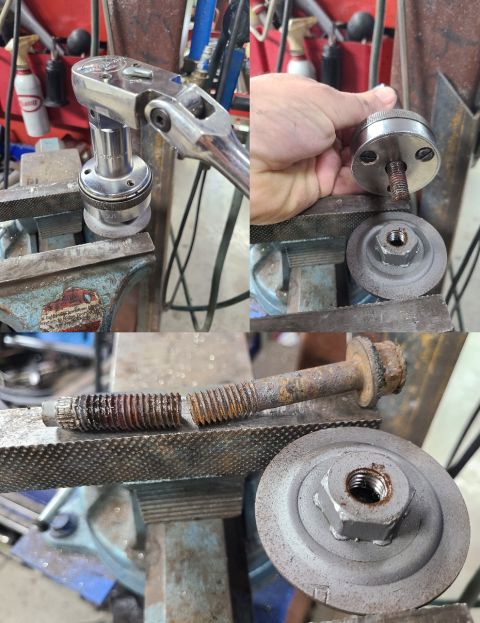

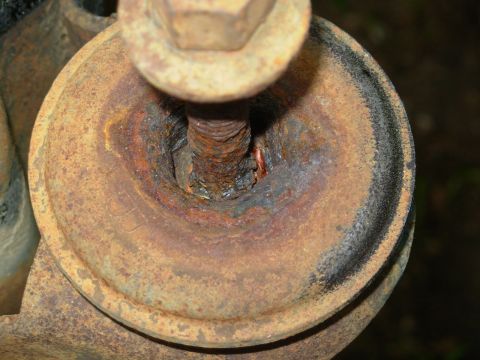

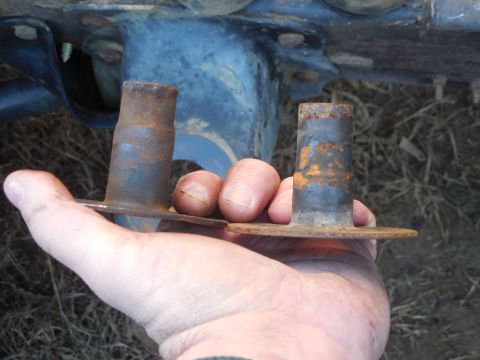

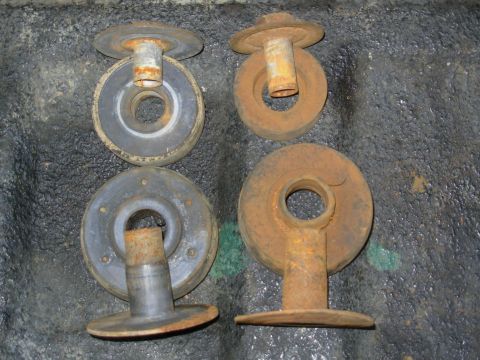

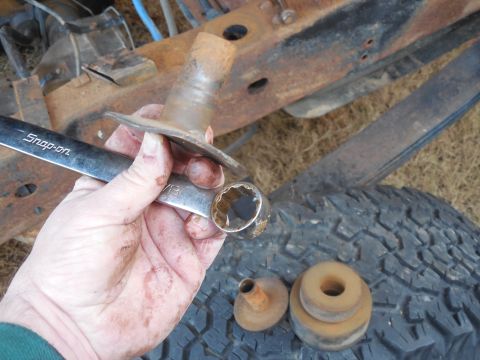

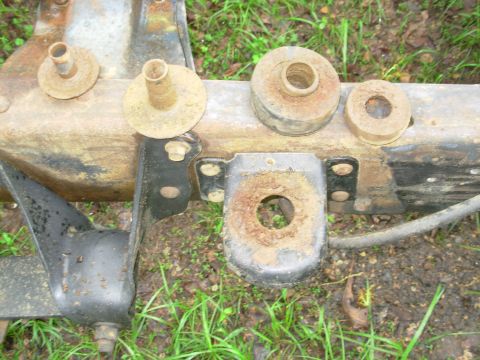

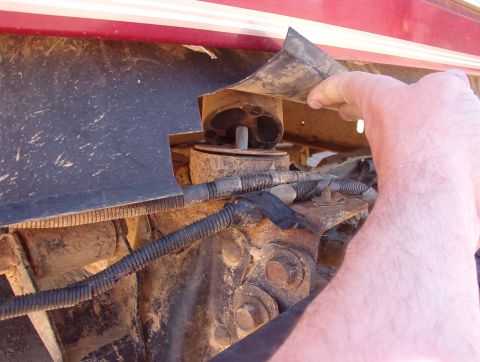

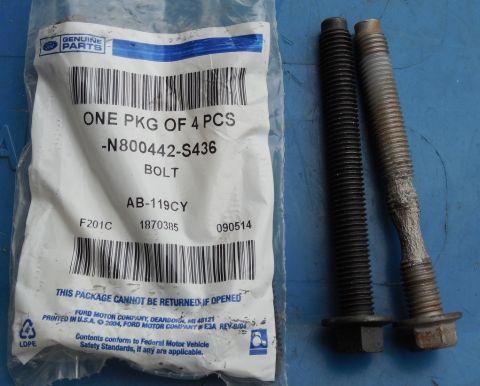

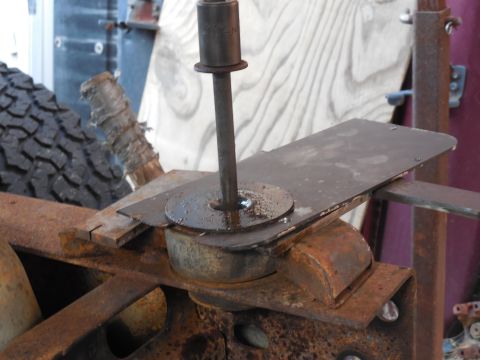

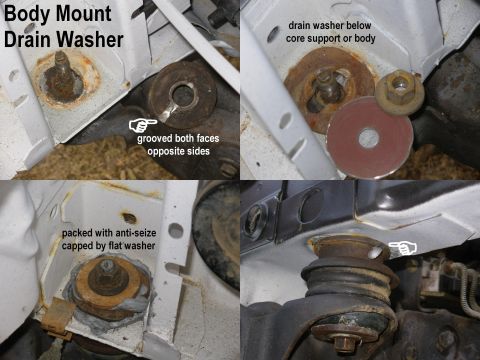

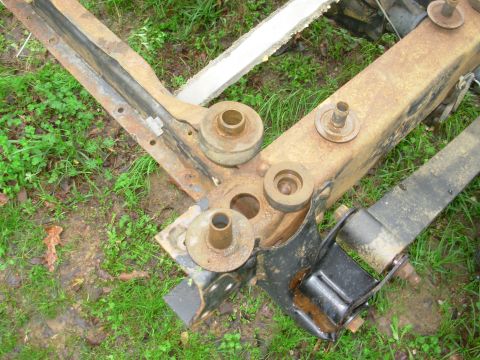

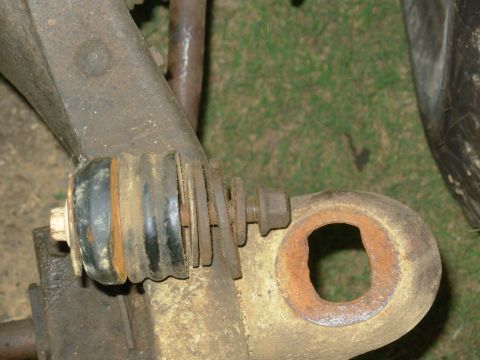

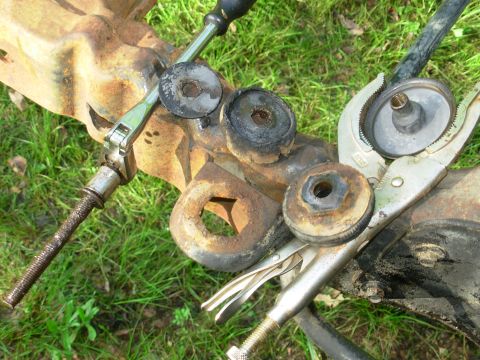

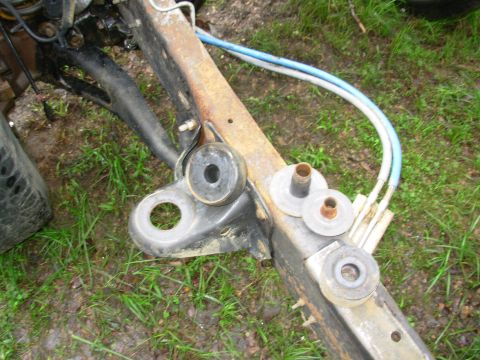

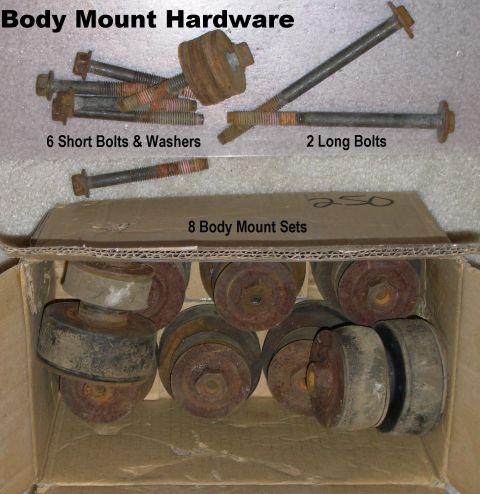

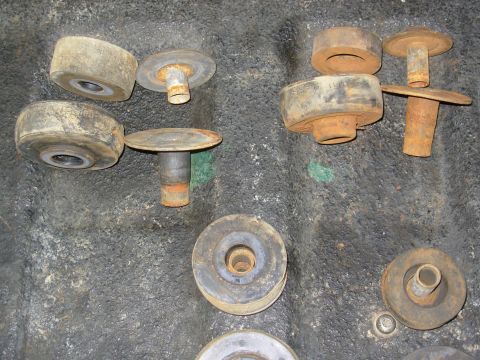

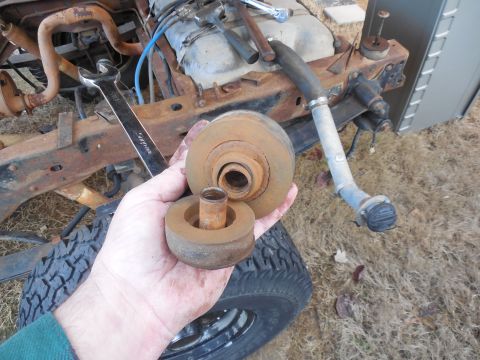

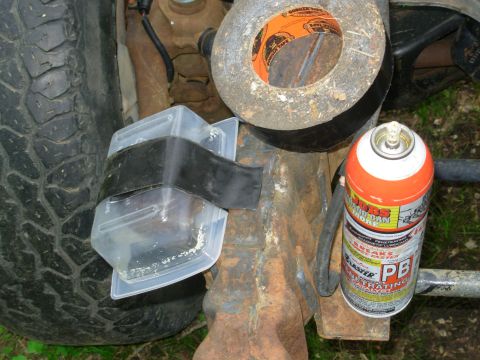

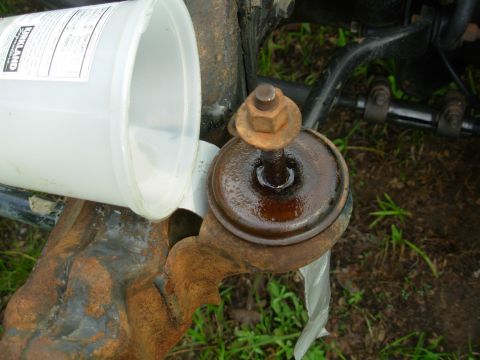

1983 Ford Bronco - A quick way to check body mounts is to mark the lower isolator & then try to turn it by hand. If it spins, the upper is collapsed, or there… 1983 Ford Bronco - Body Mounts for 1994 Bronco ('80-96 similar; F-series cab mounts similar) IF THE IMAGE IS TOO SMALL, click it. The rear 3 Bronco mounts (in… 1983 Ford Bronco - '78-96 Bronco Body Mount Set Energy 4.4109G IF THE IMAGE IS TOO SMALL, click it. For the #2 mounts to clamp onto the frame properly, the we… 1983 Ford Bronco - Body Mount Access IF THE IMAGE IS TOO SMALL, click it. In most cases, the easiest way to change the body mounts is to remove the bolts alon… 1983 Ford Bronco - Before lifting or tilting a Bronco body, remember to unattach the filler neck by removing these 3 screws, and sliding off the outermost hos… 1983 Ford Bronco - Body Mount Frame Repair IF THE IMAGE IS TOO SMALL, click it. This frame had rusted away so badly that common frame-savers weren't big enoug… 1983 Ford Bronco - Even fully-assembled, it's easy to put these vise-grips on the upper core support shell so that the bolt can be unscrewed from it. IF THE I… 1983 Ford Bronco - After removing the nut from the top (core support mount ONLY), remove the bolt from below. IF THE IMAGE IS TOO SMALL, click it. [url=https:… 1983 Ford Bronco - Front Body Mount (Core Support) Bolt IF THE IMAGE IS TOO SMALL, click it. The front bolts are M12x1.75 100mm FULLY THREADED w/15mm head & s… 1983 Ford Bronco - These are the basic parts of Ford truck body mounts (cab, NOT bed). Note that the necked portion of the upper sleeve (alone at the bottom o… 1983 Ford Bronco - Bronco Body Mount Bolts IF THE IMAGE IS TOO SMALL, click it. The front bolts are M12x1.75 100mm FULLY THREADED w/15mm head & small integral… 1983 Ford Bronco - Bolt Extraction IF THE IMAGE IS TOO SMALL, click it. A bolt that shears off inside a lower mount may be extracted by screwing it out throug… 1983 Ford Bronco - Hardware Restoration IF THE IMAGE IS TOO SMALL, click it. If possible, sandblasting & painting the hardware will reverse some age damage, a… 1983 Ford Bronco - SOLD Body Mount Hardware from '96 Bronco 7/16"-14tpi Does not include core support parts, which are even harder to find & remove intac… 1983 Ford Bronco - This is what happens if you let the body mounts collapse & get loose. [url=https://www.supermotors.net/vehicles/registry/media/1166746] htt… 1983 Ford Bronco - I'm obviously doing a lot more to this truck, but changing all the body mounts CAN be done with the body & core support in-place. Loosen th… 1983 Ford Bronco - This is how the core support mount wells should look on a later-model truck after a few rounds of pressure-washing: roughly 1/2" deep… 1983 Ford Bronco - After the wells are as clean as possible, FILL them with penetrating oil (PB Blaster, Liquid Wrench, Kroil, etc.) and let it soak in for a… 1983 Ford Bronco - After a few days of soaking, I hammered the bolt tip to help loosen the threads, and then warmed them up with a propane torch just short of… 1983 Ford Bronco - With the top washer held by the large-jaw Vise Grip 12L3 , it's easy to concentrate on the bolt. I started working it back & forth VERY sli… 1983 Ford Bronco - When the section of rusted threads cleared the washer's threads, much of the oil dumped out, so be prepared for it. Add more to rinse the t… 1983 Ford Bronco - The top section is much easier, but keep the threads wet with penetrating oil. Large-jaw Vise Grip 12L3 [url=http://www.supermotors.net/reg… 1983 Ford Bronco - The extent of the damage to the threads is obvious once the bolt is nearly out. [url=http://www.supermotors.net/vehicles/registry/media/105… 1983 Ford Bronco - Although the bolt & lower insulator look 100 years old, the upper insulator (on the frame perch) & shell (in the large-jaw Vise Grip 12L3 )… 1983 Ford Bronco - Despite the severe rust, this hardware can be reused to install new insulators; preferrably polyurethane. After more cleaning, coat the thr… 1983 Ford Bronco - Due to battery acid, the passenger side is invariably worse than the driver's. This bolt sheared as the nut was removed, but I still want t… 1983 Ford Bronco - Like the driver's side, it soaked for several days in penetrant. [url=http://www.supermotors.net/vehicles/registry/media/1055471] http://ww… 1983 Ford Bronco - It's warmed up & ready to go... Large-jaw Vise Grip 12L3 [url=http://www.supermotors.net/registry/media/194329] http://www.supermotors.net/… 1983 Ford Bronco - This one was slower to start, but obviously took less time to finish. [url=http://www.supermotors.net/registry/media/194329] http://www.sup… 1983 Ford Bronco - Drain Washer Body mounts are notorious for collecting water, mud, & salt (especially the RHF which also collects battery acid), resulting i… 1983 Ford Bronco - Backups IF THE IMAGE IS TOO SMALL, click it. When working alone, it's convenient to have a backup that doesn't need to be held - particular… 1983 Ford Bronco - The other body mounts are much simpler to remove. Simply back out the bolt until no threads are showing below the nut, then strike the bolt… 1983 Ford Bronco - The other body mounts are much simpler to remove. Simply back out the bolt until no threads are showing below the nut, then strike the bolt… 1983 Ford Bronco - The other body mounts are much simpler to remove. Simply back out the bolt until no threads are showing below the nut, then strike the bolt… 1983 Ford Bronco - The other body mounts are much simpler to remove. Simply back out the bolt until no threads are showing below the nut, then strike the bolt… 1983 Ford Bronco - The other body mounts are much simpler to remove. Simply back out the bolt until no threads are showing below the nut, then strike the bolt… 1983 Ford Bronco - '93 Bronco body mounts, except the core support mounts [url=http://www.supermotors.net/registry/media/194329] http://www.supermotors.net/ge… 1983 Ford Bronco - '93 Bronco body mounts The larger ones (top Left in the pic) are for the #2 position. [url=http://www.supermotors.net/registry/media/194329… 1983 Ford Bronco - '93 Bronco body mounts The larger ones (top Left in the pic) are for the #2 position. [url=http://www.supermotors.net/registry/media/194329… 1983 Ford Bronco - '93 Bronco body mounts The larger ones (Left in the pic) are for the #2 position. [url=http://www.supermotors.net/registry/media/194329] ht… 1983 Ford Bronco - The sleeve for the #2 body mount (in the footwells) is different from all the others: its necked section is much shorter, even though the t… 1983 Ford Bronco - The sleeve for the #2 body mount (in the footwells) is different from all the others: its necked section is much shorter, even though the t… 1983 Ford Bronco - The mounts on the '93EB have been fighting me (and winning) for the past 3 months. I've only separated 2, and the nut ripped off another. I… 1983 Ford Bronco - I've been trying to cut this inner sleeve using an air-hammer bit, but even with a 12# sledge, it wasn't working. This tool is going betwee… 1983 Ford Bronco - After thoroughly wire-wheeling them, and removing the burrs from the tube, I welded the 7/16"-14tpi nut back to the sleeve. 1983 Ford Bronco - They've all been PsITA, but this one takes the cake. I had to make a 2nd tool with a smaller throat because the steel kept bending into a f… 1983 Ford Bronco - After soaking with at least 4 kinds of penetrating oil for 3 months, I expected to see SOME wetness on the outside of the lower sleeve, but… 1983 Ford Bronco - I dropped a deep socket over the tube, set the flange on the frame, and sledge-hammered it back into shape. 1983 Ford Bronco - Most came apart relatively easily after both tools were inserted. 1983 Ford Bronco - Early body mount bolt covers are steel, screwed down. But the jute backing usually holds water and rusts the screw heads off. Swapping to t… 1983 Ford Bronco - '80-96 Body Mounts DAYSTAR I don't recommend the technique shown in the lower L because there's a risk of bunging the threads that have to… 1983 Ford Bronco - Body Centering IF THE IMAGE IS TOO SMALL, click it. When the rubber mounts collapse, they allow the body to slide on the frame, causing var… 1983 Ford Bronco - This truck was hit REALLY hard, but the body shouldn't have shifted THIS much. See the NEXT pic... See also: [url=http://www.supermotors.ne… 1983 Ford Bronco - Here's why the body slid during the impact. Not only does it have a body lift - several bolt heads pulled thru the cheapo washers, allowing… 1983 Ford Bronco - This is your truck on a body lift...
