Dana 44 lock out swap

From 1992 Ford Bronco “Big '92” — documented by Jeremy Millrood.

14 photos
← Back to this vehicle

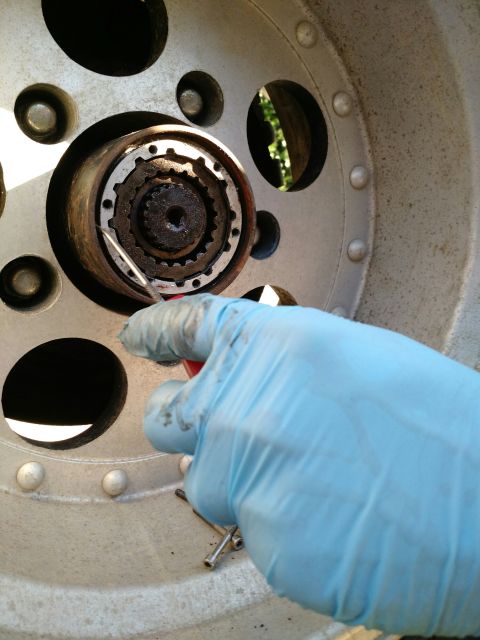

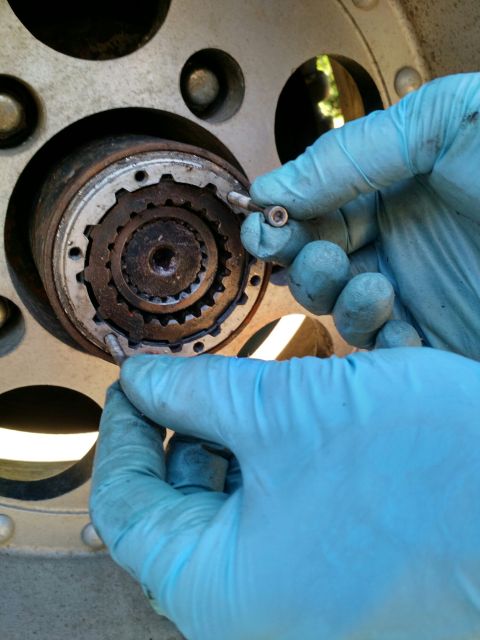

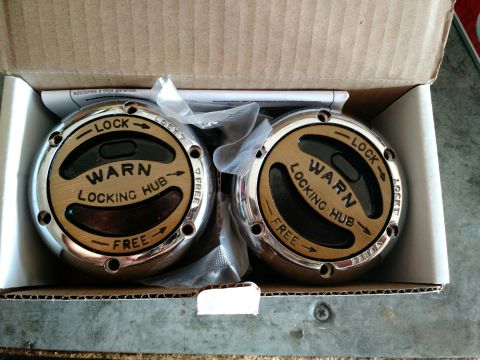

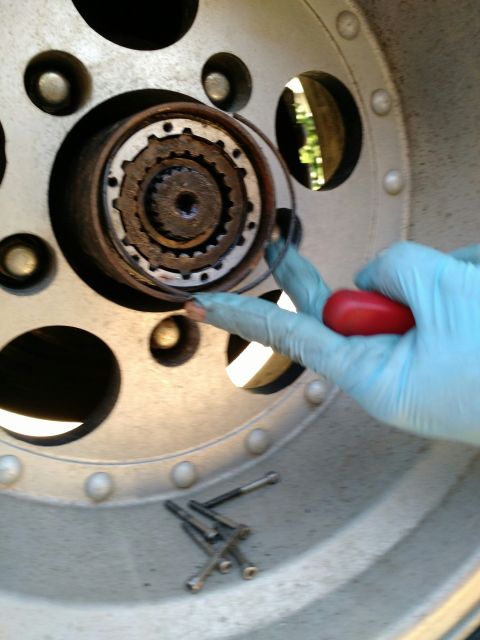

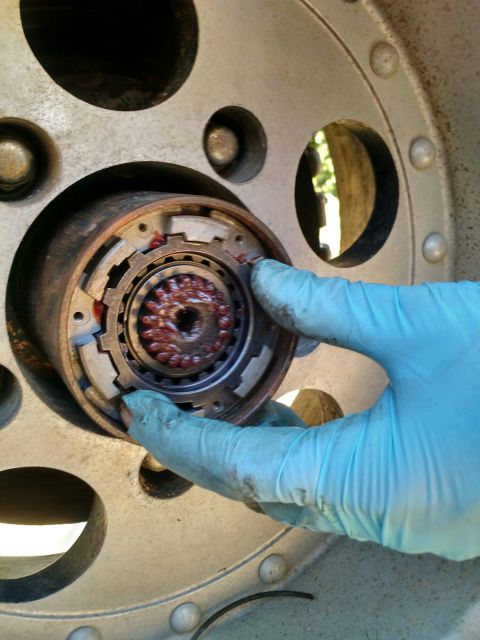

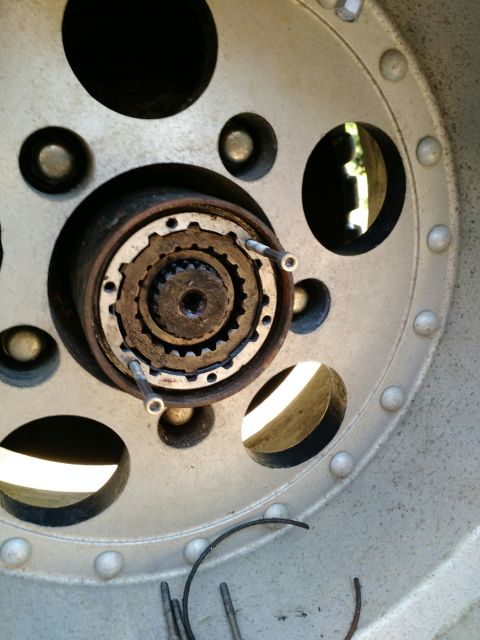

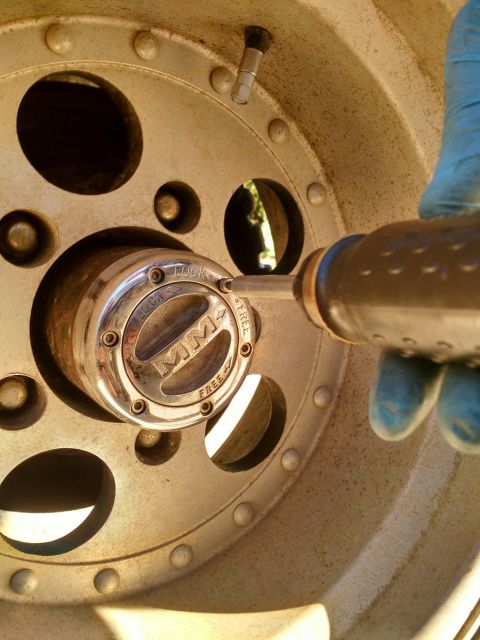

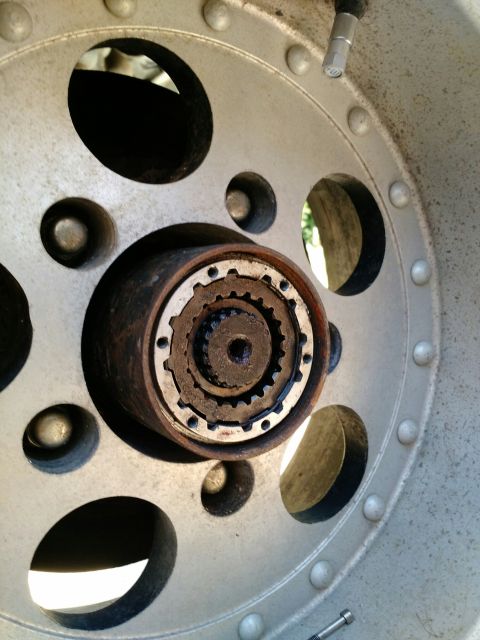

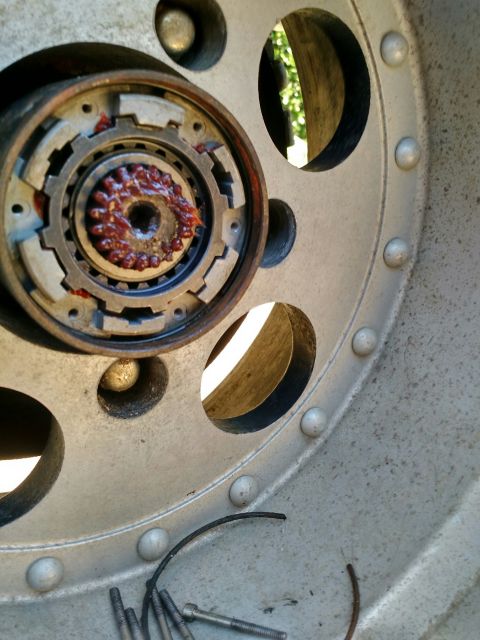

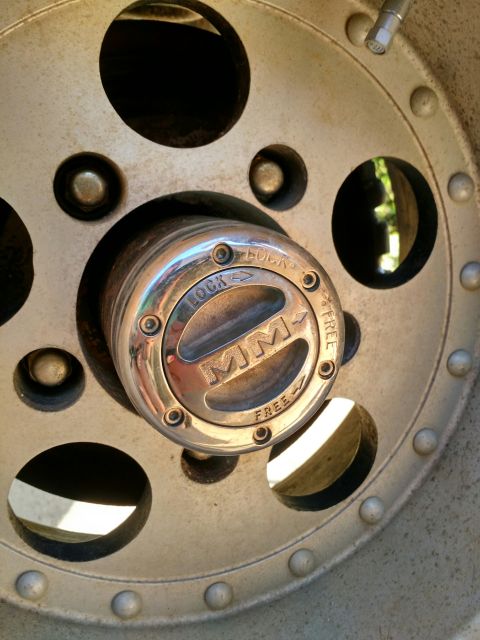

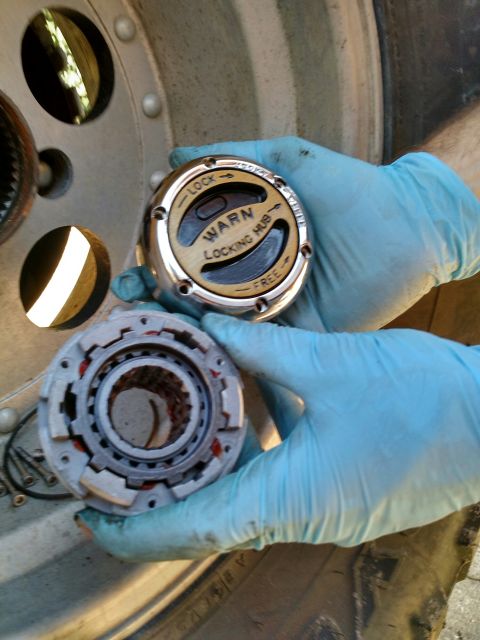

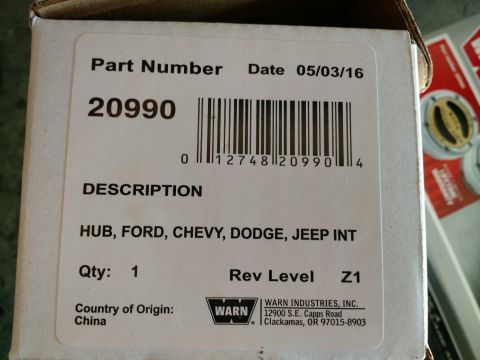

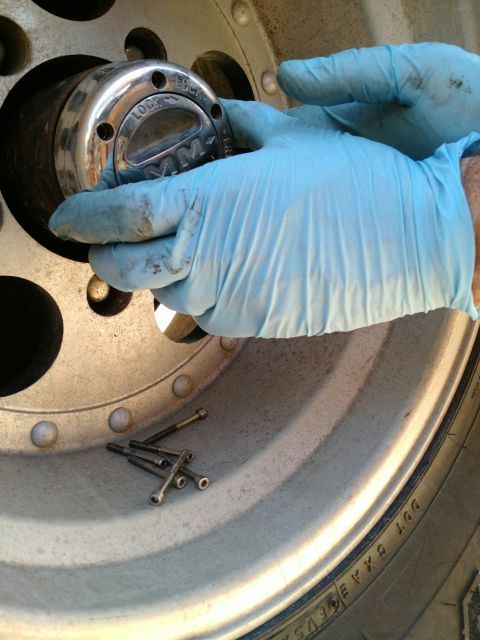

1992 Ford Bronco - Replacing the milemarker lockouts with Warns on my solid axle Dana44, but this process should be exactly the same to any Dana 44. A little… 1992 Ford Bronco - Here are the shiny new Warns. They come with all the hardware you need to swap. 1992 Ford Bronco - Old milemarker hub, they use a hex head bit on the retaining screws. 1992 Ford Bronco - 6 total and the lockout cover should come right off. 1992 Ford Bronco 1992 Ford Bronco - next step is to fish out the retaining ring. this holds the lockout body in place inside the hud. It sits down in a recessed area. With a p… 1992 Ford Bronco 1992 Ford Bronco - and there's the ring. 1992 Ford Bronco - now use a couple of your bolts to pull the lockout body free from the hub..it should slide right out. 1992 Ford Bronco 1992 Ford Bronco - with the old lockout removed the new one is ready to go in..the Warns come pre-greased, you don't want to add anything else to them as it c… 1992 Ford Bronco - new lockout body slides right into place. on the TTB axles you will need to add the snap ring (comes with lockouts) at the end of the axle… 1992 Ford Bronco - new lockout body fully seated and don't forget the retaining ring. 1992 Ford Bronco - ready to button it up..once you put the bolts in for the cover, check the dial on the lockout to make sure you can engage and then disengag…
