V-belt saginaw conversion

From 1986 Ford Bronco “Eddie Bauer” — documented by Sixlitre.

7 photos

← Back to this vehicle

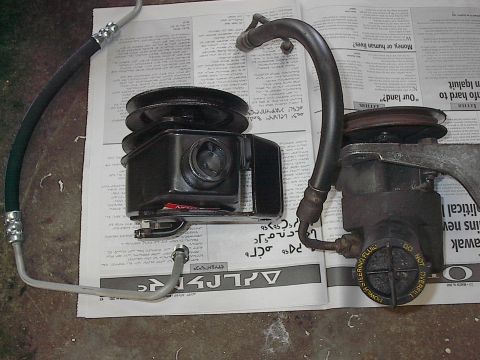

1986 Ford Bronco - rebuilt saginaw on left with 78 bracket POS on right

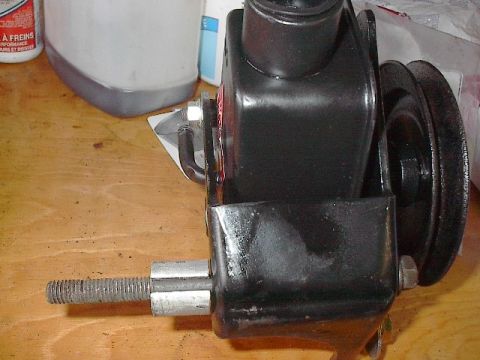

1986 Ford Bronco - Just cut 78 spacer down to fit between 86 brackets

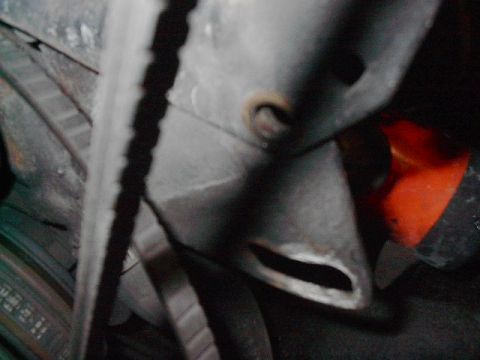

1986 Ford Bronco - Only real mod required, elongate (widen) adjustment slot

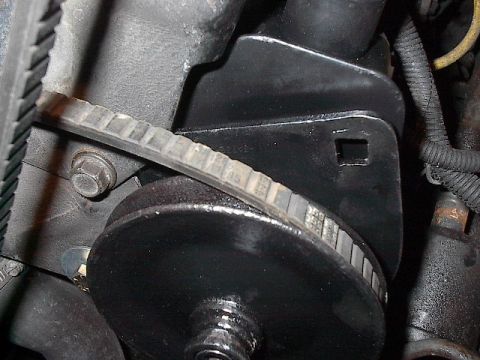

1986 Ford Bronco - Pump in place. Note fender washer to span widened adjustment slot.

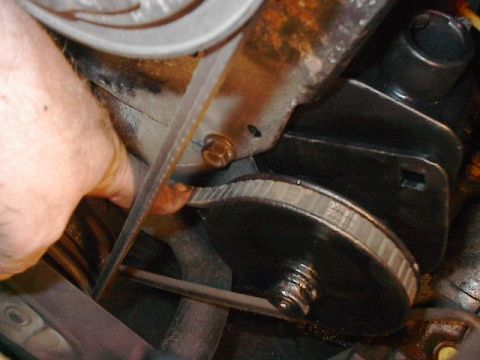

1986 Ford Bronco - The stock belt, she is an inch too long now, D'oh !

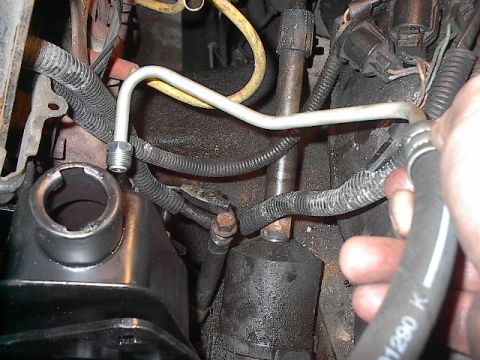

1986 Ford Bronco - New hose required as 78 has different fittings and one more 90 degree bend

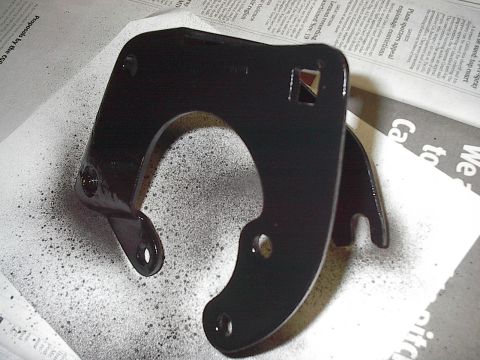

1986 Ford Bronco - 78 van bracket from yard, used questionable pump for core on rebuilt. Keep bolts, spacer, lid,etc
