Remote trans filter

From 1986 Ford Bronco “Eddie Bauer” — documented by Sixlitre.

13 photos
← Back to this vehicle

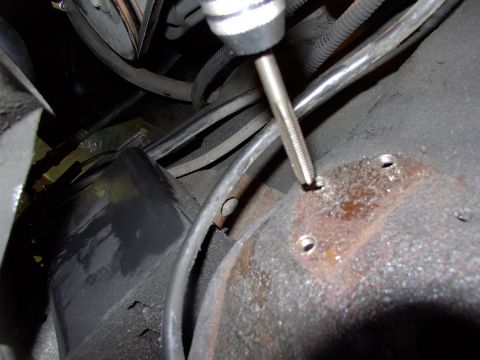

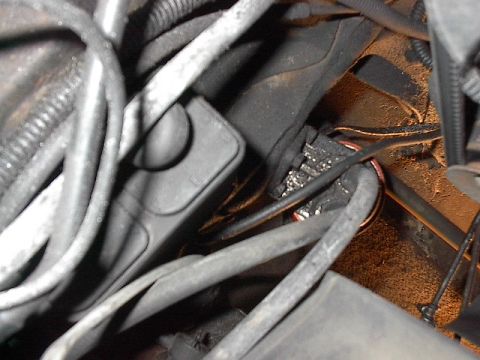

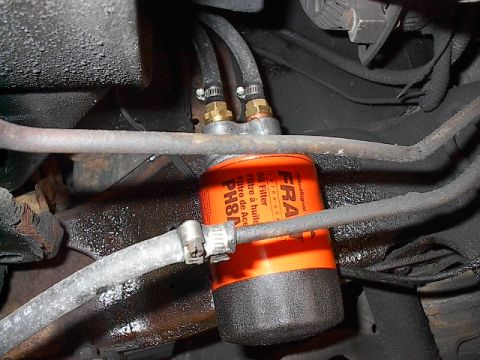

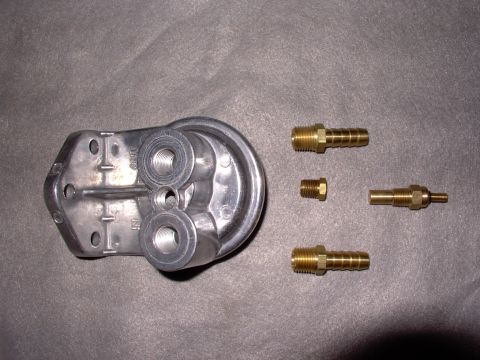

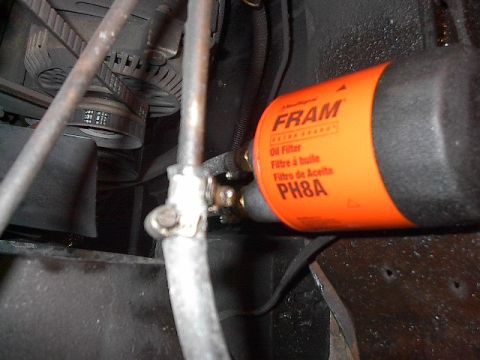

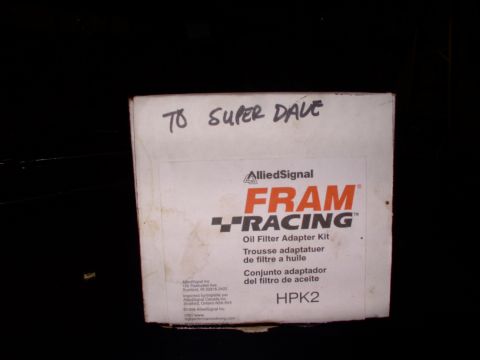

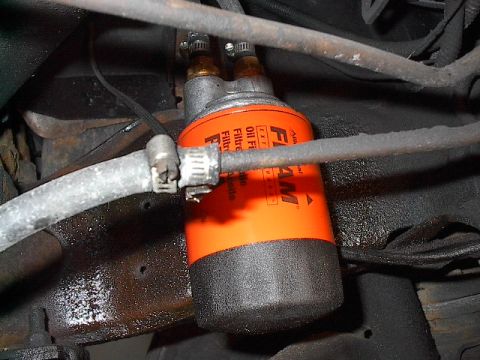

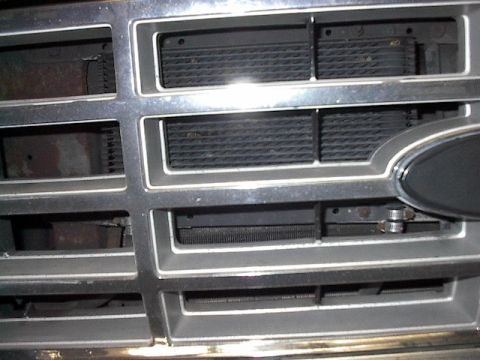

1986 Ford Bronco - Drilled and tapped right into passenger's frame rail. Note charcoal canister upper left. 1986 Ford Bronco - Lower rad shroud to your upper left for reference 1986 Ford Bronco - Shroud at the bottom, then fan blade, then 1995 mustang 130 amp alternator. Know where you are yet ? 1986 Ford Bronco - Here's an over head view looking down from above. Just drill and tap the frame rail 1986 Ford Bronco - One large 1 1/2" thick B&M trans cooler. Priced your trans lately ? Get one of these. 1986 Ford Bronco - This is the first remote filter housing I used and it worked fine. I just wanted one that had a temperature sender unit provision. This Fra… 1986 Ford Bronco - Summit list this remote filter housing under Perma-Cool number 5021 and at $20 it's a lot cheaper than any kit available. I bought it to re… 1986 Ford Bronco - The hose fittings were one buck and the temp sensor comes with the temp gauge. Note the block off bolt that comes with the housing if you w… 1986 Ford Bronco - The frame rail is plenty thick enough to drill and tap it. This works better for removal as self tapping screws tend to strip easily. I use… 1986 Ford Bronco - Ready to go on. I used the sensor safe sealant instead of teflon on the threads. 1986 Ford Bronco - mounted and awaiting the oil filter 1986 Ford Bronco - Hottest day of the year in bumper to bumper downtown traffic and this is as high as the trans temp would climb with the B&M cooler. 200 deg… 1986 Ford Bronco - Same day (hottest of the year) flyin' down the highway smiling and she's steady at 140 degrees, once the air starts moving through the gril…
