door shells & fender

From 1986 Ford Bronco “Eddie Bauer” — documented by Sixlitre.

26 photos
← Back to this vehicle

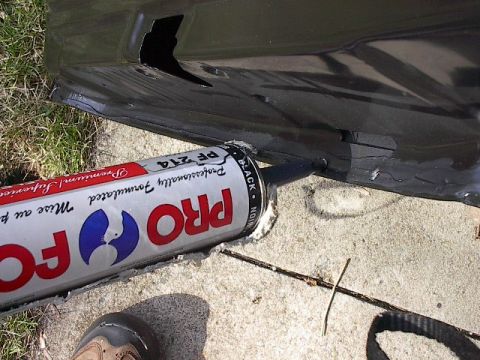

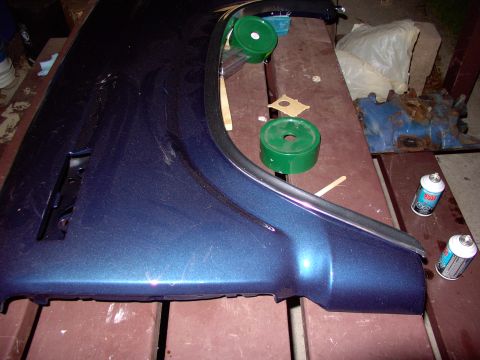

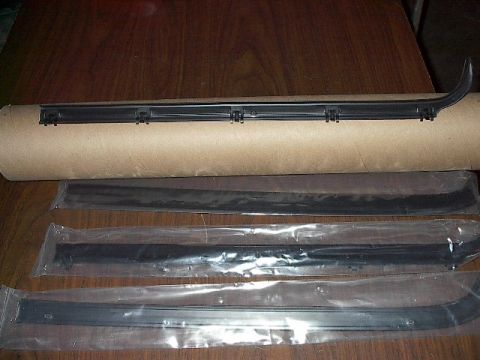

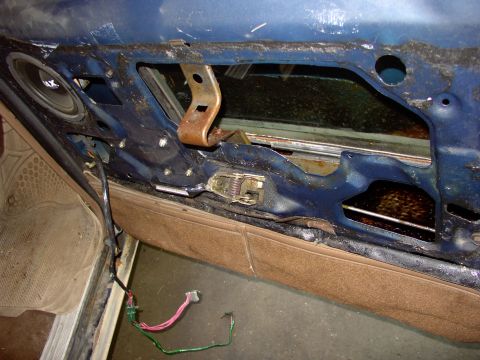

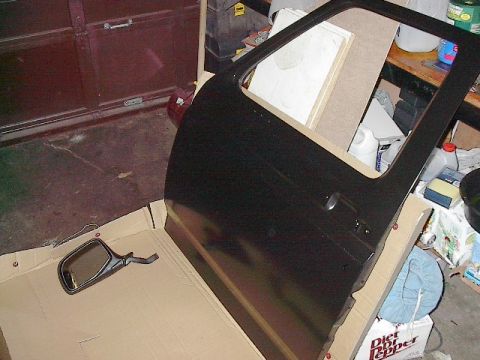

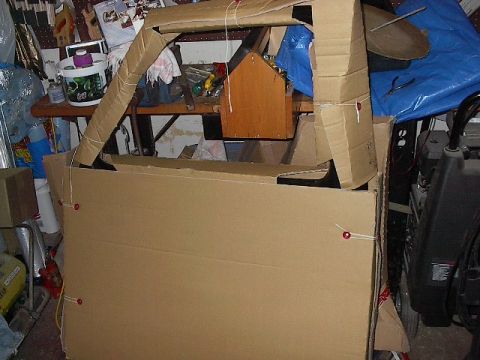

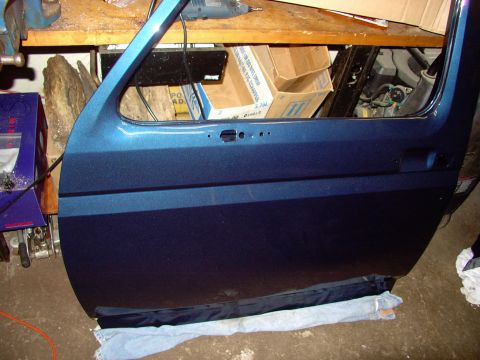

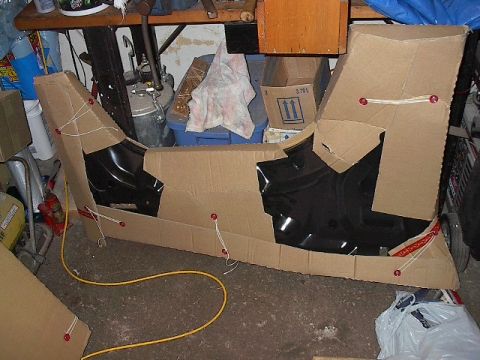

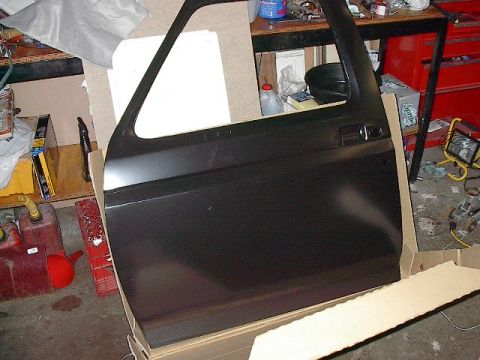

1986 Ford Bronco - Opened it up to check for dents, perfect 1986 Ford Bronco - Small wonder they don't get damaged with packing like this 1986 Ford Bronco - Really happy when I found no lower mirror bracket holes pre-drilled 1986 Ford Bronco - Once I get these new 96 mirrors on the new 86 doors, no lower holes to patch ! 1986 Ford Bronco - Sealing up the crimped edges on the new door shells. It's sandable and paintable and drys real quick. Push it into the seams pretty quick. 1986 Ford Bronco - Sound deadner going in. Work in the deep, hardest to get edges and angles first while you still have plenty of propellent pressure. 1986 Ford Bronco - New JCW inner and outer door window wipe seals arrived today ! Dropped both door shells and fender off to the paint shop today too ! 1986 Ford Bronco - Yee haw ! Just got the new door shells back from the paint shop ! 1986 Ford Bronco - Think I'm going away from the Eddie Bauer tan for a while and try these chrome fender trim pieces and see how it looks just blue and chrome… 1986 Ford Bronco - Whip off the inner panel, disconnect PDL, PW, switches and speaker. Note (4) 7/16" nuts, over handle, holding my window mechanism as oppose… 1986 Ford Bronco - This one 7/16" bolt holds the corner window frame to the door. 1986 Ford Bronco - Other than that two philips go into the holes you see on the galvanized frame, through the top of the door, half hidden under the weatherst… 1986 Ford Bronco - After the corner window, with it's frame, is out the big window is so loose in the door frame you just slide it off the square glide and ou… 1986 Ford Bronco - Look how easy those bolts and nuts were to remove. Forget putting rivets back, this way you can remove the window mechanism (like we're doi… 1986 Ford Bronco - The outer window seal track is in the way of getting at everything lock or handle related. One bolt removes it. 1986 Ford Bronco - Now you can get at everything much more easily. Use this as a linkage guide, as nothing has been disassembled yet. 1986 Ford Bronco - Next out is the handle(save plastic gaskets) and lock cylinder with hold in clip. BTW my aftermarket door wouldn't accept the clip from out… 1986 Ford Bronco - Next out is the latch mechanism. These screws are almost always seized, so.... impact driver to the rescue. You can bet they went back in w… 1986 Ford Bronco - It's worth mentioning this rod has to come out of the inner door handle before you can remove the latch mechanism as a whole. Needs to go b… 1986 Ford Bronco - When you pull this latch mechanism out you will lose one or two rods down the door. Use the previous photos to guide you on which way they… 1986 Ford Bronco - Somebody at FullsizeBronco.com suggested bungee cording the doors to the ceiling to hold them while unbolting them. What a great idea, than… 1986 Ford Bronco - Newly painted new door shell hanging by bungees, ready to be bolted onto newly bushed and pinned hinges (see elsewhere). I had to add two w… 1986 Ford Bronco - Got this self adhesive 3M dense, spongy foam rubber really cheap. It should sound good behind each 6 1/2" mid range component door speaker. 1986 Ford Bronco - It's a half inch thick and should also help sound deaden the doors a bit too, even though they already have deadener sprayed inside them. 1986 Ford Bronco - Perfectly lined up with the rear quarter body lines, the fender needs to come up a smidgeon, but that's tomorrows job. Tonight I just tosse… 1986 Ford Bronco - There's the new doors, fenders and 96 style mirrors on the truck, sure needs quarters eh ? They're next
