AOD internal filter change

From 1986 Ford Bronco “Eddie Bauer” — documented by Sixlitre.

13 photos
← Back to this vehicle

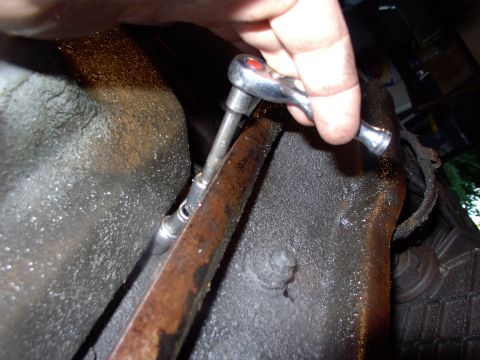

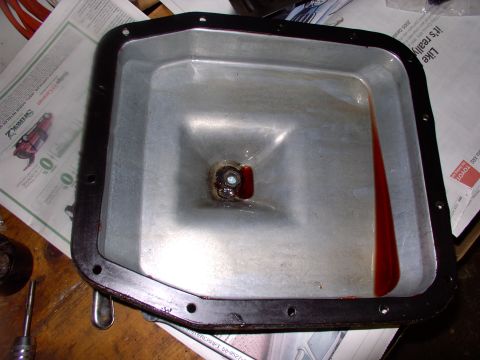

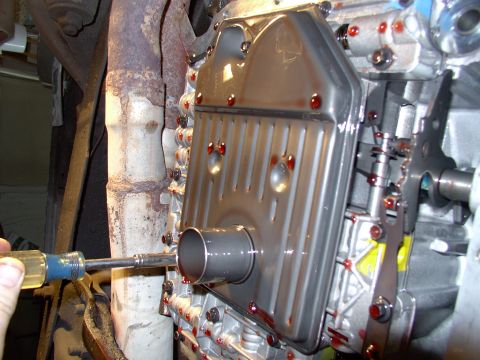

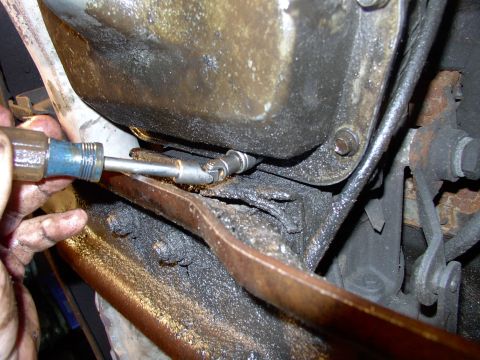

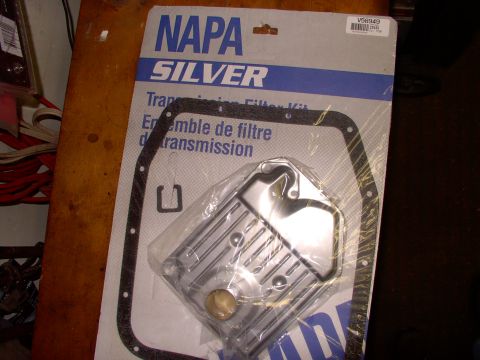

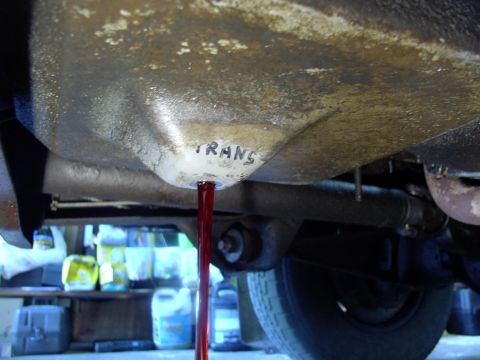

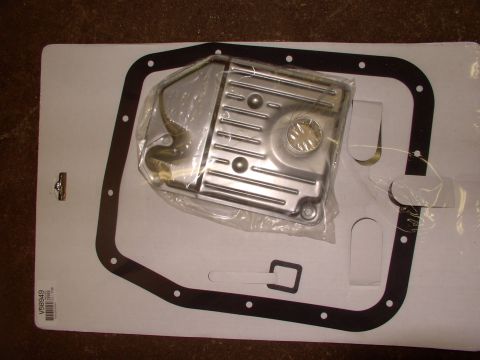

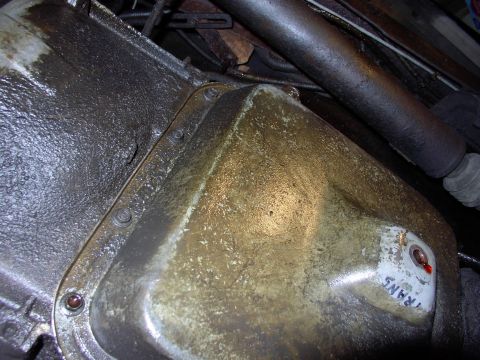

1986 Ford Bronco - AOD filter kits finally came down 40% in price from last year. You get rubber gasket (re-usable), steel encased paper filter with seal alre… 1986 Ford Bronco - Update. This sucker has dropped in price again ! $12 CDN this year. NAPA part number is V 58949 1986 Ford Bronco - What a treat being able to use this drain plug I welded in last year, instead of getting the red hair conditioning oil all over me. No mess… 1986 Ford Bronco - All the bolts, except the two middle rear ones, are easy to get to with a 10mm socket. I use a clutched screw gun for removal and re-assemb… 1986 Ford Bronco - These two middle rear bolts are a real treat to get to. Ford engineers should get a sound beating for sticking them under the trans mount c… 1986 Ford Bronco - This year I discovered this combination of tools is even easier to reach those two difficult to get to pan bolts. Works particularly well o… 1986 Ford Bronco - Now just undo the three 8mm head bolts and note that they are NOT that tight. Remember this when you tighten on the new one. Look how clean… 1986 Ford Bronco - That external remote filter is really doing it's job. This is what the pan and fluid looked like after a whole year and 20,000 miles. No fi… 1986 Ford Bronco - Here's the valvebody without the filter on it. Note the round snout there. That's the one people tell you to make sure only one seal goes b… 1986 Ford Bronco - Ever wonder how far your dipstick goes into the transmission ? There it is, not far. Damn ! I should have got a shot of the filter on the v… 1986 Ford Bronco - Speak of the devil, there it is. I stick the cork gasket on with a little sealant or glue just to hold it still as you're usually twisting… 1986 Ford Bronco - Dap a little sealant on the small square gasket just to keep it in place while you install the filter housing. Without that gasket your pum… 1986 Ford Bronco - Wipe the excess sealant off right away, you don't want any fouling up the transmission.
