Back Seat Lighting Upgrade

From 1986 Ford Bronco “Eddie Bauer” — documented by Sixlitre.

17 photos
← Back to this vehicle

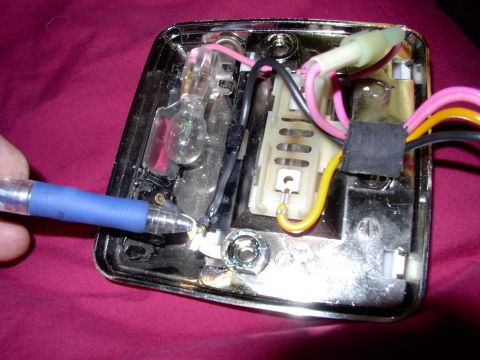

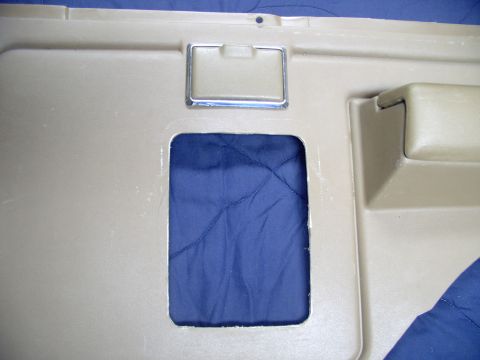

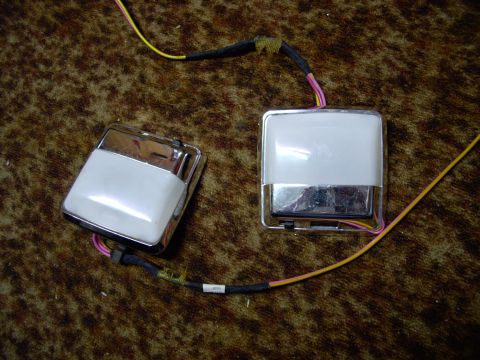

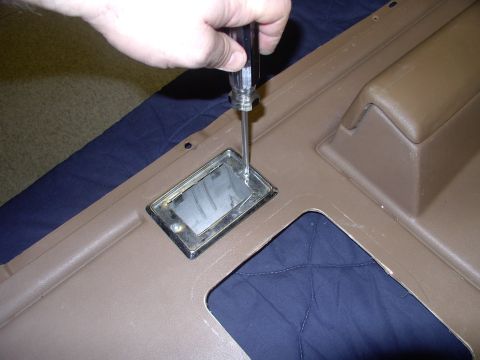

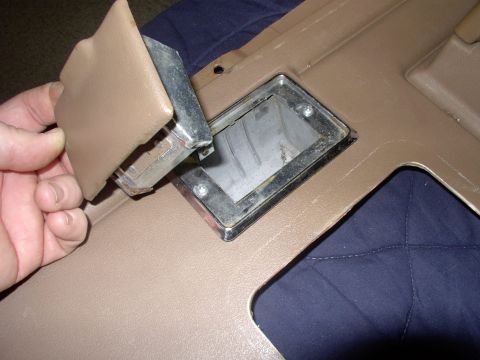

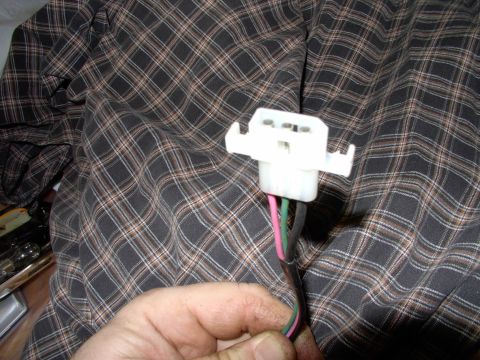

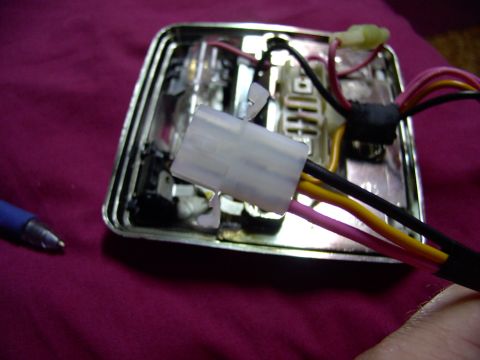

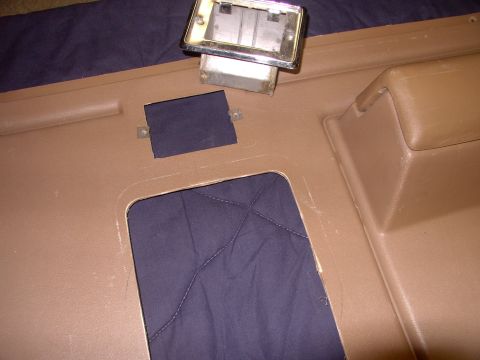

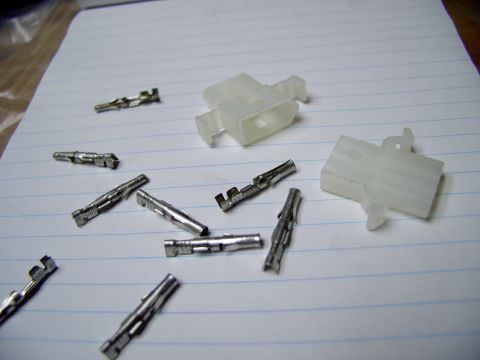

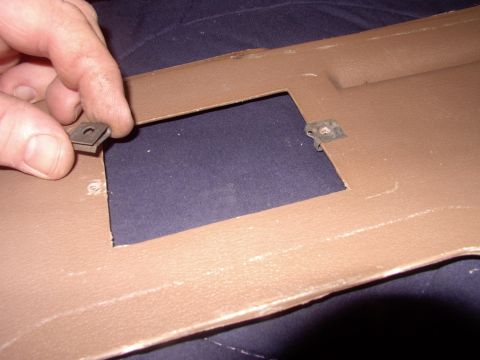

1986 Ford Bronco - The back seat of a Bronco is a black abyss. Since my 8" round mid range speakers eat up so much space the ashtrays will no longer fit I was… 1986 Ford Bronco - All I had to do was add a ground wire where the stock Mopar would have used the mounting hole to ground the unit. 1986 Ford Bronco - Added a male three pin plug for quick disconnects to both Chrysler dome lights(new Bronco rear seat courtesy lights). The pink serves the d… 1986 Ford Bronco - The female 3 pin plug I wired into the stock harness utilizing the no longer used rear speaker wires. They're already there and run across… 1986 Ford Bronco - These plugs are available at any electronic surplus store real cheap and allow you to do this. Just solder the connectors on and plug them… 1986 Ford Bronco - Here's your stock rear seat ashtray. On mine they've been rendered useless by my 8" mid range speakers going in underneath them. Just as we… 1986 Ford Bronco - Whip out the ashtray and discard or sell on E-bay. 1986 Ford Bronco - Remove and keep the ashtray mounting screws. 1986 Ford Bronco - The ashtray housing gets the heave too. 1986 Ford Bronco - As luck would have it the Fifth Avenue Dome housing screw centers are just a hair too narrow for these stock screw clips, so remove one, li… 1986 Ford Bronco - I did promise a bolt-on modification so here goes. A slightly larger/longer screw clip is employed on one side only. 1986 Ford Bronco - Trial fitting the Fifth Avenue dome light, with the larger screw clip (end of bad finger) in place. 1986 Ford Bronco - After marking the clip, through light fixture's mounting hole, I drilled a hole in the screw clip. Man those things are difficult to drill… 1986 Ford Bronco - Now you can run in the two screws, making this a true bolt on, not having ruined your original fine corynthian vinyl for future Bronco gene… 1986 Ford Bronco - Done, like dinner. I mounted the map light and switch pointing upward, for the rear seat passenger to utilize. Mounting it downward, in my… 1986 Ford Bronco - Changed my mind and went with two more Bronco cargo area lights. Just needed to slice open the vinyl a bit more. 1986 Ford Bronco - Then just slip in the Bronco cargo light.
