Heater core change

From 1986 Ford Bronco “Eddie Bauer” — documented by Sixlitre.

10 photos

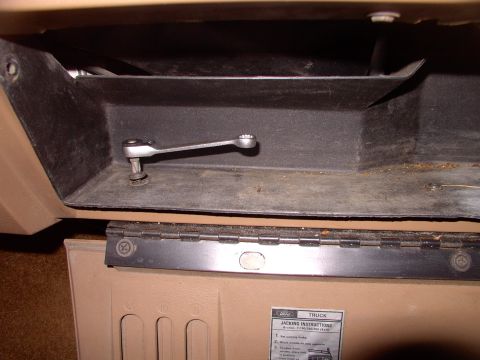

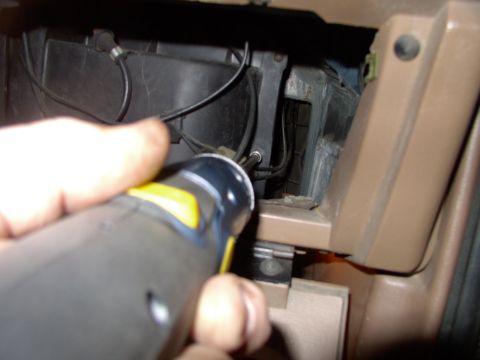

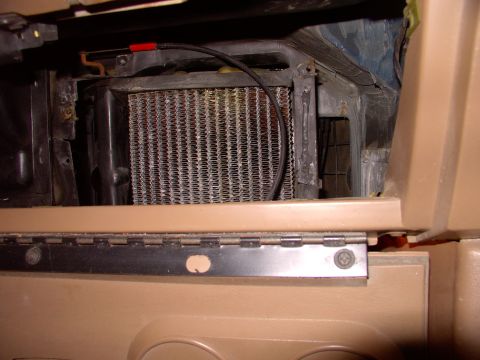

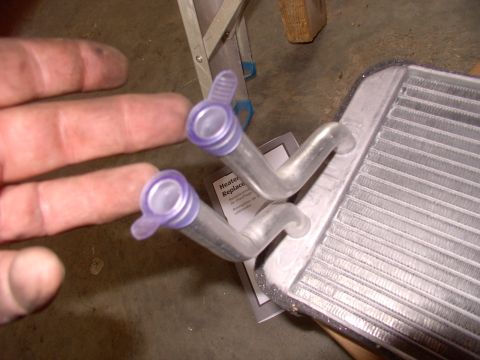

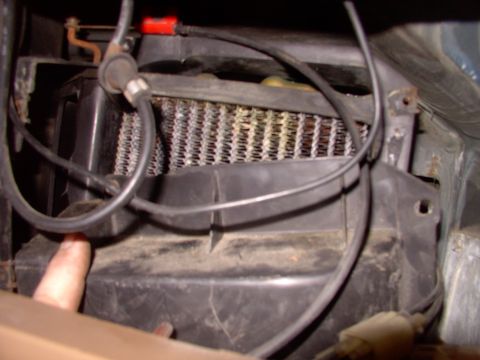

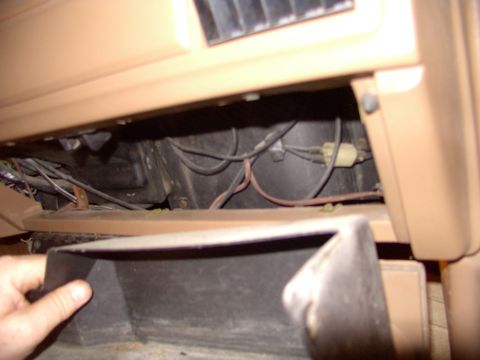

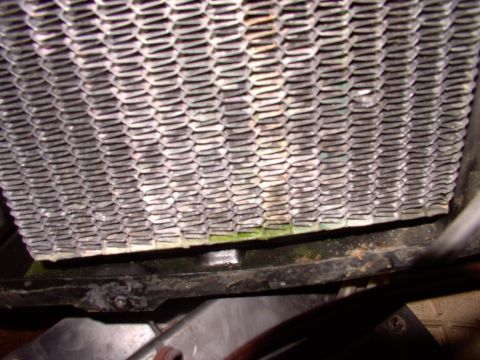

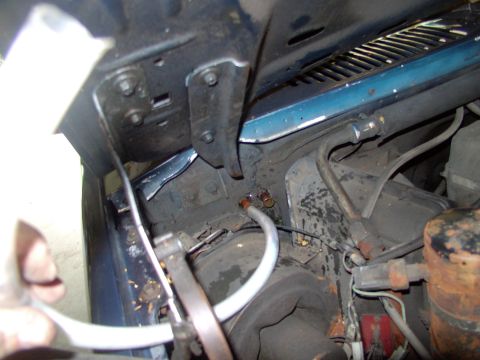

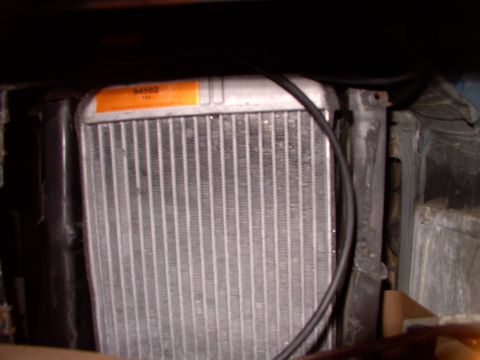

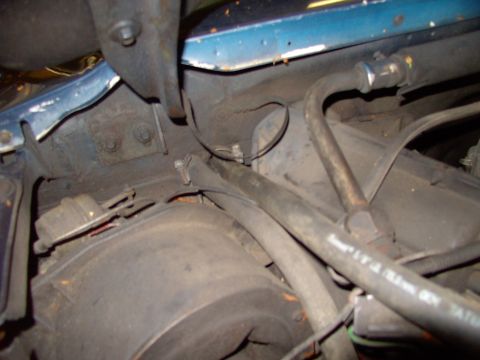

1986 Ford Bronco - Start by removing the inner glove box liner. Three screws on the bottom, like this one in the pic. Then two holding the cables on. 1986 Ford Bronco - Remove inner glovebox liner. 1986 Ford Bronco - Ain't no need to remove glove box door. Just get after the half dozen 5/16" bolts. I'm using a power screwdriver in the pic. 1986 Ford Bronco - Remove cover and get full access to heater core. 1986 Ford Bronco - There's the culprit causing my mats to get green fluid on them. 1986 Ford Bronco - And there's the evidence ! Take these 5.0 litres up to 5,000 rpm regularly and they blow their heater cores sooner or later. Honestly this… 1986 Ford Bronco - Remove hose clamps under the hood. 1986 Ford Bronco - I like to slip a clear hose over one of the nipples and blow the coolant out of the core, into a container (saves the rug). 1986 Ford Bronco - Take these off the new heater core and slip em' on the old one, before you pull it out, and it may save your rug. 1986 Ford Bronco - New core goes in easily and quickly.
