12 volt routing diagrams

From 2015 Ford F-550 “F53 16K Fleetwood Flair” — documented by SHO Continental.

8 photos
← Back to this vehicle

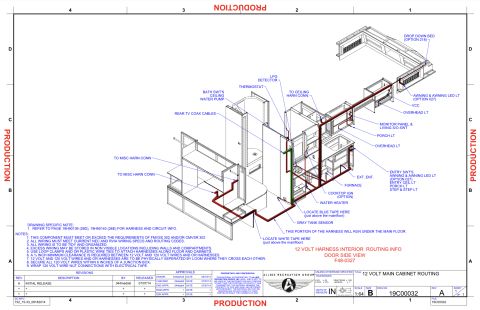

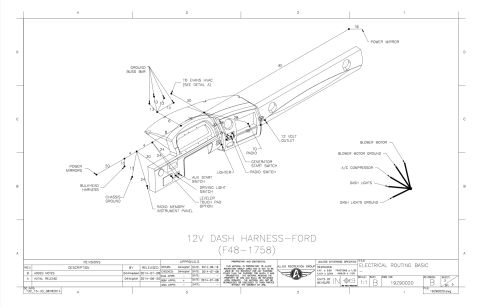

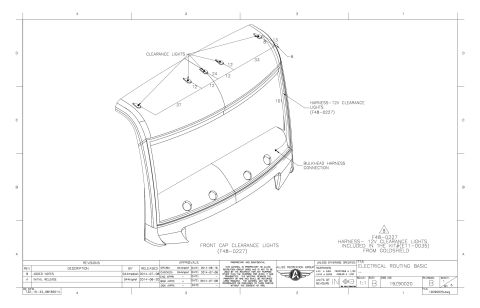

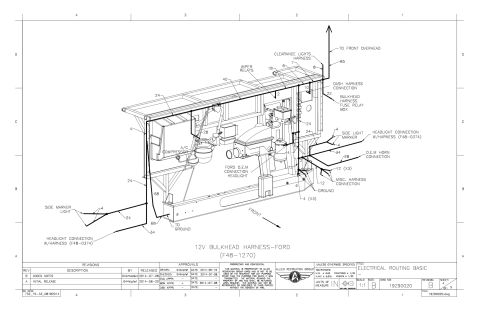

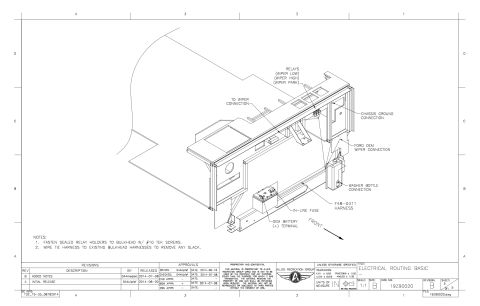

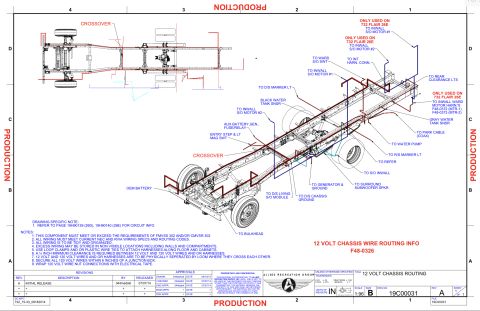

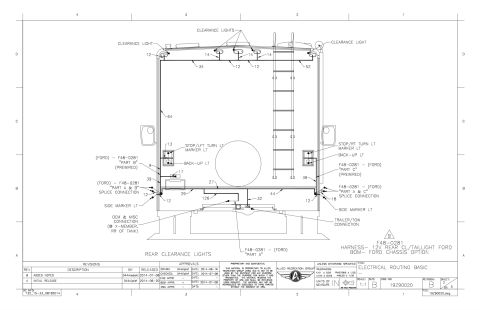

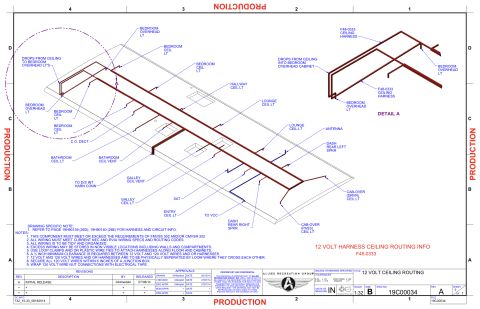

2015 Ford F-550 - This diagram details the 12-volt chassis wire routing, including specific component connections and installation notes. 2015 Ford F-550 - Diagram details 12 volt harness routing for ceiling components within a vehicle. 2015 Ford F-550 - This diagram details the 12 volt harness routing for the interior of an RV, showing connections for various appliances and fixtures. 2015 Ford F-550 - This diagram illustrates the front cap clearance lights and electrical routing for a truck cab. 2015 Ford F-550 - This diagram shows the 12-volt electrical routing for the rear of a Ford chassis, detailing clearance lights, stop/turn lights, and marker… 2015 Ford F-550 - This diagram illustrates the 12V dash harness routing for a Ford vehicle, detailing electrical connections. 2015 Ford F-550 - This diagram details the electrical routing for the 12V bulkhead harness of a Ford vehicle. 2015 Ford F-550 - This diagram illustrates the basic electrical routing for a vehicle's chassis components.
