Dual Batteries

From 1985 Ford Bronco “Blue”, documented by Chris Bradley.

7 photos
← Back to this vehicle

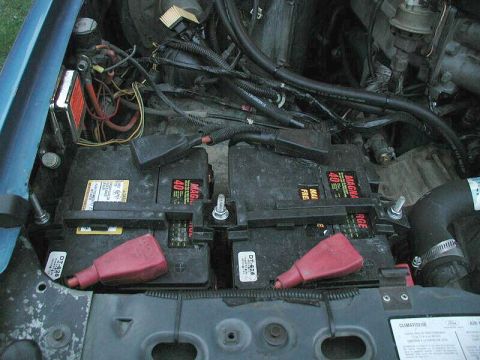

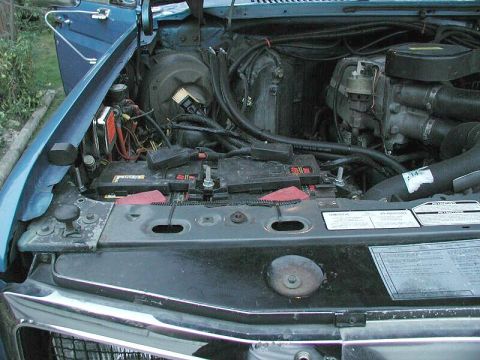

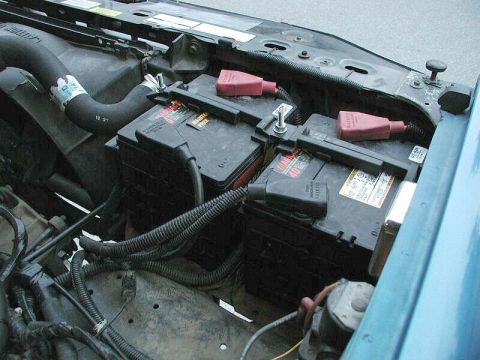

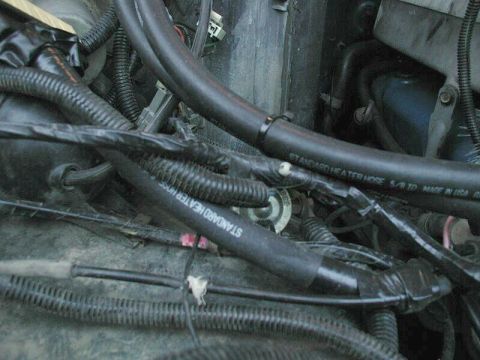

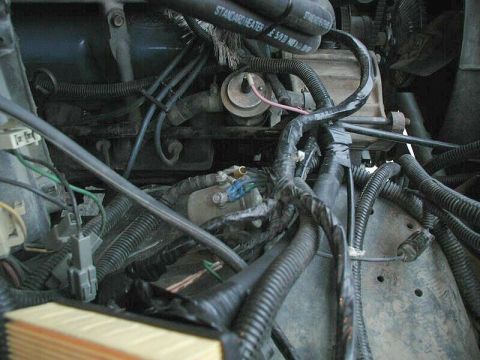

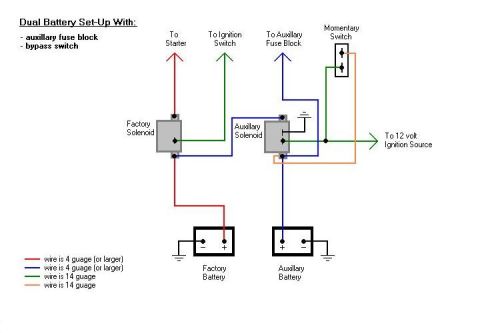

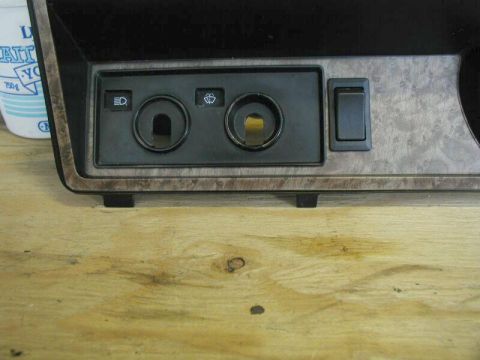

1985 Ford Bronco - Engine bay of a blue Ford Bronco viewed from the front with the hood open, showing a black battery in a tray, wiring harnesses, hoses, and… 1985 Ford Bronco - Engine bay view showing a dual-battery setup with two black 'Maintenance Free' batteries fitted with red plastic terminal covers, surrounde… 1985 Ford Bronco - Close-up of an engine bay showing black rubber hoses labeled "STANDARD HEATER HOSE 5/8 ID MADE IN USA," routed alongside multiple wiring ha… 1985 Ford Bronco - Close-up of a cluttered engine bay showing numerous wiring harnesses wrapped in black loom and electrical tape, various vacuum hoses, and c… 1985 Ford Bronco - Engine bay view of a dual-battery setup with two black batteries mounted side by side, featuring red terminal covers and black wiring condu… 1985 Ford Bronco - Bypass switch (momentary on). 1985 Ford Bronco - Here is the wiring schematic:
