Wiring Schematics

From 1985 Ford Bronco “Blue”, documented by Chris Bradley.

9 photos
← Back to this vehicle

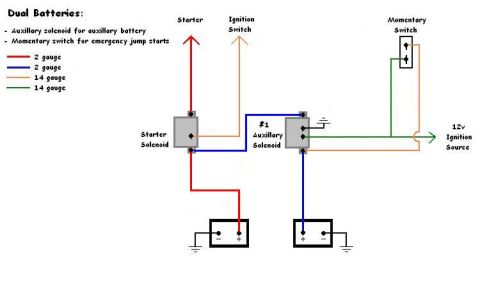

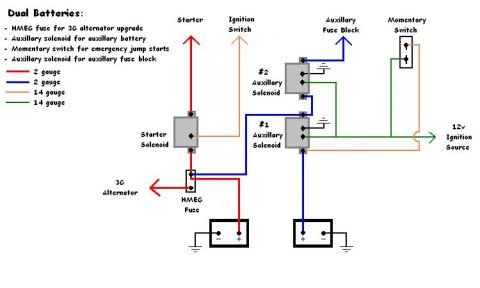

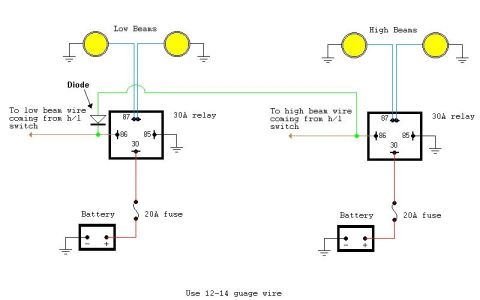

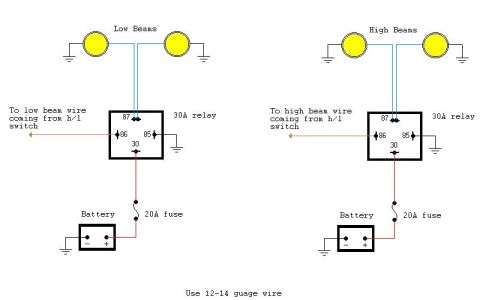

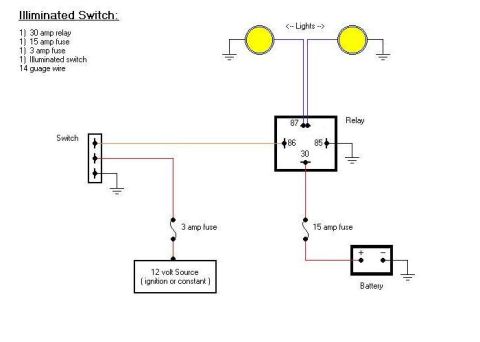

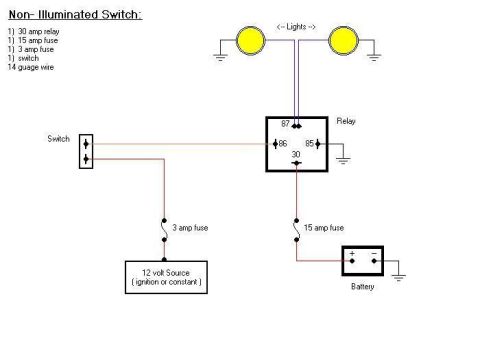

1985 Ford Bronco - Dual Batteries: Basic system. 1985 Ford Bronco - Dual Batteries: Basic system with in-cab momentary switch for self jump-starting from auxillary battery. 1985 Ford Bronco - Dual Batteries: 3G upgrade, HMEG fuse, auxillary solenoid for 2nd battery, auxillary solenoind for auxillary fuse block, momentary switch f… 1985 Ford Bronco - Headlights with relays for low and hi beams 1985 Ford Bronco - Headlights with relays for low and hi beams and a diode so low beams come on with hi beams. (turning on low beams will not turn on the hi b… 1985 Ford Bronco - Auxillary lights with a non-illuminated switch. 1985 Ford Bronco - Auxillary lights with an illuminated switch. 1985 Ford Bronco - Auxillary lights with an illuminated switch and a diode so hi beams turn on auxillary lights. (turning on auxilary lights will not turn on… 1985 Ford Bronco - Reverse lights and auxillary reverse lights, with a diode, so auxillary lights come on with reverse lights. (turning on auxilary lights wil…
