Banshee_boy_01 > 1990 Ford Bronco > open folder EFI 460 / ZF 5 Swap

The old 351w ready to come out.
729 hits | 83.31 KB | Posted: 7/20/08
The old 351w ready to come out.
The 460 in the donor truck
646 hits | 83.68 KB | Posted: 7/20/08
The 460 in the donor truck
351w finally out, waiting to be sold.
683 hits | 72.95 KB | Posted: 7/20/08
351w finally out, waiting to be sold.
The donor truck, ready to be disassembled.
630 hits | 70.68 KB | Posted: 7/20/08
The donor truck, ready to be disassembled.

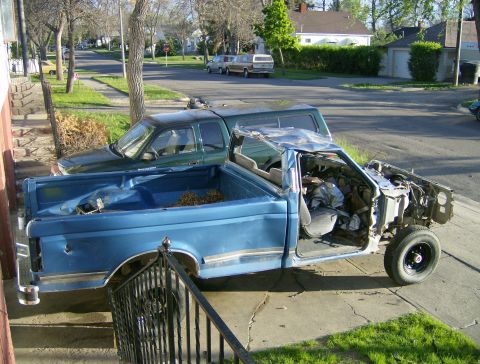

One afternoon of progress.
622 hits | 95.19 KB | Posted: 7/20/08
One afternoon of progress.

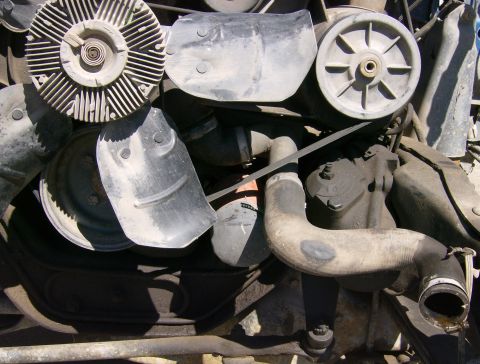

Nice surprise... a factory oil filter re-locater.
671 hits | 79.76 KB | Posted: 7/20/08
Nice surprise... a factory oil filter re-locater.

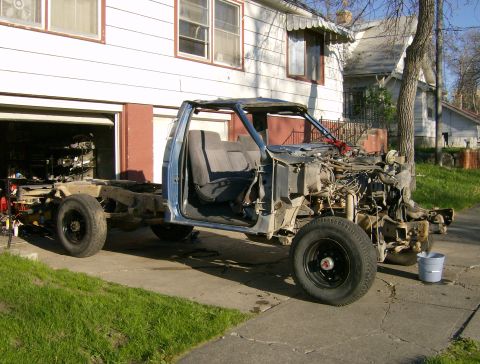

Almost there.
649 hits | 89.67 KB | Posted: 7/20/08
Almost there.
How to win a battle with a stuck bed bolt. 30 tow strap hooked to a Powerstroke F250.
HPIM0689.AVI
1035 hits | 5.8 MB | Posted: 7/20/08
How to win a battle with a stuck bed bolt. 30 tow strap hooked to a Powerstroke F250.

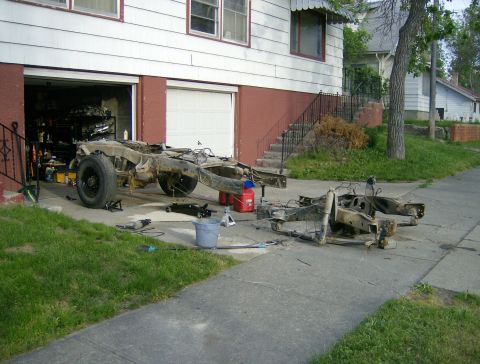

Cutting the frame up to load on the scrap trailer.
699 hits | 79.78 KB | Posted: 7/20/08
Cutting the frame up to load on the scrap trailer.

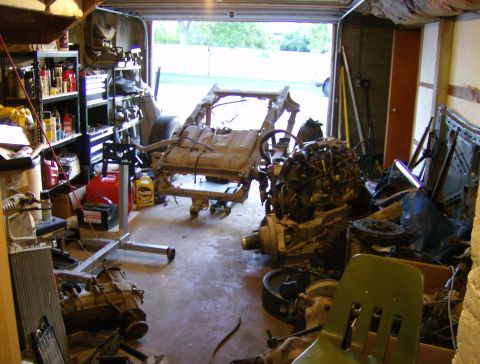

All the parts that are getting swapped to the bronco... crammed in my tiny garage.
592 hits | 82.67 KB | Posted: 7/20/08
All the parts that are getting swapped to the bronco... crammed in my tiny garage.

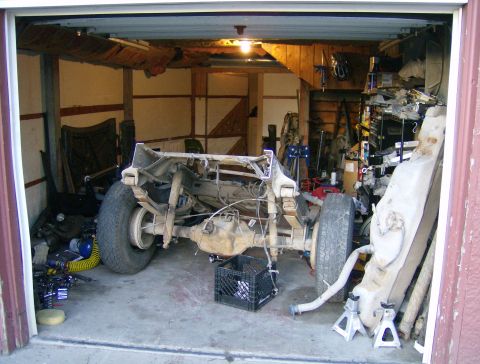

Waiting on assistance to take off the remaining part of the frame.
614 hits | 79.74 KB | Posted: 7/20/08
Waiting on assistance to take off the remaining part of the frame.

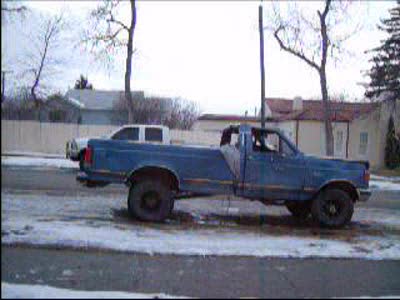

The 460 running in the donor truck.
EFI 460 Big Block.wmv
1185 hits | 1.44 MB | Posted: 7/20/08
The 460 running in the donor truck.

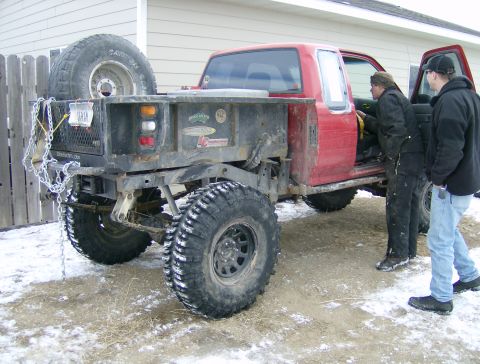

Justin's Toyota. He's the guy I bought the donor truck from.
738 hits | 84.27 KB | Posted: 7/20/08
Justin's Toyota. He's the guy I bought the donor truck from.

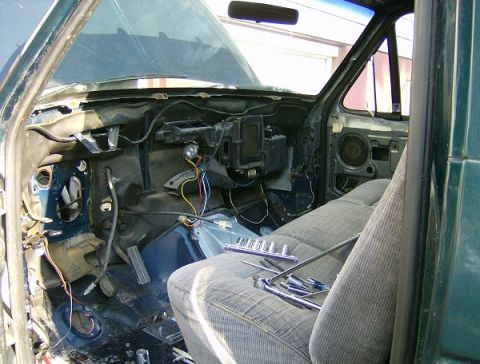

Dash taken out of the bronco to be rewired. Bench seat from the donor truck installed to replace th...
736 hits | 71.44 KB | Posted: 7/20/08
Dash taken out of the bronco to be rewired. Bench seat from the donor truck installed to replace th...

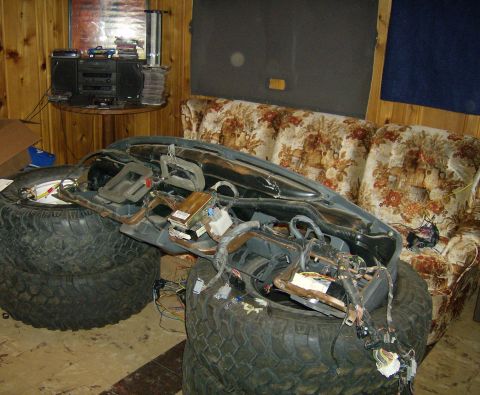

Dash being rewired.
741 hits | 71.85 KB | Posted: 7/27/08
Dash being rewired.

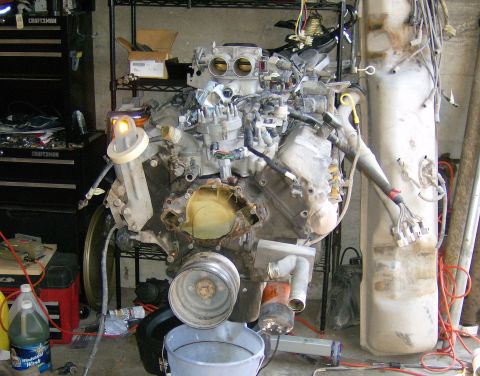

Starting on the disassembly of the 460.
776 hits | 72.81 KB | Posted: 7/27/08
Starting on the disassembly of the 460.

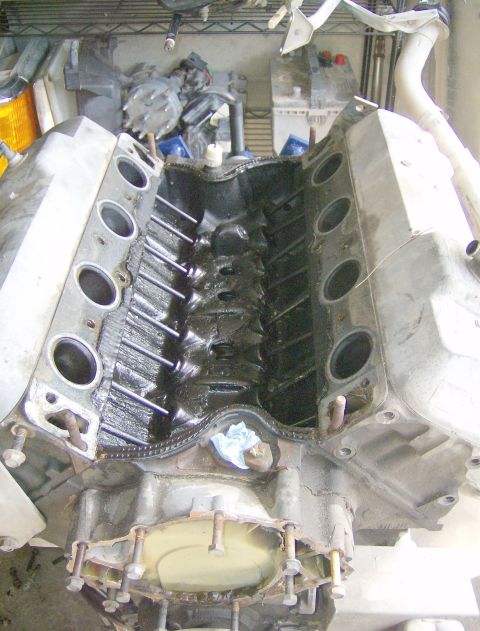

Intake off, assessing the sludge in the oil valley.
883 hits | 61.93 KB | Posted: 7/27/08
Intake off, assessing the sludge in the oil valley.

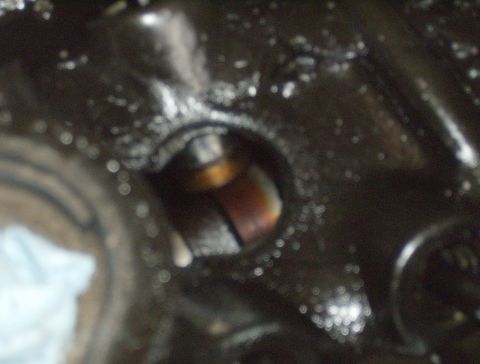

Nasty wear on the camshaft.
992 hits | 35.17 KB | Posted: 7/27/08
Nasty wear on the camshaft.

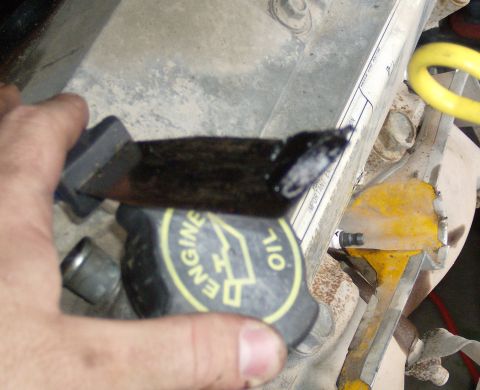

The thickest of the sludge that I cleaned out.
815 hits | 49.38 KB | Posted: 7/27/08
The thickest of the sludge that I cleaned out.

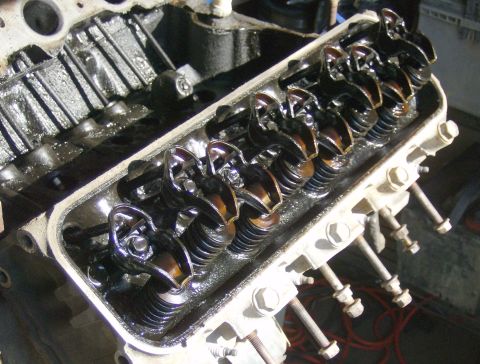

Sludge all over the rocker arms and springs on the heads.
782 hits | 72.71 KB | Posted: 7/27/08
Sludge all over the rocker arms and springs on the heads.

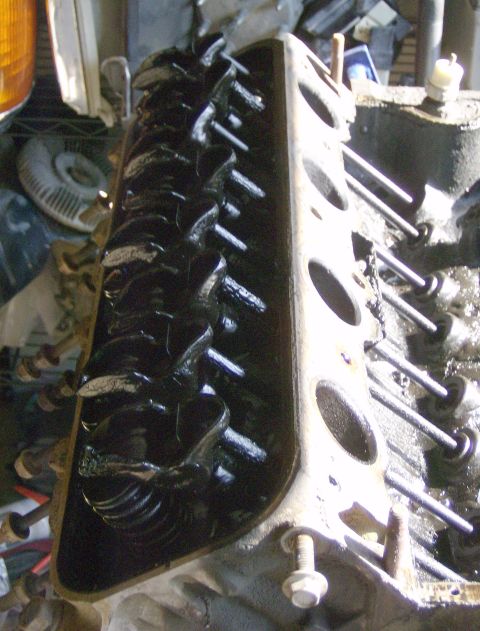

Sludge on the push rods as well.
733 hits | 60.62 KB | Posted: 7/27/08
Sludge on the push rods as well.

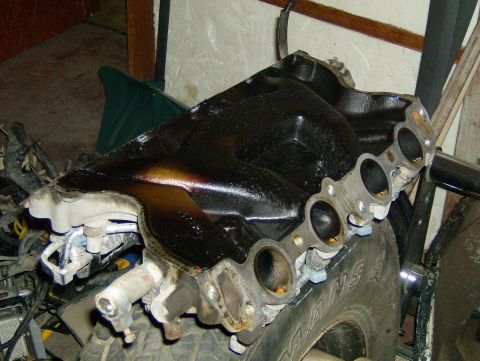

Sludge on the bottom of the intake manifold.
688 hits | 63.11 KB | Posted: 7/27/08
Sludge on the bottom of the intake manifold.

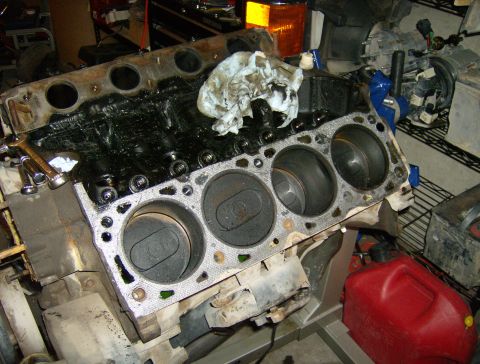

Pistons looking pretty decent... just a little carbon build up that cleaned off easily.
775 hits | 87.47 KB | Posted: 8/2/08
Pistons looking pretty decent... just a little carbon build up that cleaned off easily.

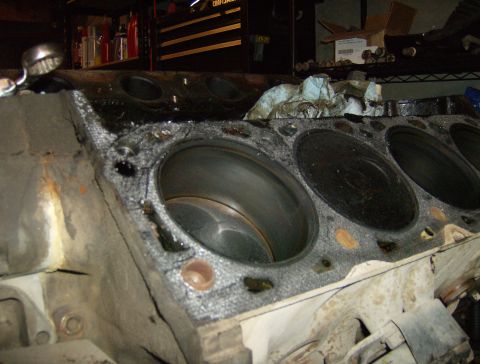

Cylinder walls were stunning. No bad scratches, scuffs, or major damage.
721 hits | 66.51 KB | Posted: 8/2/08
Cylinder walls were stunning. No bad scratches, scuffs, or major damage.

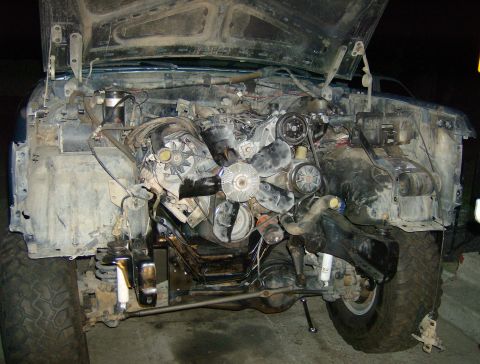

The 460 mounted in the bronco!
2034 hits | 80.98 KB | Posted: 8/11/08
The 460 mounted in the bronco!

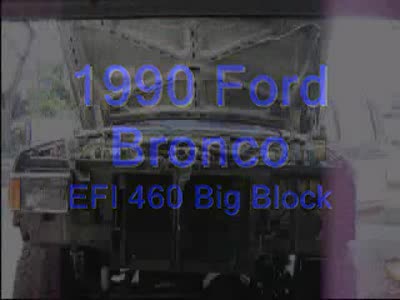

Everything all mounted and bolted in. Breaking the new cam and lifters in so I could set the timing...
460 Bronco.wmv
1217 hits | 3.37 MB | Posted: 8/22/08
Everything all mounted and bolted in. Breaking the new cam and lifters in so I could set the timing...

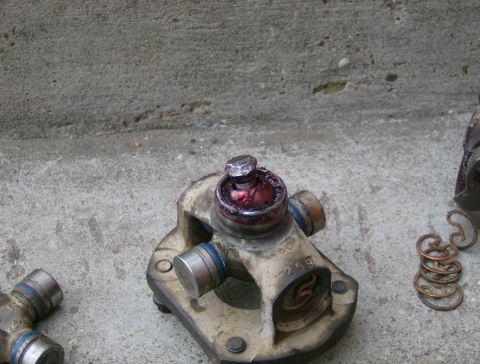

The original drive shaft wasn't long enough. Bought a longer one at the junk yard. Combined the ju...
653 hits | 77.33 KB | Posted: 8/29/08
The original drive shaft wasn't long enough. Bought a longer one at the junk yard. Combined the ju...

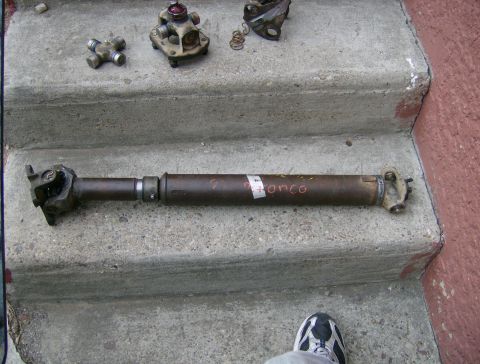

The junk yard drive shaft (from an 82 bronco with a C6 auto or T-18 manual - 30 inches long fully co...
586 hits | 78.61 KB | Posted: 8/29/08
The junk yard drive shaft (from an 82 bronco with a C6 auto or T-18 manual - 30 inches long fully co...

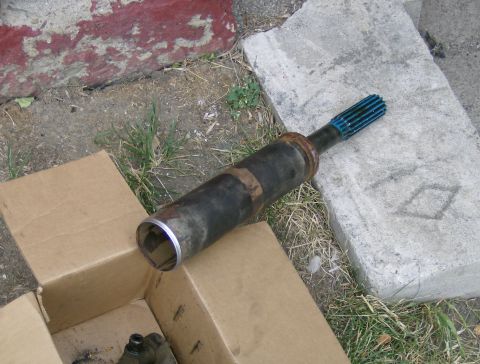

What's left of the stock drive shaft. (90 bronco with an E4OD - 23 inches fully compressed)
605 hits | 79.2 KB | Posted: 8/29/08
What's left of the stock drive shaft. (90 bronco with an E4OD - 23 inches fully compressed)

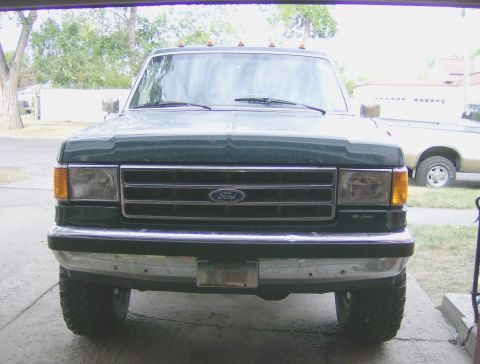

All back together and everything working. Few minor bugs to still work out.
577 hits | 46.86 KB | Posted: 8/29/08
All back together and everything working. Few minor bugs to still work out.

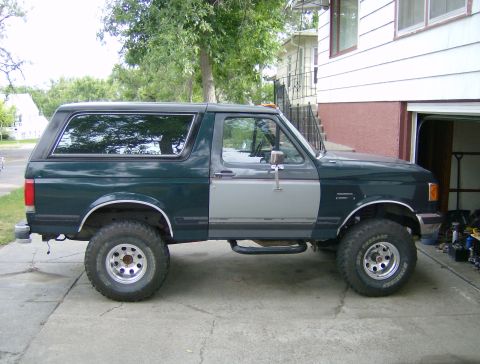

Sitting back on the 15 x 10 inch rims wrapped with 35x12.5 Procomp mud terrains.
575 hits | 75.61 KB | Posted: 8/29/08
Sitting back on the 15 x 10 inch rims wrapped with 35x12.5 Procomp mud terrains.

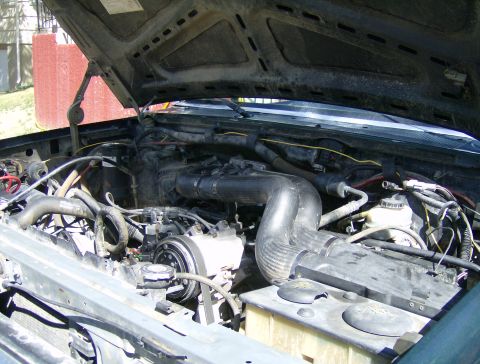

The 460 in the bronco... looks like it came from the factory that way.
621 hits | 85.18 KB | Posted: 8/29/08
The 460 in the bronco... looks like it came from the factory that way.

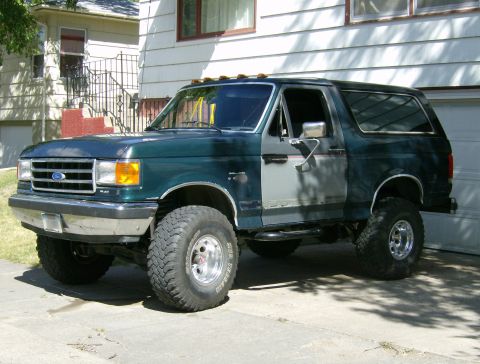

All washed off, getting ready to tackle minor wiring issues so the back window will roll down.
563 hits | 60.63 KB | Posted: 8/29/08
All washed off, getting ready to tackle minor wiring issues so the back window will roll down.
