From 1994 Ford Bronco “Bobby”, documented by mashori.

34 photos

← Back to this vehicle

1994 Ford Bronco - Close-up view of the driver's side interior, focusing on the dashboard and pedals.

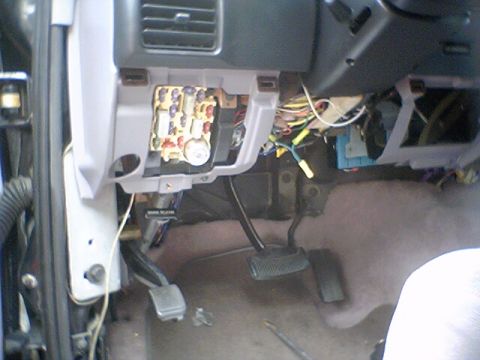

1994 Ford Bronco - The interior fuse panel and associated wiring are exposed, showing a complex network of connections.

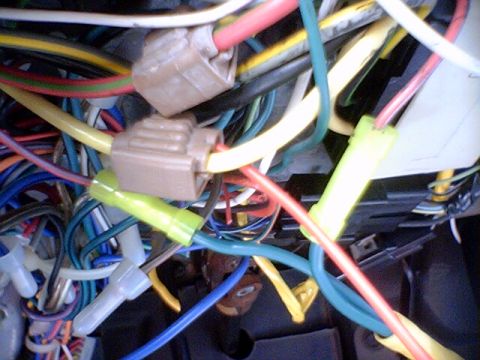

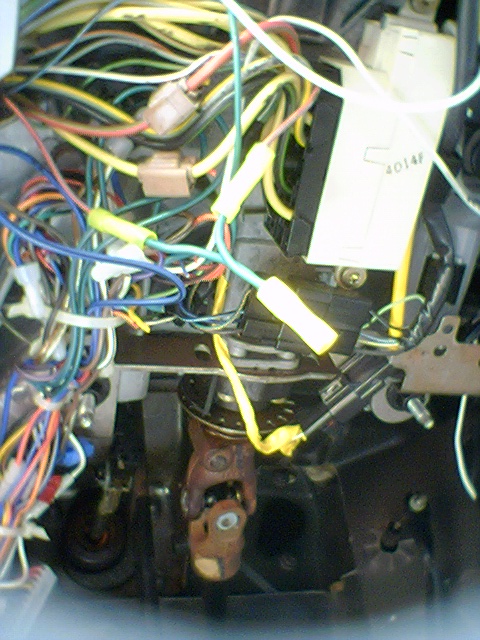

1994 Ford Bronco - A complex tangle of wires and connectors is visible within the vehicle's interior.

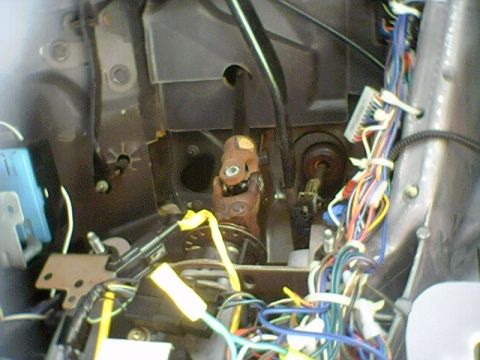

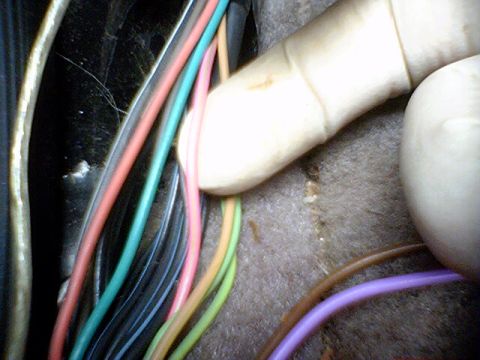

1994 Ford Bronco - Close-up of the steering column and a complex wiring harness within a vehicle's interior.

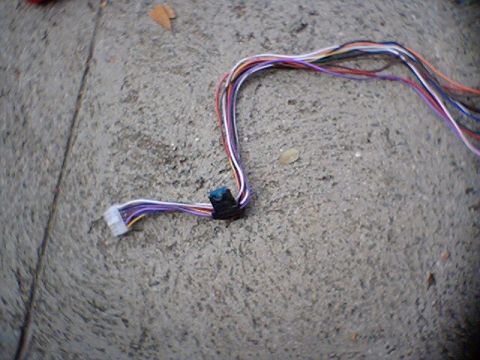

1994 Ford Bronco - Wiring harness with a white connector and multiple colored wires is visible on a concrete surface.

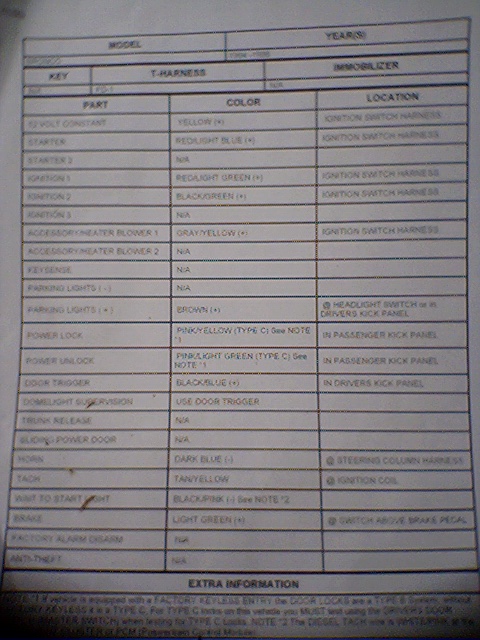

1994 Ford Bronco - This document details vehicle wiring components, their colors, and connection points.

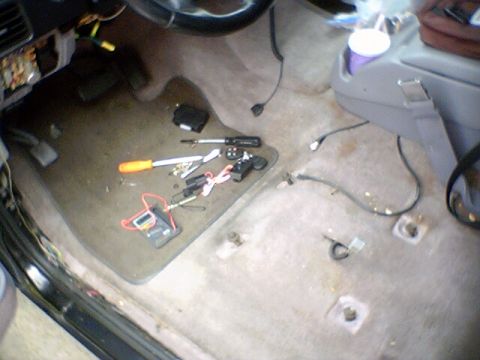

1994 Ford Bronco - The interior of a car shows tools and wiring scattered on the floor, indicating recent work.

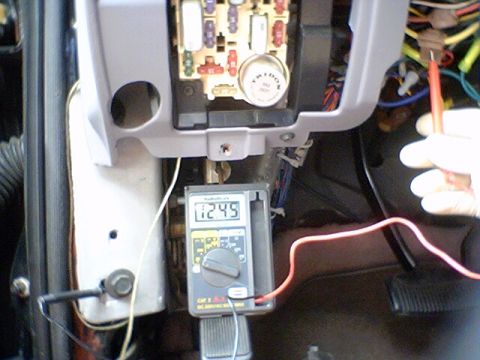

1994 Ford Bronco - Multimeter connected to vehicle fuse box, showing 12.45 volts.

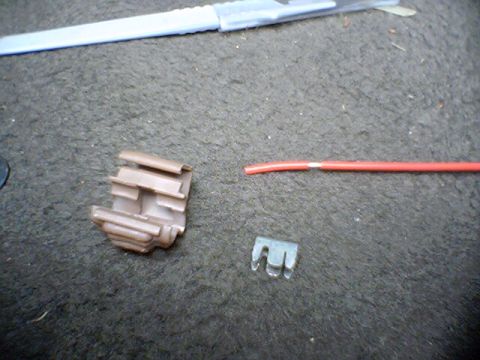

1994 Ford Bronco - Close-up of automotive electrical components and a utility knife on a dark, textured surface.

1994 Ford Bronco - A complex tangle of vehicle wiring harnesses, connectors, and wires is visible.

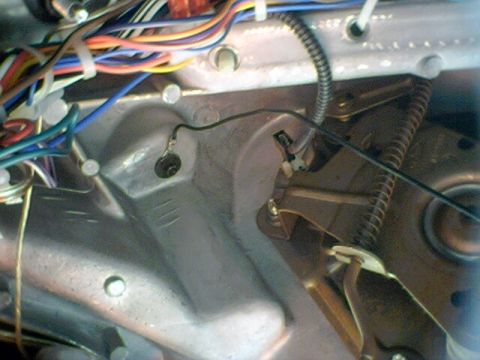

1994 Ford Bronco - Close-up view of a vehicle's wiring harness and mechanical linkage, with visible text "SUPERMOTORS.NET" at the bottom right.

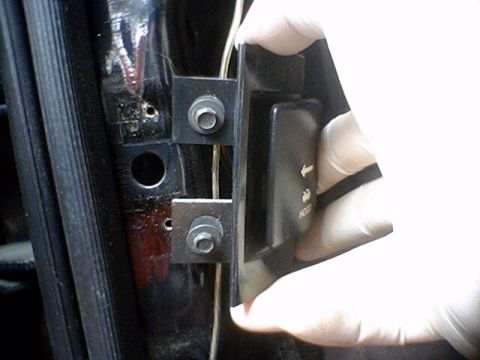

1994 Ford Bronco - Door latch mechanism with 'HOOD' text and arrow being installed.

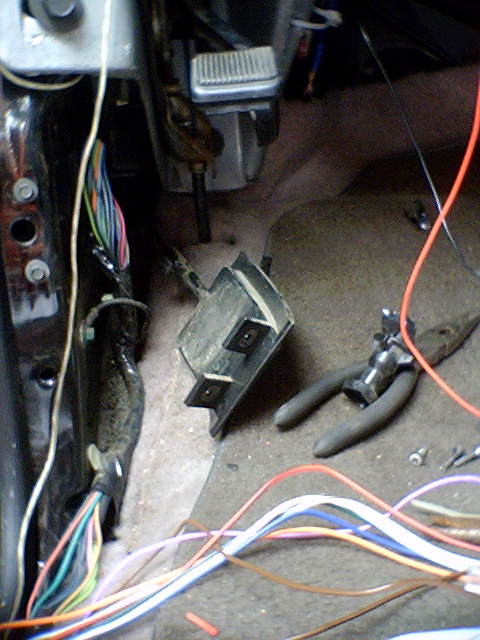

1994 Ford Bronco - Exposed wiring and a black plastic component are visible on the floor of a vehicle's interior.

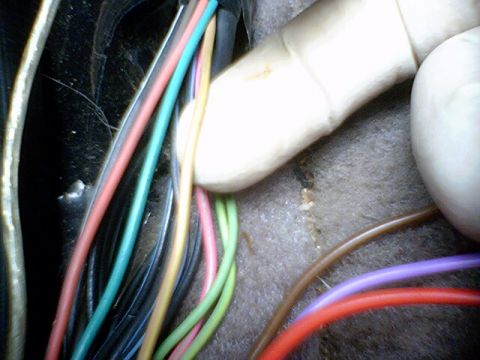

1994 Ford Bronco - Close-up of a finger interacting with a complex automotive wiring harness.

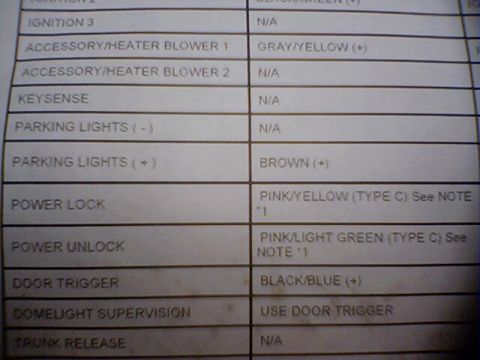

1994 Ford Bronco - This document details wiring information for various vehicle functions, including power locks and door triggers.

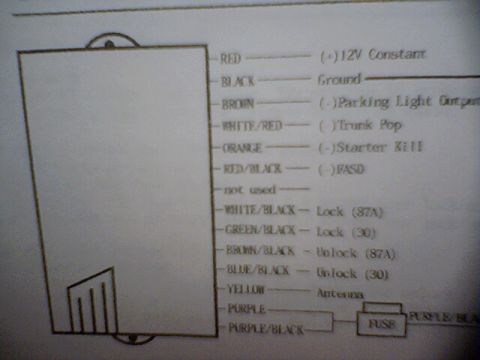

1994 Ford Bronco - Wiring diagram legend for a keyless/alarm module listing each wire color and its function such as parking light, trunk pop, lock and unlock.

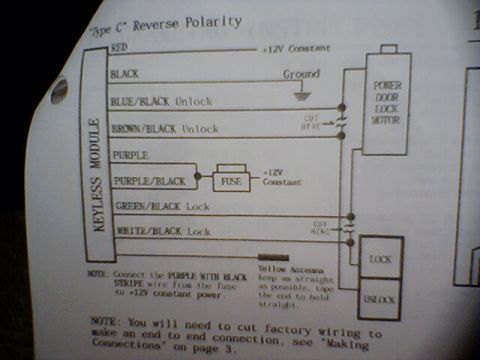

1994 Ford Bronco - Wiring diagram showing Type C reverse-polarity hookup of a keyless module to a power door lock motor with color-coded lock/unlock wires and…

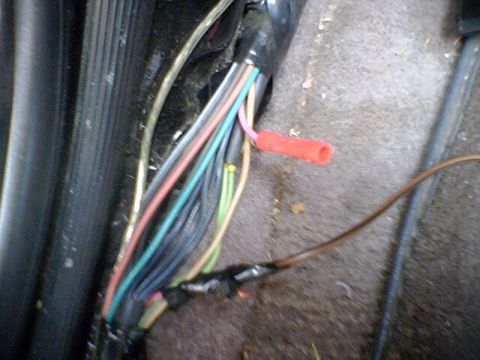

1994 Ford Bronco - Close-up of a vehicle's wiring harness, showing various colored wires and a red connector.

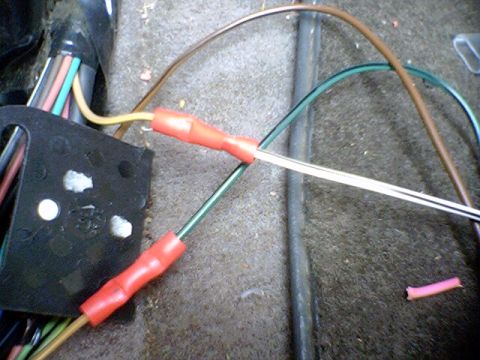

1994 Ford Bronco - Close-up of a vehicle's wiring harness showing red crimp connectors and multiple wires.

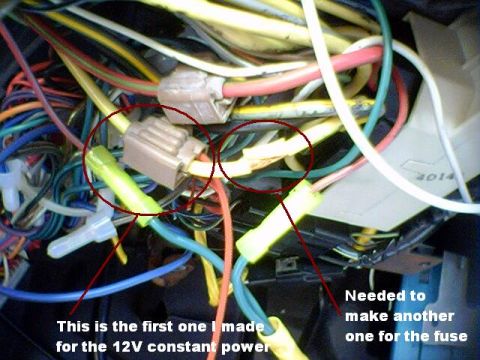

1994 Ford Bronco - Vehicle wiring harness with connectors and text indicating modifications for 12V constant power.

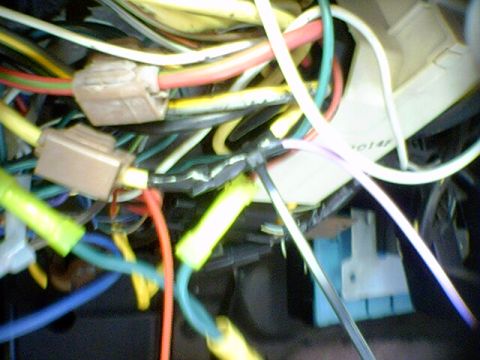

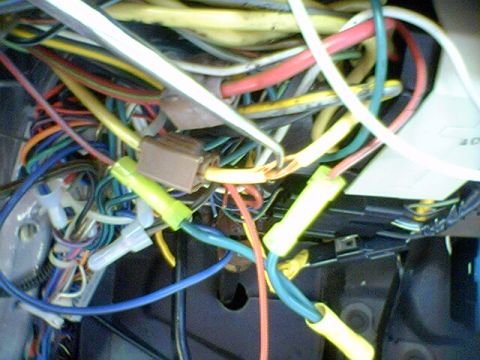

1994 Ford Bronco - A complex tangle of wires and connectors, likely part of a vehicle's electrical system.

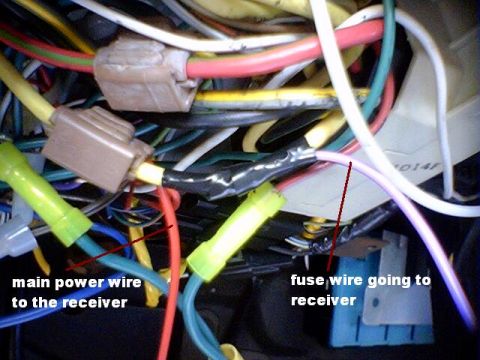

1994 Ford Bronco - A close-up view of a complex vehicle wiring harness, showing various colored wires and connectors.

1994 Ford Bronco - A complex network of wires and connectors within a vehicle's electrical system.

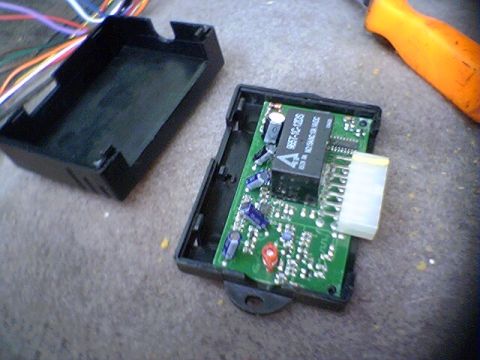

1994 Ford Bronco - An electronic control module is disassembled, revealing its internal circuitry and components.

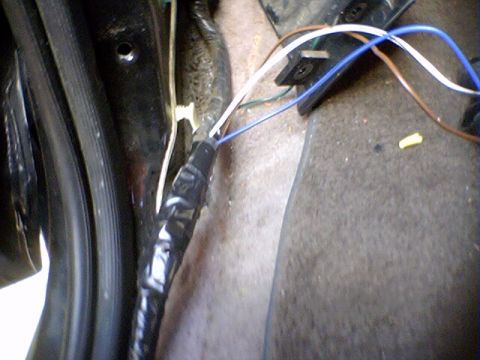

1994 Ford Bronco - A close-up view of a vehicle's interior wiring harness shows exposed wires and black tape.

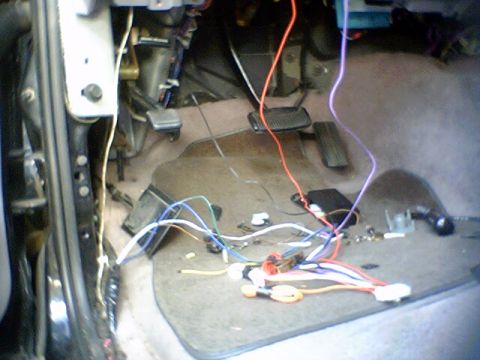

1994 Ford Bronco - The interior of a vehicle shows a complex wiring harness with many exposed wires and connectors, suggesting aftermarket modifications or re…

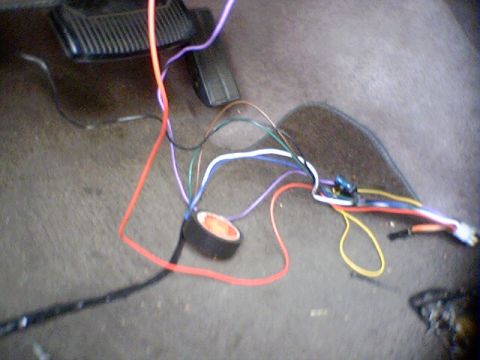

1994 Ford Bronco - A tangle of wires and electrical components are visible on the floor of a vehicle's interior.

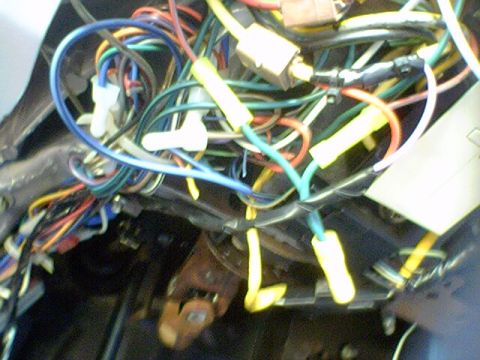

1994 Ford Bronco - A complex web of wires and connectors, likely from a vehicle's interior electrical system, is visible in this close-up shot.

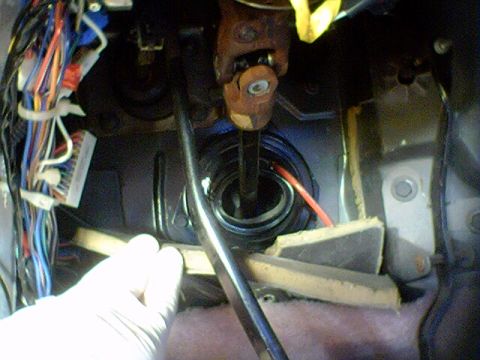

1994 Ford Bronco - Steering column assembly and wiring harness visible inside a vehicle's cabin.

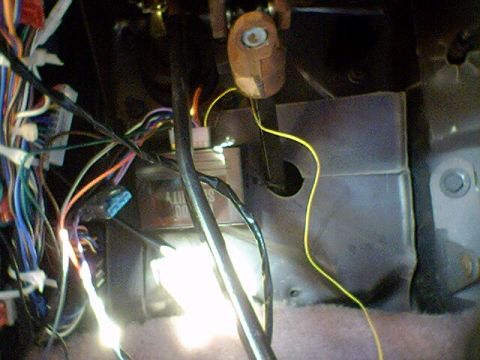

1994 Ford Bronco - A complex wiring harness is visible within the vehicle's interior.

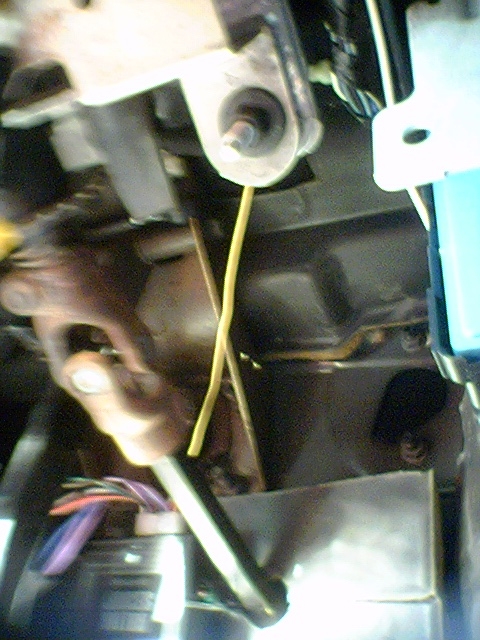

1994 Ford Bronco - Detail of wiring harness and a yellow wire visible under the dashboard of a vehicle.

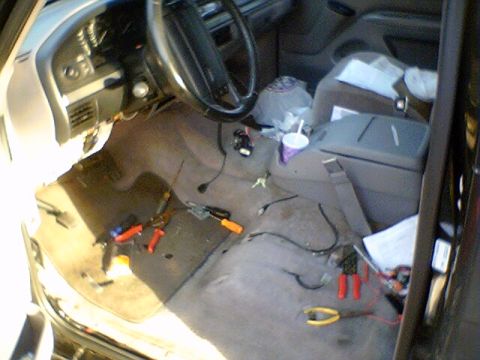

1994 Ford Bronco - The interior of a 1994 Ford Bronco shows tools and wiring, suggesting recent work or modifications.

1994 Ford Bronco - Tools and a car seat are laid out on the ground, possibly for repair or cleaning.
