Aftermarket Alarm/Keyless Entry Wiring Diagram - Wire Color Pinout Chart

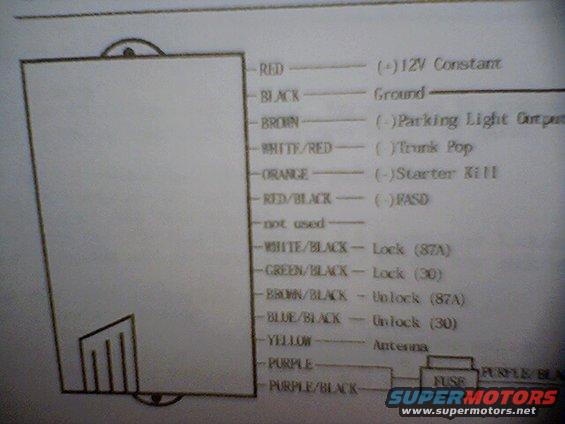

This document is a wiring/pinout diagram, apparently from an aftermarket alarm or keyless entry system installation manual, showing the control module (drawn as a rectangle at left) and the wire harness connections listed by wire color. The legend identifies each wire: RED for (+)12V Constant power, BLACK for Ground, BROWN for a negative Parking Light Output, WHITE/RED for a negative Trunk Pop output, ORANGE for a negative Starter Kill, RED/BLACK for a negative PASD output, one position not used, WHITE/BLACK for Lock (87A), GREEN/BLACK for Lock (30), BROWN/BLACK for Unlock (87A), BLUE/BLACK for Unlock (30), and YELLOW for the Antenna. The PURPLE and PURPLE/BLACK wires route through an inline FUSE (amperage not legible) and continue as PURPLE/BLACK. The relay terminal designations (87A and 30) for the lock/unlock wires indicate built-in door lock relay outputs. No manufacturer name, part number, model number, or vehicle applicability appears in the visible portion of the scan; the uploader filed it with a 1994 Ford Bronco, but nothing on this page confirms or contradicts that. A reader can learn which wire color performs which function when installing or troubleshooting this alarm/keyless entry module.
