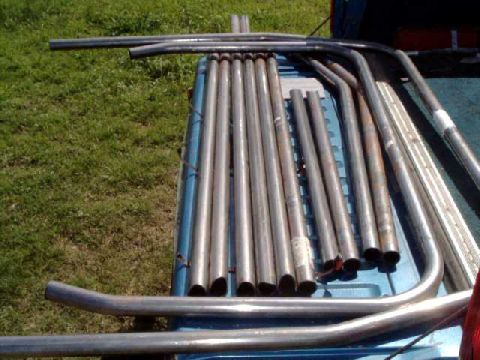

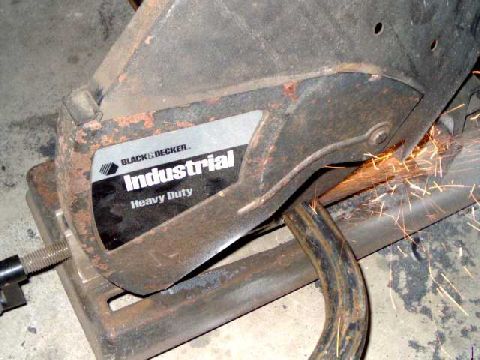

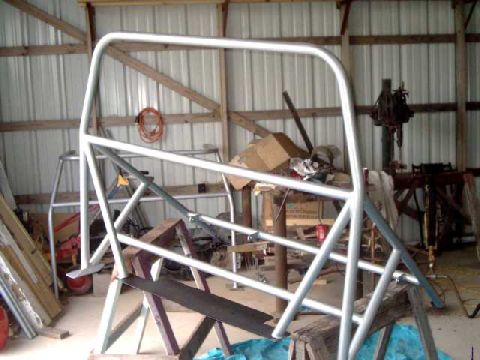

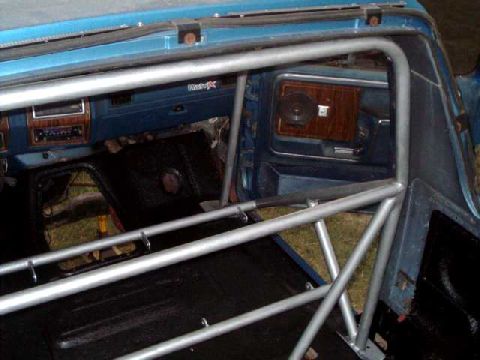

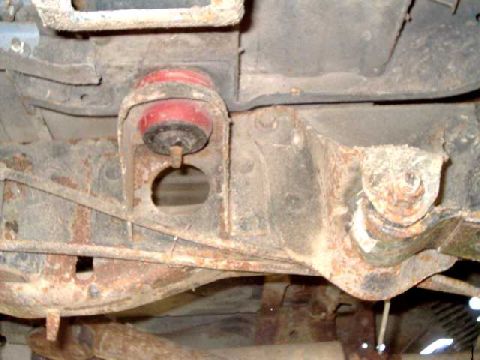

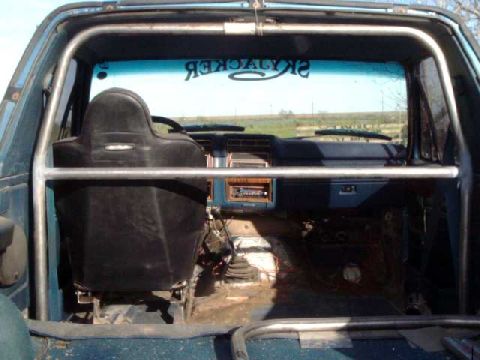

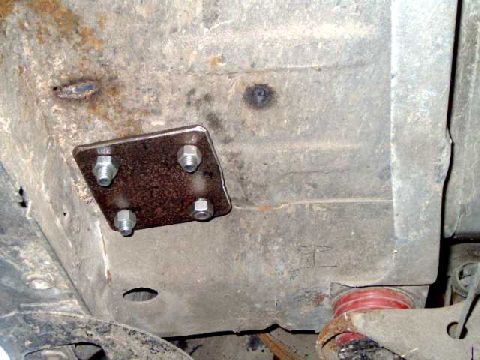

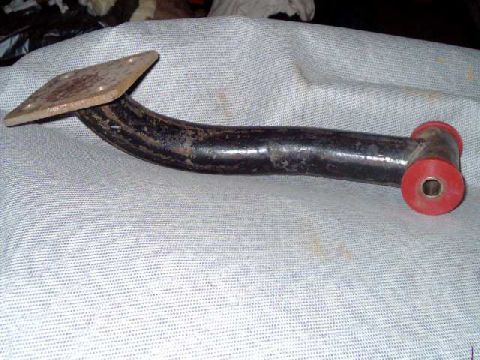

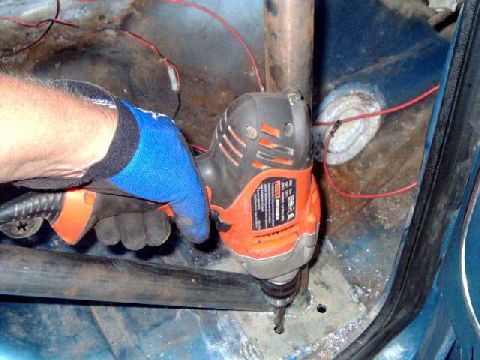

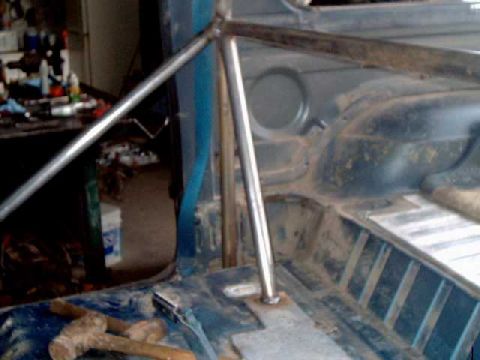

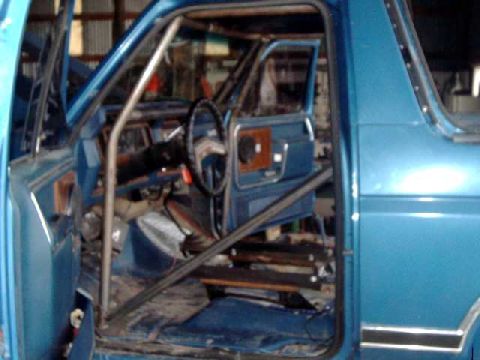

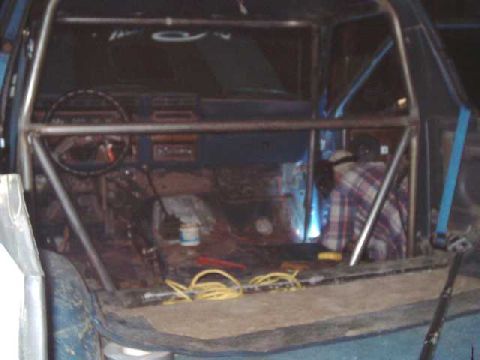

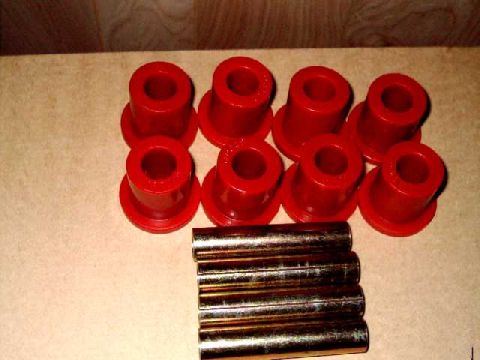

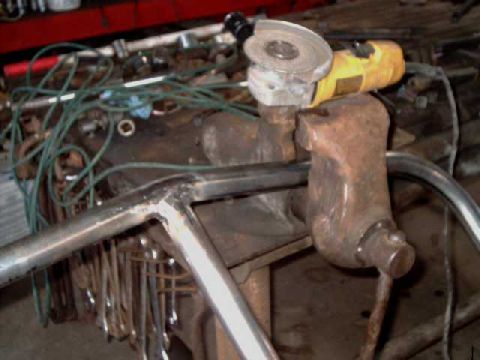

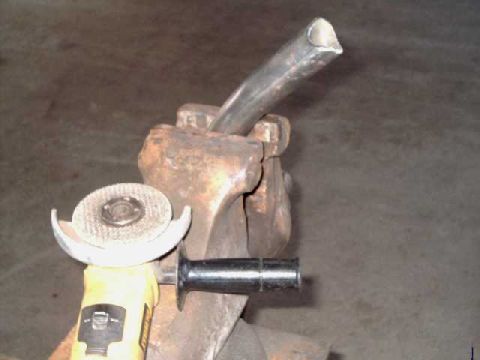

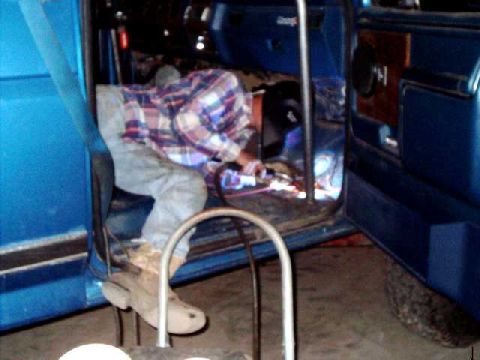

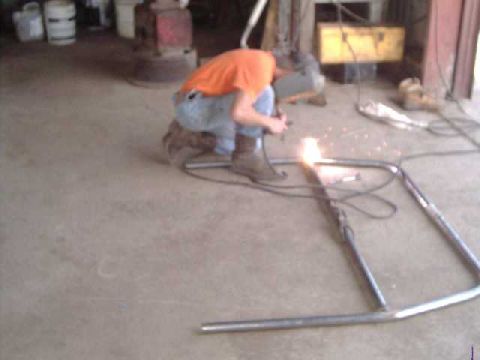

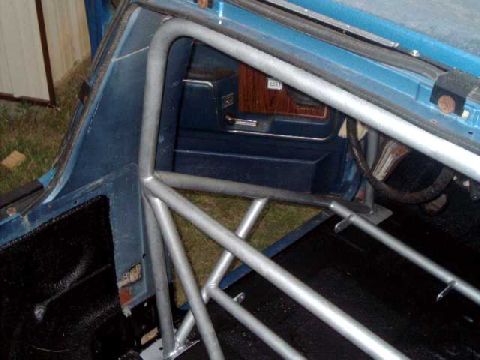

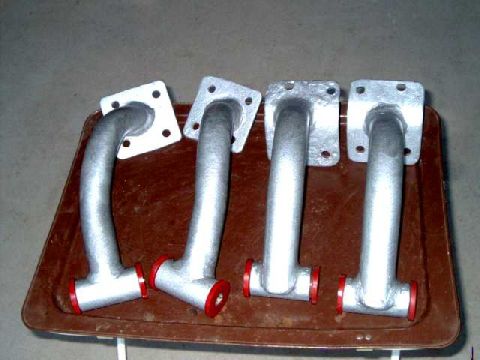

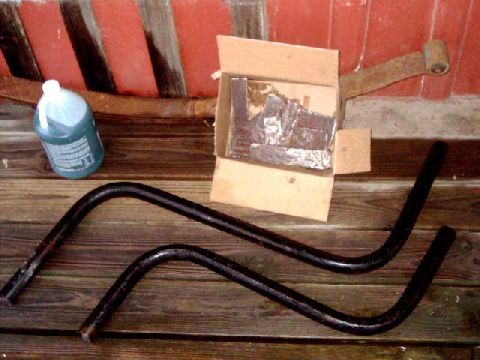

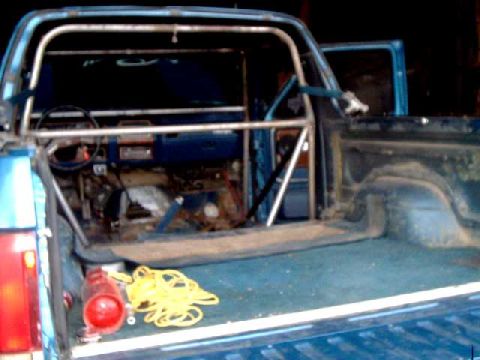

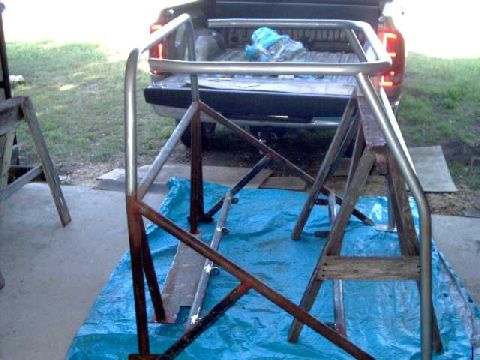

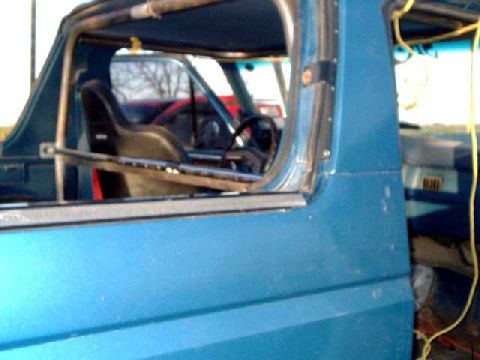

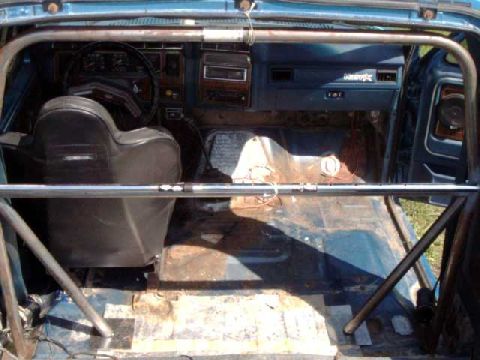

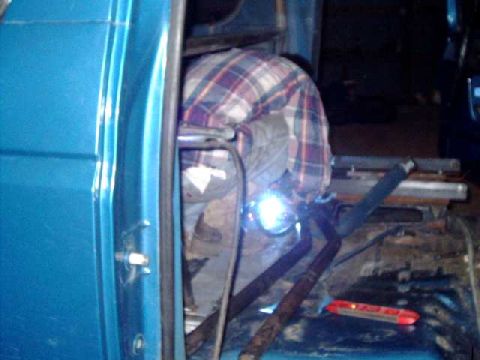

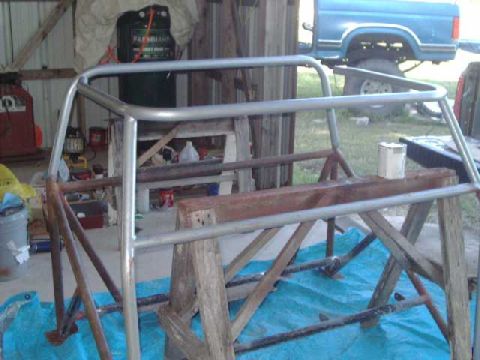

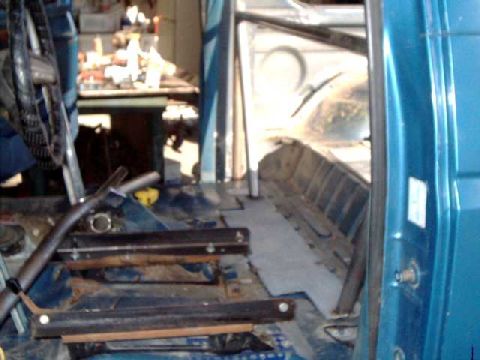

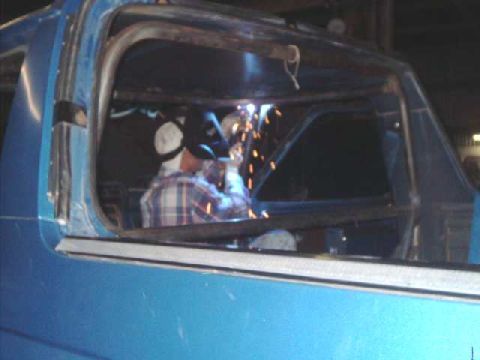

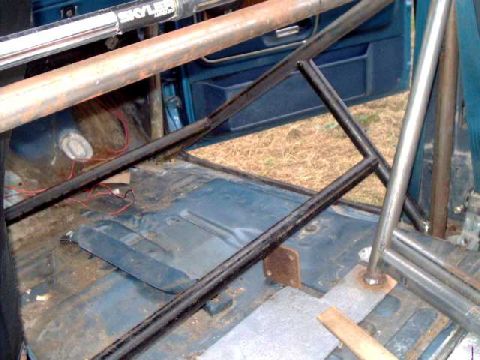

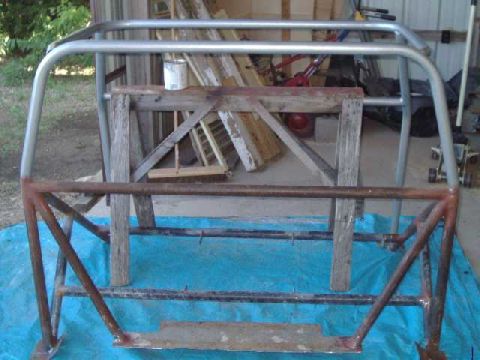

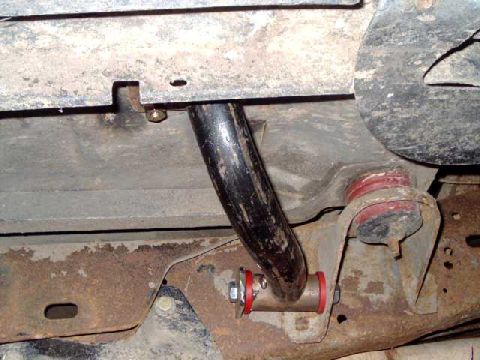

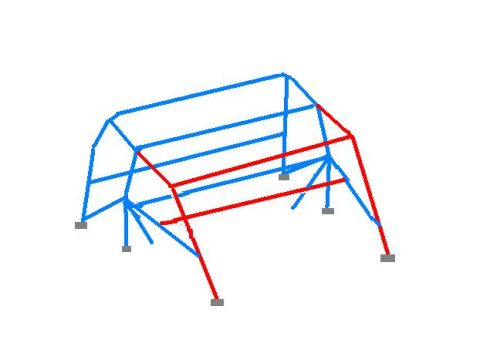

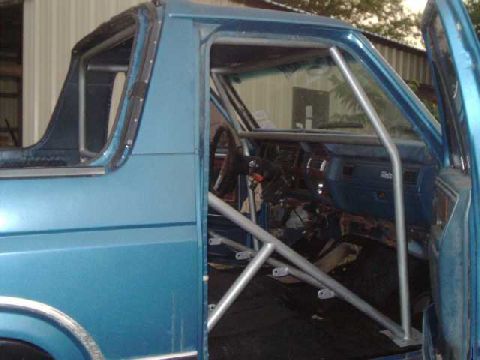

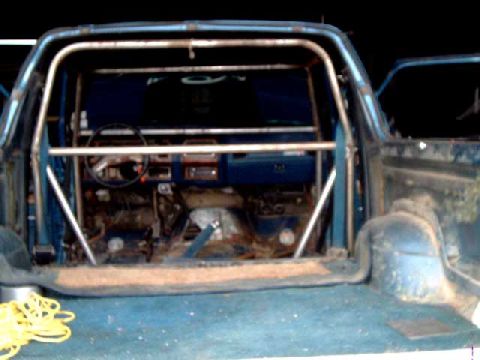

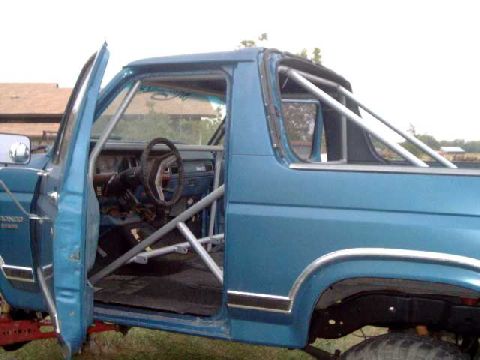

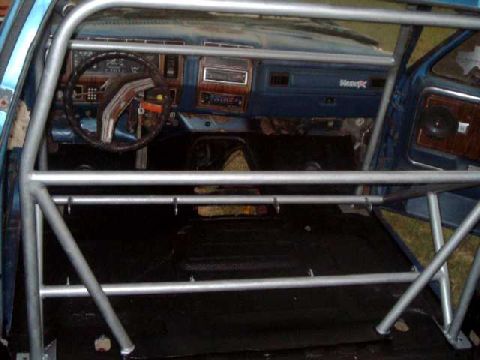

S&W Racecars 10-pt cage kit

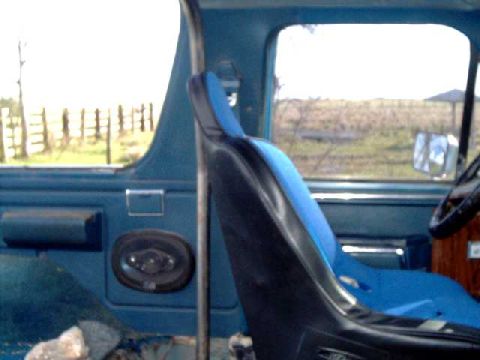

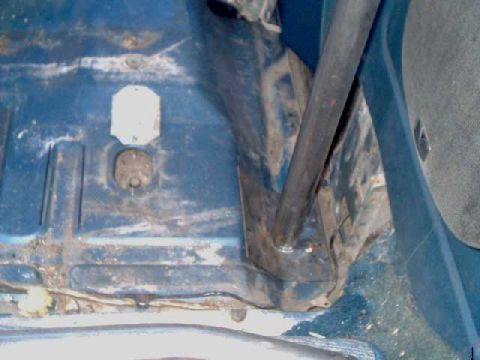

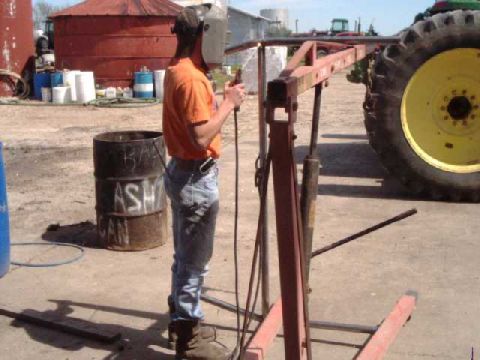

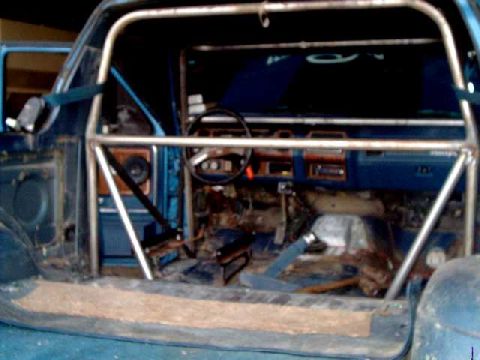

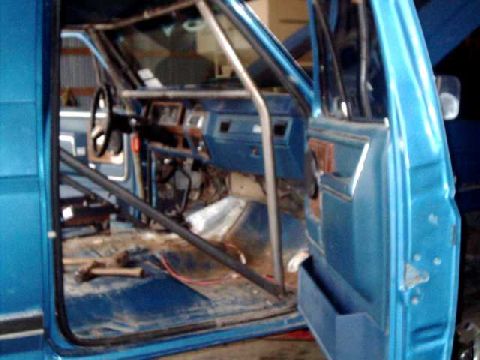

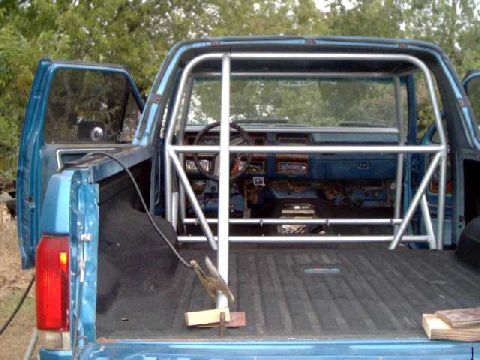

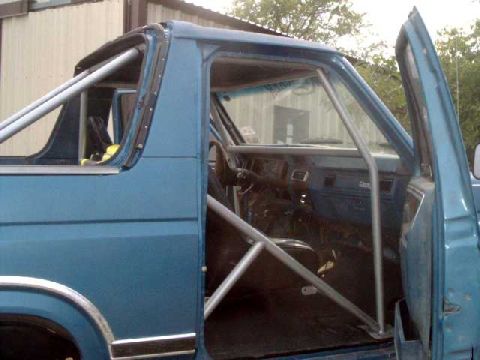

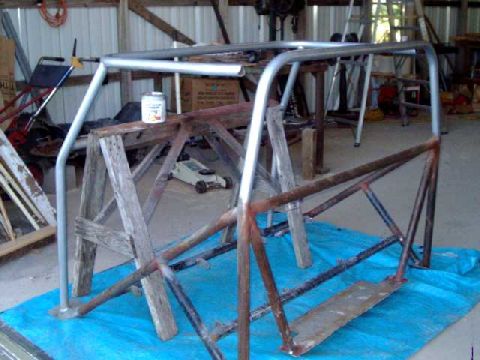

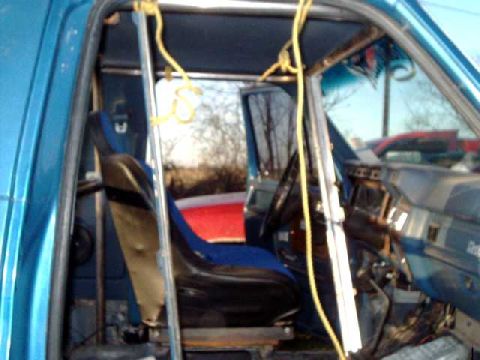

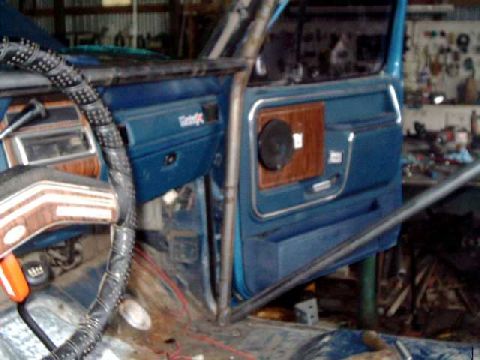

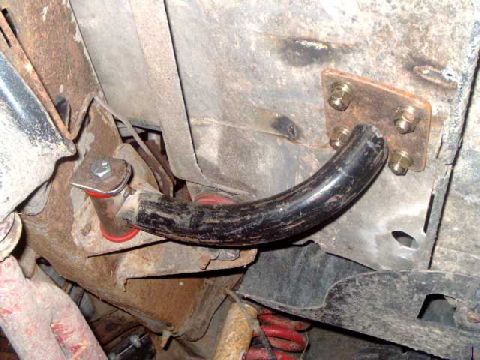

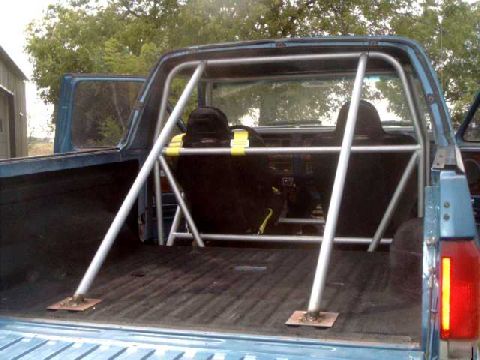

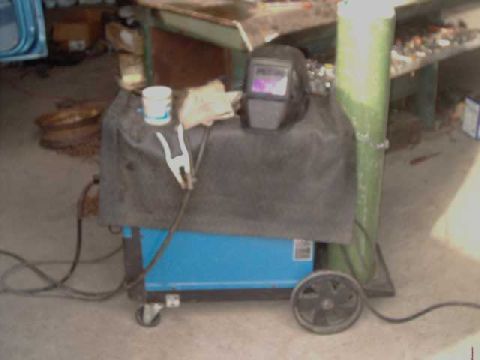

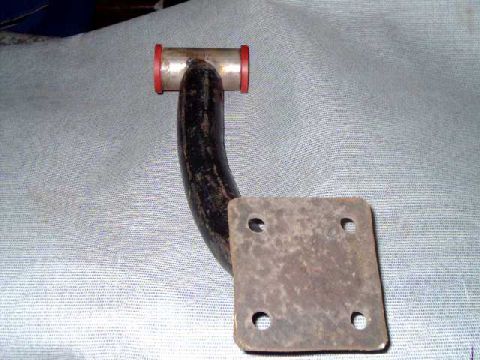

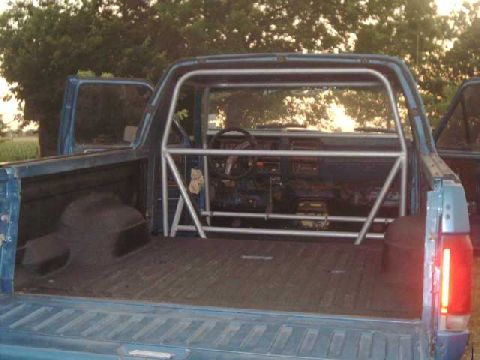

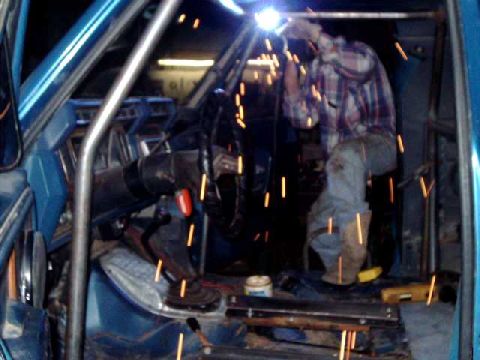

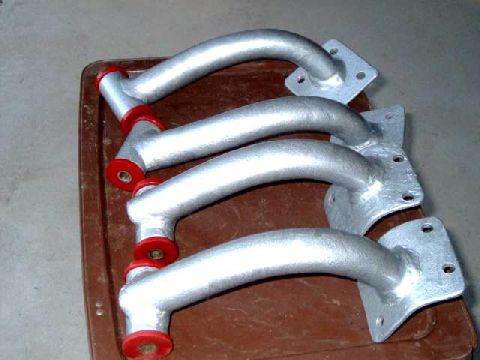

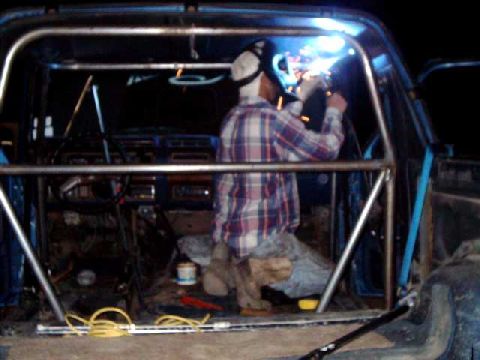

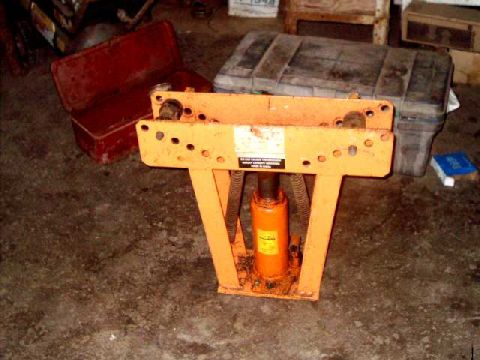

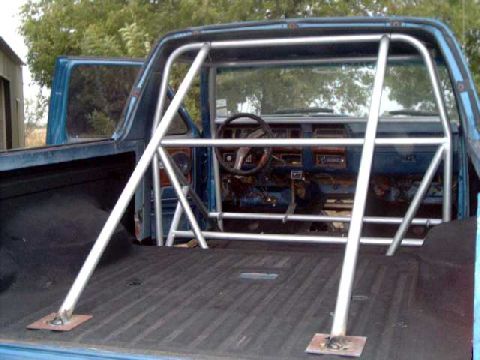

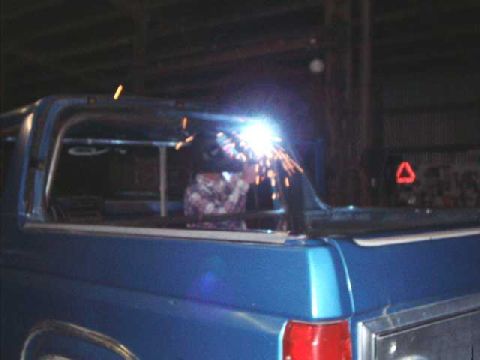

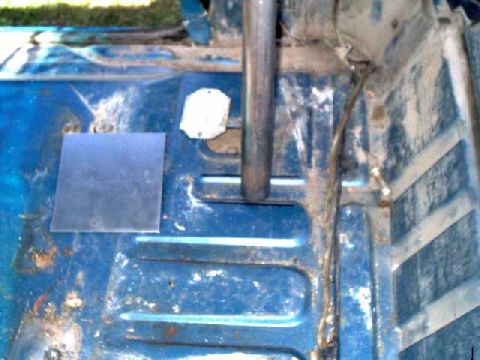

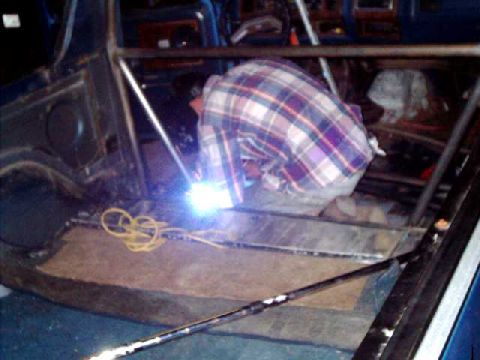

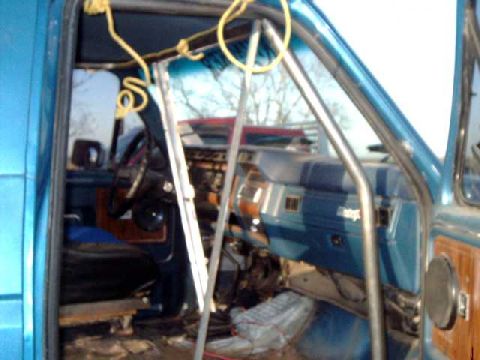

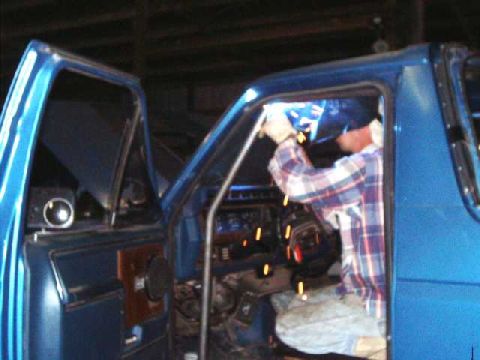

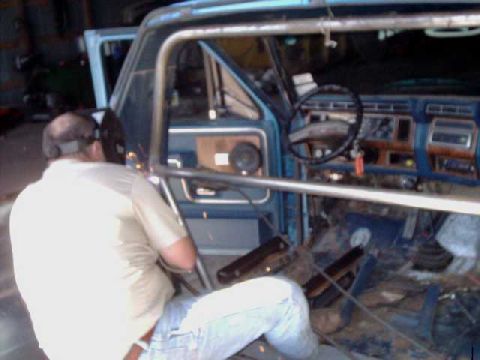

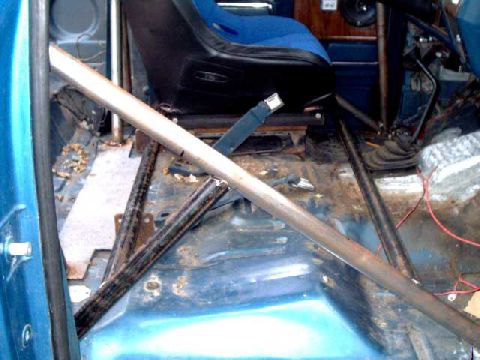

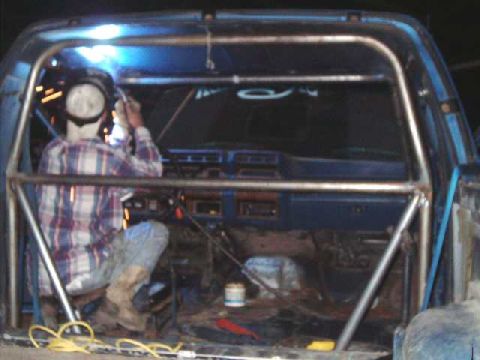

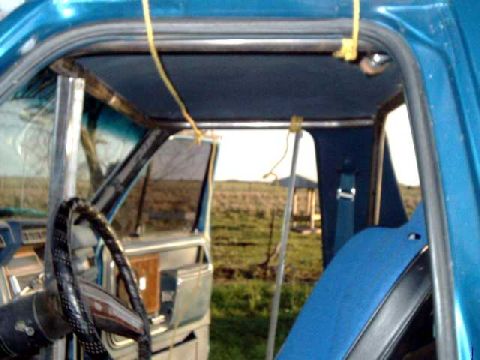

12 pieces of the S&W 10-point cage kit. 1-5/8"x0.134" wall mild steel tubing, cost $220+shpg. Owner I used a chop saw to cut the tubing. Some items need triming. I also used a handheld grinder to notch any ends. Owner First remove seats, seatbelt anchors, console, stereo amps, CB, etc. Found $2.59 in change! Owner After pulling up carpet, check floorpan for cracks or rust. Good shape here. Owner A non-poisonous snake has round eyes, but you have to get close to see them! Owner Main hoop mounting location after checking clearance with seat. Owner floor plate for main hoop. The seatbelt assly is coming out, just left it in to show location of plate. Owner 1/8" floor plate bent to fit contour of floor. I used a BFH & a vise. Owner Tack-welding seat crossmbr, to main hoop. The fit was real close, so done before mounting the hoop in the Bronco. This made the hoop legs d… Owner I used an engine hoist to spread the legs of the main hoop. Completed the welds after measuring and checking square w/ main hoop. Owner Finished the welds with a grinder, then shot some grey primer on the seams. Owner Tack weld main hoop legs to floor plate, after tacking plate to floor. Owner Main hoop & seat crossmember mounted to floor plates.Still need to mount the frame supports. Owner mounting frame support. The 2 black lines are the frame location, 1" under the floor. Owner Underside view of body mount support structure. The main hoop is located above floor along this line. Not much room to tie it into the fram… Owner mounting frame support to main hoop. PLan to use a large 1/4" thick plate to strengthen floor (sound matt is the template). Owner I used rope and braces to hold up the roof hoop while fitting it to main hoop. Take your time with this step! Owner Notching the ends of the roof hoop to mount to the main hoop. (I did this before tying it up to the cab.) Owner Tie the roof hoop up with rope and support with braces. This gives you all the time to locate it in the best position, and fit the ends to… Owner Fitting the roof hoop. I did this task alone, but it's better to have help with this step Owner Measure & fit the windshield post runner. Carefully measure the length before cutting. Notched the top end. Owner floor plates for windshield post runners, or front downbars next to dash. Owner location of front runner floor plate. This will be tied into the frame later with a plate and tubing underneath. Owner Miller 210 mig welder used to weld cage kit Owner Tack weld frame support to main hoop Owner Frame supports tacked to steel plate, welded to the floor. Owner Tacking roof hoop to main hoop Owner Welding frame support to floor plate Owner Welding frame support to floor plate Owner Welding front post runner to roof hoop Owner Welding front post runner to roof hoop Owner Welding front post runner to roof hoop Owner Welding front post runner to floor plate Owner Welding front post runner to floor plate Owner Welding front post runner to roof hoop Owner Welding front post runner to roof hoop Owner Door brace welded to main hoop Owner Door brace and dash bar mounted to front post runner Owner Door brace and dash bar welded to front post runner Owner Door brace and dash bar welded to front post runner Owner cab portion of cage Owner cab portion of cage kit Owner cab portion of cage kit Owner Ford rear leaf spring poly bushings to be used for cage-to-frame mounts Owner borrowed a tube bender to fab the under-cab frame runners Owner tubing for the frame runners, to be cut to length. Also cut some plates for these and to tie the cage to the B-piilars inside the cab. Owner drilling 1/2" holes for bolts to attach lower plate. Owner lower plate for cage-to-frame runner Owner Cutting the tubing on a chop saw. Owner custom-made cage-frame mount. Owner custom-made cage-frame mount Owner A-pillar cage-frame mount attached to frame. The bracket for the extended radius arm interefered with a straight mount, so I used the body… Owner A-piilar cage-frame mount. This is for the windshield post runner from above. Custom bushing mount to frame. Owner A-pillar mounts (L) and B-pillar mounts (R) Owner A-pillar mounts (top) and B-pillar mounts (bottom) Owner crossmembers for mounting seats to the cage. Owner crossmembers for mounting seats to the cage. Owner 10-pt cage in blue, family bar in red Owner Cage cut into 2 parts to remove for final welding; painting with 2 coats of Rustoleum "Hammered" Owner Showing 2 pieces of cab part of cage Owner Rustoleum "Hammered" in silver applied with a brush Owner A metal roll cage assembly is shown, resting on a blue tarp and supported by wooden beams. AI caption A silver roll cage is assembled and supported by wooden sawhorses in a cluttered garage setting. AI caption cab section re-installed. See bronconine.com for tech article Owner Interior view of a blue 1984 Ford Bronco a roll cage and racing seat. AI caption Interior view of a blue vehicle, likely from the early 1980s, fitted with a roll cage. AI caption A custom roll cage is installed inside the vehicle, with a view of the door panel and interior. AI caption The interior of a blue vehicle shows a roll cage and wood-grain trim on the dashboard. AI caption Mounting rear support brace to main hoop Owner Rear supports ( kickers) mounted Owner Rollcage done!!! Owner Rollcage done!!! PRP Seats installed. Owner Rolcage done!!! PRP Seats installed. Owner
