Instructions

639 hits | 39.99 KB | Posted: 4/20/08
Tubing cutter

679 hits | 41.69 KB | Posted: 4/20/08
deburring line with 7/64" drill bit, chamfer end with file, put clamp in vise to hold line

669 hits | 39.3 KB | Posted: 4/20/08
Set depth of line in clamp using the adapter

705 hits | 35.87 KB | Posted: 4/20/08
Put fitting on line, then put tool on clamp and tighten

726 hits | 47.38 KB | Posted: 4/20/08
Vise used to hold clamp

757 hits | 40.22 KB | Posted: 4/20/08
Tighten until adapter bottoms out on clamp

781 hits | 38.47 KB | Posted: 4/20/08

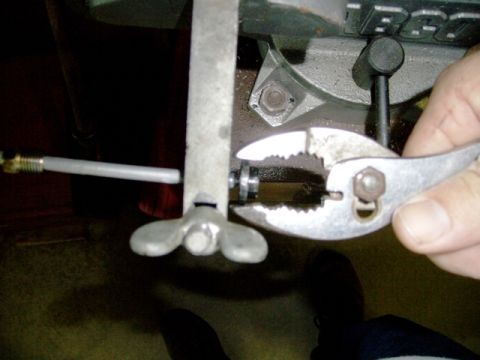

Twist and pull on adapter to remove from line

789 hits | 45.21 KB | Posted: 4/20/08

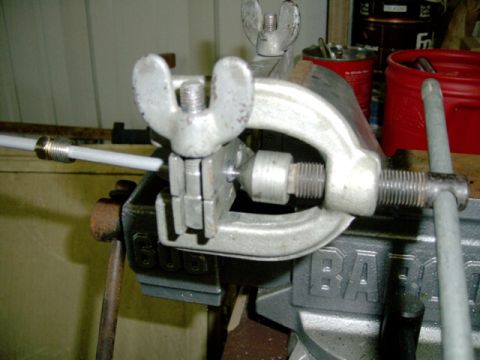

use tool to make final flare

763 hits | 35.17 KB | Posted: 4/20/08

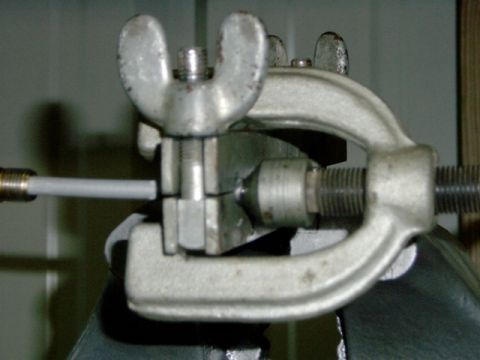

Tighten slowly, make sure tool is centered
