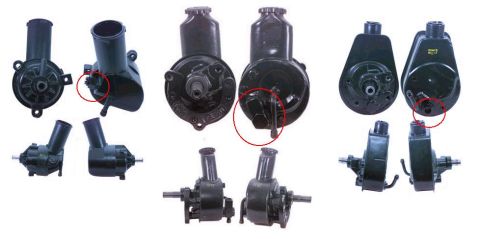

Left: original pump. Center: Ford HD pump. Right: Saginaw pump. Notice the outputs, i use the cen...
1675 hits | 16.79 KB | Posted: 6/29/03
Left: original pump. Center: Ford HD pump. Right: Saginaw pump. Notice the outputs, i use the cen...

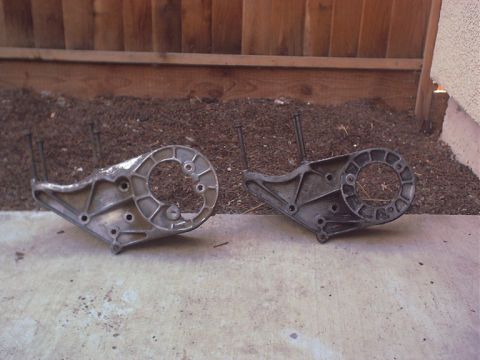

Saginaw bracket on the Left, found on vans. Or part # F4UZ3C511A for around $45-$50 at your local D...
1812 hits | 26.03 KB | Posted: 6/29/03
Saginaw bracket on the Left, found on vans. Or part # F4UZ3C511A for around $45-$50 at your local D...

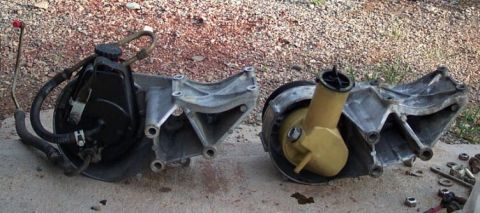

Rear view of both pumps. notice the Sag pump output is straight back, while the original pump goes ...
1552 hits | 43.75 KB | Posted: 6/29/03
Rear view of both pumps. notice the Sag pump output is straight back, while the original pump goes ...

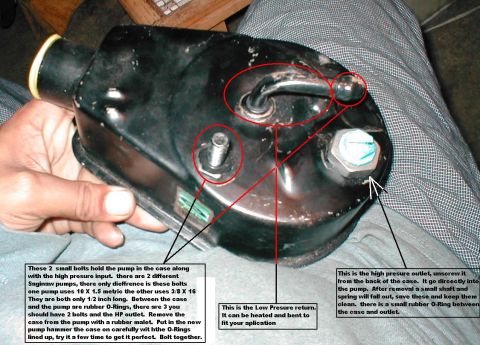

Directions on Case / Pump replacement
1405 hits | 45.61 KB | Posted: 6/29/03
Directions on Case / Pump replacement

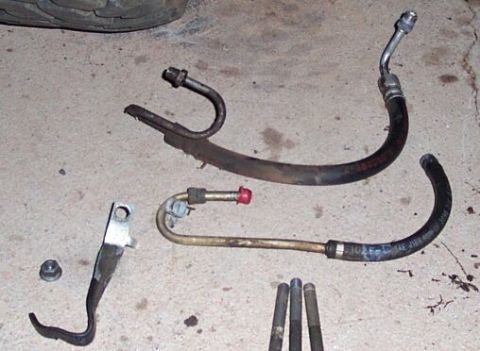

Top: stock Bronco hp hose. Bottom: stock van return line. I used the stock Bronco HP hose which is...
1245 hits | 40.78 KB | Posted: 6/29/03
Top: stock Bronco hp hose. Bottom: stock van return line. I used the stock Bronco HP hose which is...

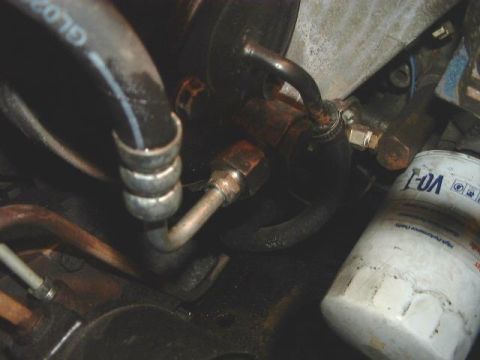

This is a shot of the back of MY pump. The output is rotatable to align with the hose direction.
1171 hits | 17.89 KB | Posted: 6/29/03
This is a shot of the back of MY pump. The output is rotatable to align with the hose direction.

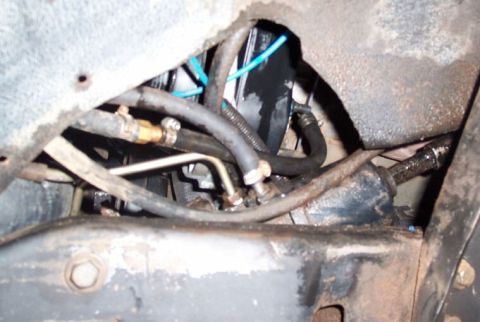

Van high pressure line enters steering box (steel line at right angle). Also visible: return line en...
1225 hits | 39.22 KB | Posted: 6/29/03
Van high pressure line enters steering box (steel line at right angle). Also visible: return line en...

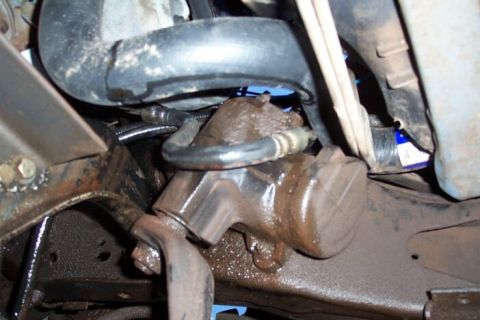

Here's how the stock van high pressure line sits around the steering box. Notice how ackward it is.
1263 hits | 39.46 KB | Posted: 6/29/03
Here's how the stock van high pressure line sits around the steering box. Notice how ackward it is.

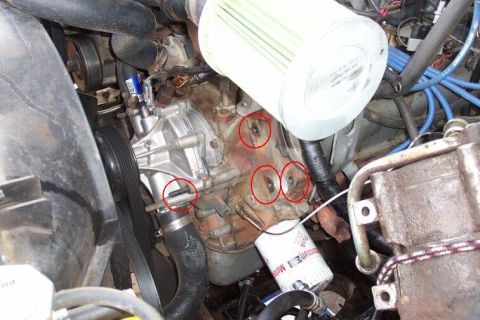

Old pump removed, new pump ready to go in. They both bolt to the Heads and one bolt on the water pu...
1188 hits | 34.21 KB | Posted: 6/29/03
Old pump removed, new pump ready to go in. They both bolt to the Heads and one bolt on the water pu...

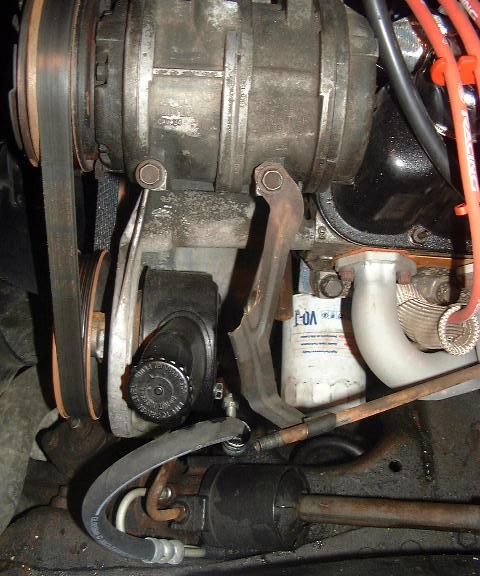

This is MY Sag pump. I used the Older can, the ARG super pump, and a rotatable output. I can use t...
1360 hits | 53.3 KB | Posted: 6/29/03
This is MY Sag pump. I used the Older can, the ARG super pump, and a rotatable output. I can use t...

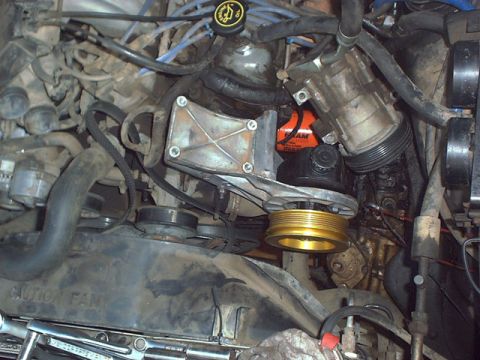

Mounted on 5.0L Bronco, this one has the pully to drive a York onboard air.
1262 hits | 36.2 KB | Posted: 6/29/03
Mounted on 5.0L Bronco, this one has the pully to drive a York onboard air.

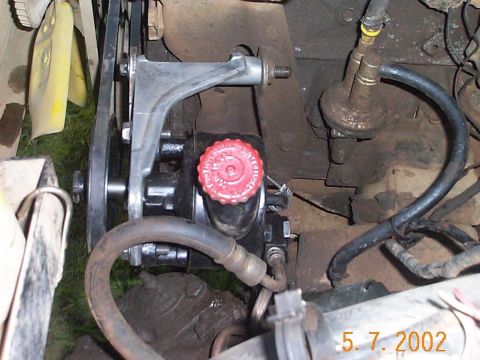

Another mount on a 1982 4.9L Bronco. This one has the HD case, notice how the high presure outlet w...
1452 hits | 70.61 KB | Posted: 6/29/03
Another mount on a 1982 4.9L Bronco. This one has the HD case, notice how the high presure outlet w...

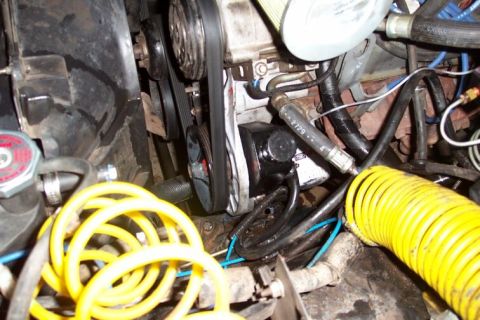

Another mount on a 5.8L Bronco, with stock pully and canister
1391 hits | 53.84 KB | Posted: 6/29/03
Another mount on a 5.8L Bronco, with stock pully and canister
