new fuel rails on new intake

From 1988 Ford Bronco — documented by Moseley Matheson.

14 photos
← Back to this vehicle

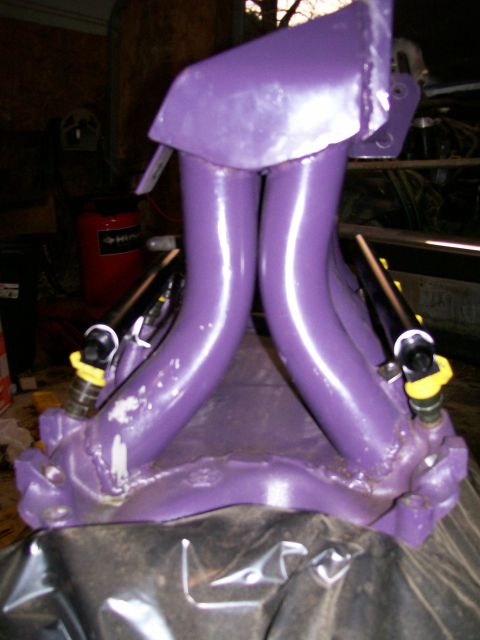

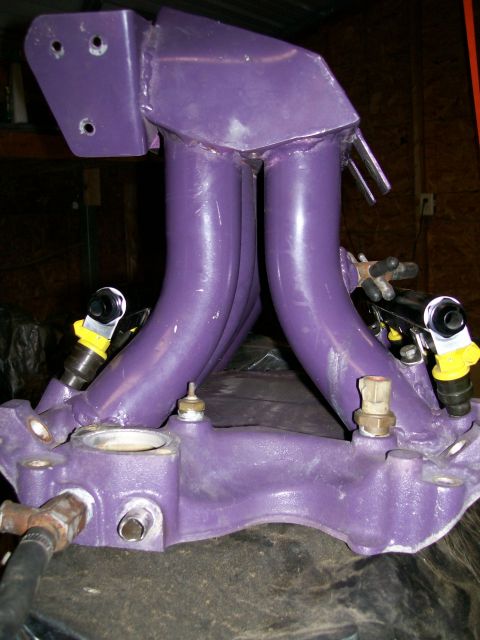

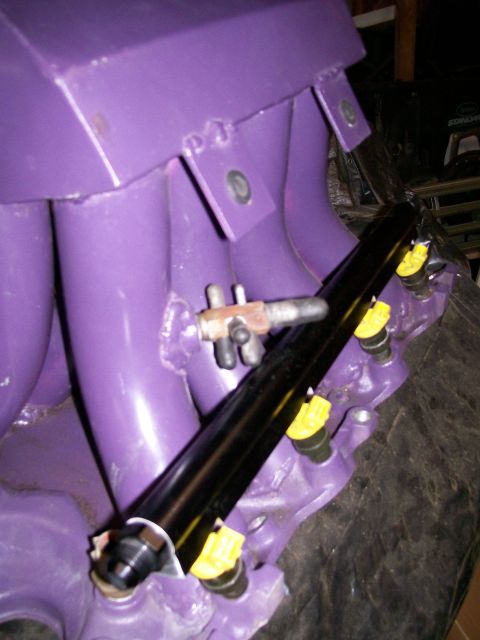

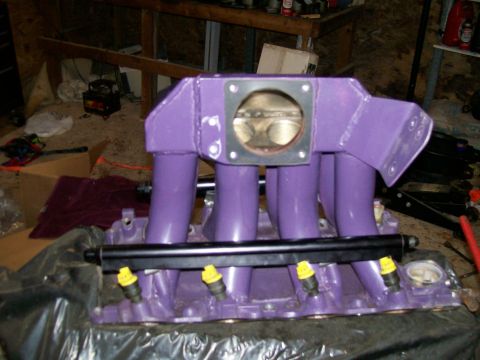

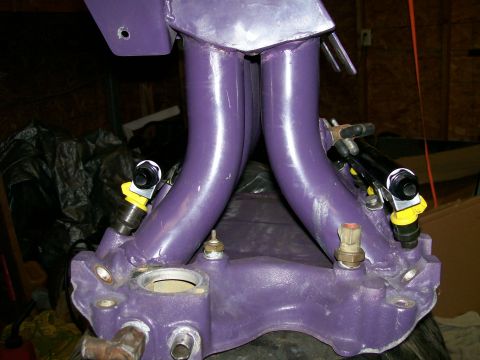

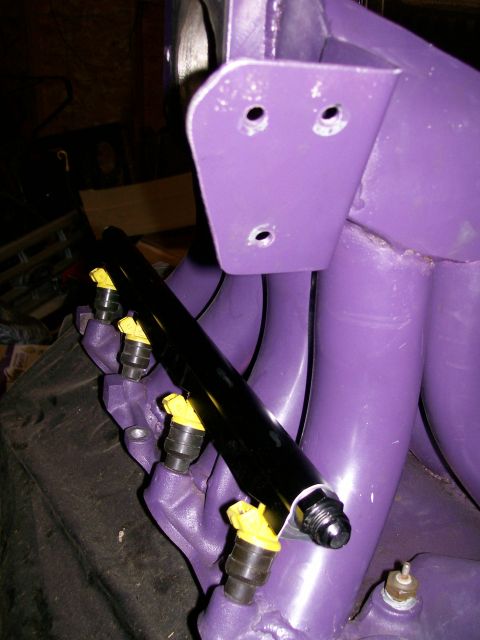

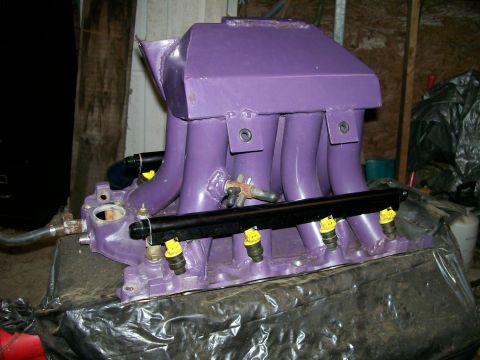

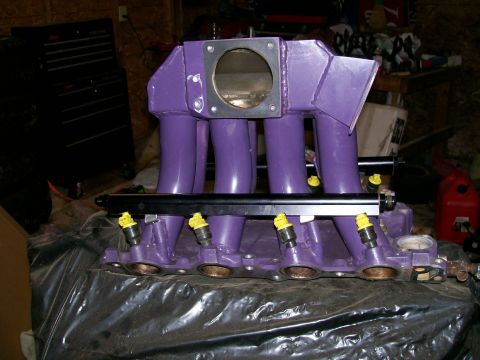

1988 Ford Bronco - These are the new custom rails. 1988 Ford Bronco - You can see how they compensated for Ford's brilliant design of slanting the injectors. 1988 Ford Bronco - The inside diameter of these things is HUGE! 1988 Ford Bronco - Next to the stock railings. 1988 Ford Bronco - again. 1988 Ford Bronco - Mounted on the custom intake. Those are old injectors, I planning on 39 pounders. 1988 Ford Bronco - Close-up of a purple-painted intake manifold with fuel injectors installed, likely for an engine rebuild or upgrade. 1988 Ford Bronco - By now you are probably wondering why the throttle cable plate is towards the front of the engine, you got me. The guy I got the intake fro… 1988 Ford Bronco - Close-up of a purple intake manifold with a black fuel rail and yellow-capped fuel injectors. 1988 Ford Bronco - Close-up of a purple intake manifold a black fuel rail with yellow injectors, likely a custom engine part. 1988 Ford Bronco - Custom painted intake manifold with fuel injectors, likely for an engine rebuild or modification. 1988 Ford Bronco - A close-up of a purple intake manifold with fuel injectors, likely a custom part. 1988 Ford Bronco - A purple intake manifold with fuel injectors and a fuel rail is shown, likely a vehicle part. 1988 Ford Bronco - Purple intake manifold with fuel rails, likely for an engine rebuild or upgrade.
