Hydraulic Assist

From 1992 Ford Bronco “badassbronco”, documented by Zach Kohl.

15 photos
← Back to this vehicle

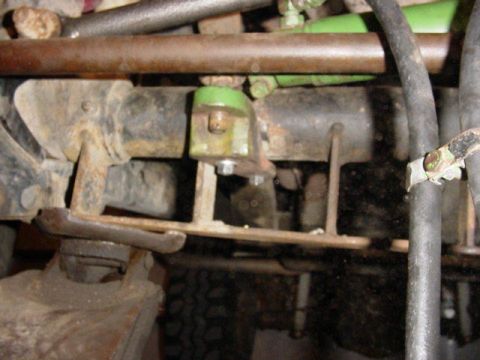

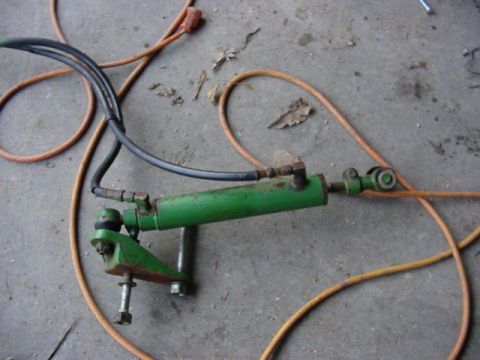

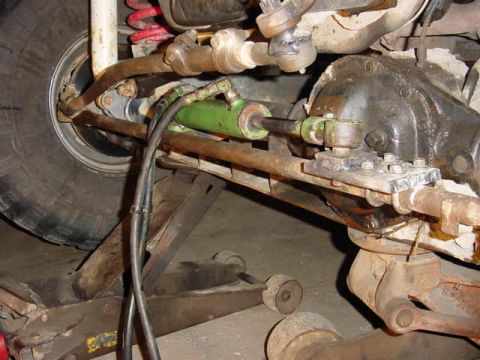

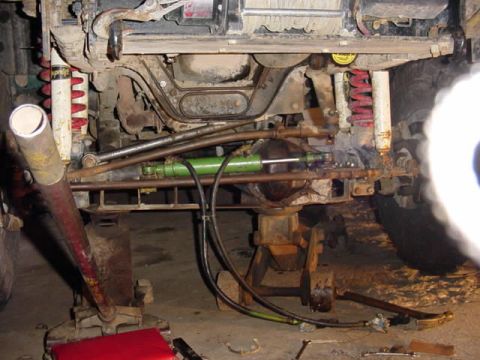

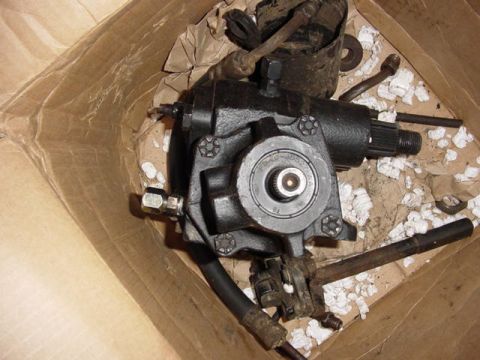

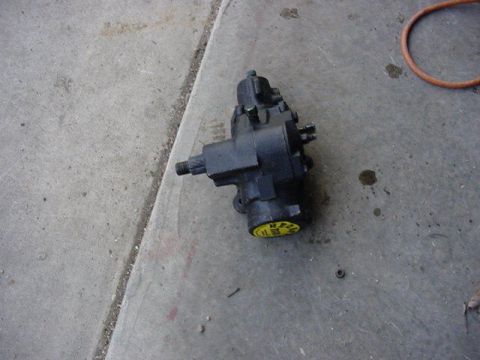

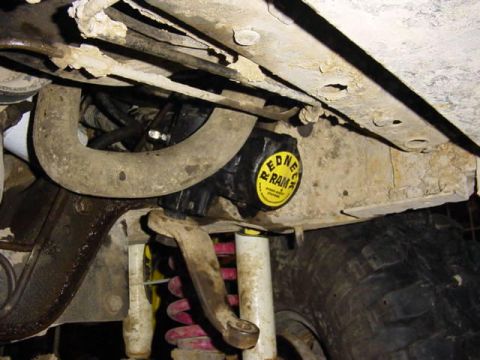

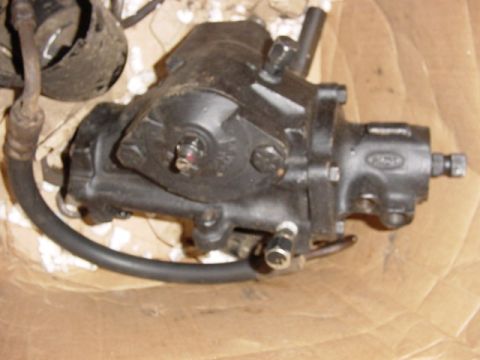

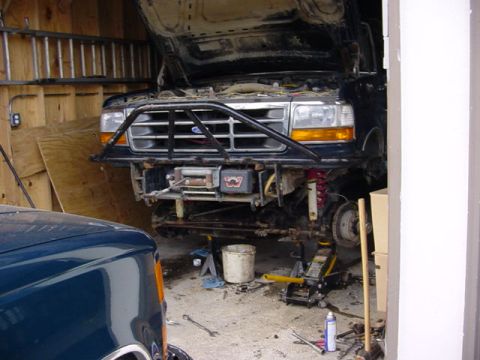

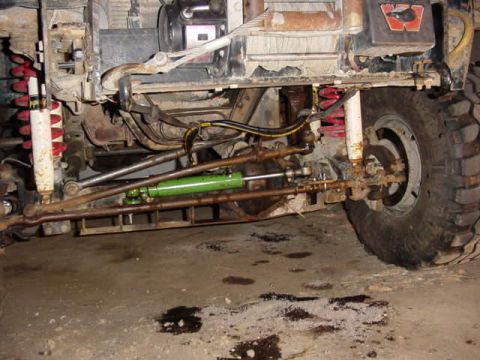

1992 Ford Bronco - Two to many holes 1992 Ford Bronco - A black recirculating-ball steering gearbox, likely from a Ford, with a Ford oval logo cast into the housing and an attached power steering… 1992 Ford Bronco - new steering box that was ported and tapped for $150 from www.westtexasoffroad.com 1992 Ford Bronco - in and mounted, hydraulic lines and cylinder not hooked up yet 1992 Ford Bronco - no steering or brakes, boy is my truck in trouble. 1992 Ford Bronco - the ram i plan on using. My axle has about 9 1/4" travel from lock to lock on the steering. This ram is 8 3/4", which is very close, most r… 1992 Ford Bronco - ram mounted on axle. uses tapered tie rod ends. clear everything just barely. we flex tested it with the loader tractor and it doesnt bind… 1992 Ford Bronco - tie rod bracket. Not finshed, but fit to it. plan on using U bolts and weld layed on each side to prevent them from moving. the 1" steel th… 1992 Ford Bronco - mount on axle. Part of of rear of JD 7700 thats cut to fit onto axle housing. will be u bolted and welded to tube. 1992 Ford Bronco - new tierod end and axle mount. 1992 Ford Bronco - done. steers awesome! it does steer a tad slower than normal, but hardly noticible with this size ram. 1992 Ford Bronco - Price list $150 for box modification $50 to and from shipping to texas for box mods $50 for ram $50 for hoses $30 for new tierod end on ram… 1992 Ford Bronco - Blurry close-up of dirty undercarriage or engine-bay components, with a grime-coated curved hose or bar crossing in front of a dark cast ho… 1992 Ford Bronco - Grimy underside close-up around a front axle, showing the cast differential housing, a rubber vent or brake hose with a printed part number… 1992 Ford Bronco - Close-up of a metal fitting or fuel/AC line connection where a curved tube joins a hex-nut fitting on a grimy engine component. The surroun…
