warn 8274 winch

From 1980 Ford Bronco “The Beast”, documented by REDBEAST9.

37 photos
← Back to this vehicle

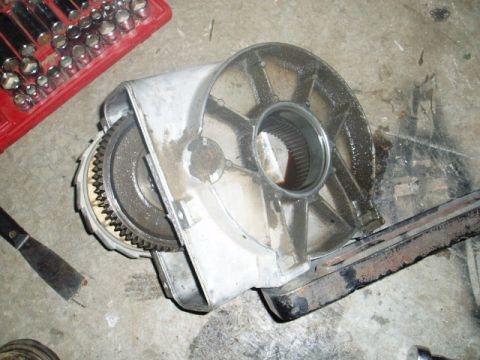

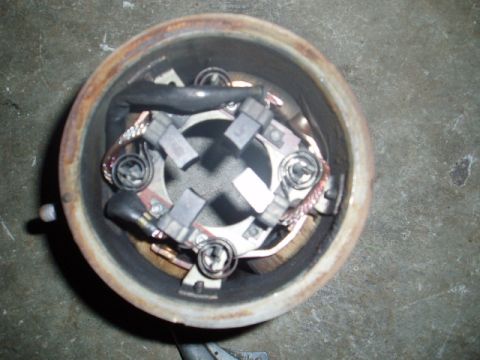

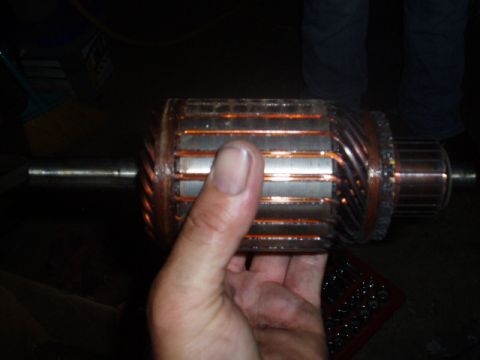

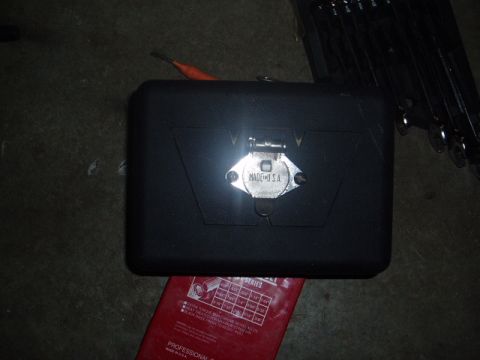

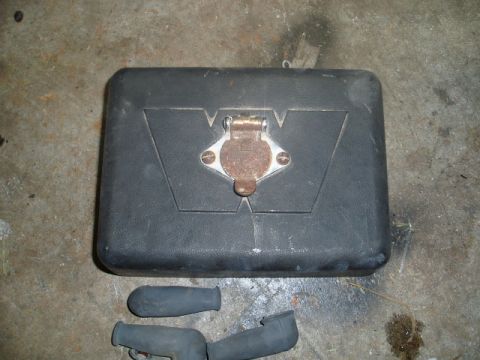

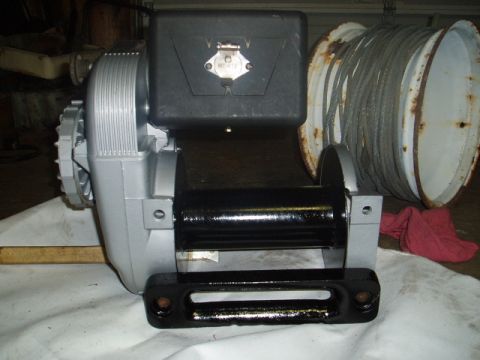

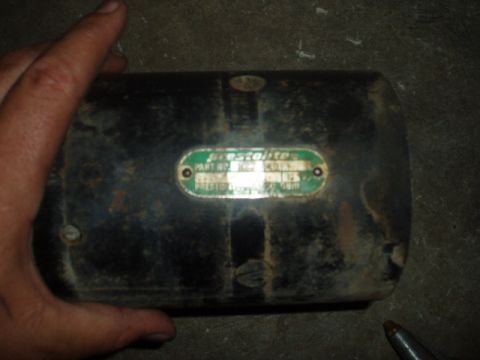

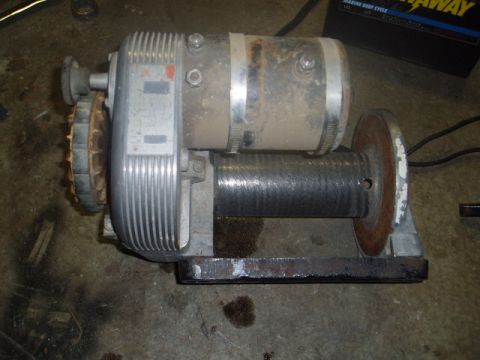

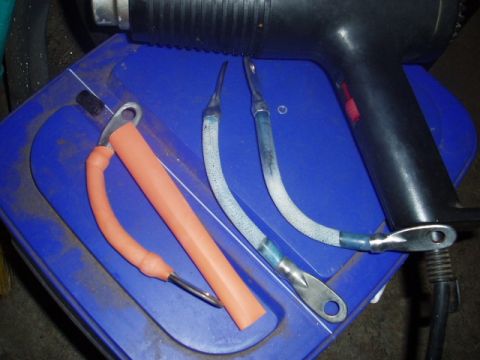

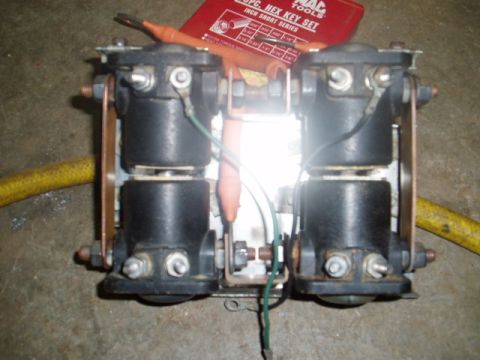

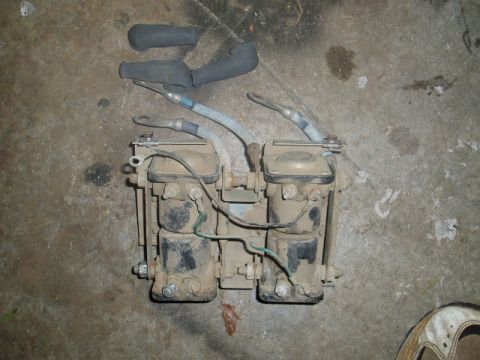

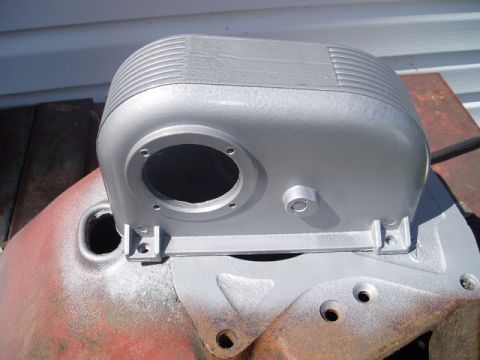

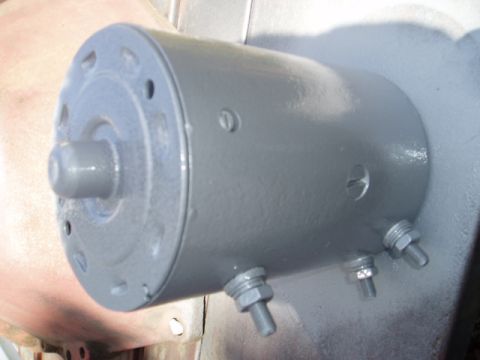

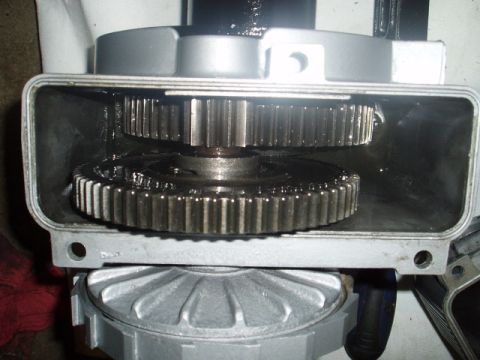

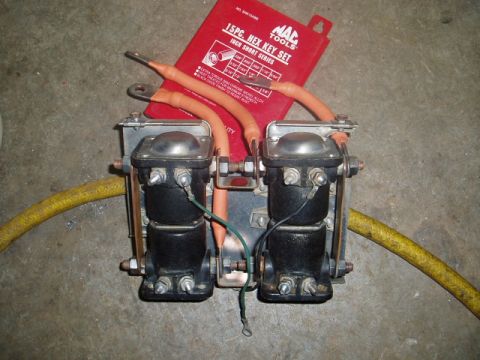

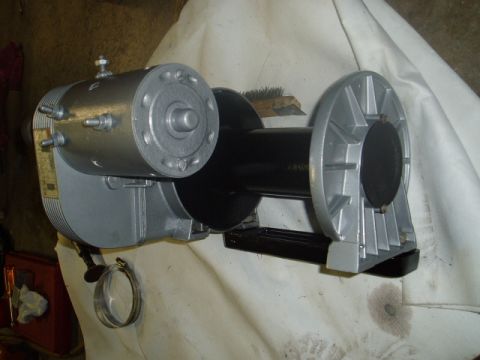

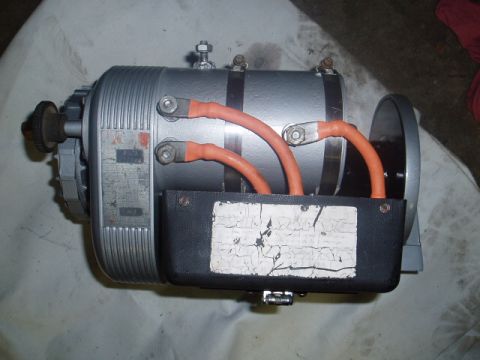

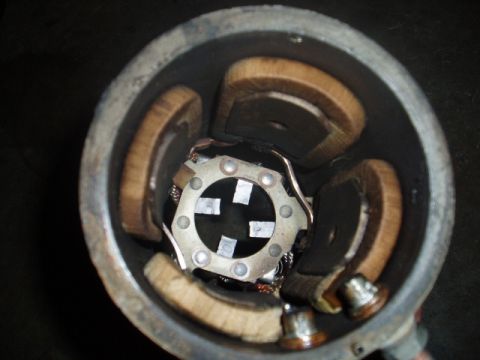

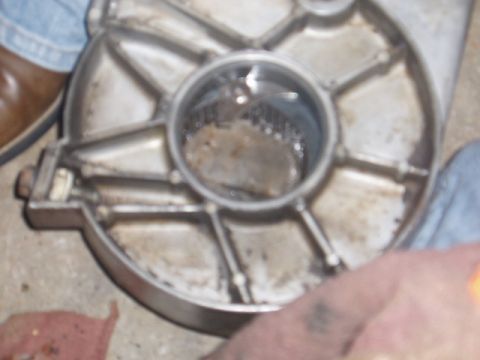

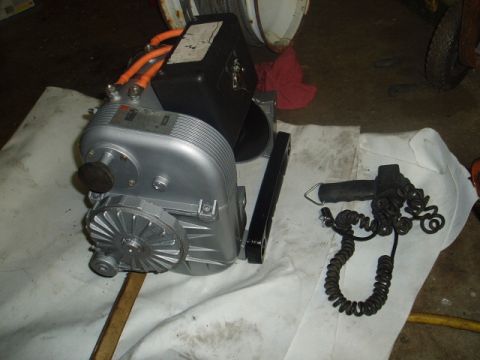

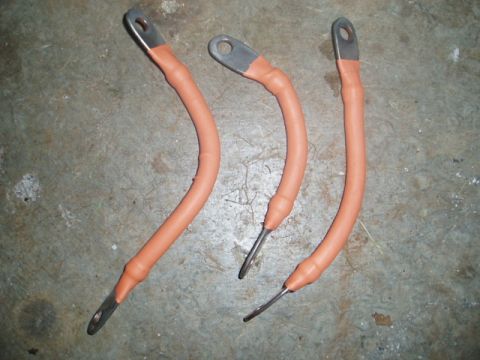

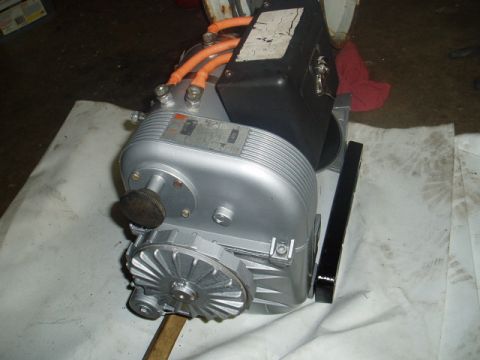

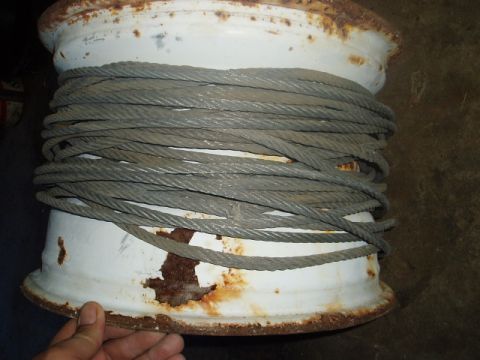

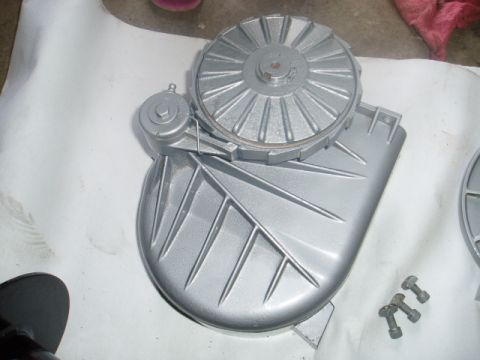

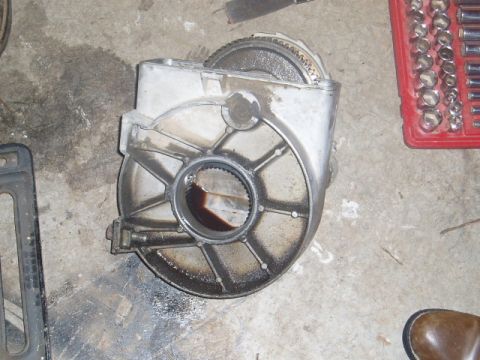

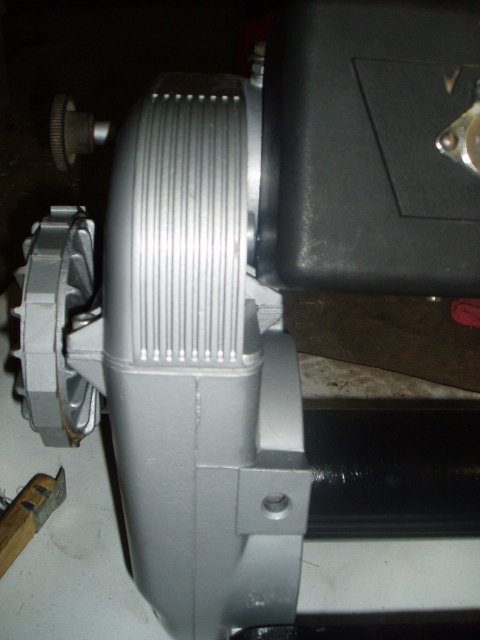

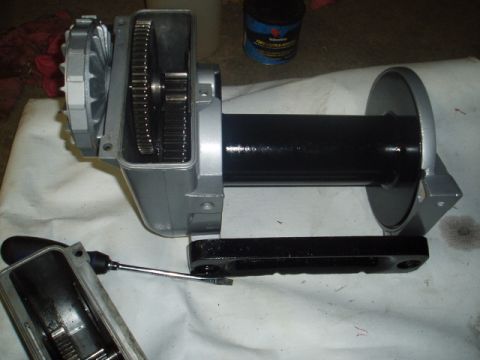

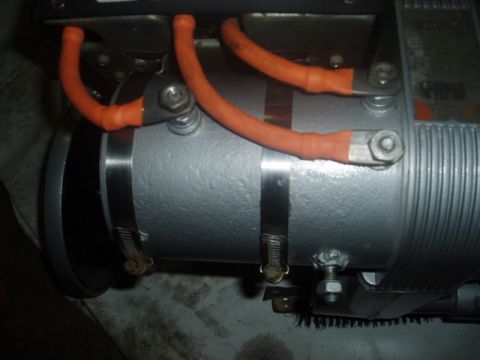

1980 Ford Bronco - 1979 Warn M8274 winch 1980 Ford Bronco - A dusty, silver electric winch with a metal drum is mounted on a black metal base. The winch has a ribbed casing on the left side and a cyl… 1980 Ford Bronco - A pair of ignition coils and spark plug wires are laid out on a concrete surface. The coils are dusty and appear to be from an older vehicl… 1980 Ford Bronco - A black rectangular case with a metal latch and a circular emblem is shown on a concrete floor. Two black rubber boot-like objects are visi… 1980 Ford Bronco - How I stored the cable. 1980 Ford Bronco - I used shrink tube to redo the old weather cables. I doubled the covering and they turned out very nice. 1980 Ford Bronco - Three copper battery cables with orange heat shrink tubing are laid out on a concrete floor. Each cable has a ring terminal on one end and… 1980 Ford Bronco - I took the control pack apart and cleand and tested each cylinoid. Looks alot better. 1980 Ford Bronco - A close-up view of two black solenoids mounted on a metal bracket, with copper connectors and wiring. A yellow hose is visible on the left… 1980 Ford Bronco - Also cleaned the cover. 1980 Ford Bronco - Oringal 2.5 hp motor. 1980 Ford Bronco - Motor stil works and is in good shape inside. I just used some air to clean the inside. 1980 Ford Bronco - A close-up, top-down view of the internal components of a motor, likely from a 1980 Ford Bronco. The image shows copper windings, a metal a… 1980 Ford Bronco - pics of the tear down 1980 Ford Bronco - Drive end on the Drum. 1980 Ford Bronco - Everything is great on the inside, no signs of wear on anything. 1980 Ford Bronco - Top half where motor attaches. 1980 Ford Bronco - Free spool clutch 1980 Ford Bronco - the rest of the motor, had just a touch of rust and I later used some fine sandpaper to clean it up. 1980 Ford Bronco - You can see here where the Drum seal had been leaking. The seal was fine but the bushing had been set to far into the case not leting it se… 1980 Ford Bronco - Its hard to see but the bushing is inside this bore on the motor side. There is also a bushing on the drum support side but it is plastic a… 1980 Ford Bronco - After everything was found to be in good condition I cleaned all the parts and used a brass brush on a grinder to clean the housing. It gav… 1980 Ford Bronco - A close-up view of a gray painted automotive generator or alternator with two threaded posts visible on the side. The front of the unit fea… 1980 Ford Bronco - all the parts cleaned and painted. 1980 Ford Bronco - Several disassembled parts of a motor, possibly from a 1980 Ford Bronco, are laid out on a white cloth. The parts include a motor housing,… 1980 Ford Bronco - A silver painted automotive part, possibly a transmission or differential housing, is shown on a white surface. Several bolts are visible i… 1980 Ford Bronco - A close-up view of the internal gears of a vehicle's transmission or gearbox, showing two large metal gears covered in lubricant. 1980 Ford Bronco - Still have to put the motor housing on but first I add oil. It calls for 6oz of non-det 30 weight. But I put 12oz. Anyone who has evered ow… 1980 Ford Bronco - had to show off this long alen wrench. 1980 Ford Bronco - looking better 1980 Ford Bronco - A silver and black electric winch is shown resting on a white tarp. The winch has a cylindrical motor housing with bolts and a circular end… 1980 Ford Bronco - A silver and black electric winch with a large spool of cable is shown on a white cloth. A black tow hook is mounted to the front of the wi… 1980 Ford Bronco - A silver electric motor or generator with orange cables connected to a black housing. The motor has ribbed fins on the casing and a label w… 1980 Ford Bronco - in this pic you can see the bolt I welded to the motor case for a good ground. 1980 Ford Bronco - just trying to get a good pic of how nice this turned out. 1980 Ford Bronco - A silver electric motor or gearbox assembly with orange cables is shown resting on a white cloth. A black housing is attached to the top of… 1980 Ford Bronco - all done, I will install the cable after it is mounted to the Bronco.
