Electric fan install

From 1991 Ford Bronco “Mama Cass” — documented by CaliforniaMonkey.

16 photos
← Back to this vehicle

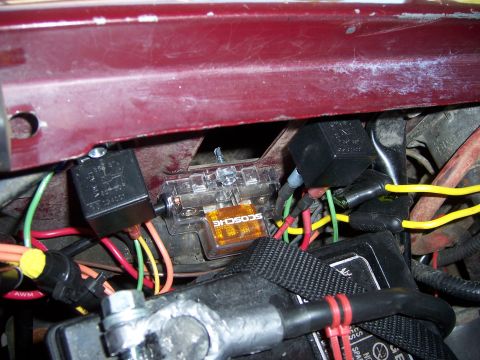

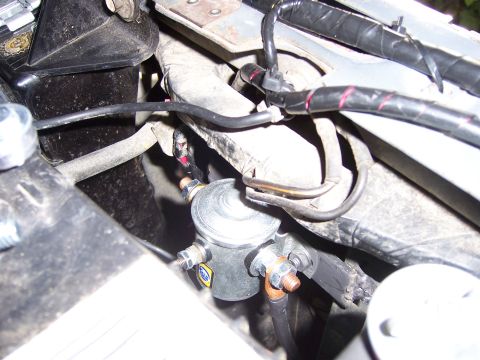

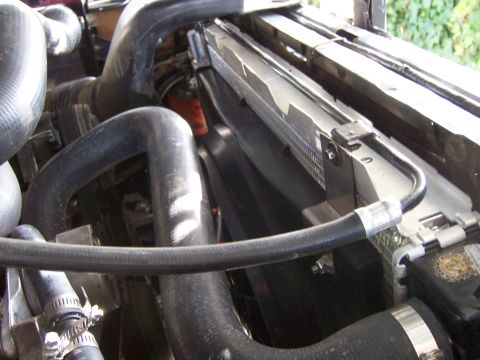

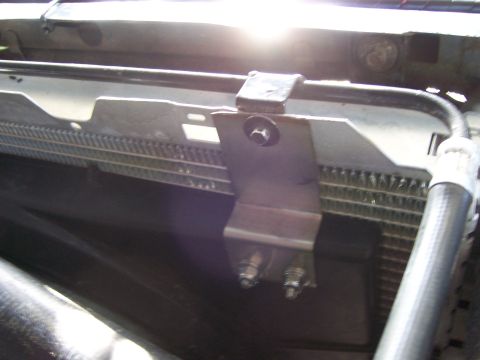

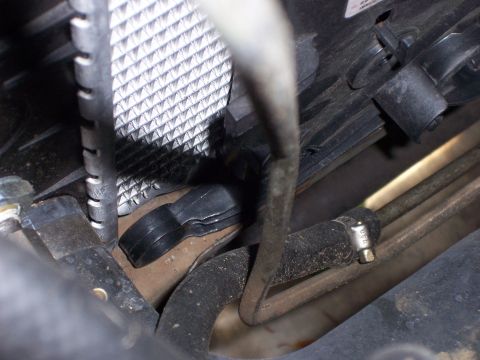

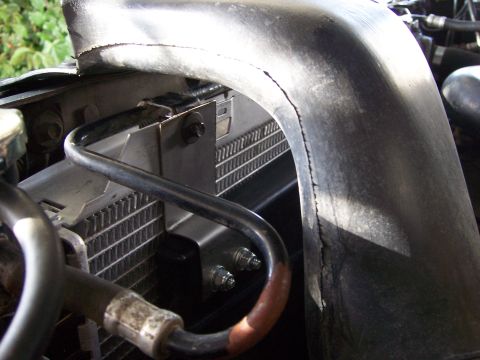

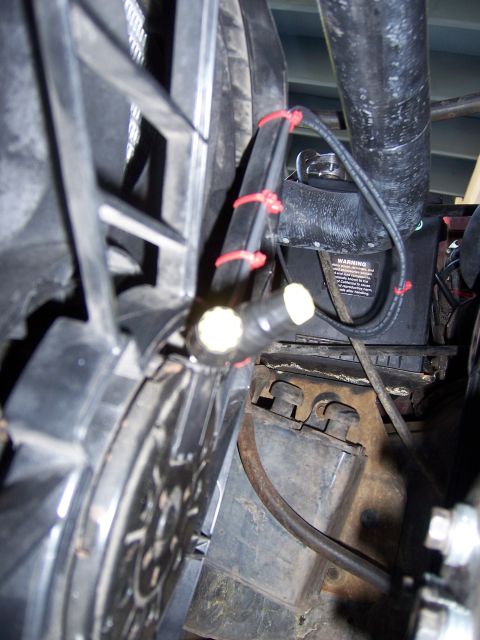

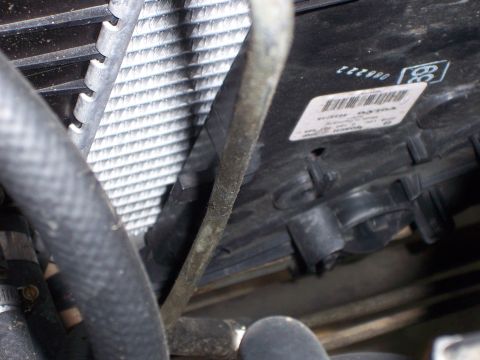

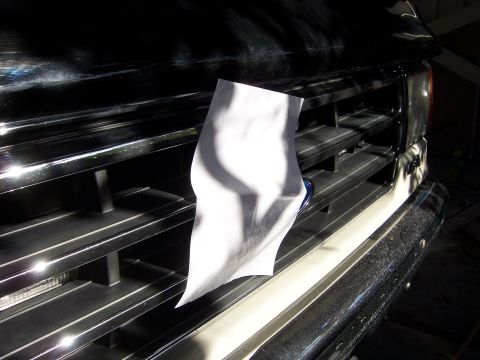

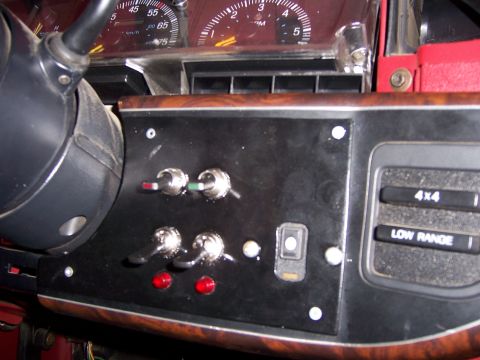

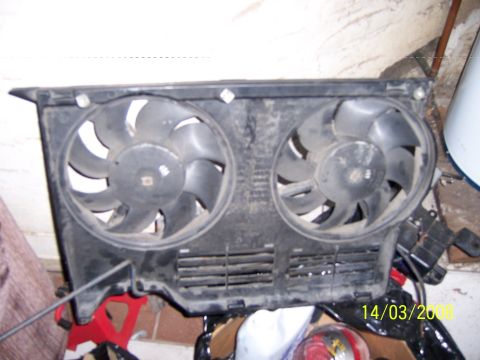

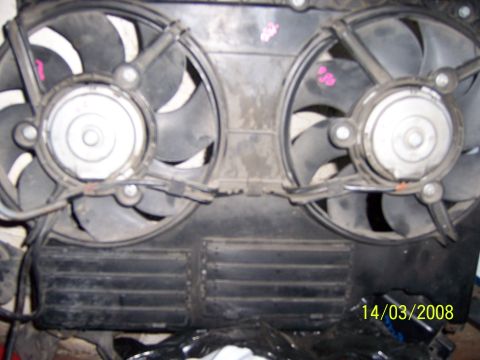

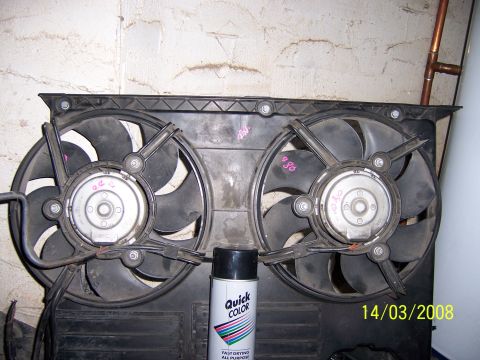

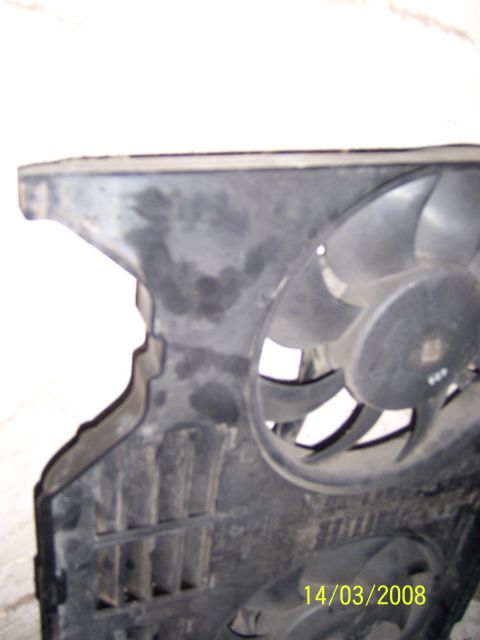

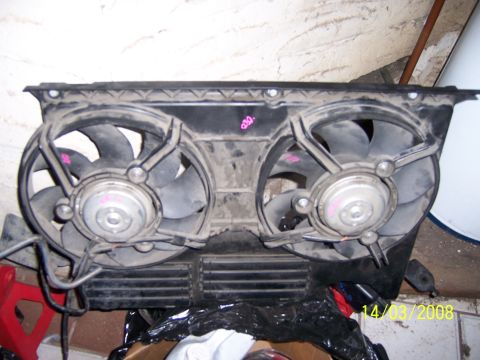

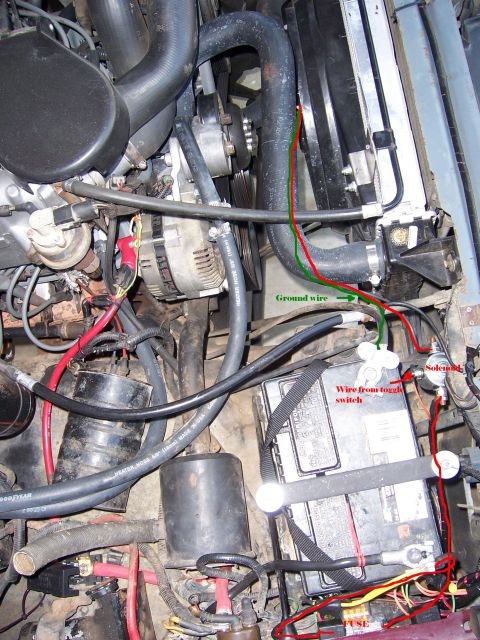

1991 Ford Bronco - When I did the toggle switches. I planned ahead for a 3 pos. switch for the fan. 1991 Ford Bronco - The fancy fuse in the middle of the relays is for the fan. I am using a 40 amp fuse but got a 50 just in case. So far so good. I ran 8 gaug… 1991 Ford Bronco - A NAPA continuous duty solenoid. I welded a 1" bar with studs (i like studs) from the two post in order to mount it since i couldn't find a… 1991 Ford Bronco - I fabbed up these two stainless brackets (no painting needed) and made them so they mounted with the stock mounting screws from the origina… 1991 Ford Bronco - opposite side 1991 Ford Bronco - Backed up view 1991 Ford Bronco - The bottom of the fan slides right into the remaining room left on the radiator support. It's just wide enough to cover a majority of the r… 1991 Ford Bronco - A black plastic clip is shown securing a fan shroud to the radiator assembly of a vehicle. 1991 Ford Bronco - It's so strong, it actually pulls three peices of paper, stapled to each other, into the grill and holds it there. 1991 Ford Bronco - Wire nutted the wires at the fan. Gub only left me about an inch so it was tight. This is how I wire in larger fans and they seem to last f… 1991 Ford Bronco - My wiring done poorly on MS paint. Hope this is what you were looking for. 1991 Ford Bronco - Assembly of dual electric radiator fans, likely for a vehicle cooling system. 1991 Ford Bronco - Close-up view of two electric cooling fans mounted together on a black housing. 1991 Ford Bronco - A pair of electric cooling fans are shown mounted in a black shroud. 1991 Ford Bronco - A pair of electric cooling fans are shown, with a can of spray paint placed in front of them. 1991 Ford Bronco - This is a close-up view of an electric cooling fan shroud, likely a replacement part.
