130 amp 3G install

From 1991 Ford Bronco “Mama Cass” — documented by CaliforniaMonkey.

13 photos
← Back to this vehicle

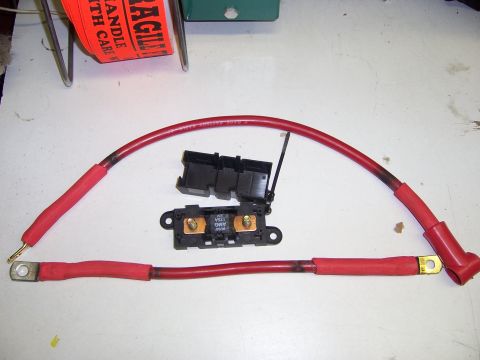

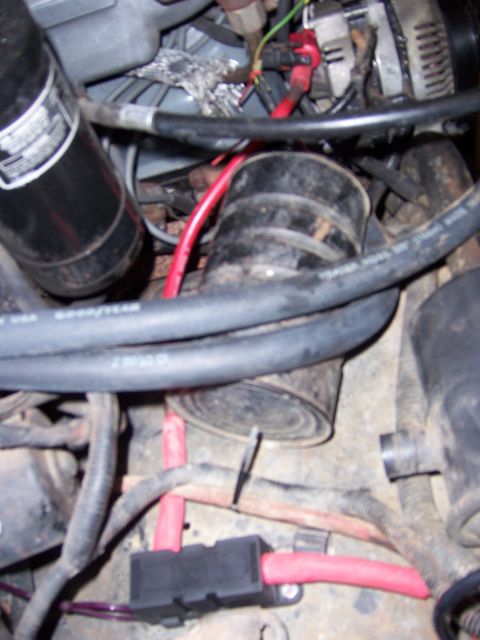

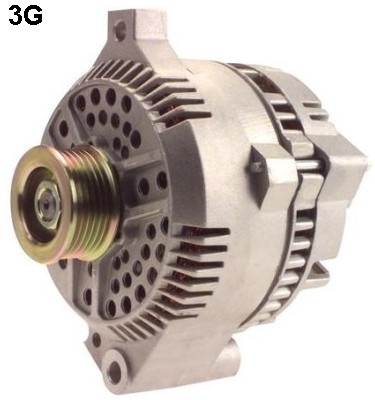

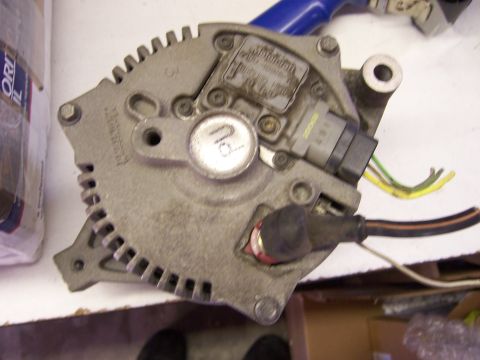

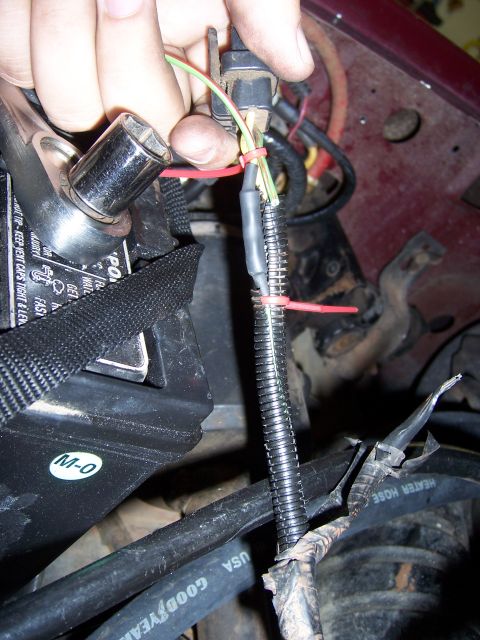

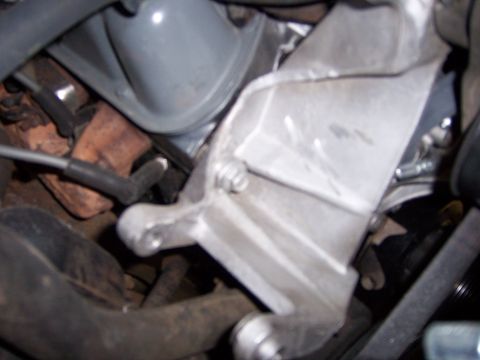

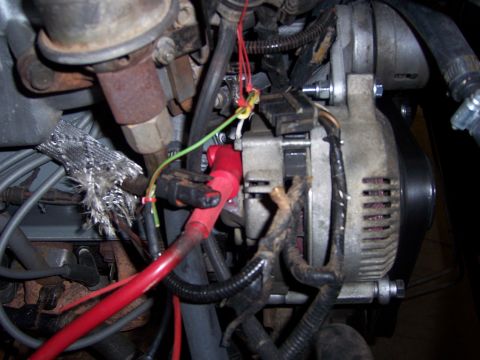

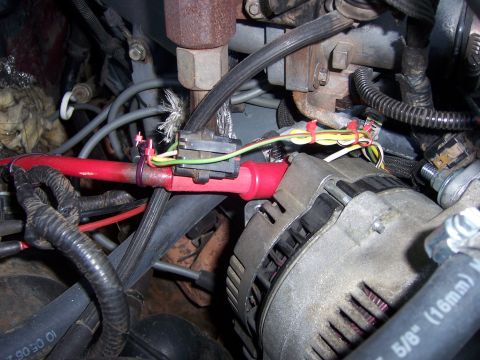

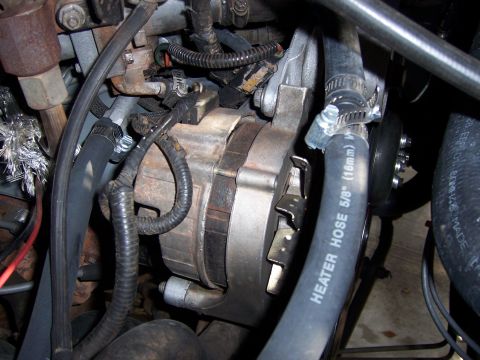

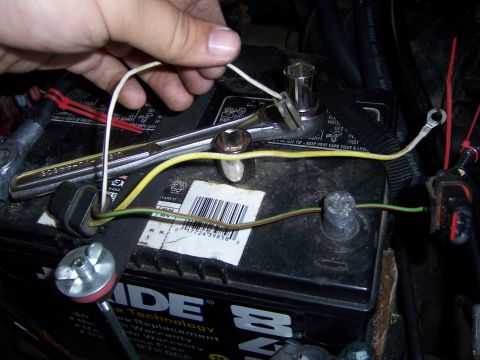

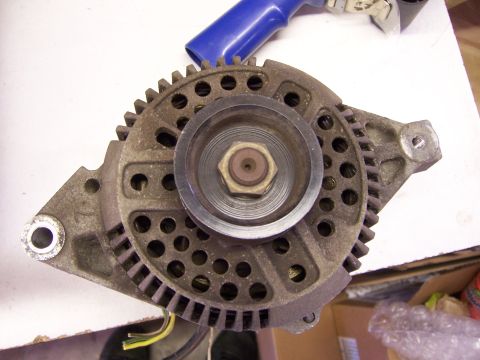

1991 Ford Bronco - The stock alternator 1991 Ford Bronco - My Fireguy inspired charge cable for the 3G 1991 Ford Bronco - 3G I got from Chexmix (Justin) 1991 Ford Bronco - Close-up view of an alternator, showing its metallic casing, electrical connectors, and wiring. 1991 Ford Bronco - The clearencing i had to do to make it fit. 1991 Ford Bronco - modified original alt. plug. All I had to do was find the green wire, trace it back a couple of inches and snip it. I then butt-spliced tha… 1991 Ford Bronco - The 3G plug. One of the wires plugs into the alt. The other goes on the same stud as the charge cable. The last (green) wire gets spliced i… 1991 Ford Bronco - I mounted the 175 amp fuse to the wheel well. Not the best place but it works pretty good. 1991 Ford Bronco - I had to re-clock the rear of the alt. to make it easier to get the plug and cable on. It's really easy to do. It also let me see how warn… 1991 Ford Bronco - another look. One thing that was an unpleasant outcome. The belt squeals a little when it's cold. It seems to go away when it heats up. 1991 Ford Bronco - This is a 3G alternator, a common automotive part.
