Album section

Tranny cooler

From 1997 Ford Taurus, documented by SHOZ123.

16 photos
← Back to this vehicle

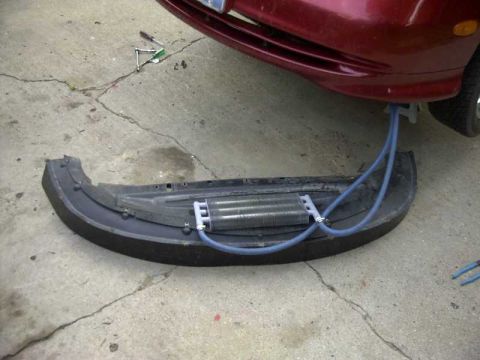

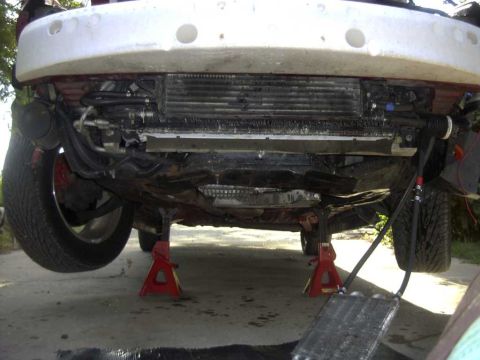

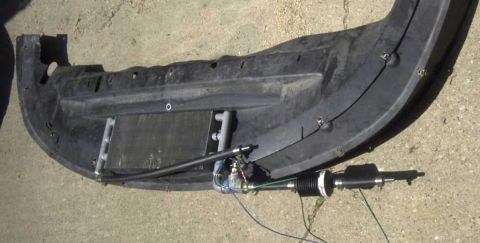

1997 Ford Taurus - Car bumper with transmission cooler and steering component, likely for aftermarket modification. 1997 Ford Taurus - Car bumper with transmission cooler and hoses, resting on concrete. 1997 Ford Taurus - Close-up of a transmission cooler with visible fins and mounting hardware. 1997 Ford Taurus - Service illustration of the AX4N transaxle showing the location of the EPC and LINE hydraulic pressure tap ports. 1997 Ford Taurus - Hot fluid goes first to lower tube and fin cooler which lays horizontal then to bumper mounted Gen 2 cooler then to OEM tube cooler then ba… 1997 Ford Taurus - This is a large Hayden oil cooler. I use it to cool the coolant, below the coolant block temperature, that is used in the OEM oil to water… 1997 Ford Taurus - I replaced the OEM ATX cooler lines with brass hose barbs and 3/8" hose. Ran it under the upper radiator hose to the front. 1997 Ford Taurus - Installed a drain plug. easy to do as it is a two piece plug. Just drill a 1/2" hole and insert, then tighten nut on back. 1997 Ford Taurus - Marketing infographic titled 'Broad Temperature Performance' comparing the usable temperature range of petroleum versus synthetic ATF. 1997 Ford Taurus - Exploded-view transmission drawing with numbered components plus a 'View A' detail of the thermostatic fluid control valve parts. 1997 Ford Taurus - Low-angle view under the front bumper of a white car showing an auxiliary transmission fluid cooler mounted ahead of the radiator, with bra… 1997 Ford Taurus - Close-up of engine wiring harness and connectors, with visible text from Supermotors.net. 1997 Ford Taurus - Front view of a car's engine compartment and bumper, with the hood open. 1997 Ford Taurus - A blue barrel of transmission fluid sits on wooden pallets, partially obscuring a purple vehicle fender. 1997 Ford Taurus - Marketing infographic titled 'Broad Temperature Performance' comparing the usable temperature range of petroleum versus synthetic ATF. 1997 Ford Taurus - Transmission cooler and hoses, likely removed from a vehicle.
