906 hits | 68.31 KB | Posted: 1/4/08

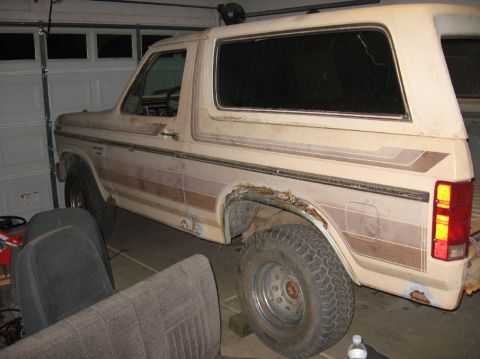

1985 Bronco, parts donor I bought for $100. Definitely turned out to be worth the 2 hour trip to pic...

938 hits | 89.8 KB | Posted: 1/2/08
Here's the '85, all hacked apart and sans engine.

662 hits | 77.35 KB | Posted: 12/31/07

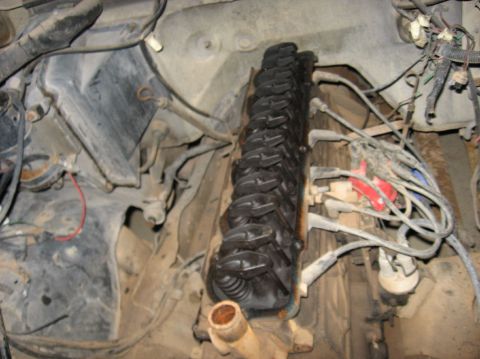

Only one cylinder with low compression, not a bad start.

614 hits | 97.77 KB | Posted: 12/31/07

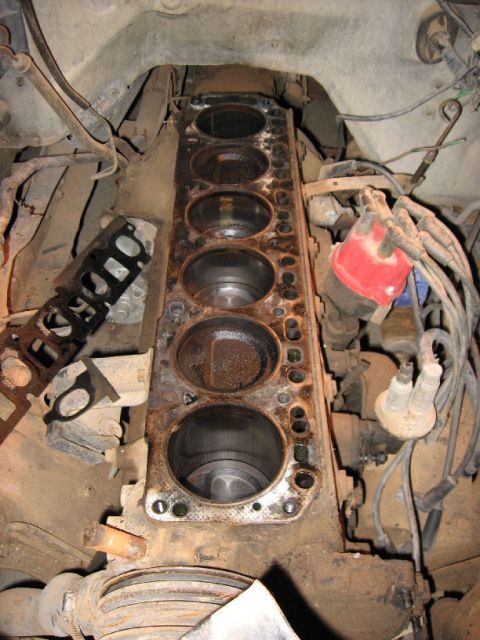

Exactly what I was hoping for, it hasnt been bored.

605 hits | 68.57 KB | Posted: 12/31/07

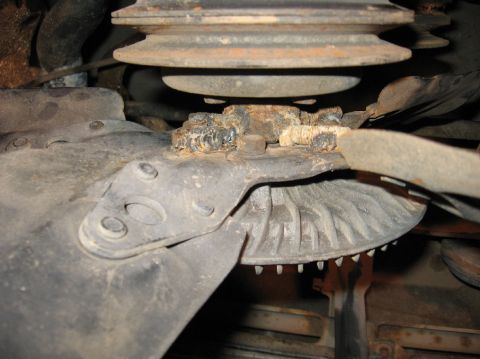

Some jackass welded the fan to the water pump with bolts laid sideways. Couldn't even get the pump o...

723 hits | 92.79 KB | Posted: 1/2/08
Motor's out, time to get rid of the rust bucket it came out of.

1534 hits | 83.67 KB | Posted: 1/2/08
Bottom end looks nice 'n clean. There was only one bolt on the oil pump...

724 hits | 101.28 KB | Posted: 1/2/08
The odometer read 17K, and based on everything I've seen thus far, I believe it has an original 117K...

708 hits | 94.51 KB | Posted: 1/4/08
Factory timing gears.

1200 hits | 112.6 KB | Posted: 1/4/08
Crankshaft out, bearings even dont look bad.

769 hits | 112.61 KB | Posted: 1/4/08
Pistons out.

658 hits | 84.64 KB | Posted: 1/4/08
No surprise to find a busted ring on the No.1 piston, the only cylinder with low compression.

860 hits | 99.15 KB | Posted: 1/4/08

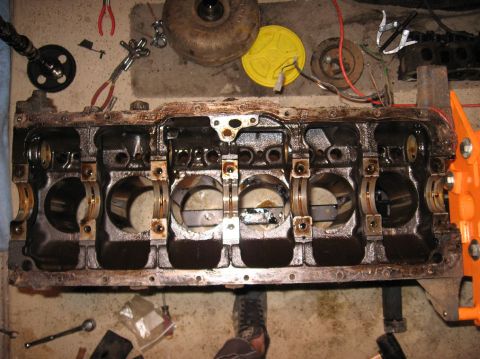

Block completely stripped, looks reeeaal nice. Pardon the shit laying around everywhere.

690 hits | 89.79 KB | Posted: 1/5/08

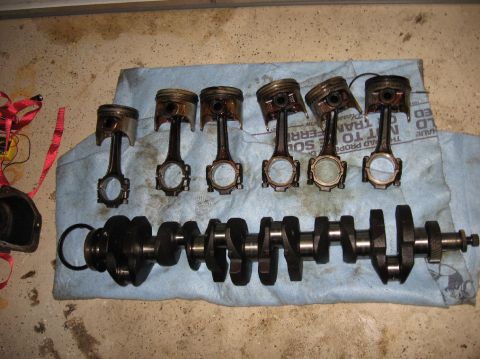

Crank and pistons.

596 hits | 77.84 KB | Posted: 1/5/08

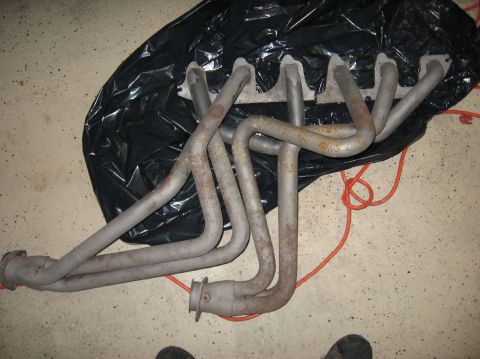

Long tube headers. Not sure if I'm going to use them, they dont look really great, and I dont know i...

535 hits | 59.97 KB | Posted: 1/5/08

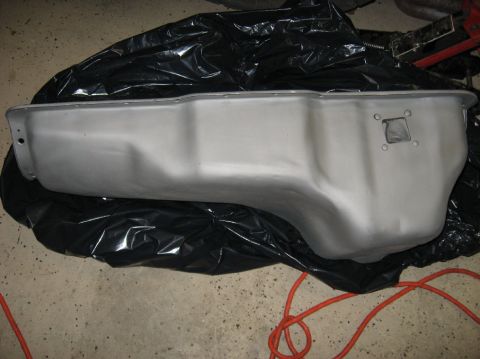

Its nice to have an industrial sandblaster available to use. Should have taken a pic prior to show t...

504 hits | 72.48 KB | Posted: 1/5/08

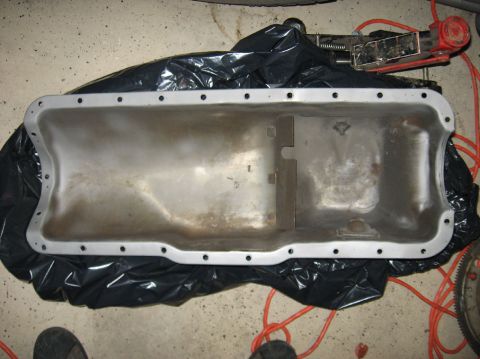

Its also nice having a couple different power washers, there was a good bit of sludge in there.

530 hits | 49.83 KB | Posted: 1/6/08

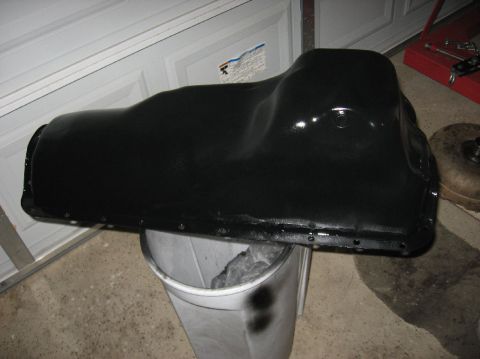

Painted with Duplicolor engine enamel.

569 hits | 77.19 KB | Posted: 1/8/08

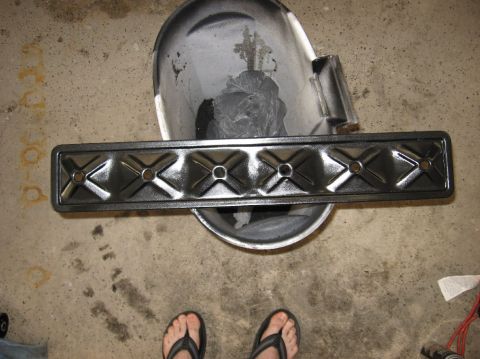

Pushrod cover, also painted with engine enamel.

596 hits | 88.77 KB | Posted: 1/10/08

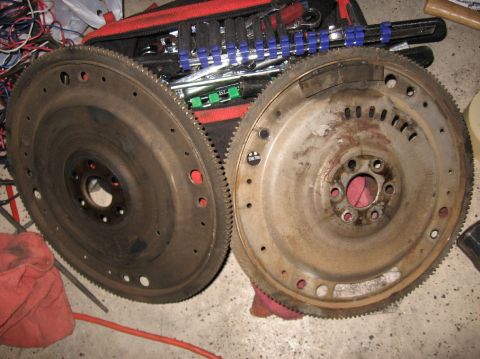

I was told the Bronco was parked for 2 years because the motor shook pretty bad. The flexplate on th...

546 hits | 89.13 KB | Posted: 1/10/08

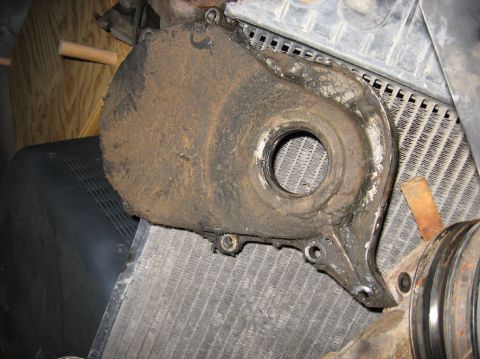

Timing cover before cleaning. Thats pretty much what the oil pan and pushrod cover looked like befo...

582 hits | 64.52 KB | Posted: 1/10/08

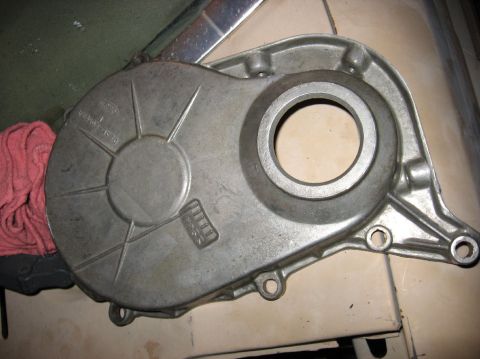

After cleaning and bead-blast. JB Welded a couple gouges, then paint will come.

624 hits | 80.78 KB | Posted: 1/10/08

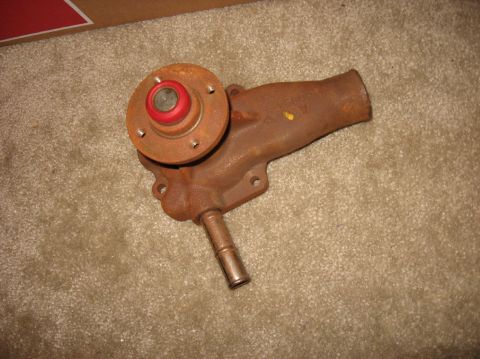

Got a NOS Ford Motorcraft water pump on ebay for $9. Needs a sandblast and paint.

2112 hits | 51.21 KB | Posted: 9/15/07

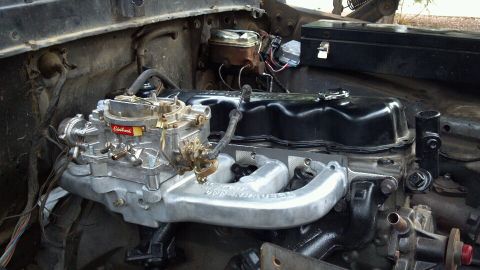

Offenhauser Dual-Port aluminum, 4bbl intake manifold.

929 hits | 87.37 KB | Posted: 1/24/08

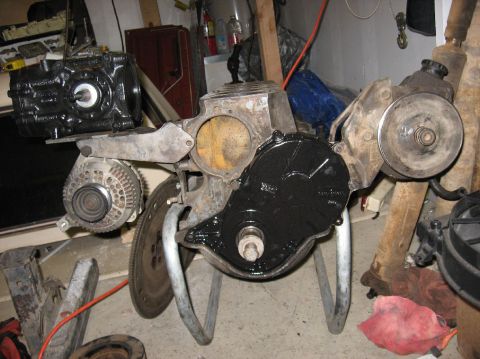

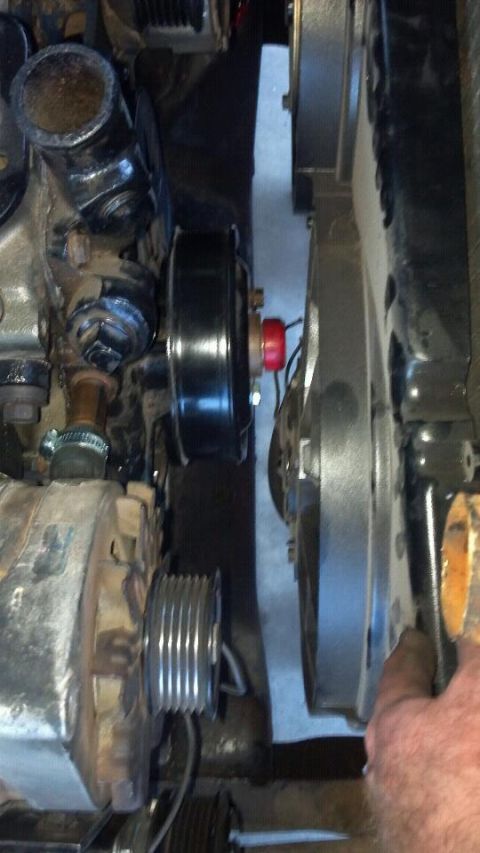

Got to thinking about engine accessories today, and decided to do a mock up on an old motor to see i...

625 hits | 85.97 KB | Posted: 1/24/08

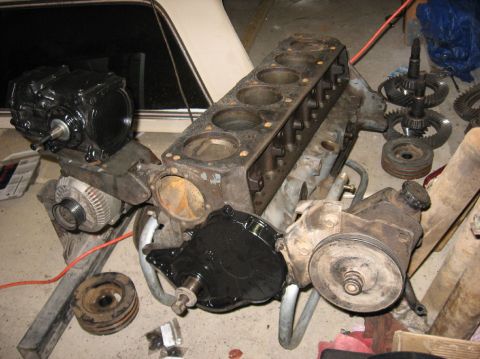

Another view. I plan to use a serpentine setup, and the main problem is getting a serpentine pulley/...

730 hits | 84.92 KB | Posted: 4/5/08

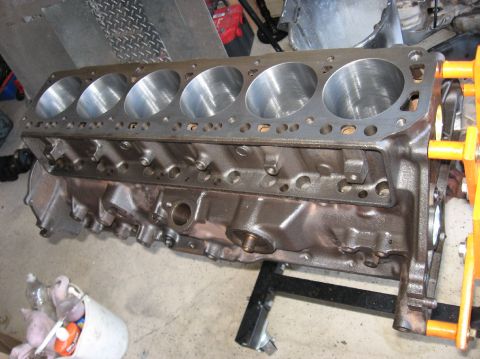

Back from the machine shop.

562 hits | 81.82 KB | Posted: 4/5/08

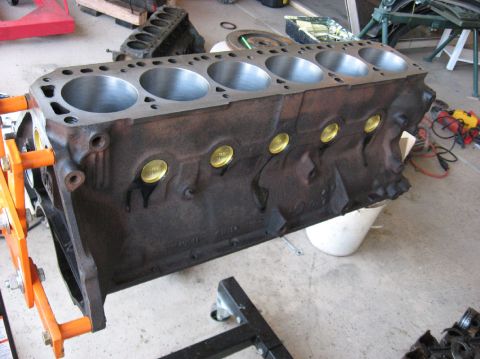

Hot tanked, bored .030, decked .008, new cam bearings and freeze plugs.

577 hits | 73.21 KB | Posted: 4/5/08

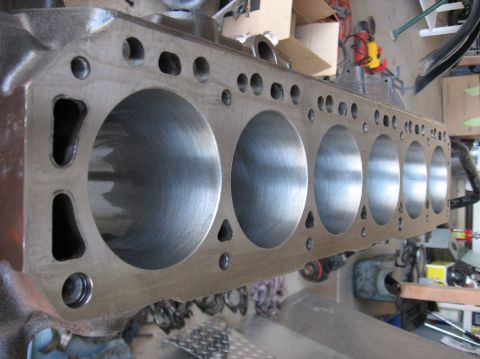

She now displaces 304.6 CI.

581 hits | 91.44 KB | Posted: 4/5/08

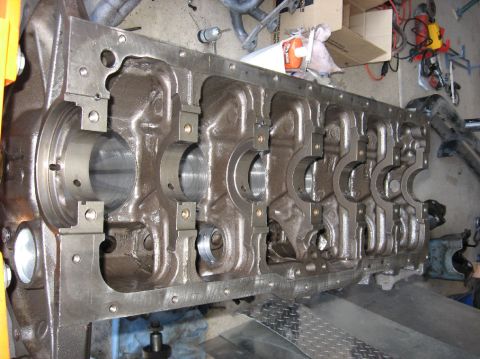

All clean and purdy.

597 hits | 76.3 KB | Posted: 4/5/08

606 hits | 63 KB | Posted: 4/5/08

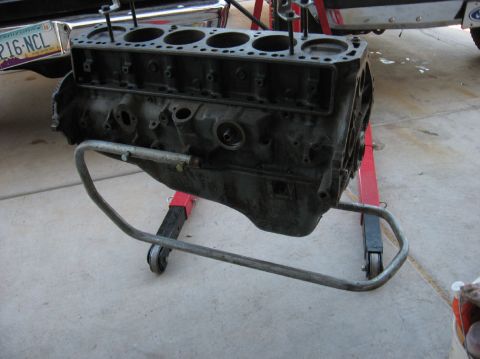

My $8 engine stand.

324 hits | 51.13 KB | Posted: 9/3/12

290 hits | 55.77 KB | Posted: 9/3/12

330 hits | 78.23 KB | Posted: 9/3/12

281 hits | 56.72 KB | Posted: 9/3/12

345 hits | 41.93 KB | Posted: 12/2/12

346 hits | 46.38 KB | Posted: 9/3/12

382 hits | 61.38 KB | Posted: 9/3/12

380 hits | 37.58 KB | Posted: 12/9/12

383 hits | 47.05 KB | Posted: 12/2/12

371 hits | 42.03 KB | Posted: 12/2/12

391 hits | 37.77 KB | Posted: 12/2/12
