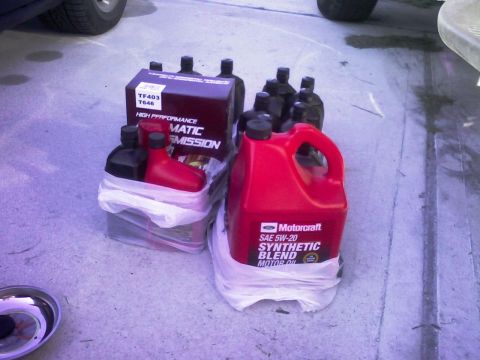

All you need to change your tranny fluid
358 hits | 47.78 KB | Posted: 11/17/07
All you need to change your tranny fluid

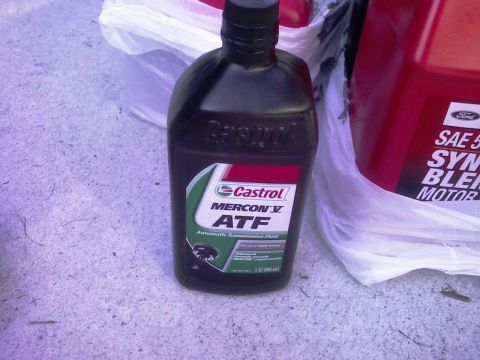

Mercon V-Required for the 4r70w, don't use unless specified. Different then regular mercon!
418 hits | 54.34 KB | Posted: 11/17/07
Mercon V-Required for the 4r70w, don't use unless specified. Different then regular mercon!

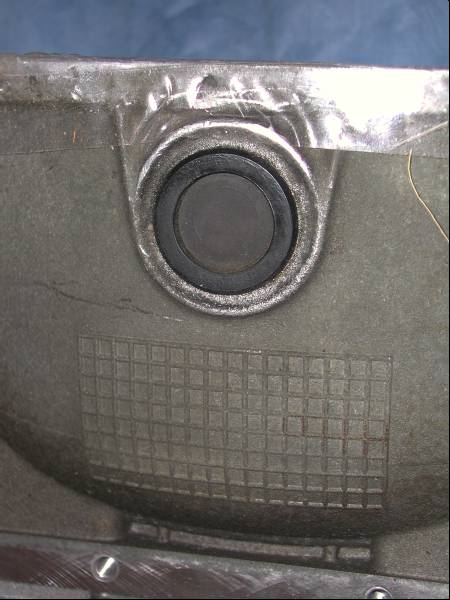

This is the torque converter drain dust cover, pops out by hand.Up is to the front of the vehicle.
4r70w bellhousing.JPG
379 hits | 42.25 KB | Posted: 11/17/07
This is the torque converter drain dust cover, pops out by hand.

Up is to the front of the vehicle.

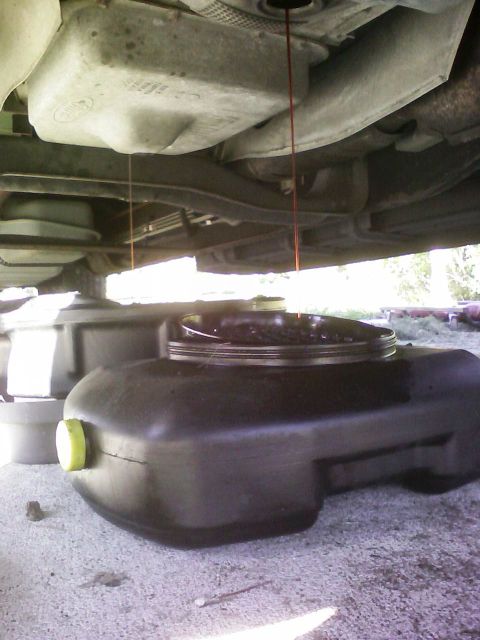

Draining the Pan and Torque converter. Supposedly after late 01 they stopped putting drain plugs in ...
519 hits | 47.31 KB | Posted: 11/17/07
Draining the Pan and Torque converter. Supposedly after late 01 they stopped putting drain plugs in ...

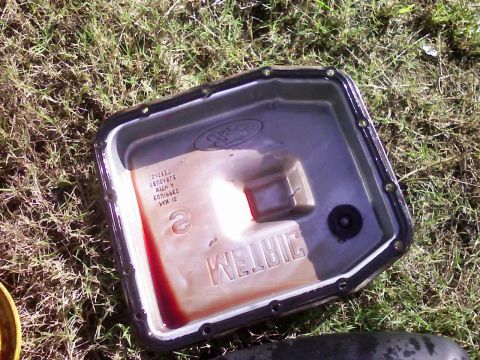

Removed tranny pan, bolts are 10mm, torqued to 9-11 ft lbs.
344 hits | 99.28 KB | Posted: 11/17/07
Removed tranny pan, bolts are 10mm, torqued to 9-11 ft lbs.
The drain plug kit I used-be careful not to overtightned the bolts, you WILL tear the washers. If yo...
drain plug picture.jpg
330 hits | 4.58 KB | Posted: 11/17/07
The drain plug kit I used-be careful not to overtightned the bolts, you WILL tear the washers. If yo...

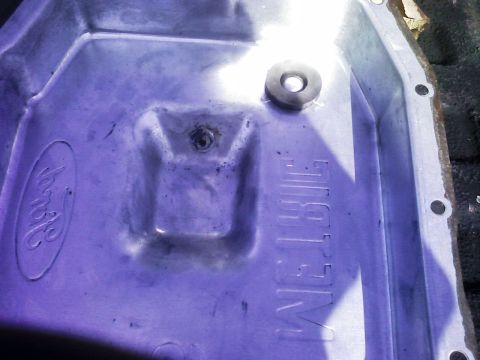

This picture shows the plug, drilled into the back part of the depression in the pan. Up is the back...
367 hits | 41.34 KB | Posted: 11/17/07
This picture shows the plug, drilled into the back part of the depression in the pan. Up is the back...

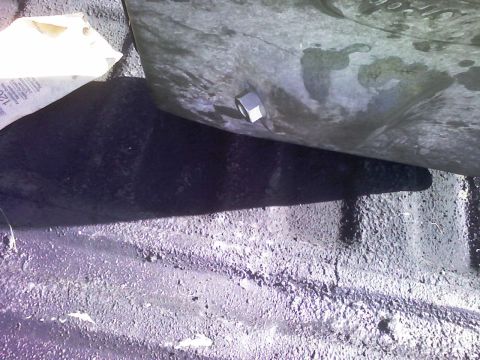

Plug view from bottom.
369 hits | 73.42 KB | Posted: 11/17/07
Plug view from bottom.
