Electric Fan

From 1988 Ford Bronco, documented by TheRics88Bronco.

13 photos
← Back to this vehicle

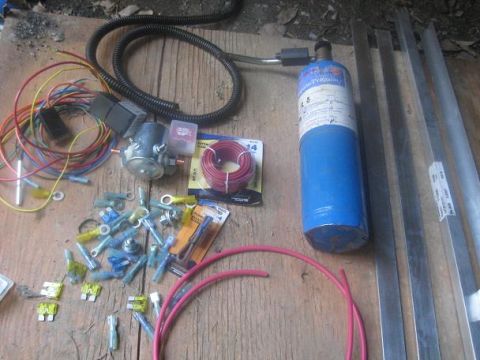

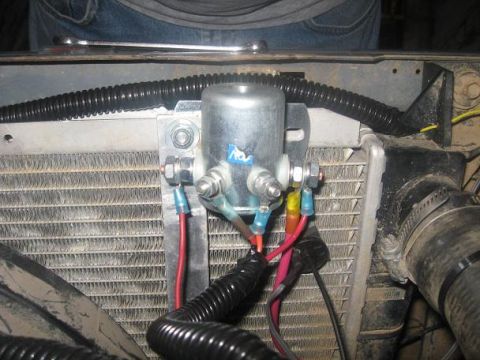

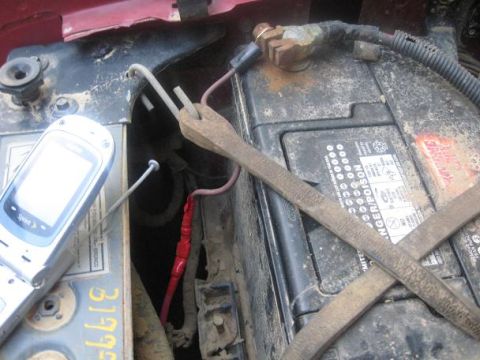

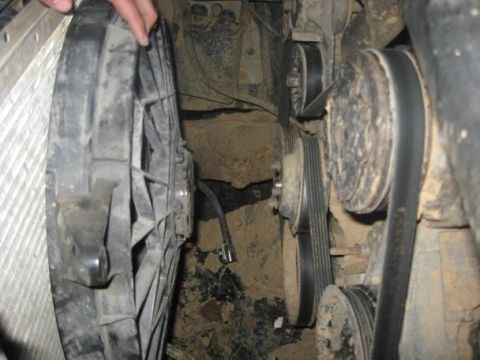

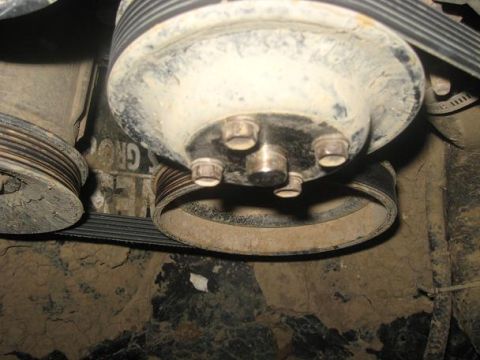

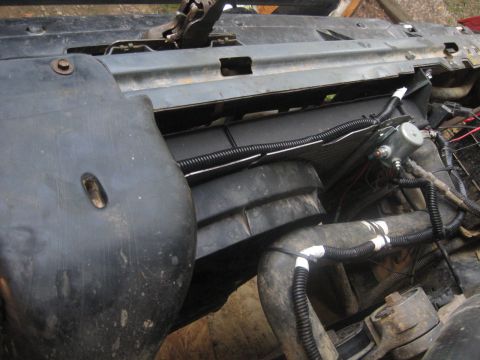

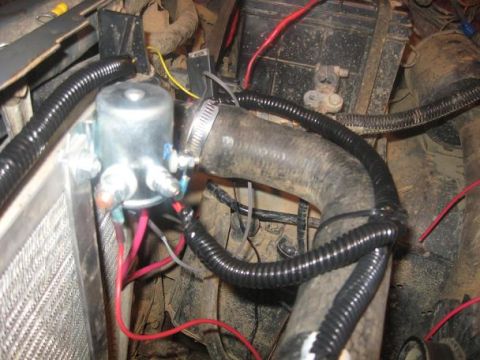

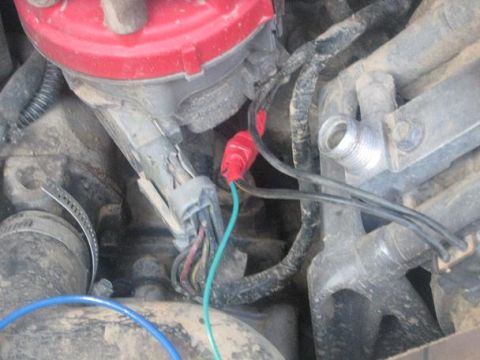

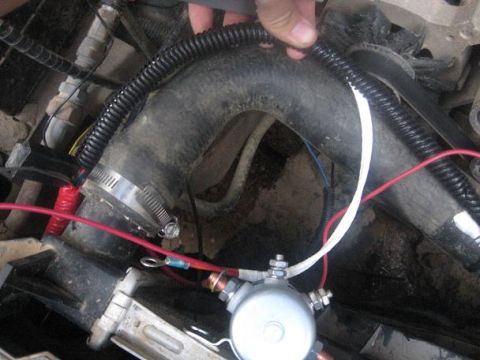

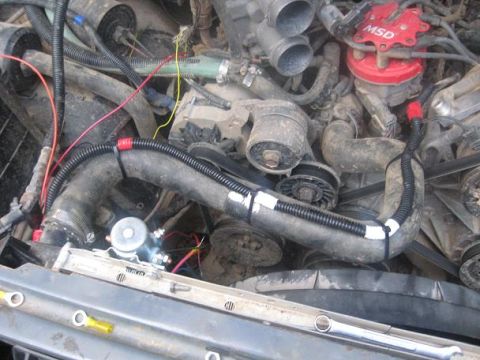

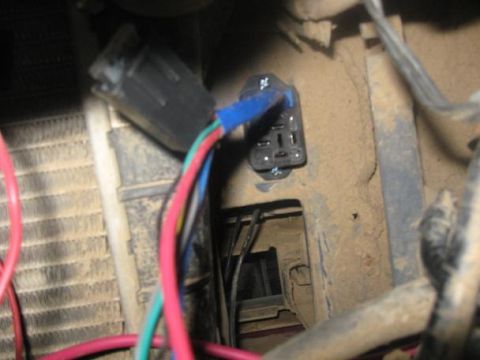

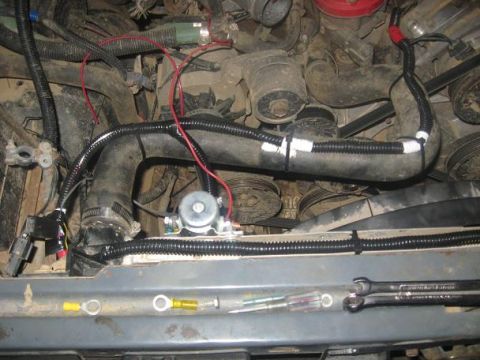

1988 Ford Bronco - mechanical fan removed 1988 Ford Bronco - look at all of that room 1988 Ford Bronco - fasteners securily fastened 1988 Ford Bronco - these are the parts i used, plus another 1x1/16x3` alum. 1988 Ford Bronco - even tho i dont use my a/c, i hooked the green wire to it anyways just in case i decide to hook it up someday. the blue wire is taped to it. 1988 Ford Bronco - 14 awg fuse link going to the 8ga. on the positive 12v. 1988 Ford Bronco - mounted the fan control on the core support. 1988 Ford Bronco - green and blue wires taped together, and hidden. 1988 Ford Bronco - i taped the orange and red wires together and routed them threw the loom with the yellow and blue wires. 1988 Ford Bronco - i put some split loom around the yellow wire and put it going across the top of the radiator. 1988 Ford Bronco - i decided to throw the ground wire from the CDR with the power wire. taped up and covered-going to the battery. 1988 Ford Bronco - a close pic of the CDR 1988 Ford Bronco - Got a thicker radiator. Hopefully I'll move onto a dual fan shortly.
