'91 F250 teardown

From 1989 Ford Bronco “Street Truck”, documented by Tim Crase.

81 photos
← Back to this vehicle

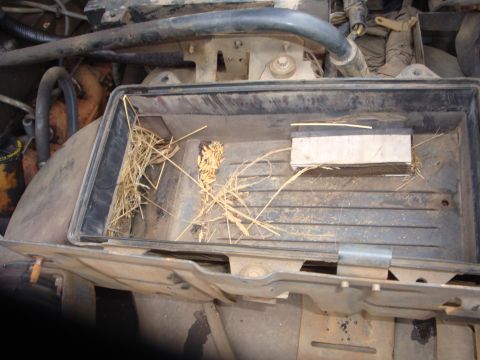

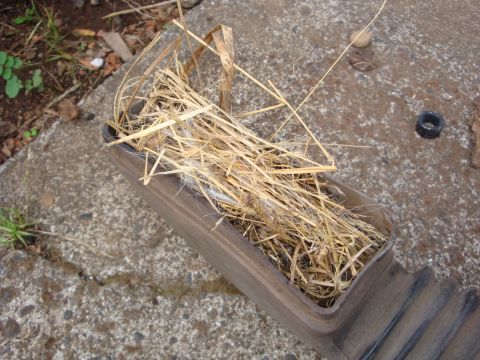

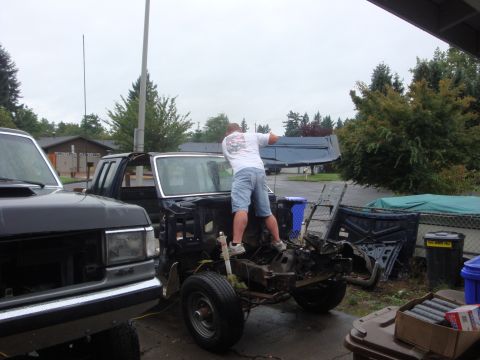

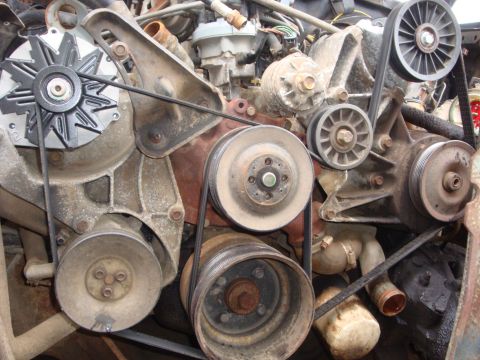

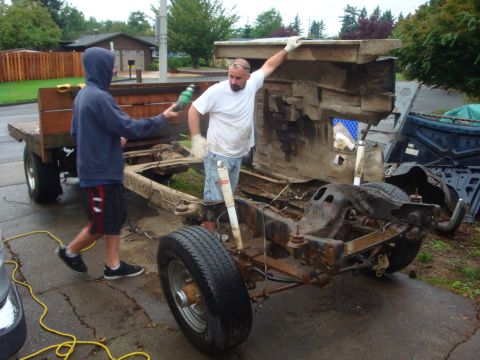

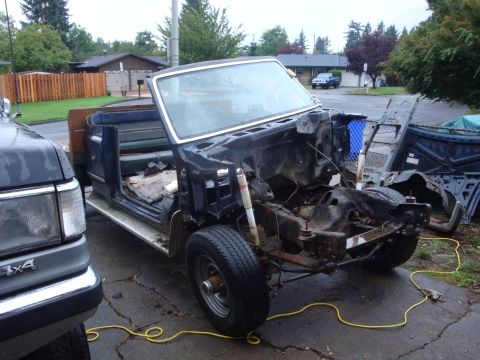

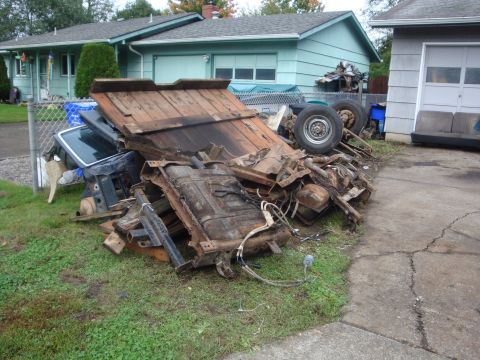

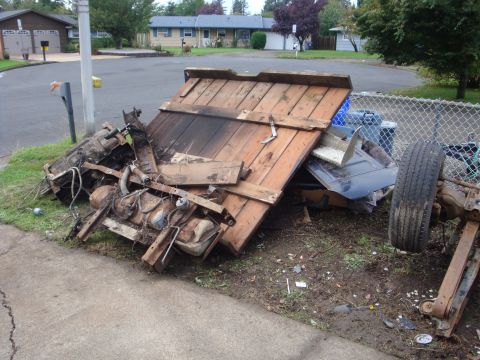

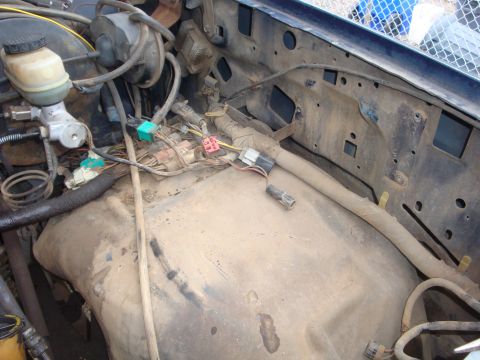

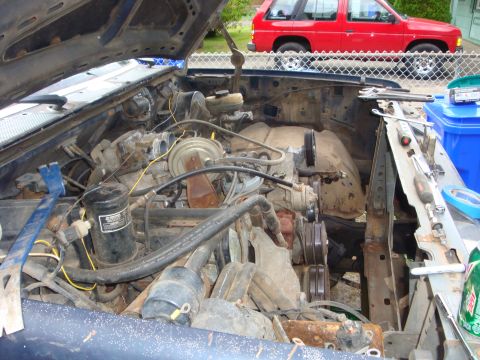

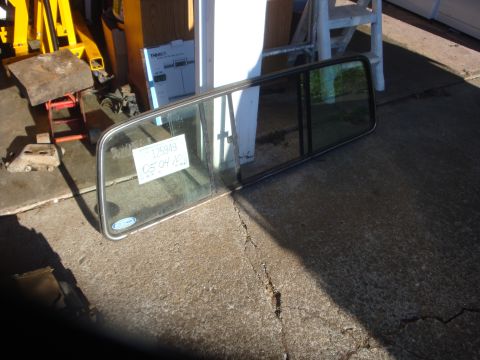

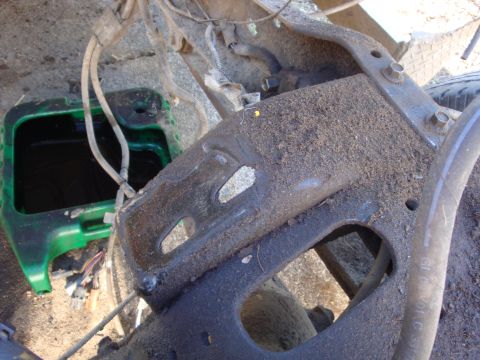

1989 Ford Bronco - An open rectangular air filter housing in a dusty engine bay with its lid off, the panel filter element visible at right and dry straw, see… 1989 Ford Bronco - A removed cast valve cover sitting upside down on a concrete step, packed full of dry grass and straw from a rodent nest built inside it. A… 1989 Ford Bronco - A rodent nest of dry straw, grass, seed hulls and white fiber batting cleaned out onto a concrete garage floor. 1989 Ford Bronco - A dust-covered empty engine bay with the engine removed, exposing the firewall, inner fenders, a white plastic brake master-cylinder reserv… 1989 Ford Bronco - Close-up inside a dusty engine bay showing the inner fender and radiator support with a finned TFI ignition module mounted to the sheet met… 1989 Ford Bronco - The underside of a raised dark-blue truck hood, showing the ribbed stamped inner bracing, a hinge, and an emissions/vacuum-routing decal af… 1989 Ford Bronco - Engine bay of a dark blue truck stripped for a swap, with the engine removed and the loose EFI wiring harness laid out across the dusty fir… 1989 Ford Bronco - Looking down into a stripped, weathered engine bay with the battery tray rusted through, showing an ignition coil, canister-style filters,… 1989 Ford Bronco - Dusty front accessory drive of a V8 engine photographed head-on, showing the alternator with its finned pulley, water-pump and crankshaft p… 1989 Ford Bronco - Dusty close-up inside an engine bay against a rusty blue-painted inner fender and radiator support, showing a white plastic multi-pin elect… 1989 Ford Bronco - A complete engine and chassis wiring harness pulled from a truck and laid out flat on a cracked concrete driveway, its taped main trunk run… 1989 Ford Bronco - Front view of a dark blue Ford full-size truck with the hood up, grille and radiator removed, exposing the radiator support, accessory pull… 1989 Ford Bronco - The open engine bay of a truck during a V8 engine swap, showing a dusty motor with serpentine pulleys, power-steering pump, oil filter, and… 1989 Ford Bronco - Engine bay of a Ford Bronco viewed from the front with the hood open, showing a dusty V8 engine with serpentine belt, spark plug wires, and… 1989 Ford Bronco - A dark blue Ford Bronco/F-series with its front clip torn down, hood raised and fenders, grille and core support removed to expose the engi… 1989 Ford Bronco - Blue Ford truck stripped down to the bare radiator support and inner fenders, sitting on jack stands in a driveway with the front wheels of… 1989 Ford Bronco - Low front-end shot of a truck on blue jack stands with the grille, bumper and radiator stripped away, showing the white radiator support, f… 1989 Ford Bronco - Close-up of a truck's boxed frame rail with a fabricated steel brace or motor-mount tie-in tack-welded diagonally across it, shot from belo… 1989 Ford Bronco - Sunlit close-up of a heavily rust-pitted closed ring end on a metal rod, its bore crusted with orange corrosion, resting on a scratched bla… 1989 Ford Bronco - Close-up down into an engine bay in bright sun showing a cast alternator or accessory bracket in bare metal with two curved tubes running d… 1989 Ford Bronco - Overhead view down into a dirty engine bay with the valve covers and much of the top end stripped, showing a rust-colored cast intake front… 1989 Ford Bronco - Mid-teardown blue Ford truck sitting on blue jack stands in a driveway, front sheet metal, radiator and one fender removed to expose the V8… 1989 Ford Bronco - The front end of a truck is disassembled, showing the engine and suspension components with the hood open. 1989 Ford Bronco - Close-up of a rusted bracket supporting an exhaust pipe, with surrounding engine parts. 1989 Ford Bronco - A dark blue Ford Bronco stripped down mid-build in a sunny driveway, front fenders and grille removed with the hood propped open over a bar… 1989 Ford Bronco - Side view of a blue pickup truck cab, showing its interior and flatbed, with the hood open. 1989 Ford Bronco - The interior of a 1989 Ford Bronco shows a manual transmission and a worn dashboard, with another vehicle visible outside. 1989 Ford Bronco - Used exhaust catalytic converter with visible rust and wear, part of a vehicle teardown. 1989 Ford Bronco - Close-up of the undercarriage showing various lines and rusty metal components. 1989 Ford Bronco - Underside view of a truck's drivetrain, showing the drive shaft and rear differential, with a makeshift hanging object. 1989 Ford Bronco - The underside of a vehicle, revealing the transmission and frame, is captured from a low angle. 1989 Ford Bronco - Underside view of a truck's transmission and suspension components, showing rust and wear. 1989 Ford Bronco - Stripped interior of a truck with carpet, seats and center console removed, exposing a blue-painted floor pan with the transmission tunnel… 1989 Ford Bronco - Stripped truck cab interior with the seats and carpet removed, exposing a blue-painted floor pan, transmission tunnel with shifter boot ope… 1989 Ford Bronco - A bare stamped-steel transmission pan sits upside down on a concrete driveway, its zinc-plated surface showing three raised ribs, a bolt-ho… 1989 Ford Bronco - Stripped interior of a blue truck with the carpet and console removed, looking down through the open transmission tunnel at a manual gearbo… 1989 Ford Bronco - Gutted interior of a blue truck shot through the open driver's door, with seats, carpet and center console removed to expose the bare blue-… 1989 Ford Bronco - Gutted truck interior with the dash pad, seats and carpet removed, showing the bare blue floor pan, transmission tunnel with shifter openin… 1989 Ford Bronco - Interior of a stripped truck cab with the dash and carpet removed, showing the bare firewall, brake and accelerator pedal assembly, steerin… 1989 Ford Bronco - Stripped driver's-side interior of a blue Ford truck with the dash pad, carpet and steering column removed, exposing the bare blue firewall… 1989 Ford Bronco - Blue extended-cab flatbed Ford truck torn down on jack stands in a driveway with both front fenders, inner fenders and grille removed, expo… 1989 Ford Bronco - The hood fell down, hit me in the back of the head and smashed my head into the waterpump. Was bleeding a bit, and scuffed me up in 3 place… 1989 Ford Bronco - Indoor selfie-style portrait of a person in a tan-walled room, with a framed triptych of photo-booth strips on the wall behind them. 1989 Ford Bronco - Close-up of a person's forehead and hairline showing a small red scrape or cut at the hairline. 1989 Ford Bronco - Engine bay of a truck stripped down to the block, with an intake manifold, distributor, carburetor-area plumbing and exhaust manifold expos… 1989 Ford Bronco - Looking straight down into the valley of a big-block Ford V8 with the intake manifold pulled off, exposing the black-painted lifter valley… 1989 Ford Bronco - A grimy V8 engine hanging from a half-ton engine hoist and leveler bar, pulled out of a truck whose stripped engine bay, bare firewall and… 1989 Ford Bronco - The front end of a disassembled vehicle is visible, with the engine bay and suspension components exposed. 1989 Ford Bronco - Two pulled V8 engines sit on the floor of a cluttered garage, a rusty short block on a red engine stand cradle with its harmonic balancer,… 1989 Ford Bronco - Close-up of a dusty, dirt-caked front crossmember/engine mount bracket on a truck chassis, shot from above on a gravel driveway with wiring… 1989 Ford Bronco - Overhead close-up of a bare truck frame crossmember with a freshly welded and ground-in bracket, showing heat-blued weld beads and slotted… 1989 Ford Bronco - Underside close-up of a rusty boxed frame rail where an old bracket has been cut off and the metal ground down to bare shiny steel, leaving… 1989 Ford Bronco - Close-up view of a vehicle's corroded undercarriage frame with visible repairs and wiring. 1989 Ford Bronco - A stamped steel bracket laid on cracked concrete, its rusty-brown surface still showing traces of black paint. The plate has two round bolt… 1989 Ford Bronco - Two stamped-steel engine mount brackets lying side by side on a concrete driveway, both drilled with slotted and round bolt holes. The left… 1989 Ford Bronco - A greasy stamped-steel frame bracket lying on a concrete garage floor, showing a welded seam along its length, a slotted adjustment hole, s… 1989 Ford Bronco - A removed stamped-steel exhaust manifold heat shield lying on a concrete floor, heavily rusted and heat-discolored with brown and blue scal… 1989 Ford Bronco - Front end of a 1989 Ford F-250 truck, stripped down for parts or repair. 1989 Ford Bronco - A three-panel sliding rear cab window assembly in its metal frame with a blue Ford oval decal, laid flat on a concrete garage floor. A hand… 1989 Ford Bronco - A dark blue Ford truck being stripped for a rebuild sits in a suburban driveway, its cab and bed pulled apart and front sheet metal removed… 1989 Ford Bronco - A man in a white T-shirt and denim shorts leans into the stripped cab of a dismantled Ford truck in a driveway, its front clip, fenders and… 1989 Ford Bronco - A man works on the interior of a disassembled vehicle, possibly a Ford Bronco, under an overcast sky. 1989 Ford Bronco - This truck cab appears to be undergoing disassembly or repair, with its front end removed. 1989 Ford Bronco - A dark blue truck cab shell sits gutted in a wet suburban driveway, windshield still in its chrome trim while the cowl and firewall are str… 1989 Ford Bronco - Gutted dark blue Ford truck cab shell in a residential driveway, stripped down to bare floor pan, firewall and rear glass with all seats, t… 1989 Ford Bronco - A stripped Ford truck sits in a driveway mid-teardown with the front clip, fenders, hood and engine removed, exposing the bare frame rails,… 1989 Ford Bronco - A dark blue Ford truck partway through a frame-off teardown in a driveway, its cab and bed removed to expose the bare frame and front suspe… 1989 Ford Bronco - A dark blue flatbed pickup sits stripped in a residential driveway with its cab front, doors, fenders, hood and engine removed, exposing th… 1989 Ford Bronco - Two people work on a bare full-size truck frame in a driveway, the cab tipped up on end to expose the dirty firewall and floor while the ro… 1989 Ford Bronco - A bare truck frame stripped to the rails sits on wheels in a wet residential driveway, with front coil-spring suspension, radius arms, whit… 1989 Ford Bronco - Bare truck frame stripped to the rails sitting in a driveway with a man in a white shirt leaning over it, leaf springs and rear axle still… 1989 Ford Bronco - A person in a white T-shirt and denim shorts crouches with a corded grinder, throwing sparks as they cut on a heavily rusted truck frame ra… 1989 Ford Bronco - Night shot of a truck teardown in a driveway: a rusty body tub and floor pan lie tipped on their side in the foreground with a leaf spring… 1989 Ford Bronco - Night shot of a man in a white t-shirt and work gloves prying at a rusty truck floor pan and fuel tank assembly propped on stands and wood… 1989 Ford Bronco - A bare, surface-rusted truck frame sits on jack stands outside an open garage at night, stripped of body and drivetrain with only the rear… 1989 Ford Bronco - A stripped rusty truck frame sits on jack stands in a driveway with the body removed, exposing the rear leaf springs, axle, white-bodied sh… 1989 Ford Bronco - A bare truck frame with axles, leaf springs and steering linkage still attached sits on its wheels in a grassy strip beside a chain-link fe… 1989 Ford Bronco - A pickup bed removed and flipped upside down on the grass strip beside a suburban street, showing the wooden plank bed floor, cross sills,… 1989 Ford Bronco - A pile of stripped truck parts heaped on a front lawn, including a rusty frame rail, fuel tank, wiring, weathered wood bed planks, and a re… 1989 Ford Bronco - A scrap pile of removed truck parts heaped on a lawn beside a driveway, a teal cab shell section, muffler, bed panels, rusty frame rails an… 1989 Ford Bronco - A scrap pile of rusty truck sheet metal, a wood-plank bed floor, a spare wheel and a blue tailgate heaped on the lawn beside a residential…
