Rear Rack

From 1998 BMW R1100GS ABS, documented by brian gilbert.

18 photos
← Back to this vehicle

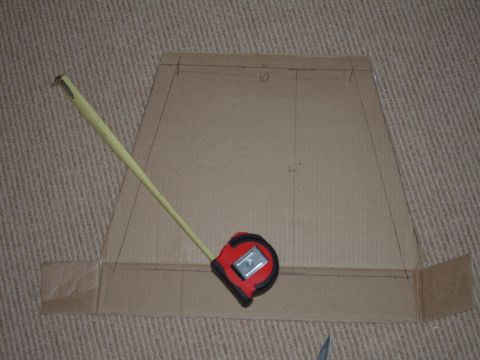

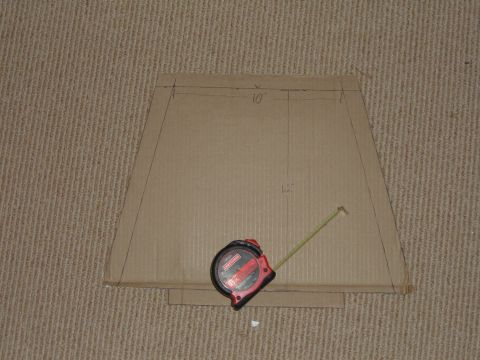

1998 BMW R1100GS ABS - A cut and folded cardboard template with punched marker holes and a bent-up lower flange, laid on beige carpet with a red-and-black tape me… 1998 BMW R1100GS ABS - Hand-cut cardboard template laid on beige carpet, marked in pen with a 10-inch top width and 12-inch height and a folded bottom flap. A red… 1998 BMW R1100GS ABS - A sheet of cardboard on beige carpet marked out in pencil as a rack template, labeled 10" across the top and 12" down the centerline, with… 1998 BMW R1100GS ABS - A trapezoidal cardboard template for a fabricated rack laid flat on beige carpet, with pencil centerline and dimension marks and small blac… 1998 BMW R1100GS ABS - A hand holds a folded cardboard mockup at a low angle over brown carpet, showing the bent lower lip joined with black duct tape. Pen layout… 1998 BMW R1100GS ABS - Rear view of a BMW motorcycle in a garage with a pencil-marked cardboard rack template test-fitted behind the pillion seat, an orange hard… 1998 BMW R1100GS ABS - Rear view of a BMW motorcycle tail section in a garage, with a cardboard mock-up template laid across the luggage rack area above the taill… 1998 BMW R1100GS ABS - A cut cardboard template for a fabricated rack or panel lying on a workbench, its trapezoidal outline traced in pencil with '10"' marked ac… 1998 BMW R1100GS ABS - A cut rectangular sheet of galvanized/aluminum plate resting on a dark steel workbench, its scuffed surface catching the shop light, with a… 1998 BMW R1100GS ABS - A bare aluminum or galvanized sheet-metal panel cut to a tapered shape with notched corners and a bent-down front lip, resting on a paint-s… 1998 BMW R1100GS ABS - Rear view of a black BMW motorcycle parked in a garage with an unpainted sheet-metal rack plate resting across the tail section between its… 1998 BMW R1100GS ABS - Rear view of a black BMW motorcycle in a garage, showing a bare sheet-metal luggage rack plate mock-up notched and laid across the tail bet… 1998 BMW R1100GS ABS - Rear view of a BMW motorcycle with a shop-cut bare sheet-metal luggage rack plate fitted above the taillight, flanked by black hard saddleb… 1998 BMW R1100GS ABS - Straight-on rear view of a black BMW motorcycle in a garage with a raw sheet-metal luggage rack plate test-fitted across the tail between t… 1998 BMW R1100GS ABS - Close-up of a motorcycle's rear rack, the BMW emblem and taillight assembly. 1998 BMW R1100GS ABS - Motorcycle rear rack and luggage detail, showing taillight and license plate. 1998 BMW R1100GS ABS - Close-up of a motorcycle's rear rack, the BMW emblem and a metal plate for luggage. 1998 BMW R1100GS ABS - Close-up of a motorcycle's rear rack, showing its construction and attachment points.
