Steering Stabilizer install 001.jpg
1789 hits | 59.07 KB | Posted: 9/30/08

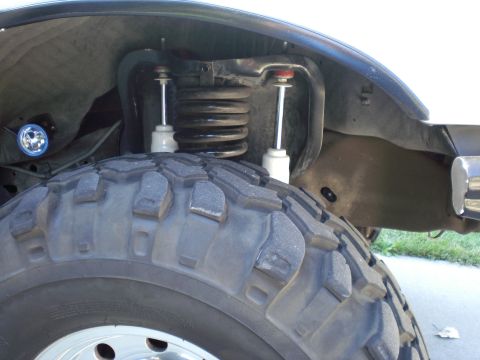

Note location of oval hole just right of front shock

Steering Stabilizer install 002.jpg
1606 hits | 54.34 KB | Posted: 9/30/08

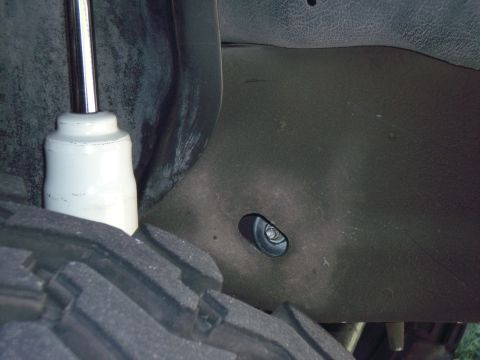

Turn wheel to far right side or just remove tire to access.

Steering Stabilizer install 008.jpg
1983 hits | 68.68 KB | Posted: 9/30/08

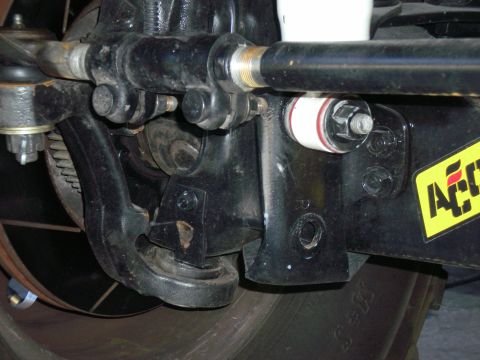

This is the original hole, below the lower front shock mount, that is drilled for the original Ranch...

Steering Stabilizer install 011.jpg
2102 hits | 61.92 KB | Posted: 9/30/08

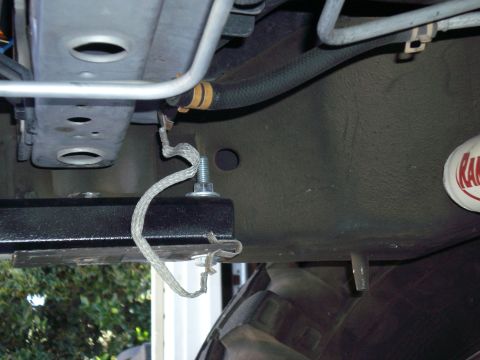

Stabilizer mount point 6 3/4" & 2" from bottom of frame rail. Note 6 3/4" is from hole just above sw...

Steering Stabilizer install 004.jpg
6021 hits | 66.7 KB | Posted: 9/30/08

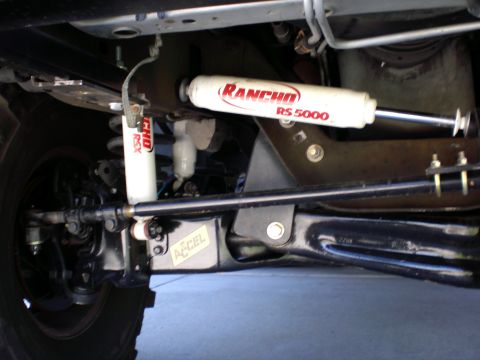

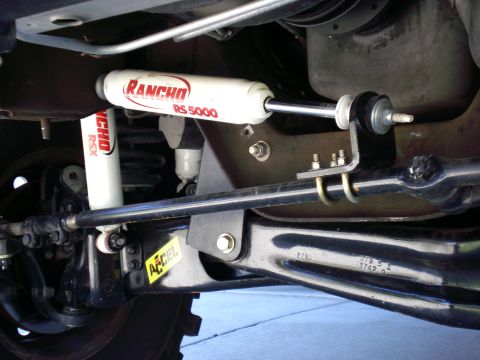

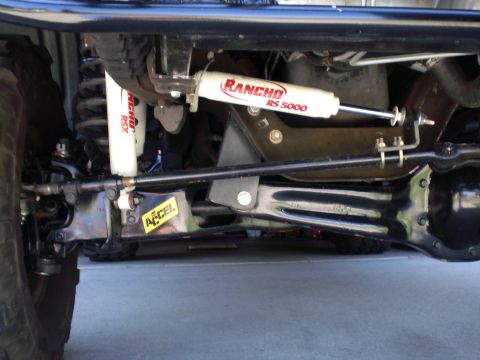

View to show where both ends of stabilizer mount.

Steering Stabilizer install 005.jpg
3148 hits | 58.29 KB | Posted: 9/30/08

Steering Stabilizer install 003.jpg
2562 hits | 63.46 KB | Posted: 9/30/08

Steering Stabilizer install 012.jpg
2499 hits | 70.71 KB | Posted: 9/30/08

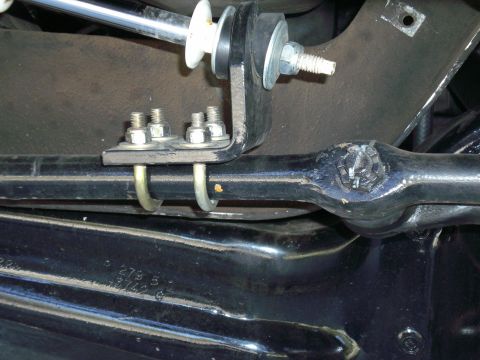

With the wheels turned to the far right, the piston should be about 1" to 1 1/2" from full...

Steering Stabilizer install 009.jpg
1771 hits | 65.37 KB | Posted: 9/30/08

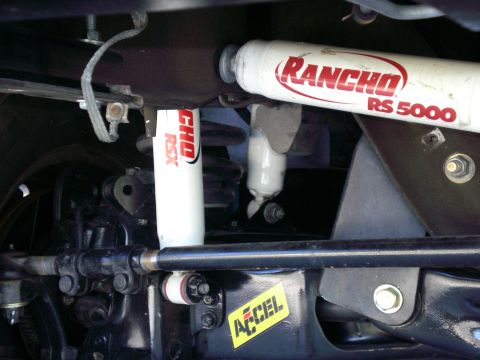

Stabilizer is well above drag link & out of direct impact.

Steering Stabilizer install 010.jpg
2229 hits | 67.87 KB | Posted: 9/30/08

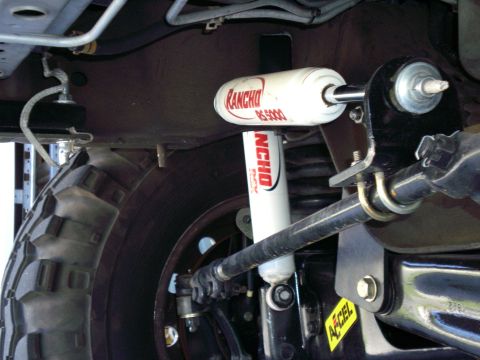

Another view of mounting placement of frame rail end & distance from swaybar mount.

Steering Stabilizer install 013.jpg
4268 hits | 67.56 KB | Posted: 9/30/08

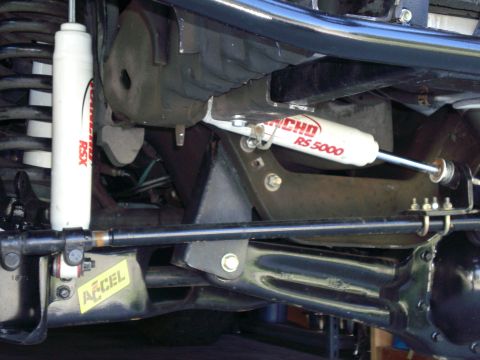

View from both sides to show how bolt continues through.

Steering Stabilizer install 007.jpg
2506 hits | 74.91 KB | Posted: 9/30/08

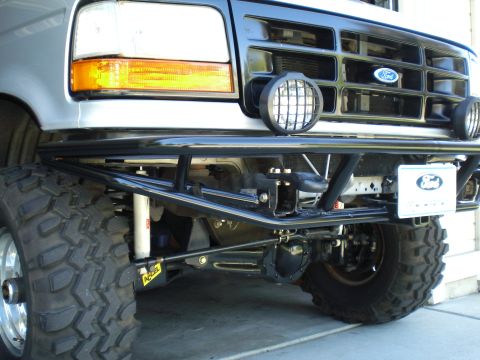

Stabilizer stays hidden behind steering gear & is hard to see even behind tube grills!

Steering Stabilizer install 006.jpg
2945 hits | 63.09 KB | Posted: 9/30/08

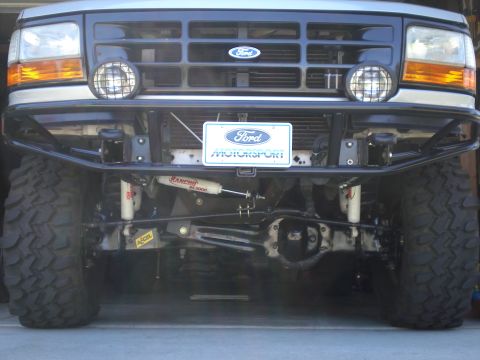

Sits much higher. Original install had the u-bolt end under the draglink & the other side hanging wa...
