1996 Ford Bronco “Labor of Love”

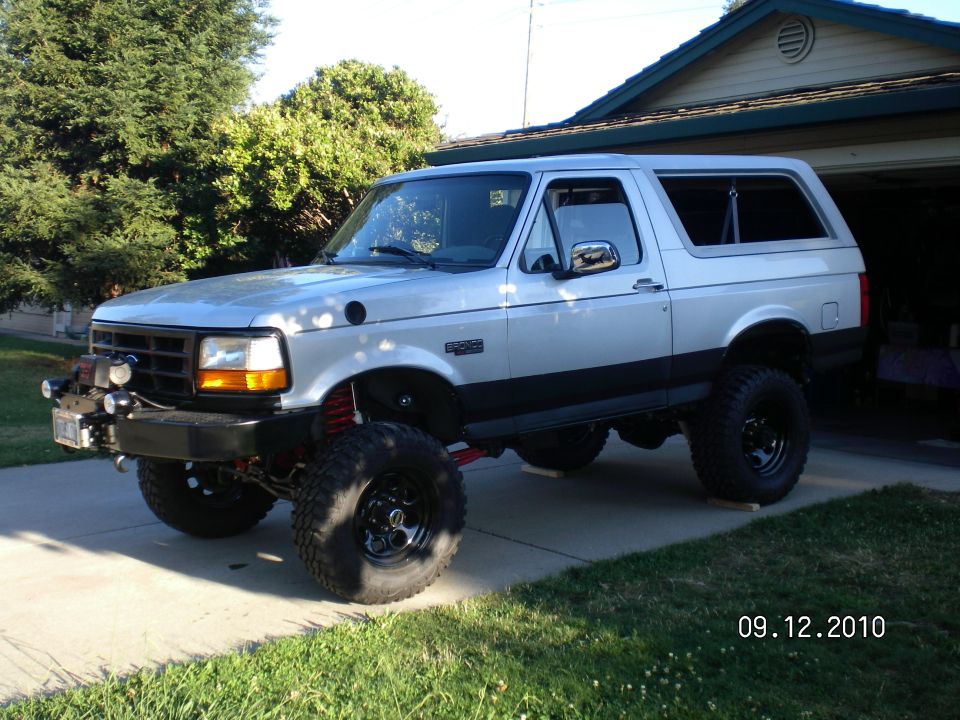

“Labor of Love”1996 Ford Bronco

documented by DNBELOWBRONCO 377 photos documented since 7 years documented ♡ Follow this build

The story

Read the full story

Purchased my bronco in June of 2003 from a retired fire chief. It was his wife's vehicle and was used pretty much to play golf & to get her nails done. The top had never been removed and it was never off road hell I don't think the 4-wheel drive button was ever pushed. It spent most of the time in her garage and had only 79,000 original miles. I put a 2 and a half inch Rough Country lift on with rear leafs and ran it for 6 years and highly recommend it. I now have a Rancho 4 inch lift with extended arms with Rancho RSX shocks all around highly recommend them too but now run Bilstein 5100's and removed the steering stabilizer as well as both sway bars for more articulation off road. I also went up in tire size from 31x10.50x15's to 32x11.50x15's then when I put the 4 inch lift on I switched again to 33x13.50x15 Super Swamper LTB's balanced w/ Airsoft beads and now she's running 35x12.50x17 Pro Comp Extreme A/T's on Jeg's Soft 8 black steel rims and still balanced with the beads! My other upgrades will be lockers front and rear just not sure which yet. I have a Warn 8274 winch and matching Warn front bumper, plus a Smittybuilt rear tube bumper but I still need a pair of rock sliders. It's a never ending story $9k in my 74' F100 and $16k in my 77' F150 but this truck has fuel injection and a take off top so this one stays around awhile! A Bassani Y pipe may be in the future or I'll make my own and I am need a family cage, sprayed with Line-X, and a Softopper Soft top, one project at a time!! That's how it always starts.You have to own a Bronco (or any Ford) to understand....It's a Labor of Love!! · DNBELOWBRONCO

Day one vs. today

Drag to compare 2007 against 2012.

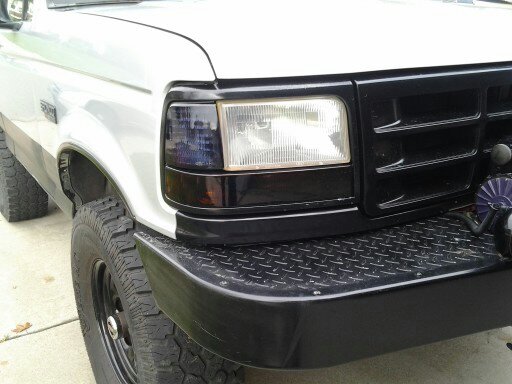

1996 Ford Bronco in 2012
1996 Ford Bronco in 2007
2007 2012

Photo history

377 photos across 8 years. Drag the dot to travel through this vehicle’s life. Captions are the owner’s; where there isn’t one, the AI caption fills in.

2007

11 photos added · showing 8

1996 Ford Bronco: This kid actually thinks this will be his truck someday, "You're cute kid, but not that cute!" 1996 Ford Bronco: Spare tire holder sprayed gloss back. All the chrome including grill, headlamp trim, wheel opening mouldings,… 1996 Ford Bronco: Put a black & grey cloth racing seat in on the drivers side, I had to buy some 1/4" flat bar and cut to fit w… 1996 Ford Bronco: Final thing to do this month ( Nov. 2007 ) is to tear off all the stick on door and fender mouldings and spra… 1996 Ford Bronco: 2 1/2" Rough Country lift. Last picture before all the chrome goes away. 1996 Ford Bronco: Super Swamper 33x13.50x15 M&S. Big difference from my Bridgestone Dueler 32x11.50x15 A/T's. 1996 Ford Bronco: Taller even with no air in them & alot more tread... 1996 Ford Bronco: Bet these will throw some mud !!

56 photos added · showing 8

1996 Ford Bronco: Lookin good without the chrome.Trucks finally starting to come together. 1996 Ford Bronco: Still trying to decide " chrome rear bumper OR paint it black? " 1996 Ford Bronco: Front bumper & winch next on the list. After that it's time for LOCKERS & GEARS... 1996 Ford Bronco: Found a Warn 8274 winch with a matching Warn bumper on Craig'slist, **the site my wife hates with a passion**… 1996 Ford Bronco: Topless in o8' 1996 Ford Bronco: Front-end torn down, re-built, & painted black! 1996 Ford Bronco: Topless for a couple months with 100 deg. weather & the kids voted "PUT THE TOP ON!".......but, "take the win… 1996 Ford Bronco: Without windows in the hardtop it's like having the top off without the blazing sun on your back passenger's…

56 photos added · showing 8

1996 Ford Bronco: Heading into the first trail with a little direction.... 1996 Ford Bronco: truck was running great. Took the loose silt hills with ease. The 4.56's and new Swamper LTB's were working t… 1996 Ford Bronco: Two kids, two pitts, and my wife walking the trail with the other ladies.....I mean taking the pictures......… 1996 Ford Bronco: Bent up a tube bumper a couple days before the first Rubicon trip. Added a pair of driving lights, changed th… 1996 Ford Bronco: Interior view of SUV rear glass with covered spare tire behind a gray retractable cargo cover 1996 Ford Bronco: You can see in this picture the "Half Way Point" in the Q.Panel if you want to only open the cover 1/2 way an… 1996 Ford Bronco: The covers are nice for keeping gear out of the sun or hidden from prying eyes. The net is stock too but pret… 1996 Ford Bronco: Gray cargo cover and black cargo net in the open rear cargo area of an SUV

145 photos added · showing 8

Differential carrier with bearings and a bag of screws on a concrete floor Rear axle assembly on a rolling stand, with a red vehicle in the background Black differential cover with "ROCKCRUSHER 8.8" text, resting on white cloth Red suspension bracket with gold bolts attached to vehicle frame Close-up of suspension part with red coil spring and visible date stamp Close-up of vacuum lines and engine components in a vehicle's engine bay Engine bay with vacuum hoses and electrical connectors. A black vacuum canister is visible 1996 Ford Bronco: Black vacuum solenoid with plug-in connector mounted in engine bay near foil heat shield

25 photos added · showing 8

Four white Rancho lift shocks with visible text and mounting hardware Two white shock absorbers with metal bushings on top, and rubber bushings on the smaller shocks Four white Rancho shock absorbers with part numbers RS5117 and 5112 visible 1996 Ford Bronco: Snap on drill, with forward/reverse & multi quick connect special bit set (blue case), 4 piece Snap on screwd… 1996 Ford Bronco: Nikon digital 35mm camera w/case, Snap on long/short pick sets, GlobalMap handheld mobile GPS device, multifu… 1996 Ford Bronco: HP laptop storage backpack w/ tons of compartments, WII mario game, DS Mario game, snap on long/short socks,… 1996 Ford Bronco: Engine front detail with timing pointer bracket, rusty cast housing and red bracket 1996 Ford Bronco: Close-up of a crankshaft harmonic balancer and timing pointer bracket on a Ford engine

67 photos added · showing 8

Hamsar 42-032 12V 40A automotive relay held in fingers showing terminal diagram, dated 2012 Hamsar 42-032 12V-40A relay with wiring diagram 1996 Ford Bronco: This is where I moved the charcoal canister to mount the aux trans filter. I just zip tied the canister to th… 1996 Ford Bronco: Here's a "top view" of the re-located canister, the shortened plastic hose, and the replacement silicone hose… 1996 Ford Bronco: Here I ran the plastic hose "under" the heater hose and you can see where it runs to............ 1996 Ford Bronco: The other end of the silicone hose runs to a metal tube and back to the fuel tank........ 1996 Ford Bronco: In this pic you can see where I moved the canister, and replaced it with the aux trans filter.......... Close-up of a fuel filter with brass fittings and hoses, near a car battery

9 photos added · showing 8

1996 Ford Bronco: Aftermarket hood light with wires run up under hood sheet metal in stock location spliced into stock wiring l… 1996 Ford Bronco: Messed up, forgot to turn flash off.... 1996 Ford Bronco: In dark garage with flash forced off and just the hood light on in the entire garage. 1996 Ford Bronco: lights to the ground... 1996 Ford Bronco: Side view over the (LF) fender. 1996 Ford Bronco: Much brighter than the stock one, very bright white... 1996 Ford Bronco: Light is activated with a "push switch" on the back so the hood can be open anytime and not drain the battery! 1996 Ford Bronco: This is the '80's GT Sport roll bar that was offered till about '87 or so. It is different from the '78-'79 r…

8 photos added
