spout connector 96' 5.8

From 1996 Ford Bronco “Labor of Love”, documented by DNBELOWBRONCO.

8 photos
← Back to this vehicle

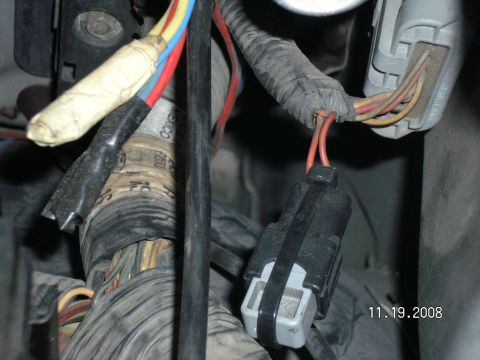

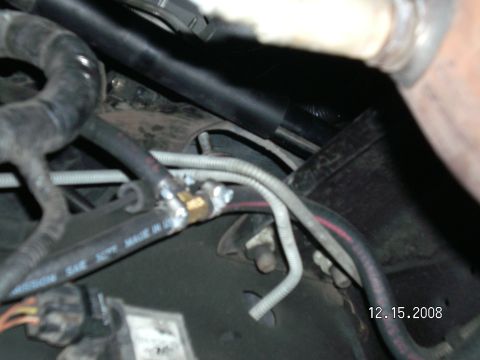

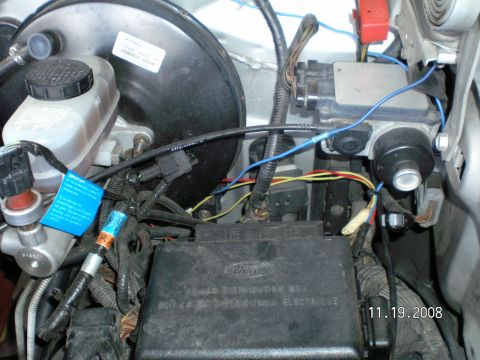

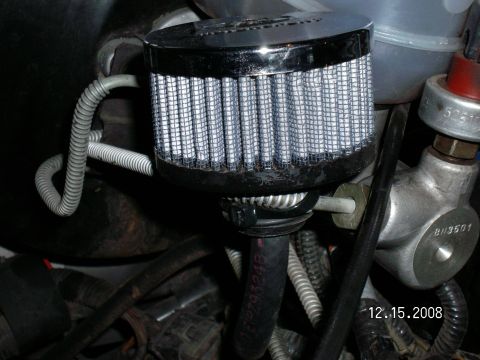

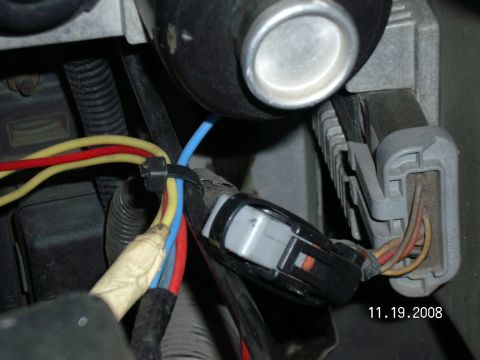

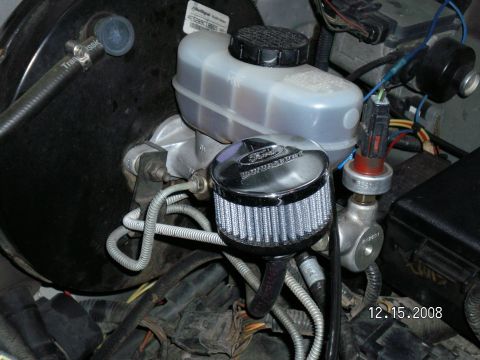

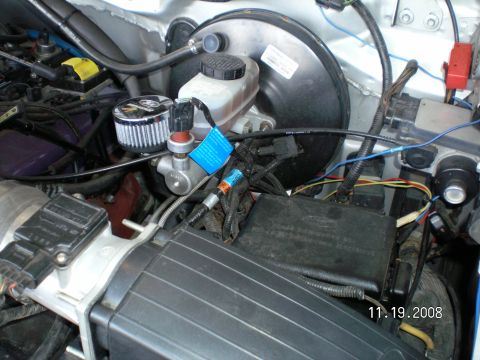

1996 Ford Bronco - Connector is on drivers side inner fender. You can just see it next to the red, yellow, and blue wires with the masking tape. It is the sma… 1996 Ford Bronco - Spout connector wires come out of the ignition module wiring connector loom. Be careful when prying the tabs on both sides away to pull out… 1996 Ford Bronco - Good idea to put a wire tie on to hold spout in place just to be safe. If it loosens up it will flag a P1359 code, push it back in and eith… 1996 Ford Bronco - Spout connector may hang down or be buried inside of a large wiring loom but should be in this area, Under driver side hood hinge. 1996 Ford Bronco - Breather for front and rear diffs. Soon to have E4OD and BW1356 (transfer case) vented the same way.... 1996 Ford Bronco - Fuel hose & brass tee for front and rear diff vents. Hose has to be impervious to gas fumes. Vacuum hose will get eaten up by the gas vapor… 1996 Ford Bronco - Close-up underside/engine bay view showing rubber transmission hoses labeled 'MISSION SAE 30R6 MADE IN USA', a brass fitting with hex nuts… 1996 Ford Bronco - Simple "push-in" filter used to vent and keep water out of the diffs. Hose slips up inside and a "Zip-tie" keeps the filter from banging ar…
