Torque converter Lockout mod

From 1996 Ford Bronco “Labor of Love”, documented by DNBELOWBRONCO.

14 photos
← Back to this vehicle

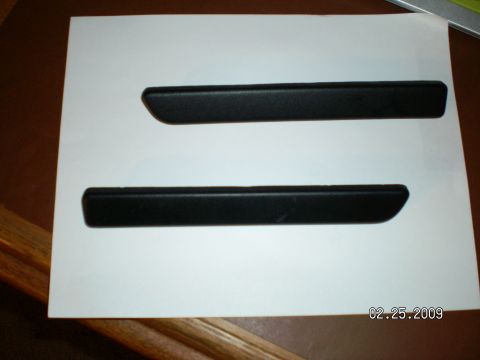

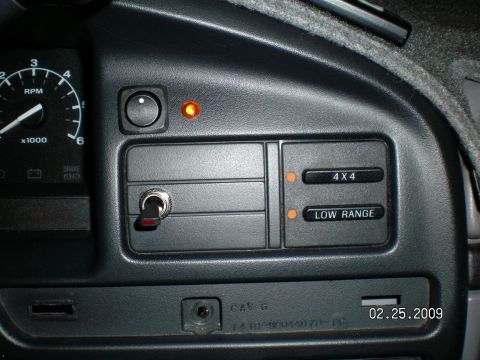

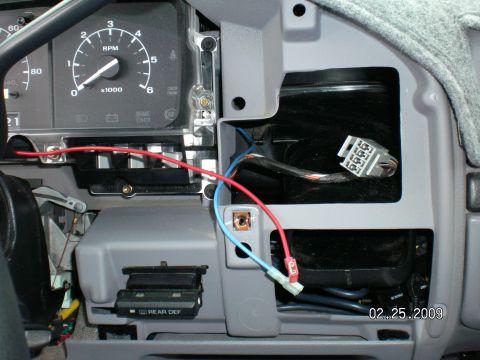

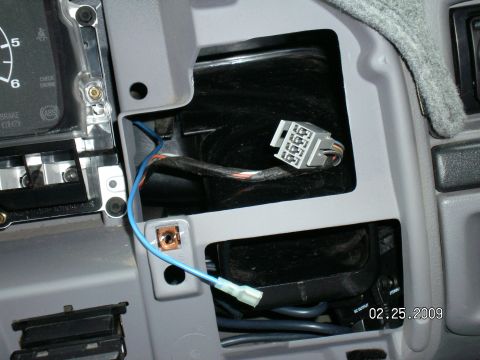

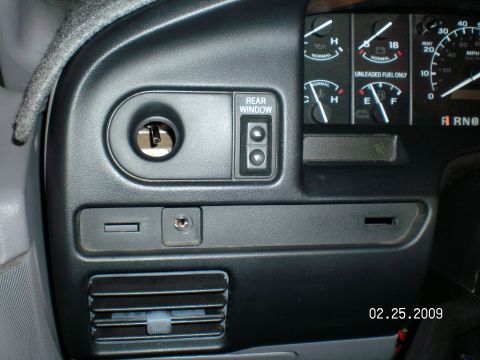

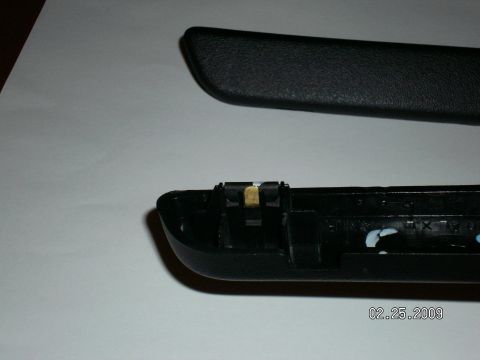

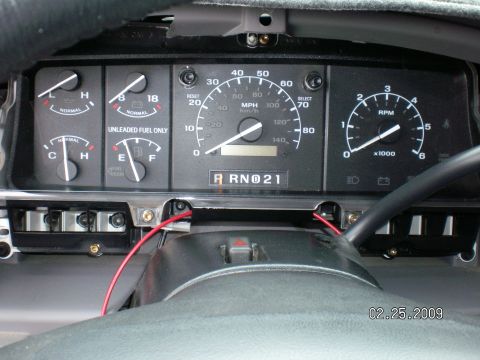

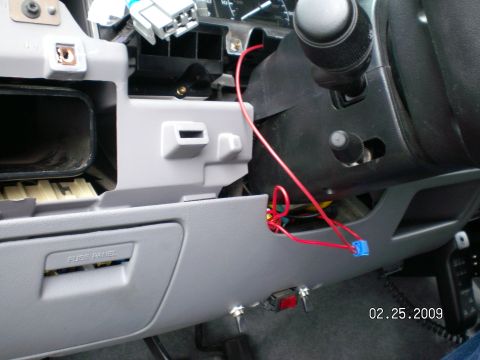

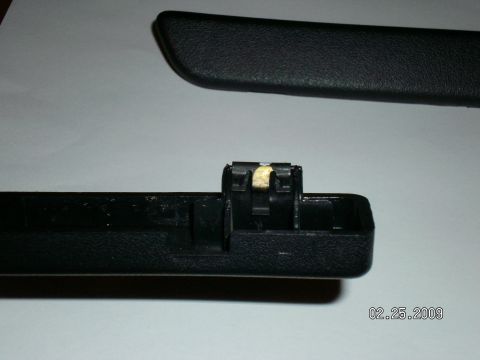

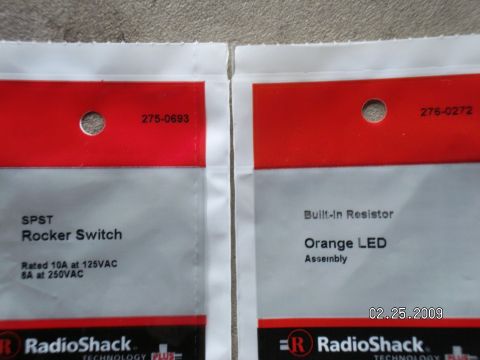

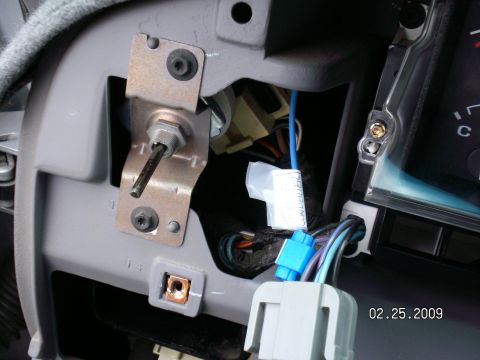

1996 Ford Bronco - Here's the switch #(275-0693) 10amp and the LED, orange#(276-0272) from RadioShack. $2.99 for the switch and $1.99 for the LED in eithor re… 1996 Ford Bronco - This is where I tapped in for the body ground. It's the connector for the rear window switch & it has a large black wire on both ends so ei… 1996 Ford Bronco - Here's where it came out from behind the cluster, right behind the 4X4 switch on the dash. 1996 Ford Bronco - I hooked up a satalite system last week so I tapped the power into it because I know it's only on with the key and protected by an in-line… 1996 Ford Bronco - Ran the power wire through the bottom of the cluster so it wouldn't get pinched when I tilt the wheel, and over to the new switch location.… 1996 Ford Bronco - A third wire, that fell behind, runs from here down the steering column and through the rubber boot under the dash ( block off boot for clu… 1996 Ford Bronco - The switch is very basic and 10 amps is plenty. I crimped on solderless connectors on the ends of the three wires. This is a grounding Mod… 1996 Ford Bronco - Back together and just need to pop the headlamp knob on. It comes off by prying a little metal tab on the back of the knob out and pulling… 1996 Ford Bronco - Remember this picture? You have the blue wire grounded to the rear window connector, thered wire (key only power) to the red wire on the LE… 1996 Ford Bronco - The last wire, you can't see it here just pretend, is the one that runs under the truck and is tapped into the purple/yellow wire on the tr… 1996 Ford Bronco - The next few pictures just show the cover moldings you remove to access the instrument cover bolts to remove it. Just be careful and pry th… 1996 Ford Bronco - Two black plastic interior trim bezels laid on white paper over a wood table, one shown face-up with a textured finish and one flipped to s… 1996 Ford Bronco - Both ends have metal clips that clip on and the whloe moulding "Pushes" into the dash. When you pry them out try to do so around where thes… 1996 Ford Bronco - Lots of times the metal clip will pull off the molding and fall into the hole on the dash. No big deal, you can grab them when you pull the…
