5.8 timing pointer pics

From 1996 Ford Bronco “Labor of Love”, documented by DNBELOWBRONCO.

7 photos
← Back to this vehicle

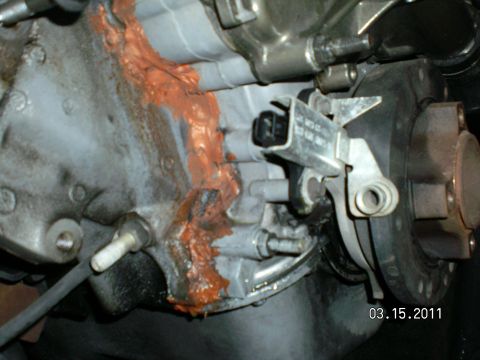

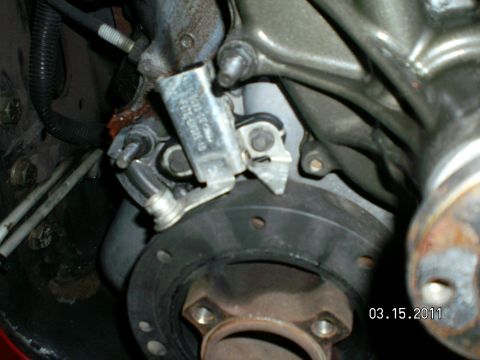

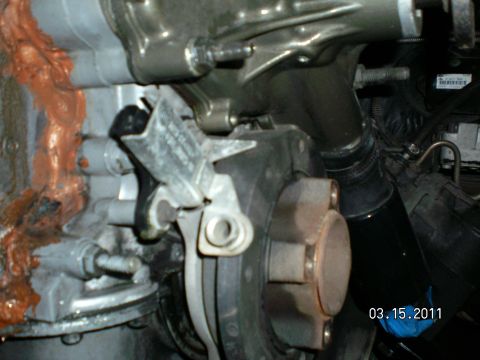

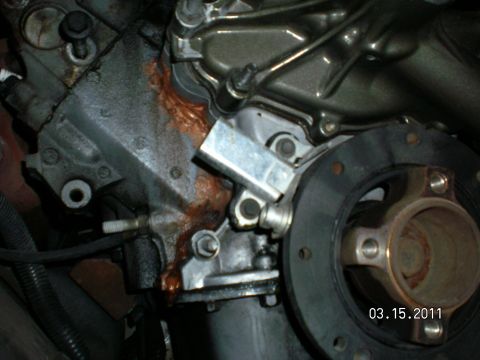

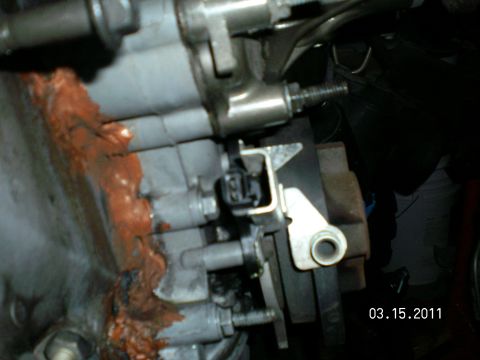

1996 Ford Bronco - Close-up of an engine's lower front area showing a bolted flange/harmonic balancer region with a metal timing pointer bracket, surrounding… 1996 Ford Bronco - Blurry close-up inside an engine bay showing the crankshaft harmonic balancer and rusty pulley hub with its retaining bolts, alongside a st… 1996 Ford Bronco - Front of an engine showing the timing cover, hub flange and rust-colored coolant staining from a leak. 1996 Ford Bronco - Close-up of the front of an engine during assembly, showing a thick orange RTV silicone bead squeezed out along the timing-cover-to-block s… 1996 Ford Bronco - Close-up of an engine front cover area with a metal sensor bracket, hardware and crankshaft hub flange. 1996 Ford Bronco - Flash close-up down the front of a V8 engine showing the timing pointer tab bolted to the timing cover next to the harmonic balancer with i… 1996 Ford Bronco - Close-up engine bay photo of an ignition module and connector with heavy orange surface rust on adjacent castings, dated March 15 2011.
