Engine Rebuild/Detail

From 1966 Ford F-100 “Little Black”, documented by BroncoBabe78.

38 photos
← Back to this vehicle

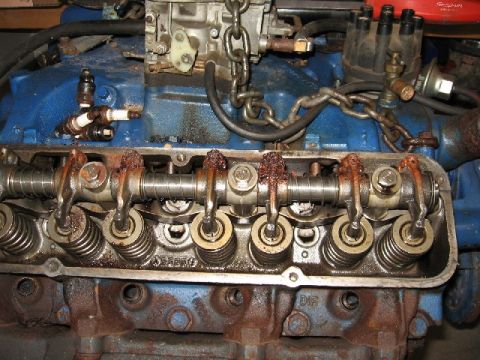

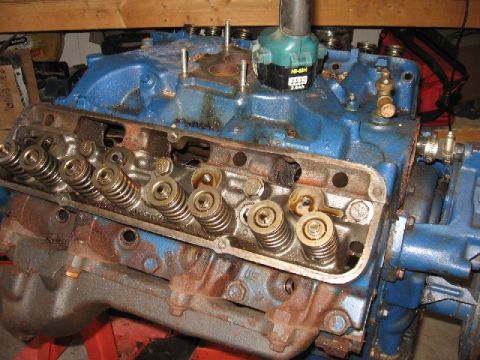

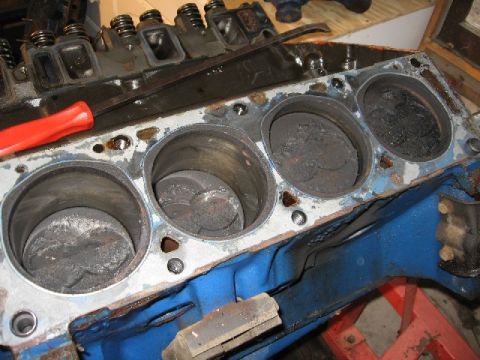

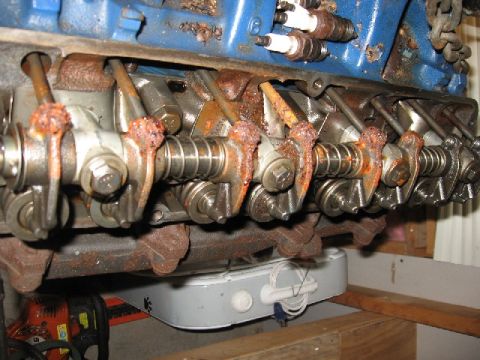

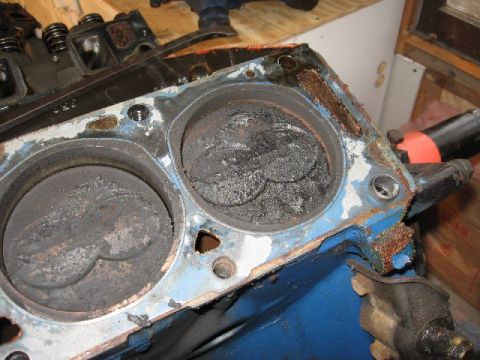

1966 Ford F-100 - Finally got it back home. Gonna make a bed trailer with the extra bed, and my disc brakes from a '73 F100 are under there, too. 1966 Ford F-100 - Doesn't look too bad for sitting outside under a cover for 10 years. 1966 Ford F-100 - A blue Ford V8 engine and transmission assembly is mounted on a blue vehicle frame. In the background, a green utility truck with a crane i… 1966 Ford F-100 - A blue V8 engine is mounted on a red engine stand in a garage. The engine has spark plug wires connected and is partially covered with a li… 1966 Ford F-100 - Oh, no good. Rusted rocker arms. 1966 Ford F-100 - Close-up of a removed cast-iron cylinder head sitting upside down, showing the rocker arms, pushrods and valve springs coated in surface ru… 1966 Ford F-100 - A V8 cylinder head sits on top of an engine block during teardown, valve cover off to show the valve springs, retainers and rocker studs wi… 1966 Ford F-100 - Owie. My first injury. 1966 Ford F-100 - A close-up view of a disassembled V8 engine block with four cylinders visible. Pistons are present in each cylinder, covered in carbon buil… 1966 Ford F-100 - .040 over pistons. 1966 Ford F-100 - I dumped the coolant pan over and made a mess. 1966 Ford F-100 - Teardown view down onto one bank of a blue-painted V8 engine block with the cylinder head removed, showing four carbon-caked piston tops an… 1966 Ford F-100 - A blue V8 engine block is being worked on with a drill and other tools. The engine is mounted on a red engine stand in what appears to be a… 1966 Ford F-100 - Rusted timing chain. 1966 Ford F-100 - Bottom end. Crank has been turned .010 1966 Ford F-100 - A red engine block is mounted on a red engine stand, likely for rebuild or detail work. 1966 Ford F-100 - Engine block with crankshaft and connecting rods visible, ready for rebuild. 1966 Ford F-100 - Engine components, a valve cover and water pump, are laid out on a wooden surface, possibly for a rebuild or detailing project. 1966 Ford F-100 - Engine fan and pulley components laid out on a concrete surface. 1966 Ford F-100 - Close-up of an Edelbrock intake manifold, showing its dual carburetor ports and cast branding. 1966 Ford F-100 - Engine block being worked on, mounted on an engine stand in a workshop. 1966 Ford F-100 - A freshly painted engine sits on an engine stand in a workshop, ready for installation or further work. 1966 Ford F-100 - A red V8 engine block is disassembled and mounted on an engine stand in a garage setting. 1966 Ford F-100 - Top-down view of a V8 engine mid-build on a stand, with freshly painted red timing cover and front accessory brackets, a black intake manif… 1966 Ford F-100 - Engine exhaust manifolds shown resting on a red tool accessory. 1966 Ford F-100 - Crappy pic, but we modified the oil galley to be a little bigger and flow better for the oil pickup. 1966 Ford F-100 - Engine valve train components laid out in a box, likely for rebuild or detail. 1966 Ford F-100 - Engine bay details with a chrome air cleaner and red painted engine block. 1966 Ford F-100 - A view of the engine compartment, focusing on the cooling system and engine components. 1966 Ford F-100 - Engine bay detail with a V8 engine, red spark plug wires, and a chrome air filter. A battery is also visible. 1966 Ford F-100 - Close-up view of a vehicle's engine bay, red spark plug wires and a black engine block. 1966 Ford F-100 - Engine spark plug wires and exhaust manifold detail. 1966 Ford F-100 - The distributor cap and spark plug wires are visible in this engine compartment detail shot. 1966 Ford F-100 - Close-up of engine components including an ignition coil and oil filter. 1966 Ford F-100 - Close-up view of a clean engine bay, a battery and red spark plug wires. 1966 Ford F-100 - A close-up view of engine components, including spark plug wires and an oil filter, in a vehicle's engine bay. 1966 Ford F-100 - Close-up of a red-and-black canister ignition coil bracket-mounted on a freshly painted red V8 engine, with a gray boot and red high-tensio… 1966 Ford F-100 - Close-up of a black eight-cylinder distributor cap with white plug boots and red spark plug wires mounted on a red-painted V8 engine, with…
