463 hits | 46.17 KB | Posted: 5/5/08

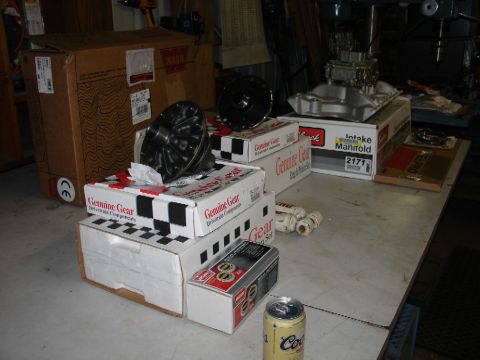

4.88's, spool, hubs

485 hits | 55.02 KB | Posted: 5/5/08

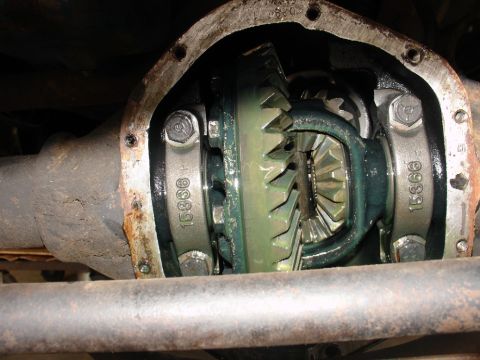

D44 front, caps marked.

497 hits | 56.22 KB | Posted: 5/5/08
Making a spindle nut socket.

469 hits | 45.89 KB | Posted: 5/5/08

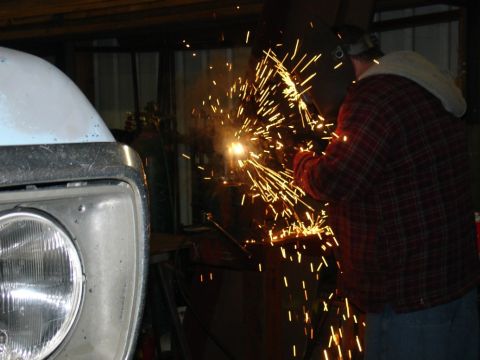

Weldin up the socket.

449 hits | 59.32 KB | Posted: 5/5/08

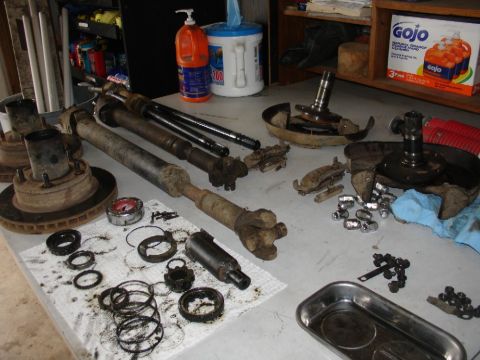

Front end parts.

477 hits | 69.8 KB | Posted: 5/5/08

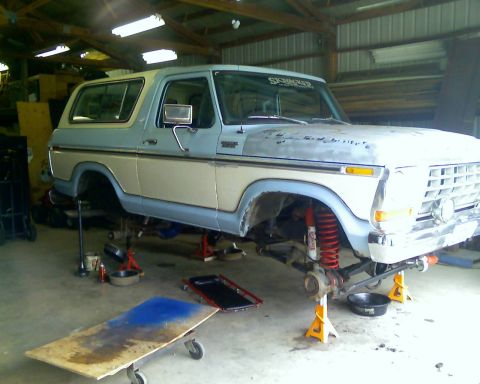

Bear housings.

444 hits | 53.43 KB | Posted: 5/5/08

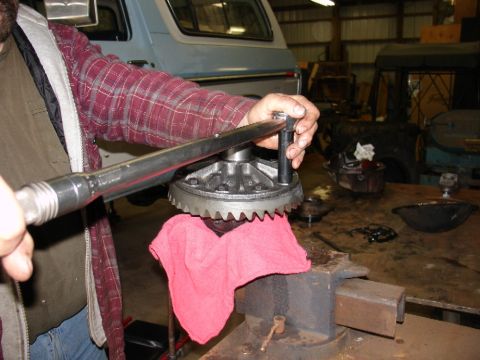

Torque the ring on the carrier.

451 hits | 52.36 KB | Posted: 5/5/08

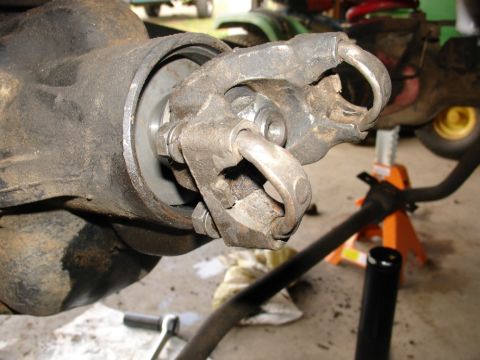

Pinion set up with old nut.

471 hits | 41.96 KB | Posted: 5/5/08

473 hits | 38.14 KB | Posted: 5/5/08

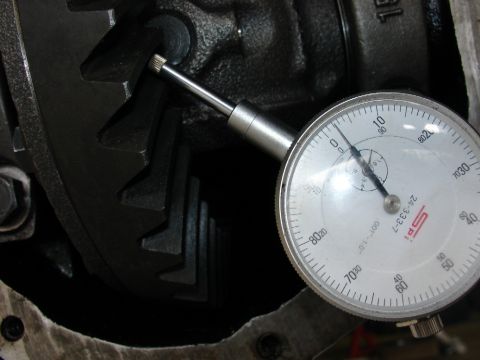

Checking backlash.

497 hits | 58.97 KB | Posted: 5/5/08

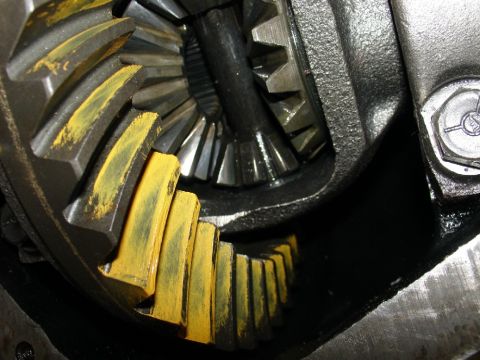

Checking tooth contact pattern.

500 hits | 46.15 KB | Posted: 5/5/08

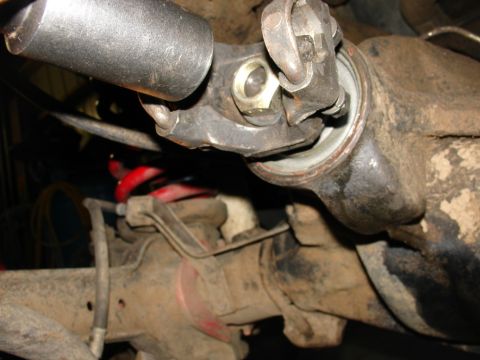

Installed seal and new nut.

477 hits | 52.94 KB | Posted: 5/5/08

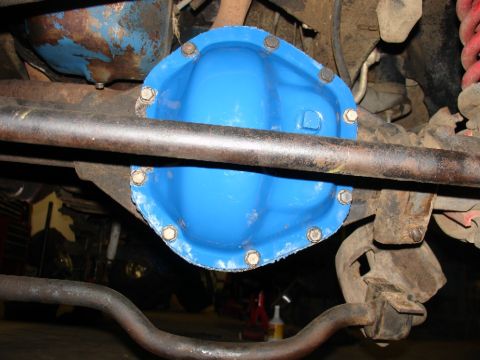

Front end buttoned up.

498 hits | 41.59 KB | Posted: 5/5/08

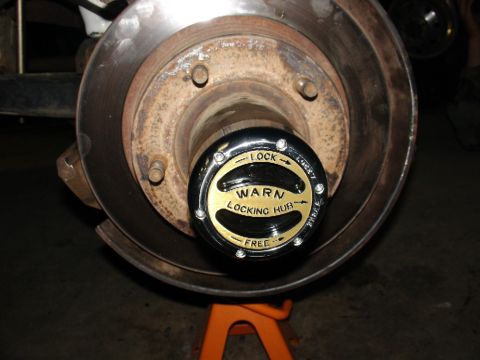

New Warn hubs.

461 hits | 59.23 KB | Posted: 5/5/08

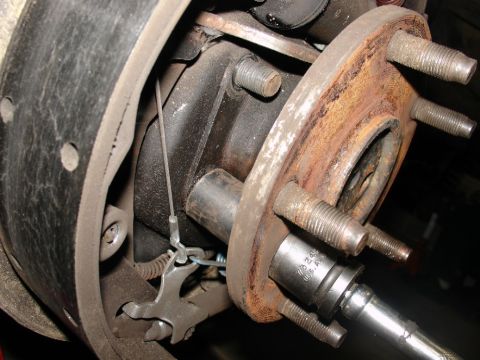

Removing rear axles. Four retainer nut.

542 hits | 59.13 KB | Posted: 5/5/08

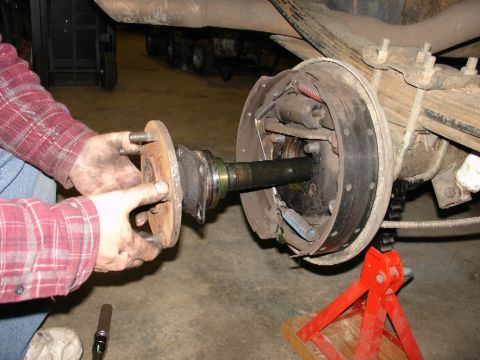

A little light Persuasion to pull axle.

460 hits | 50.27 KB | Posted: 5/5/08

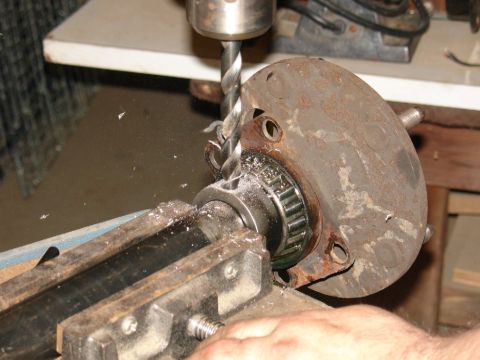

Drilled a 1/2" hole about half way thru collar.

471 hits | 60.5 KB | Posted: 5/5/08

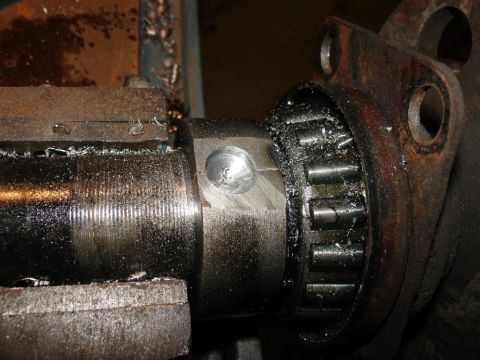

a couple blows with a chisel and the collar split.

484 hits | 55.78 KB | Posted: 5/5/08

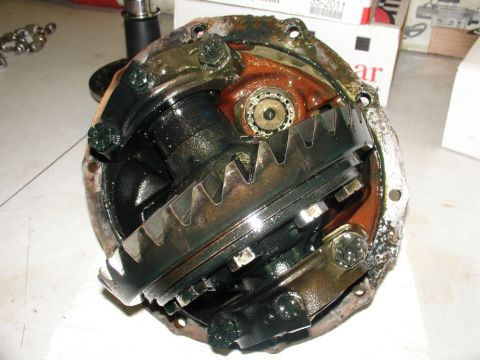

Rear 9" carrier.

494 hits | 65.4 KB | Posted: 5/5/08

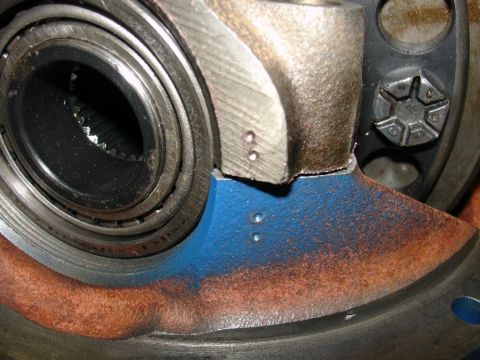

Marked the caps.

514 hits | 51.81 KB | Posted: 5/5/08

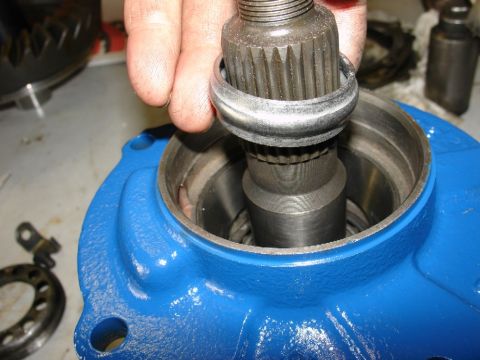

Crush collar. torqued to 185ft lbs to achieve the correct preload on the pinon bearings.

468 hits | 52.02 KB | Posted: 5/5/08

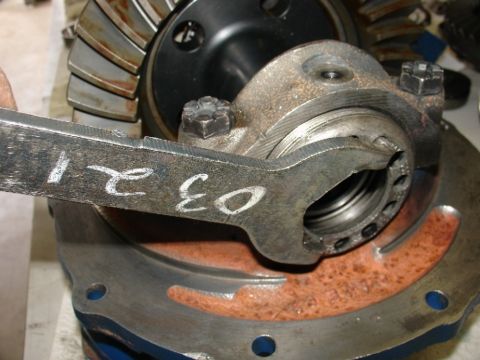

Set preload on the carrier bearings.

435 hits | 41.18 KB | Posted: 5/5/08

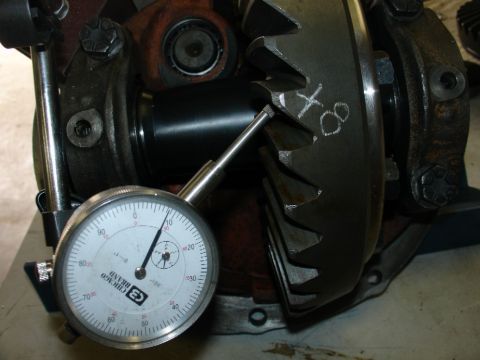

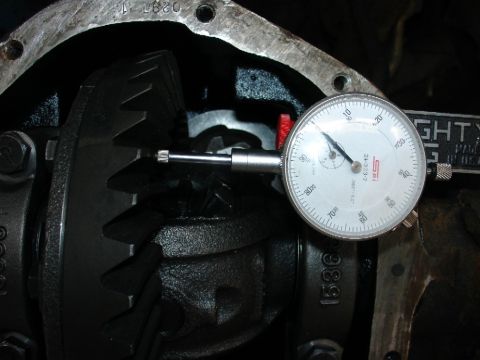

Checking backlash. Little too much here.

481 hits | 40.2 KB | Posted: 5/5/08

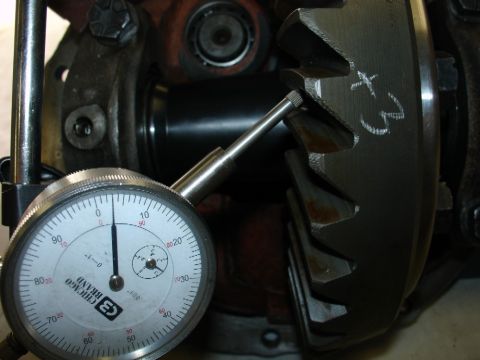

Checking backlash again. It varied between .003 and .005 around the ring.

506 hits | 47.59 KB | Posted: 5/5/08

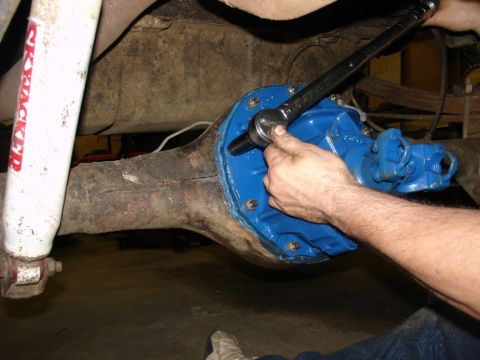

Installed rear carrier.

487 hits | 42.3 KB | Posted: 5/5/08

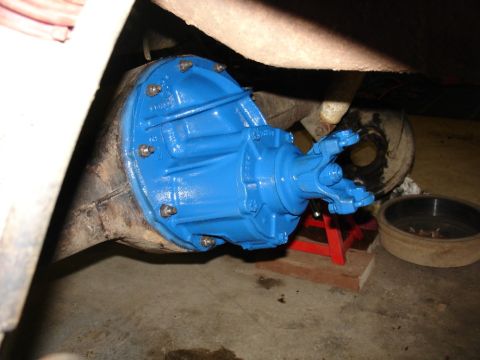

Done.

492 hits | 59.1 KB | Posted: 5/5/08

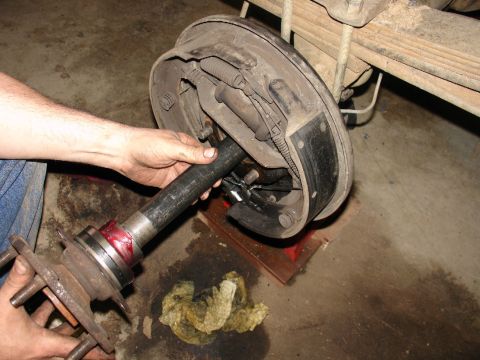

Insalled axles with the new bearings pressed on.

487 hits | 50.73 KB | Posted: 5/5/08

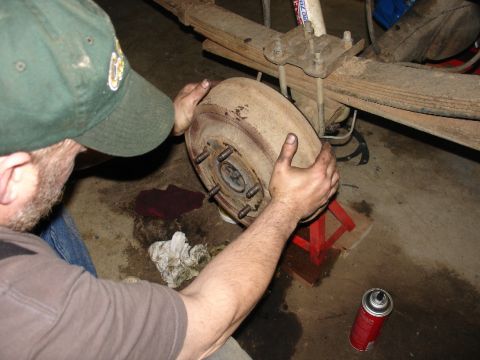

Breaks and drum back on.

495 hits | 54.04 KB | Posted: 5/5/08

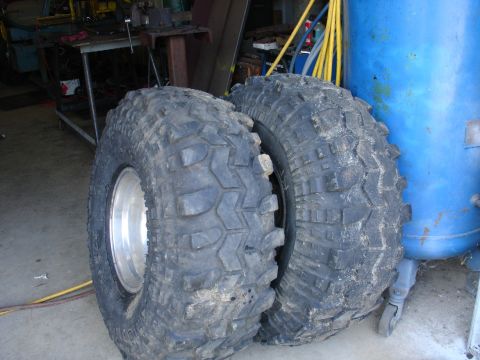

38.5/14.5-15 TSL/SX's ready to go back on.

474 hits | 56.83 KB | Posted: 5/5/08
Ready for a test drive.

474 hits | 64.73 KB | Posted: 5/5/08

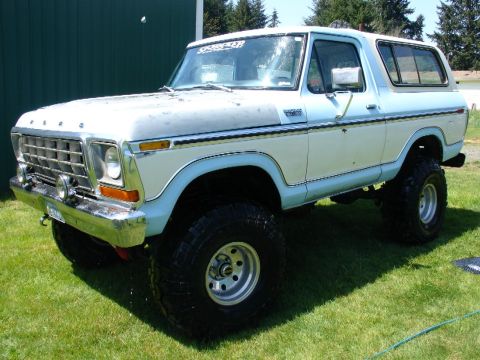

Gave her a bath.

481 hits | 69.73 KB | Posted: 5/5/08

508 hits | 75.39 KB | Posted: 5/5/08
The truck got a bath too. Had to take advantage of the nice weather for a change.
