97 Heater Core

From 2007 Ford Mustang “SHELBY GT500”, documented by torkum.

18 photos
← Back to this vehicle

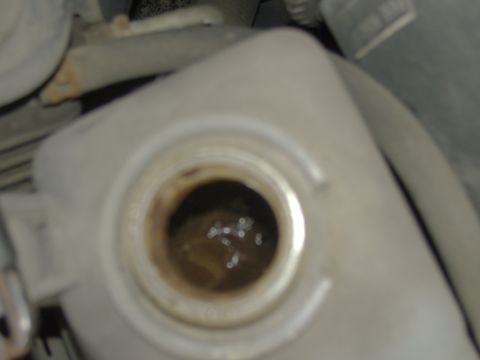

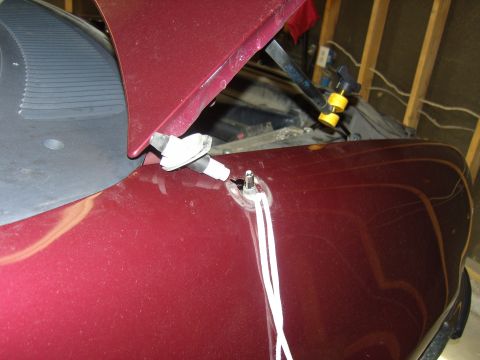

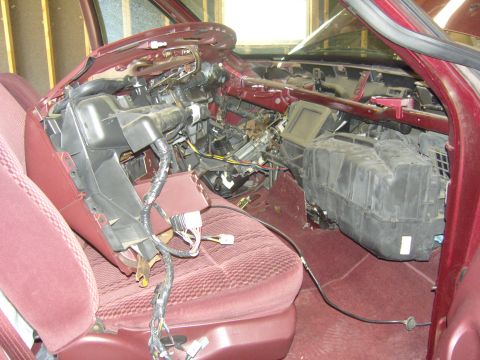

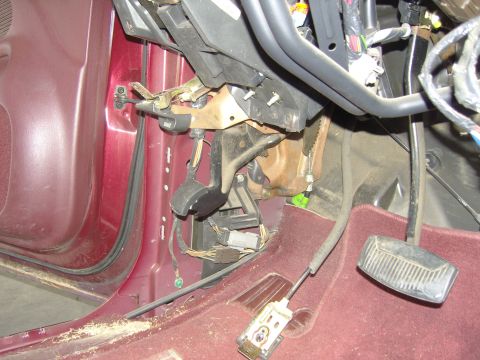

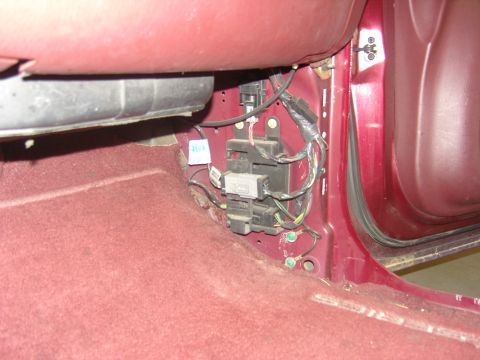

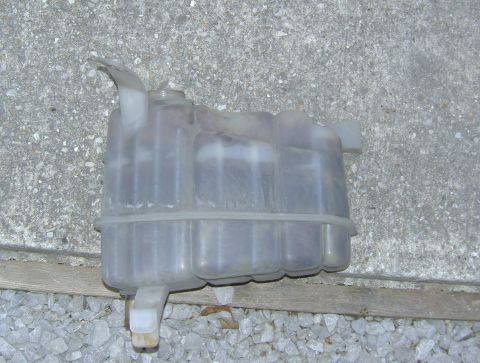

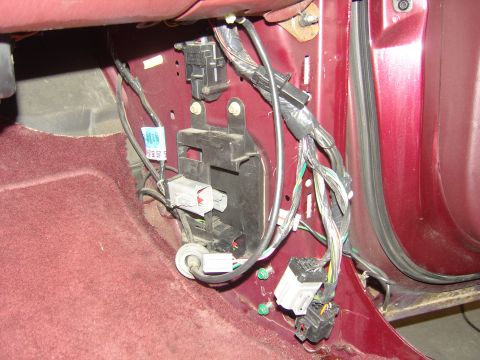

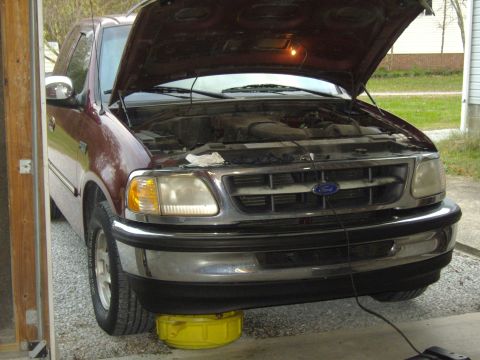

2007 Ford Mustang - A maroon pickup truck is parked in front of a garage, with another vehicle visible inside with its hood open. 2007 Ford Mustang - A maroon Ford F-150 truck is parked in a garage with its hood open and an oil drain pan underneath. 2007 Ford Mustang - The coolant reservoir contains murky fluid, indicating a potential issue with the cooling system. 2007 Ford Mustang - Close-up of a corroded heater core hose connection, showing signs of fluid leakage. 2007 Ford Mustang - A used plastic coolant reservoir tank sits on a gravel surface. 2007 Ford Mustang - A maroon pickup truck is parked inside a garage with its driver's door ajar. 2007 Ford Mustang - Close-up of a windshield washer fluid nozzle and wiper assembly on the hood of a dark red vehicle. 2007 Ford Mustang - Driver's footwell of a burgundy-interior vehicle with the dash removed, showing the parking brake pedal assembly with 'BRAKE' release handl… 2007 Ford Mustang - Close-up of the vehicle's interior fuse box and associated wiring, located on the floor near side of the passenger footwell. 2007 Ford Mustang - Interior teardown at the driver's kick panel of a burgundy vehicle, with the dash trim removed to expose the wiring harness, white and blac… 2007 Ford Mustang - Burgundy truck interior mid-teardown, with the lower dash panels off and the steering column dropped onto the seat still wearing its black… 2007 Ford Mustang - Passenger-side view of a burgundy pickup dashboard mid-repair, with the center defroster/speaker grille removed to expose the HVAC ductwork… 2007 Ford Mustang - Burgundy truck cab torn down for a heater-core job, with the dash pad removed to expose the steel dash bar, steering column, loose wiring h… 2007 Ford Mustang - Interior view of a burgundy/maroon truck cab with the dashboard partially disassembled, showing the exposed steering column, wiring, instru… 2007 Ford Mustang - Interior teardown with the dashboard removed, showing the black plastic HVAC heater/evaporator case still mounted against the firewall abov… 2007 Ford Mustang - Close-up of a vehicle's HVAC box with the dash removed, showing the exposed heater core (left) and the finned A/C evaporator core (right) i… 2007 Ford Mustang - A removed aluminum heater core standing on a concrete garage floor against a poured wall, with its two bent inlet/outlet tubes pointing up… 2007 Ford Mustang - The HVAC plenum opened up behind the removed dashboard, with the evaporator/heater core cavity exposed and a clean white-finned core seated…
