Area351 > 1985 Ford F-150 > open folder Dizzy

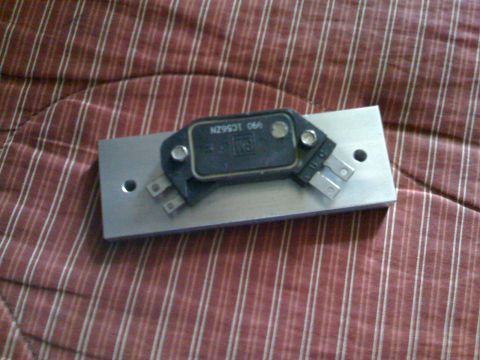

GM HEI mounted to home made heat sink
259 hits | 73.22 KB | Posted: 5/2/09
GM HEI mounted to home made heat sink

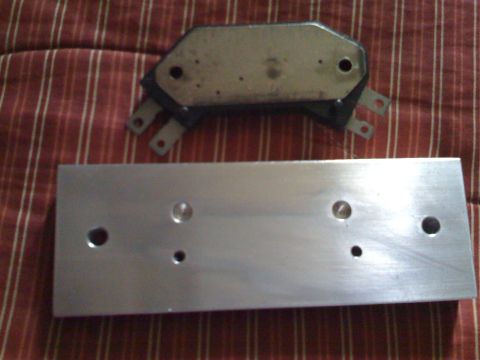

Under side of home made heat sink - note clearance holes for 2 pins on HEI module
285 hits | 50.05 KB | Posted: 5/2/09
Under side of home made heat sink - note clearance holes for 2 pins on HEI module

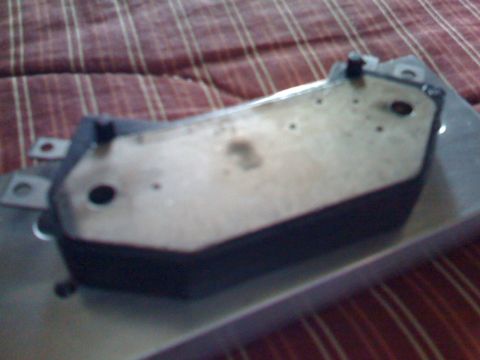

2 locating pins that need to be either filed off, or clearanced
297 hits | 47.76 KB | Posted: 5/2/09
2 locating pins that need to be either filed off, or clearanced
