Remote TFI ICM Upgrade

From 1990 Ford Bronco “Eddie Bauer” — documented by SeattleFSB.

26 photos
← Back to this vehicle

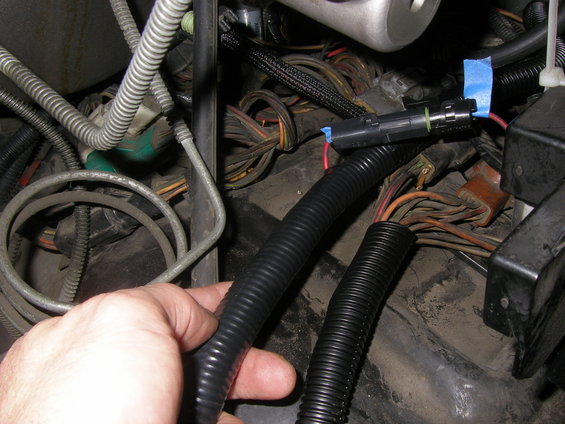

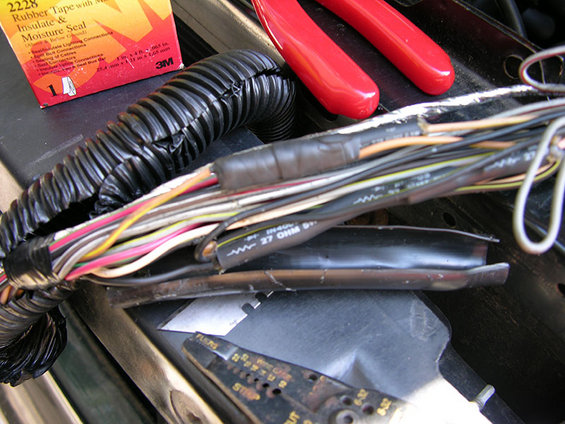

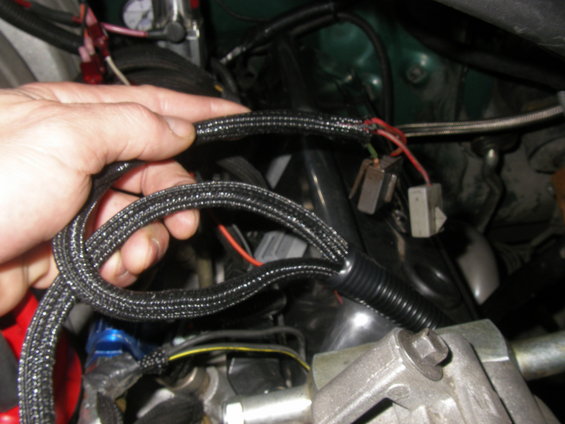

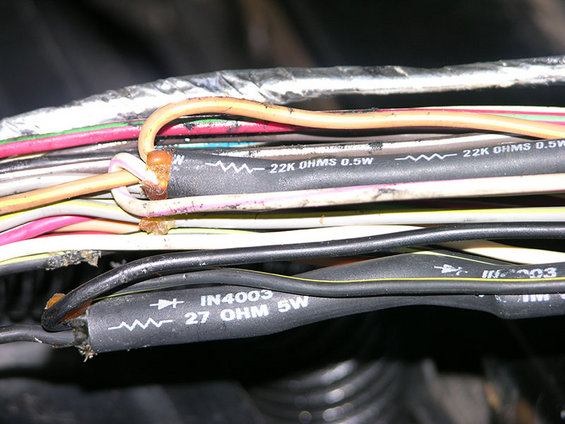

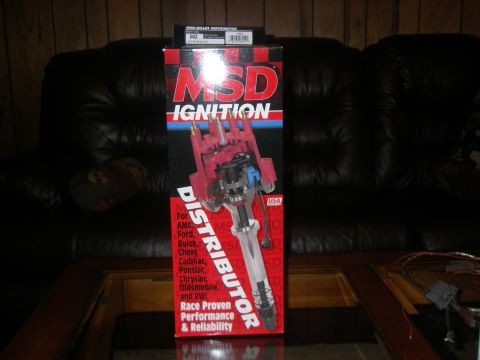

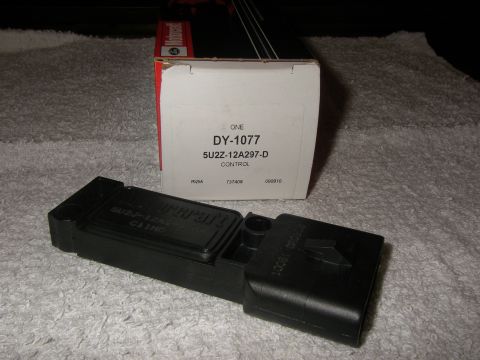

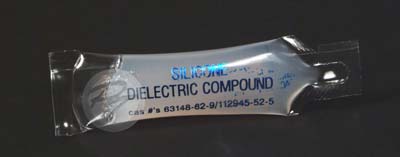

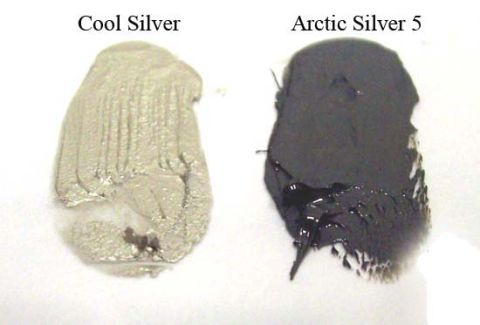

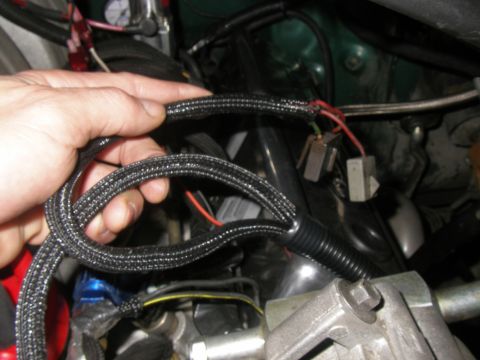

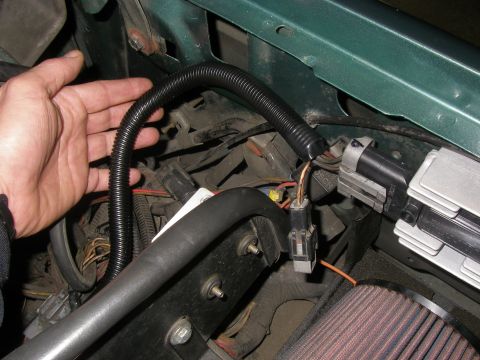

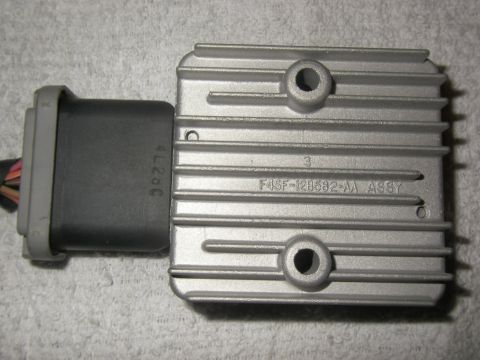

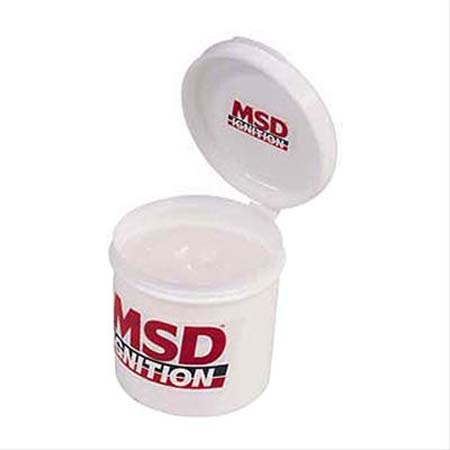

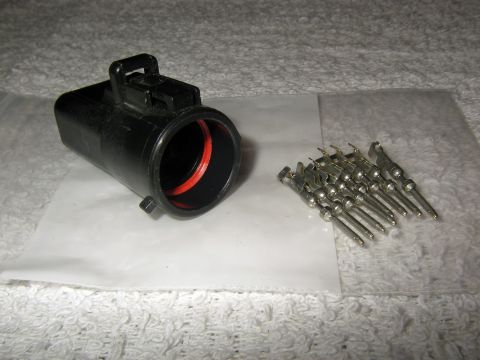

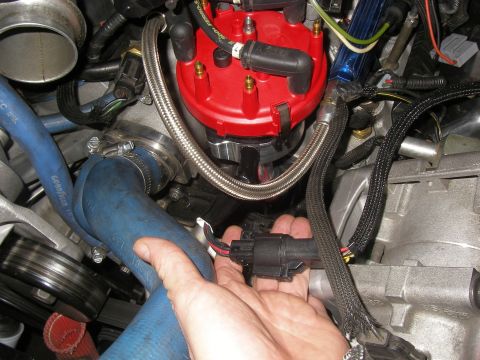

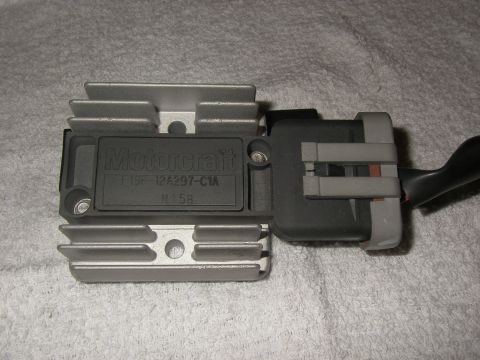

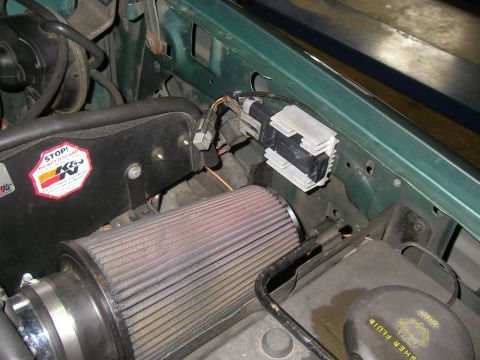

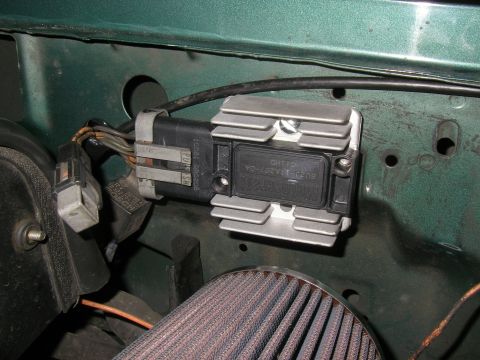

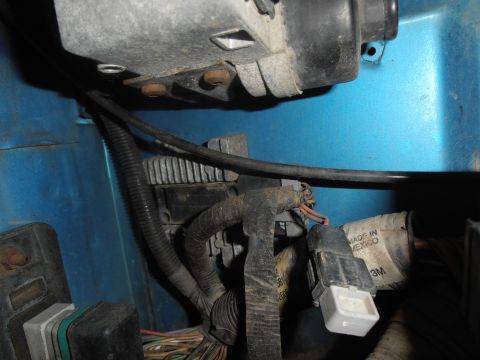

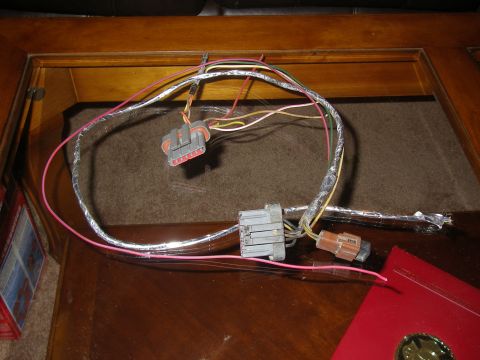

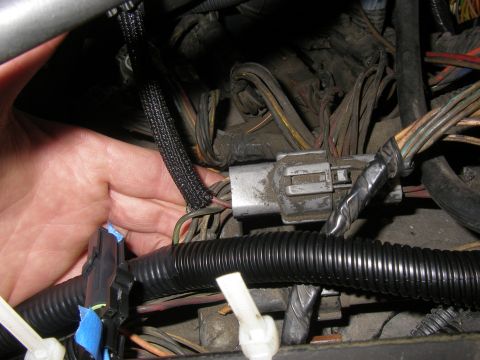

1990 Ford Bronco - MSD 8451 Ford 351W TFI Distrubutor 1990 Ford Bronco - A black electrical connector housing and a group of metal pins are laid out on a white surface. 1990 Ford Bronco - EMI Shielded Wiring 1990 Ford Bronco - Motorcraft TFI ICM DY1077 / 5U2Z-12A297-DA Note that 5U2J-12A297-DA printed on the ICM is an engineering number, not the part number. 1990 Ford Bronco - Ford Aluminum TFI Heat Sink Assembly 1994-95 T-Bird/Cougar 1990 Ford Bronco - Ford Aluminum TFI Heat Sink Assembly (PN F4SF-12B582-AA) 1990 Ford Bronco - Close-up of engine components, focusing on a hand connecting a sensor in the ignition system. 1990 Ford Bronco - Close-up of an engine wiring harness being held by a hand, showing electrical connections. 1990 Ford Bronco - A hand reaches for a connector in a complex engine wiring harness. 1990 Ford Bronco - Close-up of an engine bay showing a hand near a wiring harness and a connector secured with blue tape. 1990 Ford Bronco - Close-up of engine bay wiring, showing a hand manipulating a protective conduit over electrical cables. 1990 Ford Bronco - Close-up of an ignition control module with a heat sink and visible part number. 1990 Ford Bronco - Close-up of an engine bay a K&N air filter and an ignition control module. 1990 Ford Bronco - A close-up view shows a bundle of wires, some with resistors and their specifications printed on the insulation. 1990 Ford Bronco - Close-up of a vehicle's wiring harness with tools and tape, suggesting automotive repair work. 1990 Ford Bronco - Close-up of vehicle wiring and electronic components, with a label indicating 'MADE IN MEXICO'. 1990 Ford Bronco - A packet of Silicone Heat Sink Paste AK100 is shown, with text detailing the product and contact information. 1990 Ford Bronco - Arctic Silver 5 High-Density thermal paste in a syringe applicator. 1990 Ford Bronco - Permatex dielectric tune-up grease is used to protect electrical connections from moisture and corrosion. 1990 Ford Bronco - Arctic Silver 5 and Ceramique thermal pastes are dispensed from syringes onto a small component. 1990 Ford Bronco - Two paint samples, 'Cool Silver' and 'Arctic Silver 5', are displayed on a white background. 1990 Ford Bronco - A computer processor with thermal paste applied in preparation for installation. 1990 Ford Bronco - This tube of Motorcraft compound is used for brake lubrication and dielectric purposes. 1990 Ford Bronco - A white container with the MSD Ignition logo is shown, with its lid open. 1990 Ford Bronco - AGS Dielectric Silicone Compound packaging, designed to moisture-proof electrical connections for cars, trucks, trailers, and marine applic… 1990 Ford Bronco - Silicone dielectric compound in its original packaging, showing part numbers.
