1979 Ford Bronco - Two 175w fuses coming from the battery.

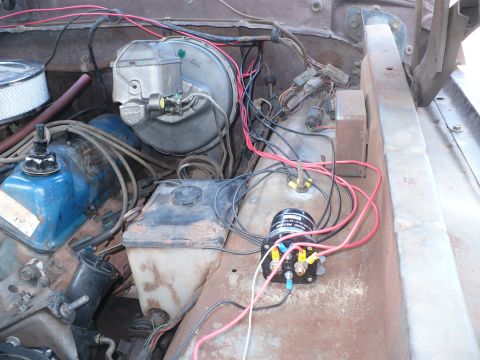

1979 Ford Bronco - 200 amp relay. Power from the battery goes to a fuse box. The other power wire from the battery goes to a switch. From the switch it goes t…

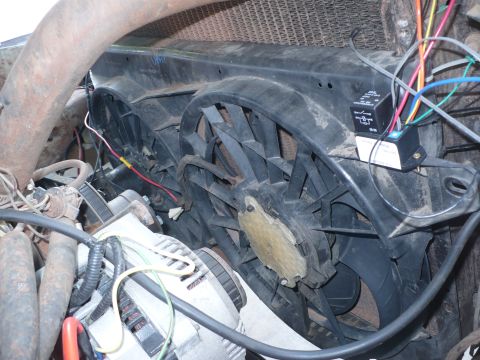

1979 Ford Bronco - Ford Winstar dual electric fan and fan controller with temp senser. Currently have only one fan wired up. Will wire the second fan later.

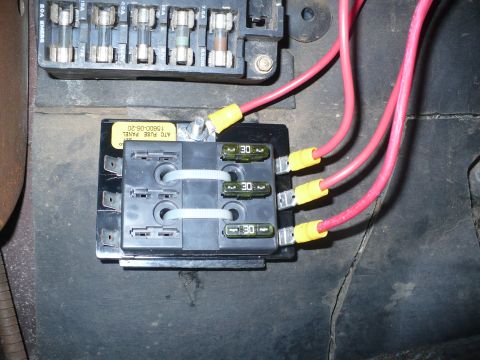

1979 Ford Bronco - Fuse block for gauges. Probably overkill, but couldn't hurt.

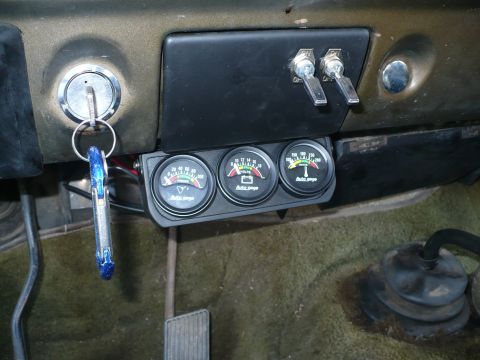

1979 Ford Bronco - Basic small engine temp, volts and oil pressure gauges. Just big enough so I can kep an eye on things. One switch is the cut off for the re…
