First Wreck

From 1993 Ford Bronco “Resurrected THRICE”, documented by Steve83.

48 photos
← Back to this vehicle

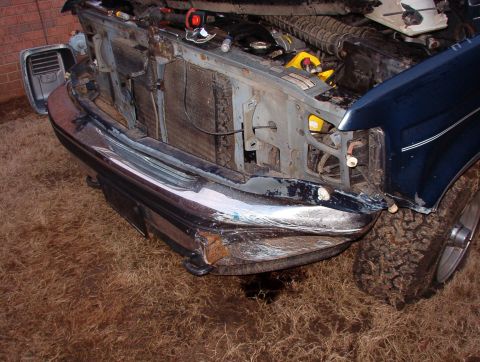

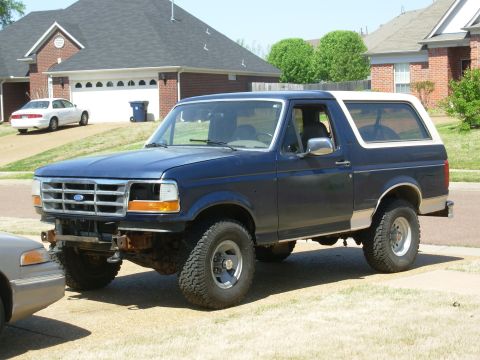

1993 Ford Bronco - Front three-quarter view of a dark blue Ford Bronco with significant front-end collision damage, showing a crushed front bumper, dislodged… 1993 Ford Bronco - Front driver-side 3/4 view of a dark blue Ford Bronco showing significant front-end collision damage, including a crushed front bumper, dam… 1993 Ford Bronco - Close-up of the front-left corner of a dark-colored truck/SUV showing severe collision damage, with a crumpled and buckled chrome bumper, d… 1993 Ford Bronco - Front corner of a dark blue Ford Bronco showing collision damage, with a crushed front bumper, damaged fender, and a rectangular headlight/… 1993 Ford Bronco - Close-up of a dark blue Ford SUV's driver-side showing significant collision damage where the front fender and door meet, with a large gap… 1993 Ford Bronco - Close-up of the damaged front corner of a dark-colored truck/SUV, showing a crumpled chrome bumper, deformed sheet metal, and a chrome-trim… 1993 Ford Bronco - Front three-quarter view of a dark blue Ford truck/SUV with visible front-end collision damage, including a crumpled front bumper, damaged… 1993 Ford Bronco - Close-up of a rusty, weathered metal body panel or bumper support undergoing repair, with grinding marks, bare metal, traces of blue and bl… 1993 Ford Bronco - A friend & I drove to N'ville today to pick it up. 1993 Ford Bronco - A friend & I drove to N'ville today to pick it up. 1993 Ford Bronco - A friend & I drove to N'ville today to pick it up. 1993 Ford Bronco - The L radius arm is bent so far that the (flat) tire hits the firewall. But it's interesting to note that the frame's accordion didn't coll… 1993 Ford Bronco - The bumper is folded around & behind the core support. I hate 2.5mph bumpers. 1993 Ford Bronco - The long tie rod is bent, but the L one appears OK. 1993 Ford Bronco - The radius arm, its bracket, & the frame are all damaged. 1993 Ford Bronco - Pretzel. The radius arm bracket & frame are also damaged. 1993 Ford Bronco - The front d'shaft & t-case seem to be OK, despite the diff being ~4" too far back. I'm not sure where the engine oil leak is, but it's spra… 1993 Ford Bronco - I haven't gotten a thorough look at the tire yet, but I think it's OK. At least good enough for a spare. 1993 Ford Bronco - I hope this is strictly door damage - I don't want to have to change the body tub. 1993 Ford Bronco - The damage actually continues all the way to the rear wheel lip, but I hope it'll tap out back there. The door & fender are goners. 1993 Ford Bronco - The hood, radiator, condenser, fan, wiper valance, grille, axle, shocks, sway bar, R headlight & door appear undamaged. The header panel, b… 1993 Ford Bronco - The hood, radiator, condenser, fan, wiper valance, grille, axle, shocks, sway bar, R headlight & door appear undamaged. The header panel, b… 1993 Ford Bronco - Getting the bumper off the frame & out from behind the core support took some effort. The L light tab on the towing eye mount is severely t… 1993 Ford Bronco - The snow finally melted... 1993 Ford Bronco - The snow finally melted... 1993 Ford Bronco - First real look I've had at the pretzeled radius arm. 1993 Ford Bronco - The drag link's not looking healthy, either. 1993 Ford Bronco - E8TZ-3A292-A less than $100 from the dealership. The bolts holding it on the axle housing took over 250 lb-ft to remove. [url=http://www.su… 1993 Ford Bronco - With the new radius arm installed, the bend in the axle beam became apparent. There should be daylight where the white pointer is. [url=htt… 1993 Ford Bronco - With the new radius arm installed, the axle beam is touching the crossmember, indicating that it's bent, and has to be replaced. [url=http:… 1993 Ford Bronco - So I pulled the axle out & stripped it down. I'll probably buy a used axle assembly & just install the driver's side. The diff also struck… 1993 Ford Bronco - The core support isn't badly damaged, so I'll just straighten it before installing another fender. 1993 Ford Bronco - It took a few hours with some big pry bars & wood blocks, but the core support straightened out pretty well. 1993 Ford Bronco - It took a few hours with some big pry bars & wood blocks, but it came out pretty good. 1993 Ford Bronco - I finally found a useable axle beam from a '93 F150, but its pivot bushing was in worse shape than the Bronco's, so I installed a new one.… 1993 Ford Bronco - I had to strip the pickup axle anyway to swap on the Bronco (4WABS) knuckle. The sensor was ruined during disassembly, but I want to be abl… 1993 Ford Bronco - While it was bare, I washed the axle beam, but I didn't take the diff with me, so it's still filthy. I put the Bronco's original diff back… 1993 Ford Bronco - After a few hours (just before the rain), I got it back on 4 wheels. If the battery wasn't ruined, it'd be driveable. 1993 Ford Bronco - I'll finish tightening all the bolts when I get it to the shop to change that radius arm bracket & straighten the frame flange. There's no… 1993 Ford Bronco - With the replacement axle beam, it became semi-mobile again, so I moved it onto the driveway to install the shocks & a few other things. On… 1993 Ford Bronco - After replacing the radius arm, axle housing, & tie rods, the truck would only steer about 1/4 turn to the R. The spiralling of the splines… 1993 Ford Bronco - This Delco reman steering box was ~$200 wholesale; the MotorCraft was ~$40 more (at the time). I think I paid ~$160 for a reman from Advanc… 1993 Ford Bronco - The original radius arm bracket (Left: E1TZ-3B095-B ; Right F5TZ-3B095-BA) is factory-bolted on, so changing it will probably be easier tha… 1993 Ford Bronco - After painting the door & fender, I discovered that the body was so far out-of-place on the frame that the hood couldn't be aligned. So I h… 1993 Ford Bronco - The weather was so good that I decided to spray the trim color. See the PREVious & NEXT pics. 1993 Ford Bronco - Not perfect, but better than what I started with. See the PREVious 2 pics. [url=http://www.supermotors.net/registry/media/778042] http://ww… 1993 Ford Bronco - I finally got the bumper on, which is when I realized the frame is diamonded by ~2". 1993 Ford Bronco - I don't know how apparent these pics will make it, but the L frame rail (R side of the pic) is about 2" offset rearward. After a week of wo…
