Door Latch Modification

From 1976 Ford Bronco “SOLD Apr22 Bare Frame” — documented by Steve83.

7 photos
← Back to this vehicle

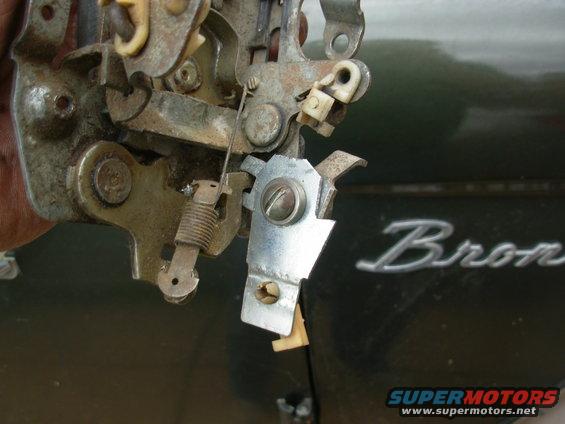

1976 Ford Bronco - Early Bronco Door Latch (Right) IF THE IMAGE IS TOO SMALL, click it. With the lock control UP (unlocked), the lock slide is aligned with th… 1976 Ford Bronco - Because this latch has failed to release the door more than once due to a sticking lock mechanism, it will be modified so the inside handle… 1976 Ford Bronco - A new lever was cut from a steel plate and drilled for the pivot & operating rod. A short sleeve was used to prevent the bolt from clamping… 1976 Ford Bronco - A new lever was cut from a steel plate and drilled for the pivot & operating rod. A short sleeve was used to prevent the bolt from clamping… 1976 Ford Bronco - Pulling the new lever forward forces the auto unlock lever to push the catch down, releasing the jaws. It also pushes the lock slide back,… 1976 Ford Bronco - With the bolt reversed, there is no interference with the lock slide. The nut has red threadlocker to prevent it from vibrating loose. 1976 Ford Bronco - The nut doesn't interfere with the lock slide now, and it has been red-threadlocked. The final steps are to adjust the angle of the new lev…
