C6 tranny skidplate

From 1986 Ford Bronco “Old Desert Goat”, documented by BigNorm.

17 photos
← Back to this vehicle

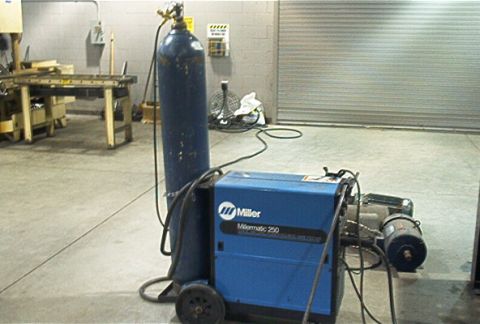

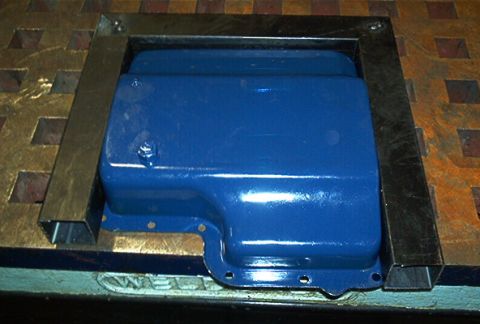

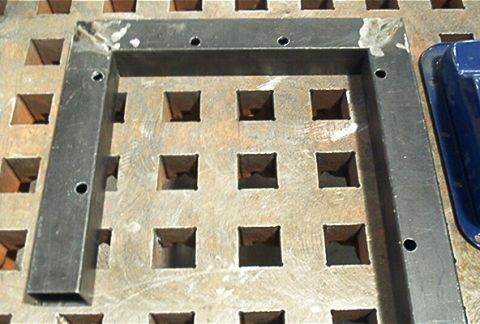

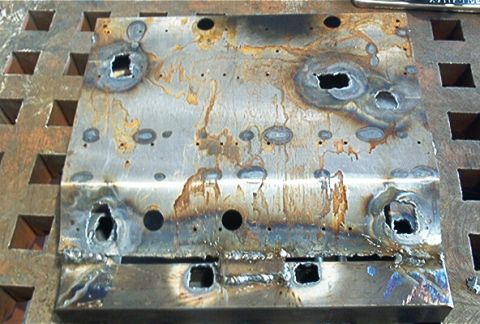

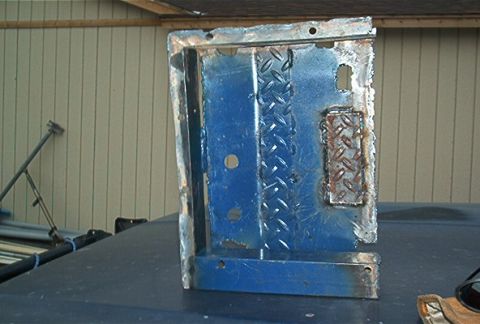

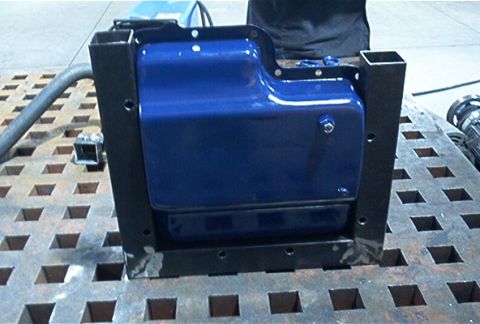

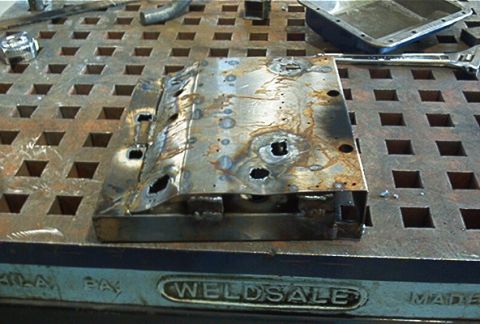

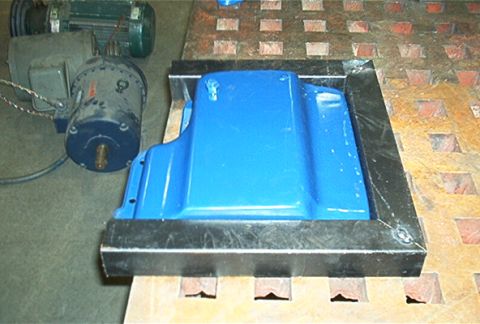

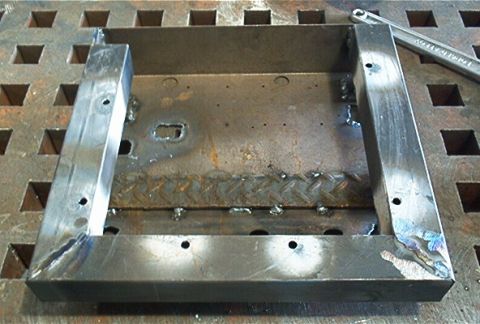

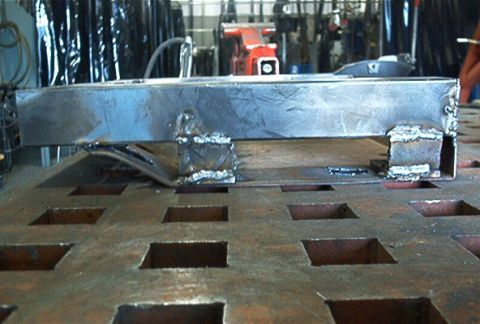

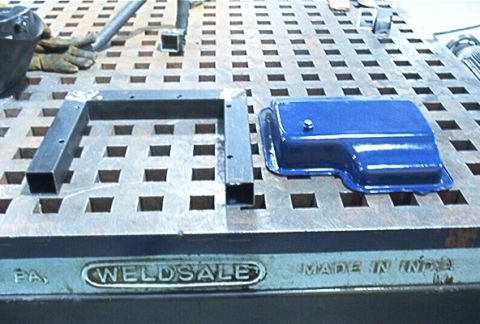

1986 Ford Bronco - steel cut and tacked 1986 Ford Bronco - side pic 1986 Ford Bronco - Fabricated U-shaped mounting frame welded from flat bar and square tubing, drilled with bolt holes and laid out on a slotted steel welding… 1986 Ford Bronco - Gloss blue fuel or fluid tank mounted in a black powder-coated steel skid frame, sitting on a slotted steel welding table with a person sta… 1986 Ford Bronco - My dream machine. 1986 Ford Bronco - A glossy blue-painted stamped steel valve cover sits on a slotted Weldsale welding table next to a bare black square-tube bracket tacked in… 1986 Ford Bronco - Custom metal bracket fabricated and placed on a workbench, with a wrench nearby. 1986 Ford Bronco - A fabricated bare-steel bumper or crossmember section sits on a slotted steel welding table, showing fresh MIG weld beads at the gusset and… 1986 Ford Bronco - A fabricated steel bracket or mount plate, drilled with several bolt holes and showing heat discoloration and weld beads along its edges, r… 1986 Ford Bronco - I got a little crazy with the fire axe. Yeah I know. My Torch work could use some finesse. 1986 Ford Bronco - Finished without paint. I had to trim down the exhaust side and take 3" off the back to clear the xmember and I trimmed the front to clear… 1986 Ford Bronco - Tranny pan installed with 6 studs to mount the skidplate. 1986 Ford Bronco - Oops! I forgot about the linkage 1986 Ford Bronco - That should do it! 1986 Ford Bronco - Uhh. Not quite. Dammit! 1986 Ford Bronco - Finally! Done! I'm not lying this time. :) 1986 Ford Bronco - Underbody view of a blue-painted skid plate or transmission crossmember bolted between rusty frame rails, with a large ball joint or shock…
