High Steer

From 1986 Ford Bronco “Old Desert Goat”, documented by BigNorm.

19 photos
← Back to this vehicle

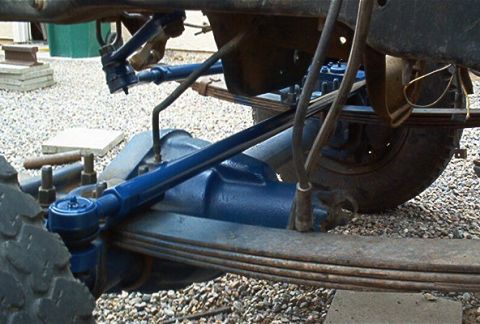

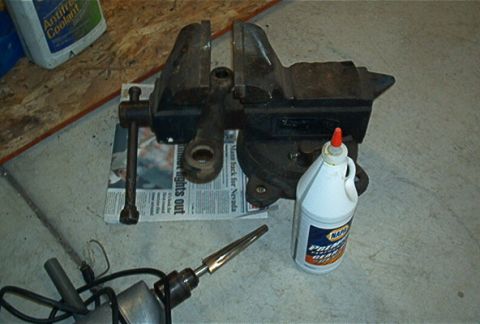

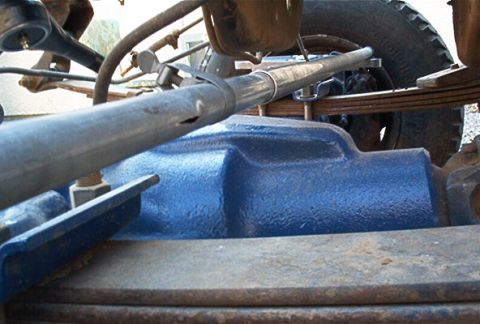

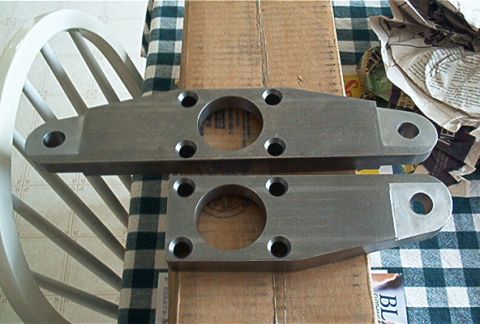

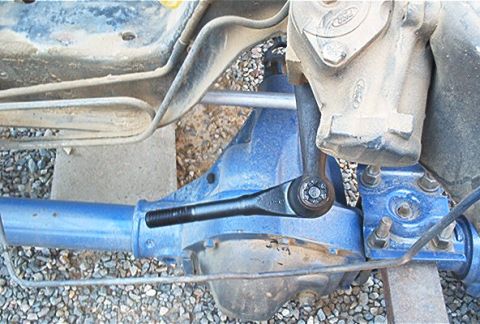

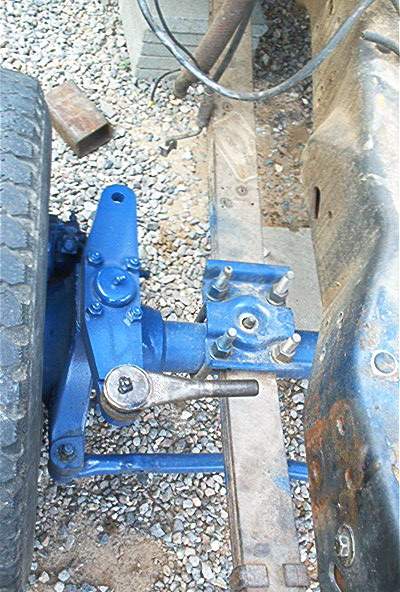

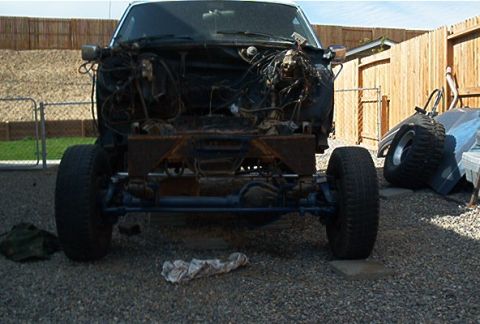

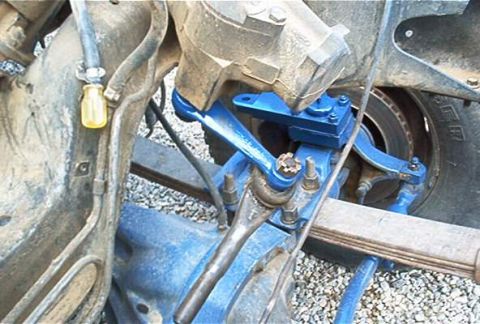

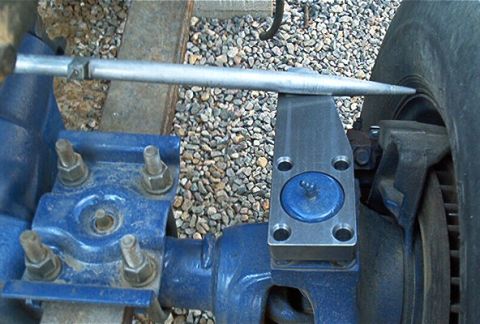

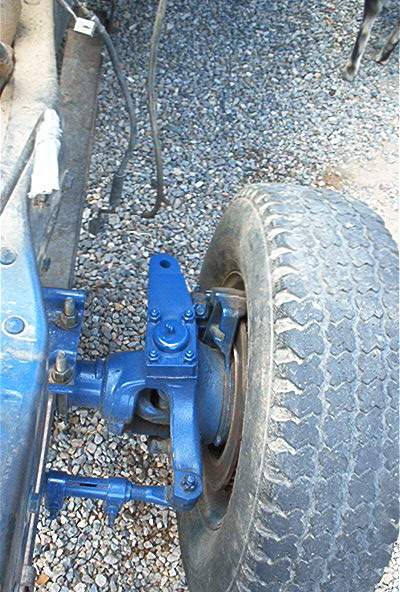

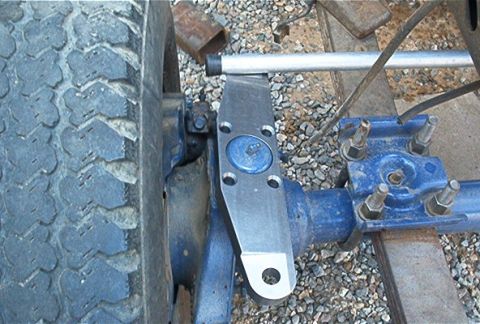

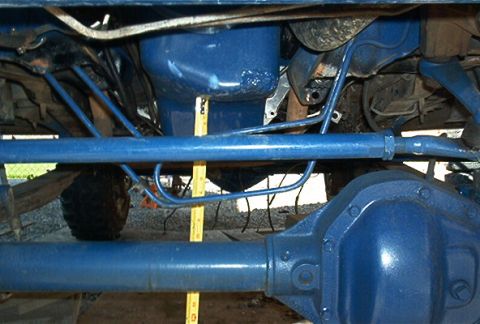

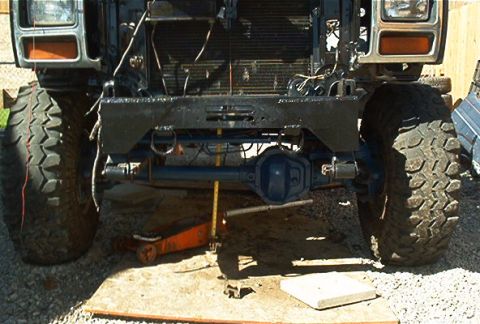

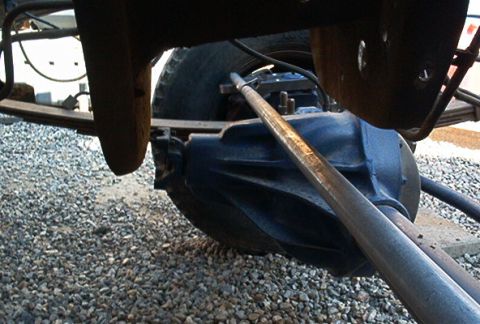

1986 Ford Bronco - Here's my High Steer arms from WFO. http://www.wfoconcepts.com/ is Trevor's website. Trevor was a pleasure to do business with. He took tim… 1986 Ford Bronco - Getting set up to ream my pitman arm to accept Chevy Drag link ends. 1986 Ford Bronco - Pic of the ole goat 1986 Ford Bronco - Pic of the Pass side arm mocked up. I'll be using Chevy Studs and nuts as well as Chevy TREs 1986 Ford Bronco - Pic of the drivers side mocked up 1986 Ford Bronco - Look! It's a Chevy TRE on a Ford Arm! OH the inhumanity. Oh, did I mention I'm not a purist? 1986 Ford Bronco - BigNorm's tent pole clearance test. Patent pending. 1986 Ford Bronco - Under-vehicle view from ground level of a solid front axle differential housing and pumpkin, painted dark blue, with a rusty steel tie rod… 1986 Ford Bronco - Overhead view of a freshly painted blue steering box and pitman arm mounted to the frame rail of a truck, with the drag link/tie rod end at… 1986 Ford Bronco - Close-up of a blue-painted solid front axle knuckle and steering arm assembly with the hub and brake rotor exposed, photographed over grave… 1986 Ford Bronco - I reamed the Pitman arm to accept a Chevy Drag Link End. I got the ends from Pick n Pull for $12 total. Napa wanted $36 ea and that's the d… 1986 Ford Bronco - Close-up of a blue high steer suspension component attached to a vehicle's leaf spring and frame. 1986 Ford Bronco - Finally! It's done... Steering that is. 1986 Ford Bronco - Low-angle close-up of a blue-painted solid front axle with leaf springs, showing the differential housing, blue tie rod and drag link with… 1986 Ford Bronco - The underside of a vehicle shows its suspension system and frame, with a large tire dominating the foreground. 1986 Ford Bronco - Overhead view of a bare truck frame on gravel with a freshly painted blue Dana front axle housing, blue radius arms and blue tie rod/drag l… 1986 Ford Bronco - After chopping the xmember this is all the space I have left between the tie rod and the oil pan. About 3 1/2" 1986 Ford Bronco - Underside view of a truck chassis with the axle housing, differential cover, track bar and frame crossmember all painted gloss blue, with a… 1986 Ford Bronco - Front view of a 1986 Ford Bronco's suspension and axle, large off-road tires and a custom bumper.
